ERP System Application in the Electronics Industry |
Part 17: Typical Application Scenario Examples (II) |
Integrated ERP + Barcode Workflows Across Manufacturing Operations |
In Part 16, we covered how barcode technology integrates with ERP across material handling, SMT verification, WIP tracking, warehouse operations, and compliance control. |
Part 17 focuses on end-to-end real-world execution scenarios, showing how ERP and barcode systems work together across multiple departments in a real electronics factory environment. |
These scenarios are not isolated functions they are continuous digital workflows spanning planning, production, quality, logistics, and finance. |
|
126. Scenario 11: Full Material-to-Production Traceability Workflow |
126.1 Incoming Material Reception |
A shipment arrives from a semiconductor supplier containing IC components. |
ERP process begins: |
* Purchase order is matched automatically |
* Each reel is scanned using barcode or DataMatrix |
* ERP records: |
* Supplier ID |
* Lot number |
* Quantity |
* RoHS compliance status |
* Date code |
At this stage, ERP creates a fully traceable material record. |
|
126.2 Warehouse Storage and Location Binding |
After scanning: |
* ERP assigns storage locations (bin, rack, shelf) |
* Each location has a barcode label |
* Movement is tracked via scanning at every transfer |
This ensures: |
* Real-time inventory visibility |
* Prevention of misplaced materials |
* Fast retrieval for production |
|
126.3 Production Material Request |
When SMT production starts: |
* ERP generates material picking list |
* Warehouse operators scan component barcodes |
* System verifies: |
* Correct part number |
* Correct batch |
* Correct quantity |
Only validated materials are issued to production. |
|
126.4 SMT Line Verification |
Before installation: |
* Operators scan each reel at feeder station |
* ERP checks BOM match and program compatibility |
* If mismatch occurs, system blocks production start |
This prevents critical assembly errors at the source. |
|
126.5 Final Traceability Link Creation |
ERP links: |
* Component batch PCB serial number finished product |
This creates full lifecycle traceability used later for: |
* RMA |
* Recall management |
* Quality audits |
|
127. Scenario 12: SMT Production Execution with Barcode Control |
127.1 Production Order Release |
ERP releases a work order: |
* Product: Industrial Controller PCB |
* Quantity: 10,000 units |
* Line: SMT Line 2 |
Barcode-based instructions are generated automatically. |
127.2 Line Setup and Feeder Loading |
Operators: |
* Scan feeder IDs |
* Scan component reels |
* Confirm ERP-generated loading sheet |
ERP validates: |
* Correct feeder assignment |
* Correct BOM version |
* Correct component orientation rules |
|
127.3 Real-Time Machine Data Collection |
SMT machines send data to ERP: |
* Placement counts |
* Error rates |
* Pick failures |
* Component usage |
Each PCB is associated with a scanned production batch ID. |
127.4 Quality Gate Scanning |
At AOI or inspection stations: |
* Each PCB is scanned |
* ERP records pass/fail status |
* Defective units are tagged automatically |
This creates digital quality traceability per unit. |
127.5 Production Completion Recording |
At final stage: |
* Finished boards are scanned into ERP |
* Inventory is updated automatically |
* Production order is closed |
|
128. Scenario 13: Multi-Stage WIP Tracking Across Departments |
128.1 Stage 1: SMT Assembly |
Each PCB receives a barcode ID at SMT start. |
ERP tracks: |
* Start time |
* Completion time |
* Component usage |
128.2 Stage 2: DIP / Manual Assembly |
Boards move to manual soldering: |
* Barcode is scanned at entry and exit |
* Operator ID is recorded |
* Work time is tracked |
|
128.3 Stage 3: Functional Testing |
At testing station: |
* Each unit is scanned |
* Test results are recorded |
* Failures are categorized |
ERP links failure data to production history. |
128.4 Stage 4: Packaging |
At packaging: |
* Final barcode label is applied |
* Serial number is assigned |
* Compliance and shipping data embedded |
ERP completes the transformation from WIP Finished Goods. |
|
129. Scenario 14: Barcode-Based RMA Investigation Workflow |
129.1 Customer Return Identification |
Customer returns a defective device. |
ERP process: |
* Barcode serial number is scanned |
* System retrieves: |
* Production batch |
* SMT line |
* Component history |
* Test records |
129.2 Failure Diagnosis |
Technician scans: |
* Product barcode |
* Internal component barcodes (if disassembled) |
ERP identifies: |
* Suspected component batch |
* Assembly line history |
* Previous failure trends |
|
129.3 Root Cause Correlation |
ERP compares: |
* Other products using same component batch |
* Similar production time window |
* Same SMT program version |
This enables batch-level failure identification. |
129.4 Repair Decision Execution |
ERP triggers: |
* Repair order |
* Component replacement request |
* Cost allocation |
Barcode scanning ensures every step is recorded. |
|
130. Scenario 15: Warehouse Cycle Count and Inventory Audit |
130.1 Cycle Count Preparation |
ERP generates: |
* Inventory count list |
* Storage location map |
* Barcode scan requirements |

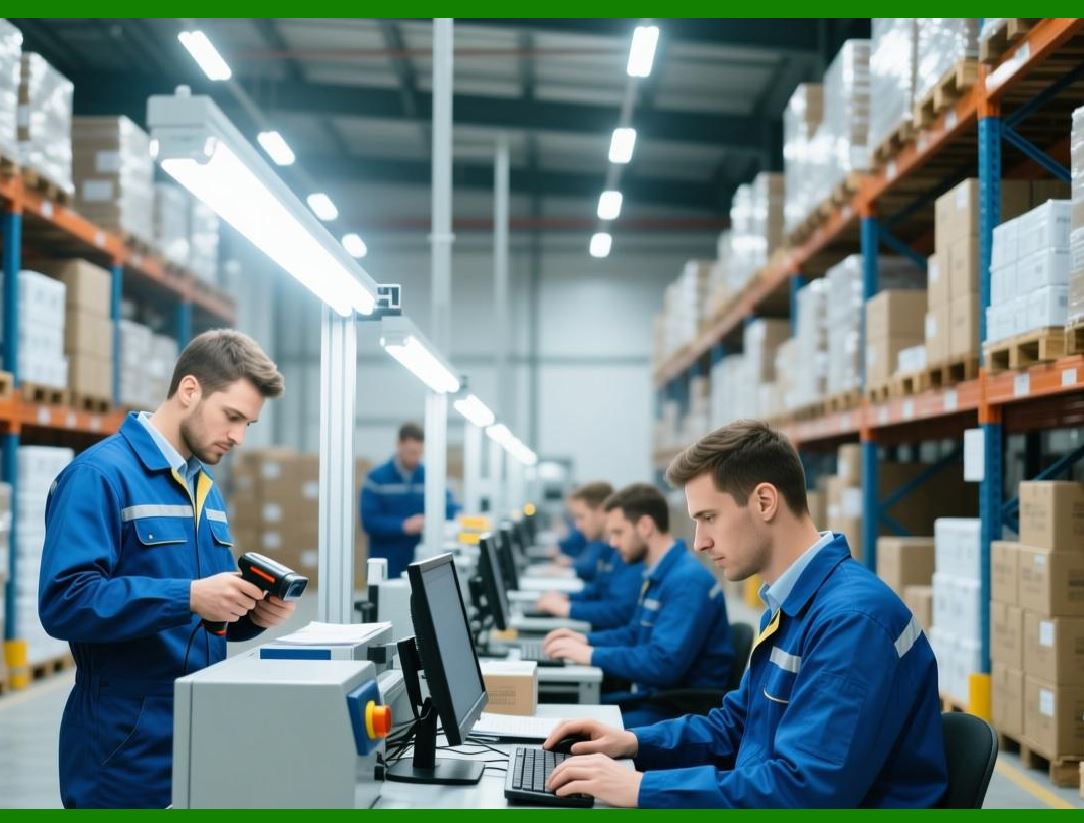

130.2 Barcode-Based Counting |
Warehouse staff: |
* Scan location barcode |
* Scan each material reel or item |
* Confirm quantity |
ERP updates inventory instantly. |
130.3 Discrepancy Handling |
If mismatch occurs: |
* ERP flags deviation |
* Requires supervisor approval |
* Logs correction reason |
130.4 Audit Report Generation |
ERP produces: |
* Inventory accuracy report |
* Loss/gain analysis |
* Historical comparison |
This ensures financial and operational transparency. |
|
131. Scenario 16: Cross-Factory Material Transfer |
131.1 Transfer Request Creation |
Factory A requests components from Factory B. |
ERP generates transfer order. |
131.2 Barcode-Based Shipping |
At dispatch: |
* Each item is scanned |
* ERP logs: |
* Batch number |
* Quantity |
* Transport container ID |
131.3 Inbound Verification |
Factory B receives materials: |
* Scans incoming barcodes |
* ERP verifies completeness |
* Updates inventory automatically |
131.4 Full Traceability Maintenance |
ERP maintains: |
* Inter-factory movement history |
* Batch integrity |
* Compliance tracking |
|
132. Scenario 17: Shipment and Customer Delivery Tracking |
132.1 Packing Stage |
Each product is: |
* Scanned |
* Assigned serial number |
* Packed with barcode label |
ERP generates shipping documentation. |
132.2 Logistics Handover |
At carrier pickup: |
* Shipment barcode scanned |
* Tracking number assigned |
* ERP updates shipping status |
132.3 Customer Receipt Confirmation |
Upon delivery: |
* Barcode tracking confirms receipt |
* ERP closes sales order |
* Warranty period begins |
132.4 Post-Delivery Traceability |
If issues arise: |
ERP can trace: |
* Production batch |
* Components used |
* Testing history |
* Shipping conditions |
|
133. Strategic Value of Integrated ERP + Barcode Scenarios |
Across all scenarios, the integration delivers: |
133.1 End-to-End Traceability |
From: |
Supplier Warehouse SMT Assembly Shipment Customer RMA |
133.2 Real-Time Operational Control |
ERP receives live updates from: |
* Scanners |
* SMT machines |
* Warehouse systems |
* Repair stations |
133.3 Error Elimination |
Barcode scanning reduces: |
* Manual entry mistakes |
* Wrong component usage |
* Shipment errors |
133.4 Quality and Compliance Assurance |
Supports: |
* RoHS verification |
* Lead-free validation |
* Batch-level recall capability |
133.5 Financial Accuracy |
ERP ensures: |
* Correct inventory valuation |
* Accurate cost allocation |
* Real-time profitability analysis |
|
Technical Content Summary of Part 17 |
Part 17 provided real-world integrated scenarios of ERP and barcode usage in electronics manufacturing, covering end-to-end operational flows. |
Key technical points: |
1. Full material-to-production traceability using barcode scanning at every stage. |
2. SMT production execution with real-time ERP validation of feeders, components, and machine data. |
3. Multi-stage WIP tracking across SMT, DIP, testing, and packaging. |
4. Barcode-driven RMA investigation linking failures to production batches and component history. |
5. Warehouse cycle count and inventory audit using real-time barcode scanning. |
6. Cross-factory material transfer with complete traceability and ERP synchronization. |
7. Shipment and logistics tracking from packing to customer delivery confirmation. |
8. Strategic benefits including traceability, real-time control, error reduction, compliance assurance, and financial accuracy. |
|
In Part 18, we will continue with Key Implementation Points and Common Misconceptions, focusing on real-world ERP deployment challenges in electronics manufacturing, including system architecture design, data governance, user adoption issues, integration pitfalls, and best-practice implementation strategies. |
