The history of Code11 barcode

What is the historical origin of the Code11 barcode?

The Code 11 barcode is a barcode symbol mainly used in the telecommunications field. It was developed by Intermec in 1977 to meet the special application requirements of high information density matrices.

Its name comes from the fact that it can encode 11 characters, including the digits 0 to 9 and a dash (-), as well as a start/stop character, usually printed as "*". Its structure is similar to the matrix of 2/5.

In what industries is Code11 barcode used?

Code 11 barcodes are mainly used in the telecommunications field, such as identifying telephone lines, switches, etc. It can also be used to mark inventory, serial numbers, etc.

An example of a Code 11 barcode application is the labeling of telecommunications equipment, where it can be used to represent the device's serial number or other information. For example, a Code 11 barcode could represent a string like this: 123-456789. This barcode consists of 12 characters, including the start and end symbols (*), and each character consists of 5 lines, 3 black lines and 2 white lines.

The reason why Code 11 barcodes are used in the telecommunications field is because it can efficiently encode large amounts of digital information and has high reliability and error tolerance because it has two check digits, which improves reliability and error tolerance.

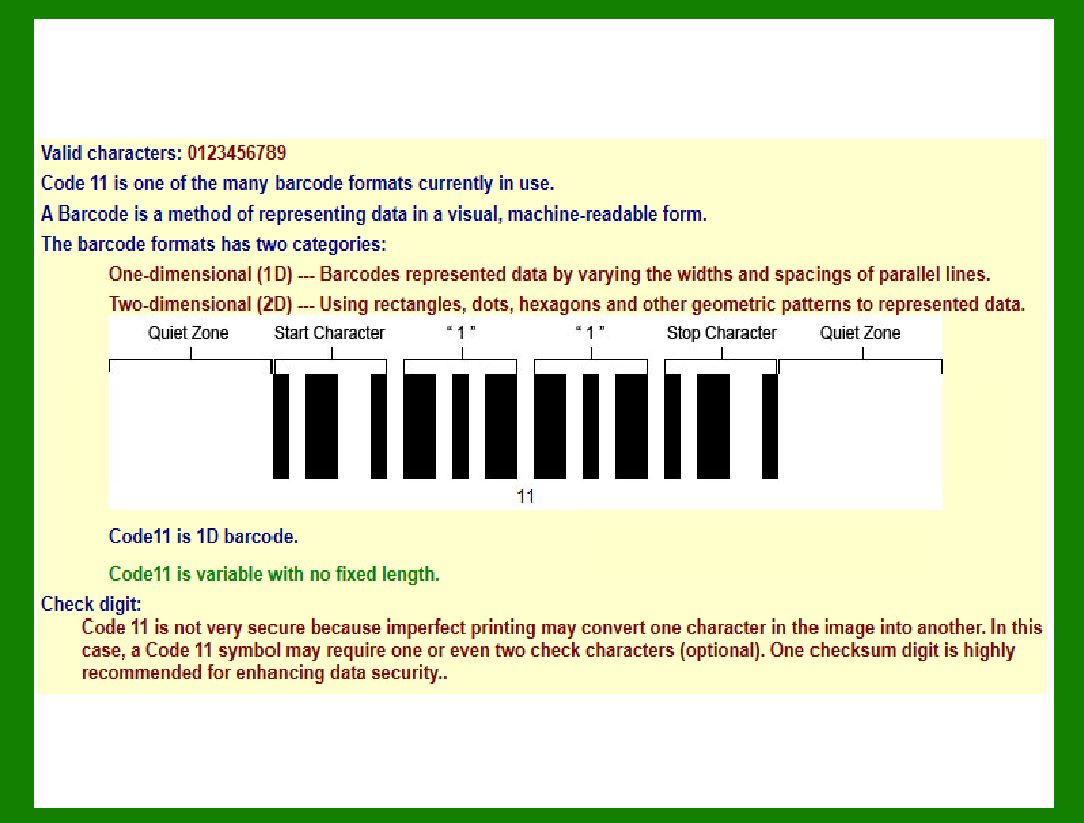

Structural characteristics of Code11 barcode?

Each character is composed of 3 black lines (bar) and 2 white lines (space), which is a 5-line encoding method. There are 2 thick lines and 3 narrow lines, or 1 extra large thick line and 4 narrow lines.

This symbol can encode an arbitrary length string consisting of the digits 0¨C9 and the dash character (-). The twelfth code represents the start/end character, usually printed as "*". Can contain one or two modulo 11 check digits.

It is a discrete binary symbol system in which each number consists of three bars and two spaces; a single narrow space separates consecutive symbols.

The width of numbers is not fixed; three-digit numbers (0, 9, and -) are 1 element wide, while other numbers are 2 elements wide.

Valid code has a wide bar and may have an additional wide element (bar or space).

It uses parity bits and weighted check bits to improve reliability.

It is suitable for special application requirements of high information density matrices.
