The technical aspects of barcode readers

These devices play a crucial role in capturing barcode data and ensuring efficient and accurate information retrieval.

The major types of barcode readers and how they work:

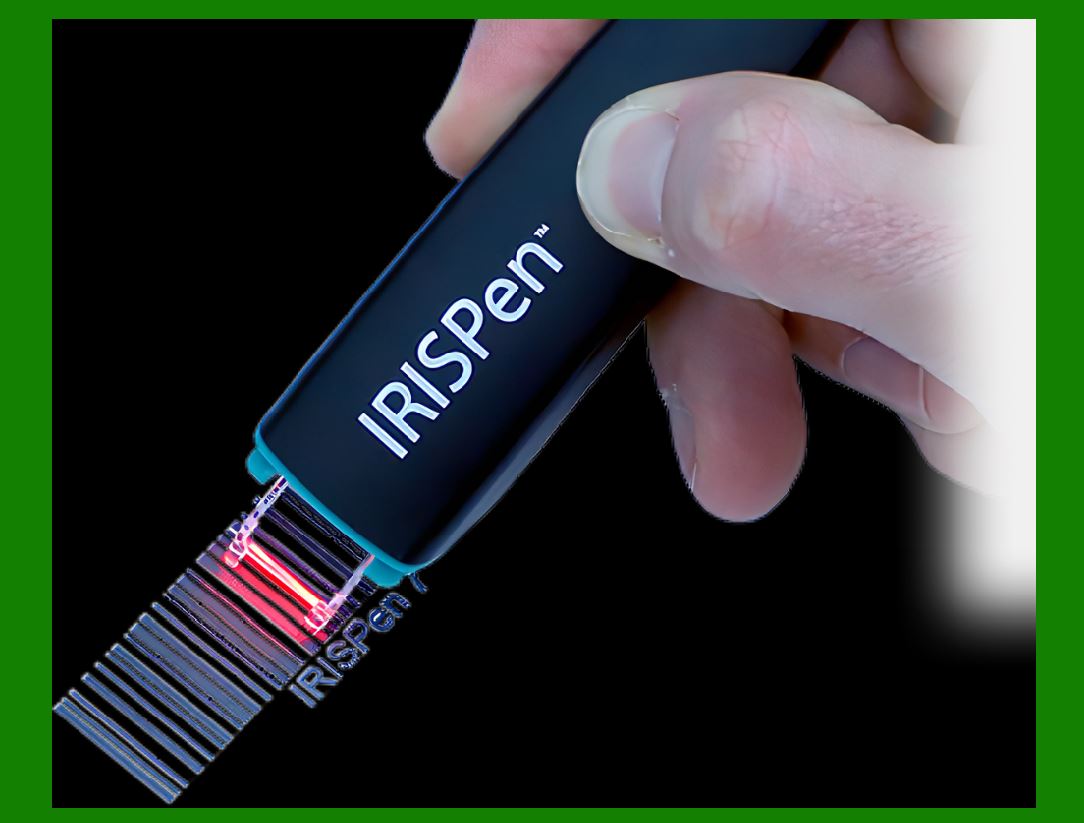

1. Pen-Type Readers:

These handheld devices resemble wands. At the tip of the pen, there's a light source and a photodiode.

To read a barcode, the user moves the pen's tip across the bars at a relatively uniform speed.

The photodiode measures the intensity of light reflected back from the barcode. Dark bars absorb light, while white spaces reflect it.

The resulting voltage waveform represents the barcode's pattern, similar to decoding Morse code dots and dashes.

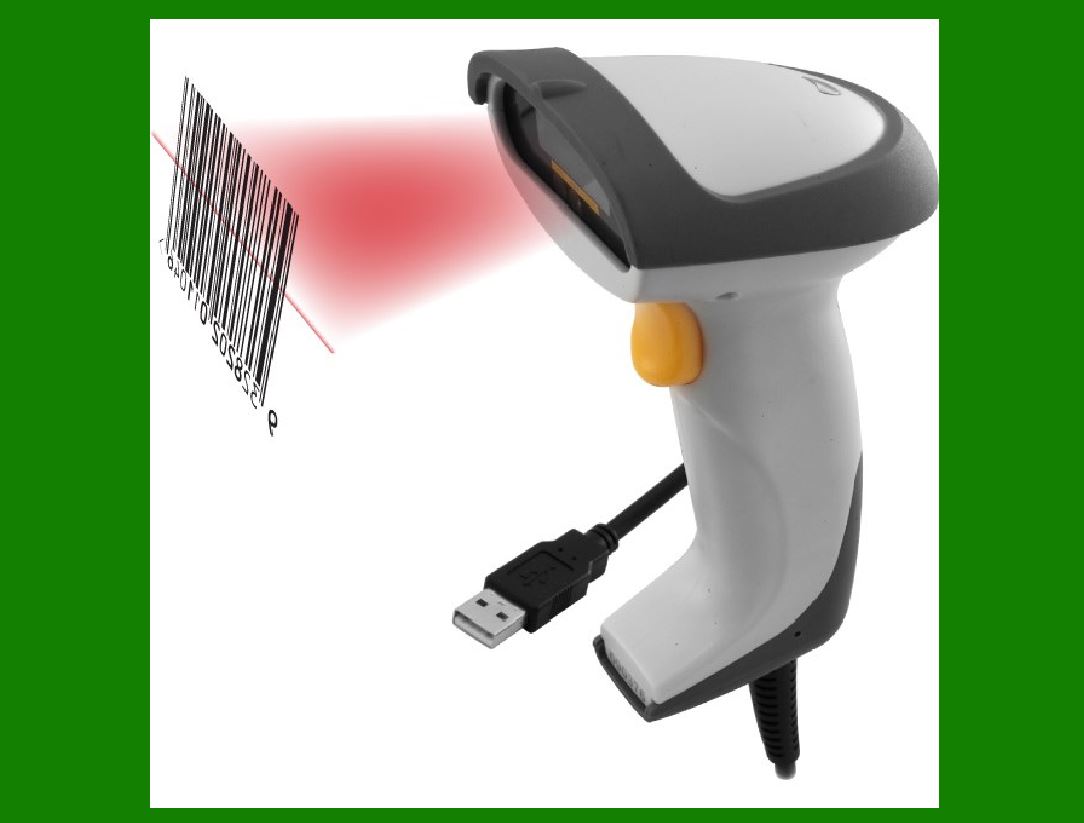

2. Laser Scanners:

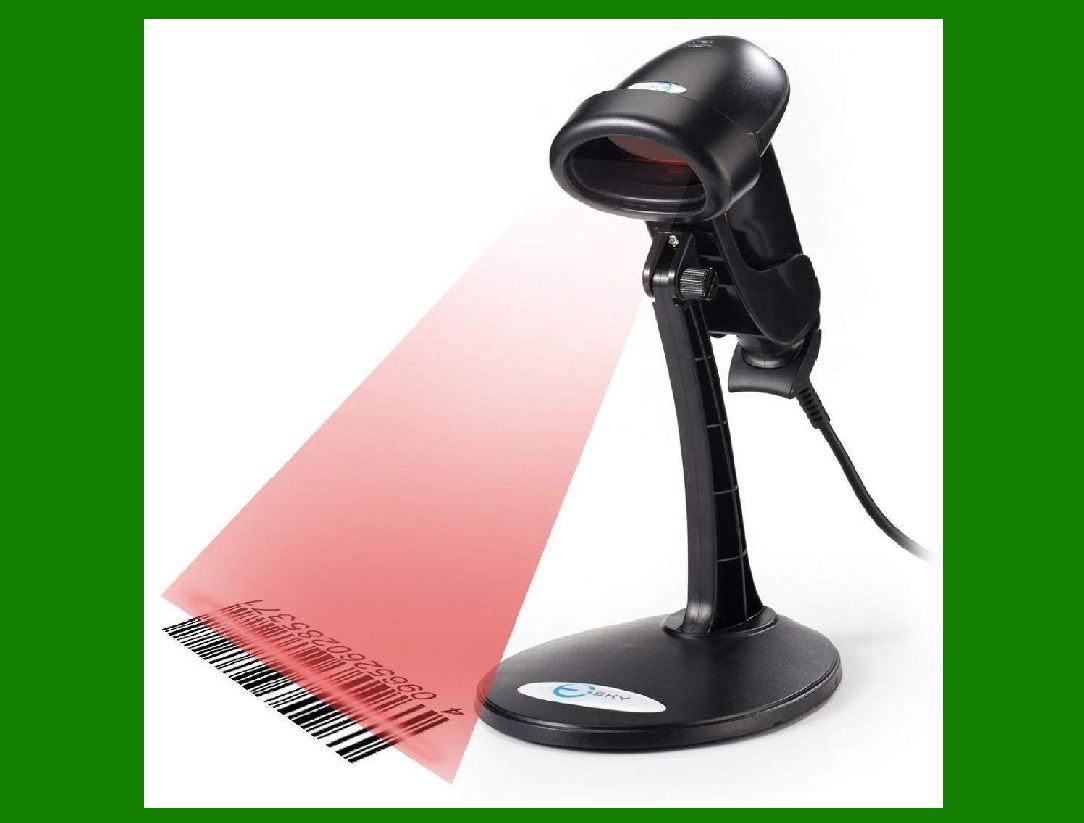

Laser barcode scanners use a semiconductor laser diode to produce a laser beam.

The beam is directed by a deflection mirror onto a polygon mirror wheel.

The scanner deflects the laser beam line by line over the barcode at frequencies between 200 Hz and 1200 Hz.

Oscillating mirrors allow scanning of stationary items at different orientations.

A photodetector receives the reflected light, rapidly varying in brightness with the data pattern, and converts it into an electrical signal for decoding.

CCD Readers (Charge-Coupled Device):

CCD readers use an array of tiny light-sensitive diodes to capture barcode images.

When the barcode is illuminated, the diodes generate an electrical charge proportional to the light intensity.

The charge is then converted into digital data for decoding.

CCD readers are reliable and cost-effective for short reading distances.

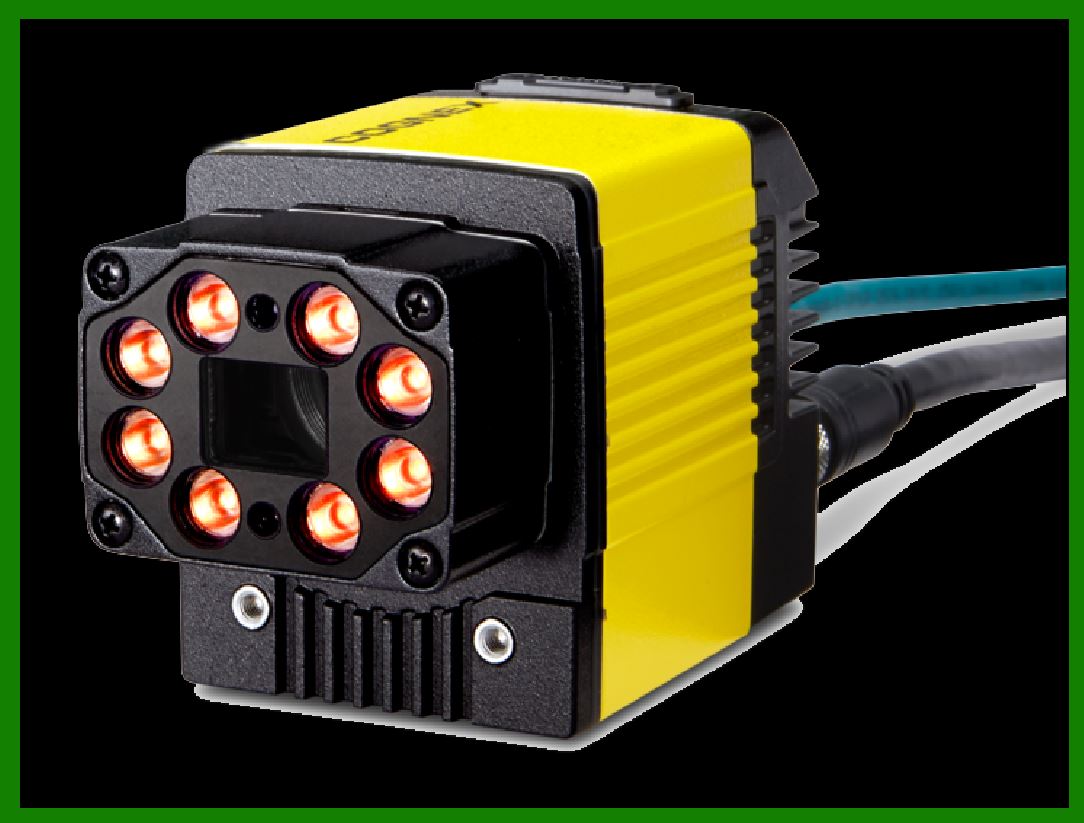

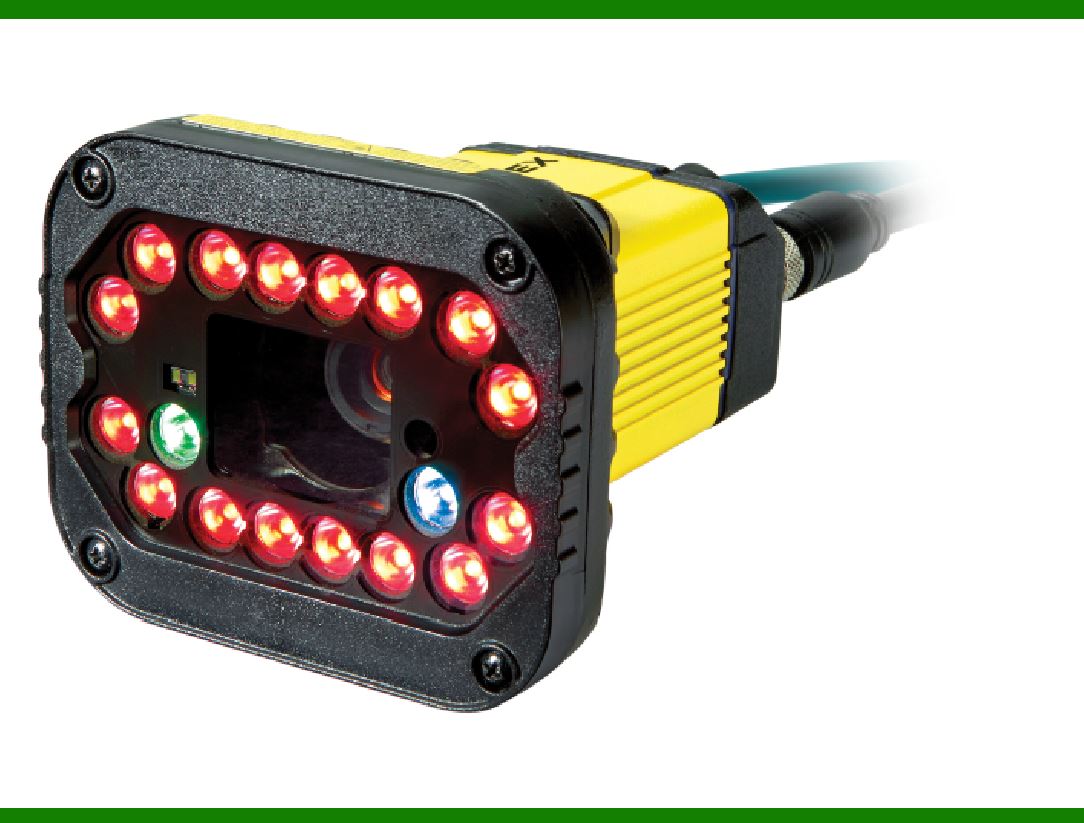

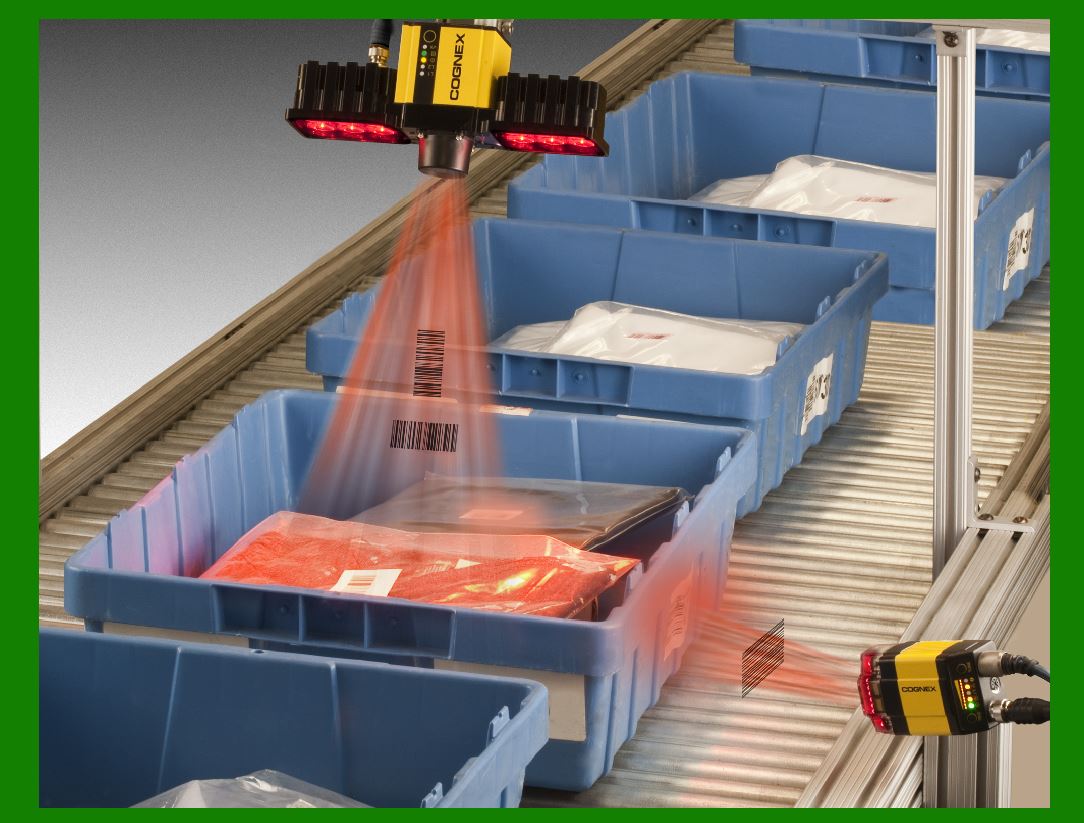

3. Camera-Based Readers:

These readers use cameras (such as smartphone cameras) to capture barcode images.

Advanced algorithms process the image to extract barcode data.

Camera-based readers are versatile and can handle various barcode types, including 2D codes like QR codes.

In summary, barcode readers consist of a light source, a lens, a sensor, and a decoder. They illuminate the barcode, capture reflected light, and convert it into an electrical signal for decoding. Whether it's a pen-type reader, a laser scanner, or a camera-based system, these devices enhance efficiency and accuracy in various applications, from inventory management to product authentication.
