Part 6: Comparative Synthesis, Best Practices, and Future Directions |
51. Comparative Synthesis of Error Correction Strategies Across 2D Codes |
51.1 Philosophical Differences Between Symbologies |
Different 2D barcode symbologies reflect distinct philosophical approaches to error correction. |
Some symbologies emphasize user control, allowing explicit selection of error correction levels. Others emphasize system consistency, enforcing fixed or implicit redundancy determined by symbol size. |
These choices reflect assumptions about user expertise, deployment environments, and typical failure modes. |
|
51.2 User-Selectable Versus Implicit Error Correction |
User-selectable error correction levels offer flexibility but require knowledge and judgment. Misconfiguration is possible, especially in non-expert settings. |
Implicit error correction simplifies deployment and reduces configuration errors, but it may be suboptimal in specialized or extreme conditions. |
Neither approach is universally superior; suitability depends on application context. |

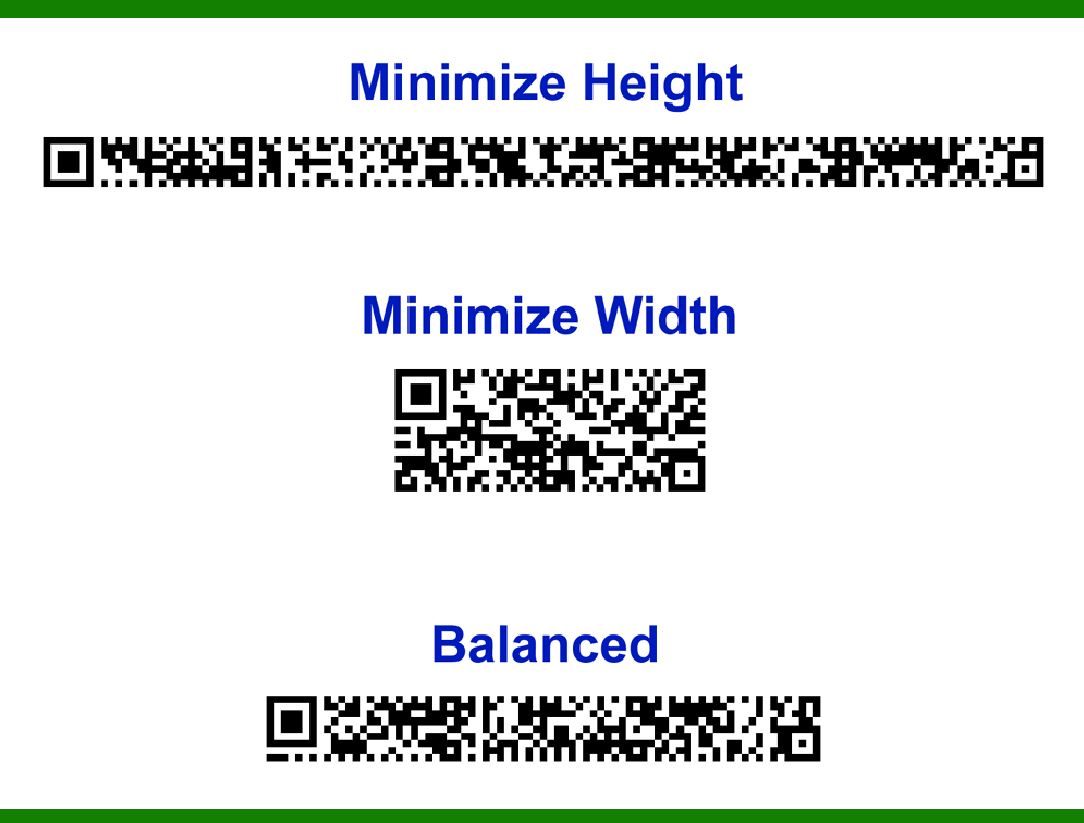

51.3 Discrete Levels Versus Continuous Percentages |
Discrete levels simplify decision-making and standardization but may not provide fine-grained optimization. |
Percentage-based or scalable models allow precise tuning of redundancy but increase encoder complexity and decision burden. |
In practice, most applications cluster around a small number of commonly effective redundancy ranges. |
|
52. Best-Practice Heuristics for Error Correction Level Selection |
52.1 Defaulting Toward Reliability |
When uncertainty exists, best practice favors selecting a higher error correction level rather than a lower one. |
The cost of occasional decoding failure often exceeds the cost of slightly larger symbols or reduced data capacity. |
52.2 Avoiding Theoretical Extremes |
Designers should avoid both extremes: |
Choosing minimal error correction solely to reduce symbol size |
Choosing maximal error correction without regard for module size or scanner capability |
Balanced designs consistently outperform theoretical optima in real-world conditions. |
52.3 Matching Error Correction to the Weakest Link |
Error correction should be chosen based on the weakest element in the system, such as: |
Lowest print resolution |
Worst expected lighting |
Least capable scanner |
Most aggressive handling condition |
Designing for the best-case scenario leads to brittle systems. |
|
53. Integration of Error Correction With Overall Symbol Design |
53.1 Error Correction Cannot Fix Structural Errors |
Error correction cannot compensate for: |
Insufficient quiet zones where required |
Damaged finder or alignment patterns |
Modules printed below minimum size thresholds |
These are structural failures rather than recoverable data errors. |
53.2 Complementary Role of Contrast and Modulation |
High contrast and clean edges reduce the raw error rate, allowing error correction to operate within its intended capacity. |
Poor contrast increases noise and consumes error correction margin unnecessarily. |
53.3 Placement and Orientation Considerations |
Symbol placement that minimizes glare, distortion, and occlusion reduces reliance on high error correction levels. |
Good placement is often more effective than increased redundancy. |
|
54. Error Correction and Interoperability |
54.1 Multi-Vendor Decoding Environments |
In ecosystems where symbols must be decoded by devices from multiple vendors, conservative error correction levels improve interoperability. |
Different decoders vary in image processing quality, error modeling, and tolerance thresholds. |
54.2 Legacy Equipment Compatibility |
Older scanners may struggle with very dense symbols, even if error correction is high. |
Backward compatibility often favors moderate redundancy combined with larger module size. |
|
55. Testing Methodologies for Error Correction Validation |
55.1 Beyond Ideal Conditions |
Testing must include degraded conditions rather than only pristine samples. |
Representative testing includes: |
Intentional scratches |
Partial occlusion |
Reduced contrast |
Off-angle scanning |
55.2 Controlled Destructive Testing |
Gradually damaging symbols and recording decode success provides practical insight into effective error correction margins. |
This empirical approach often reveals nonlinear failure behavior. |
55.3 Longitudinal Testing |
Testing symbols over time, rather than immediately after printing, reveals degradation-related failure modes that error correction is meant to address. |
|
56. Common Myths About Error Correction Levels |
56.1 Higher Error Correction Always Means Better |
This is false. |

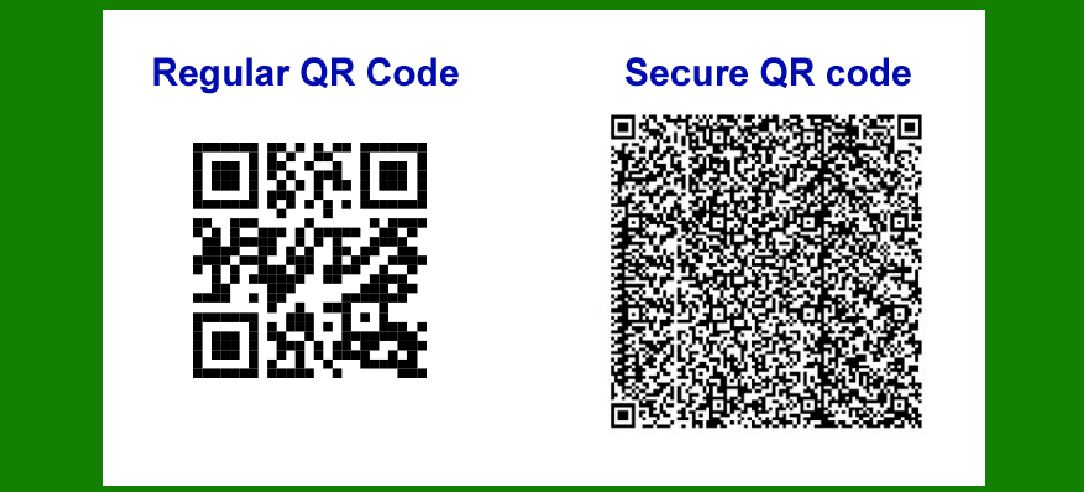

Excessive error correction can increase symbol density to the point where scanners fail before error correction can be applied. |
56.2 Error Correction Compensates for Any Damage |
Error correction compensates for data loss, not structural or detection failure. |
If a symbol cannot be detected or aligned, error correction never comes into play. |
56.3 All Error Correction Is the Same |

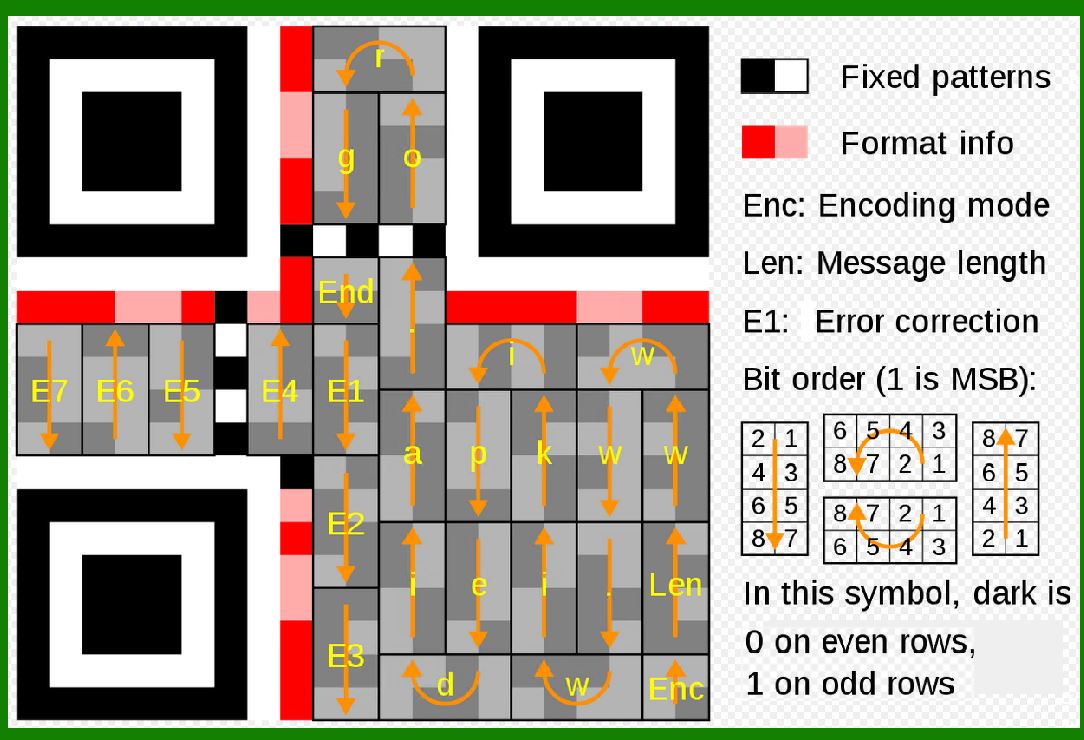

Different symbologies implement error correction differently, with varying assumptions about error distribution, block size, and interleaving. |
|
57. Future Trends in Error Correction for 2D Codes |
57.1 Smarter Decoders |
Advances in image processing and machine learning allow decoders to better classify uncertain modules, reducing reliance on brute-force redundancy. |
This effectively increases usable error correction capacity without changing the symbol. |
57.2 Adaptive Encoding Systems |
Future systems may automatically select error correction levels based on detected printer capability, substrate type, and intended scanning device. |
This reduces human error and improves overall reliability. |
57.3 Hybrid Physical-Digital Redundancy |
Some emerging systems combine physical error correction with digital redundancy, such as database cross-checks or checksum verification after decoding. |
This layered approach further reduces the risk of silent failure. |
|
58. Error Correction in the Context of Evolving Use Cases |
58.1 Consumer Scanning Growth |
As smartphone scanning continues to dominate, higher error correction levels will remain common in consumer-facing symbols. |
Designs must accommodate a wide range of camera quality and user behavior. |
58.2 Industrial Automation Expansion |
As automation expands, error correction will increasingly be optimized for speed and predictability rather than human variability. |
This may favor symbologies with implicit, standardized redundancy. |
58.3 Long-Term Traceability and Sustainability |
Error correction supports sustainability by extending label lifespan and reducing the need for replacement or re-marking. |
This benefit is often underestimated in system-level analysis. |
|
59. Strategic Role of Error Correction in System Reliability |
59.1 Error Correction as Insurance |
Error correction is best understood as insurance against uncertainty. |
It does not eliminate all risk, but it significantly reduces the probability of failure under realistic conditions. |
59.2 Cost-Benefit Perspective |
The marginal cost of additional error correction is often small compared to the operational cost of decoding failures. |
This asymmetry favors conservative design choices. |
|
60. Final Summary and Key Takeaways |
Error correction level settings are a central design parameter in 2D barcode systems. |
They determine how symbols behave under damage, distortion, and degradation, directly influencing reliability across the symbol lifecycle. |
Key conclusions include: |
Error correction is most effective when combined with good symbol design |
Selection must consider environment, lifecycle, and scanner diversity |
Higher error correction is not always better, but insufficient correction is risky |
Empirical testing is essential for validation |
Error correction should be treated as a strategic system-level decision |
