The integration of 3D barcodes in the medical field is revolutionizing the way medical devices and instruments are tracked and identified. This technology is particularly beneficial due to the stringent requirements for precision, safety, and traceability in healthcare. Below, we delve into the detailed applications of 3D barcodes in medical devices, focusing on surgical instruments and implantable devices. |
|
1. Introduction to 3D Barcodes |
1.1 Definition and Structure: 3D barcodes, also known as three-dimensional barcodes, are an advanced form of barcode technology that incorporates depth into their structure. Unlike traditional 1D and 2D barcodes, which use lines and patterns of squares and dots, 3D barcodes have variations in height, adding a third dimension. This allows them to store significantly more information. |
1.2 Creation Methods: 3D barcodes can be created using various methods, including engraving, embossing, and 3D printing. Engraving involves cutting or carving the barcode into the surface of the material, creating indentations. Embossing raises the barcode above the surface, while 3D printing builds the barcode layer by layer, adding necessary height variations. |
1.3 Materials Used: The choice of material for 3D barcodes depends on the application. Hard materials like metal, glass, and hard plastics are suitable for engraving, while softer materials like plastic and paper are ideal for embossing. 3D printing offers flexibility with various materials, making it suitable for diverse applications. |
|
2. Applications in Surgical Instruments |

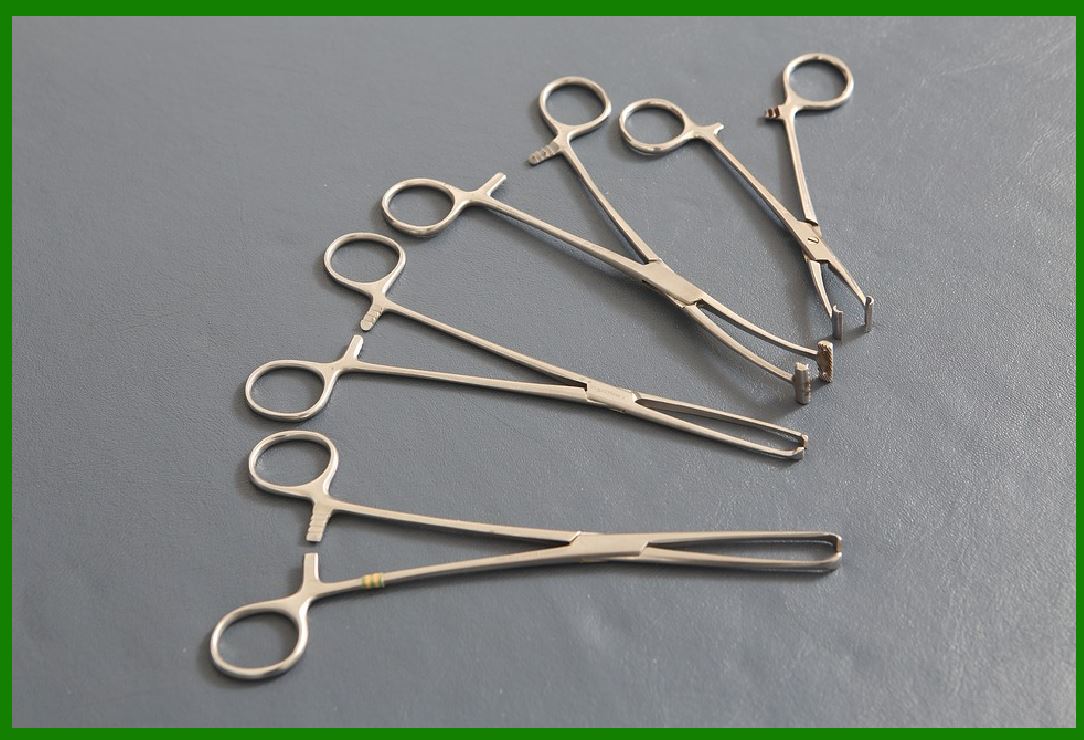

2.1 Tracking Usage and Sterilization Cycles: Surgical instruments are often reused and must be sterilized between uses to prevent infections. 3D barcodes can be engraved on these instruments to track their usage and sterilization cycles. Each time an instrument is used, its barcode is scanned, updating the record of its usage. This ensures that healthcare professionals have accurate information about the instrument history, including the number of times it has been used and sterilized. |
2.2 Maintaining Instrument History: By maintaining a detailed history of each surgical instrument, 3D barcodes help in ensuring that instruments are properly sterilized and safe for use. This reduces the risk of infections and enhances patient safety. The detailed records also assist in identifying instruments that may need maintenance or replacement, ensuring that only functional and safe instruments are used in surgeries. |
2.3 Reducing Human Error: Manual tracking of surgical instruments can be prone to errors. 3D barcodes automate the tracking process, reducing the likelihood of human error. This automation ensures that the data is accurate and up-to-date, providing healthcare professionals with reliable information. |
2.4 Case Study: Implementation in Hospitals: Several hospitals have successfully implemented 3D barcodes for tracking surgical instruments. For instance, a leading hospital in the United States reported a significant reduction in infection rates after adopting 3D barcode technology. The hospital also noted improved efficiency in instrument management, with quicker identification and retrieval of instruments during surgeries. |
|
3. Applications in Implantable Devices |
3.1 Storing Detailed Information: Implantable medical devices, such as pacemakers and artificial joints, require precise tracking and identification. 3D barcodes provide a way to store detailed information about these devices, including their model, manufacturer, and serial number. This information is crucial for tracking the device performance and for identifying it in case of recalls or replacements. |
3.2 Tracking Device Performance: 3D barcodes enable continuous monitoring of implantable devices. By scanning the barcode, healthcare professionals can access detailed information about the device performance, including any issues or malfunctions. This helps in timely identification of problems and ensures that patients receive prompt and appropriate care. |
3.3 Facilitating Recalls and Replacements: In case of recalls or replacements, 3D barcodes provide a quick and efficient way to identify the affected devices. The detailed information stored in the barcode allows for easy identification of the specific devices that need to be recalled or replaced, ensuring patient safety and compliance with regulatory requirements. |
3.4 Case Study: Use in Pacemakers: A major manufacturer of pacemakers has integrated 3D barcodes into their devices. This has enabled healthcare providers to track the performance of each pacemaker accurately. In a recent recall, the manufacturer was able to quickly identify and replace the affected devices, minimizing the impact on patients and ensuring their safety. |
|
4. Technical Challenges and Solutions |
4.1 Durability and Readability: One of the primary challenges in using 3D barcodes in medical devices is ensuring their durability and readability. Medical devices are often exposed to harsh conditions, including sterilization processes and bodily fluids. The materials used for 3D barcodes must withstand these conditions without degrading. |
4.2 Ensuring Accuracy: The accuracy of 3D barcodes is crucial for their effectiveness. Any errors in the barcode can lead to incorrect information being stored or retrieved. Advanced manufacturing techniques, such as precision engraving and high-resolution 3D printing, are used to ensure the accuracy of 3D barcodes. |
4.3 Integration with Existing Systems: Integrating 3D barcodes with existing hospital information systems and medical device databases can be challenging. Compatibility issues may arise, requiring customized solutions. However, many hospitals and manufacturers are investing in upgrading their systems to support 3D barcode technology. |
4.4 Case Study: Overcoming Technical Challenges: A leading medical device manufacturer faced challenges in ensuring the durability of 3D barcodes on their surgical instruments. By collaborating with material scientists, they developed a new coating that protected the barcodes during sterilization processes. This innovation improved the longevity and readability of the barcodes, ensuring reliable tracking of the instruments. |
|
5. Future Prospects and Innovations |
5.1 Integration with IoT: The integration of 3D barcodes with the Internet of Things (IoT) is a promising area of innovation. IoT-enabled medical devices can use 3D barcodes to communicate with other devices and systems, providing real-time data on their status and performance. This can enhance patient care by enabling proactive maintenance and timely interventions. |
5.2 Blockchain for Enhanced Security: Blockchain technology can be used to enhance the security and traceability of 3D barcodes in medical devices. By storing barcode data on a blockchain, healthcare providers can ensure that the information is tamper-proof and easily accessible. This can improve the reliability of tracking and identification processes. |
5.3 Advanced Manufacturing Techniques: Advancements in manufacturing techniques, such as nanotechnology and additive manufacturing, are expected to further improve the precision and functionality of 3D barcodes. These techniques can enable the creation of even more detailed and complex barcodes, enhancing their capacity to store information. |
5.4 Case Study: IoT and Blockchain Integration: A pilot project in a European hospital integrated 3D barcodes with IoT and blockchain technology. The project involved implantable devices that communicated real-time data to a blockchain-based system. This allowed for secure and transparent tracking of the devices, improving patient outcomes and operational efficiency. |
|
6. Conclusion |
The use of 3D barcodes in medical devices is transforming the healthcare industry by providing precise tracking and identification solutions. From surgical instruments to implantable devices, 3D barcodes enhance safety, efficiency, and reliability. Despite technical challenges, ongoing innovations and advancements in technology are paving the way for broader adoption and integration of 3D barcodes in medical applications. As the healthcare industry continues to evolve, 3D barcodes will play a crucial role in ensuring the safety and well-being of patients. |
|
How can hospitals integrate 3D barcode technology? |
Integrating 3D barcode technology in hospitals involves several steps to ensure seamless adoption and effective utilization. Here a detailed guide on how hospitals can achieve this: |
|
1. Assessing Needs and Objectives |
1.1 Identify Key Areas: Determine which areas of the hospital will benefit most from 3D barcode technology. Common areas include surgical instrument tracking, implantable device management, and inventory control. |
1.2 Set Clear Objectives: Define the goals for integrating 3D barcodes. Objectives might include improving patient safety, enhancing inventory management, reducing human error, and ensuring compliance with regulatory standards. |
|
2. Choosing the Right Technology |
2.1 Barcode Creation Methods: Select the appropriate method for creating 3D barcodes based on the application. Engraving, embossing, and 3D printing are common methods, each suitable for different materials and use cases. |
2.2 Material Selection: Choose materials that can withstand the hospital environment, including sterilization processes and exposure to bodily fluids. Metals, hard plastics, and durable coatings are often used. |
|
3. Implementing the Technology |
3.1 Pilot Testing: Start with a pilot program to test the technology in a controlled environment. This helps identify potential issues and allows for adjustments before full-scale implementation. |
3.2 Integration with Existing Systems: Ensure that the 3D barcode system is compatible with existing hospital information systems (HIS) and electronic health records (EHR). This may require custom software development or updates to current systems. |
3.3 Training Staff: Provide comprehensive training for hospital staff on how to use the new technology. This includes scanning barcodes, accessing information, and troubleshooting common issues. |
|
4. Ensuring Data Accuracy and Security |
4.1 Data Management: Implement robust data management practices to ensure the accuracy and integrity of the information stored in 3D barcodes. Regular audits and updates are essential. |
4.2 Security Measures: Protect sensitive patient and device information with strong security protocols. This includes encryption, access controls, and regular security assessments. |
|
5. Monitoring and Evaluation |
5.1 Continuous Monitoring: Regularly monitor the performance of the 3D barcode system to ensure it meets the hospital objectives. This includes tracking usage, identifying issues, and making necessary adjustments. |
5.2 Feedback and Improvement: Gather feedback from staff and patients to identify areas for improvement. Use this feedback to refine processes and enhance the overall effectiveness of the technology. |
|
6. Case Study: Successful Integration |
A hospital in Europe successfully integrated 3D barcode technology to track surgical instruments and implantable devices. They started with a pilot program in the surgical department, using engraved 3D barcodes on instruments. The pilot revealed significant improvements in tracking and sterilization processes, leading to a full-scale implementation across the hospital. The integration with their existing HIS and EHR systems was achieved through custom software development, ensuring seamless data flow and accessibility. Staff training and continuous monitoring were key to the successful adoption of the technology. |
|
7. Future Prospects |
7.1 IoT Integration: Hospitals can further enhance 3D barcode technology by integrating it with IoT devices. This allows for real-time tracking and monitoring of medical devices, improving patient care and operational efficiency. |
7.2 Blockchain for Security: Implementing blockchain technology can enhance the security and traceability of 3D barcode data. This ensures tamper-proof records and improves compliance with regulatory standards. |
|
By following these steps, hospitals can effectively integrate 3D barcode technology, leading to improved patient safety, operational efficiency, and overall healthcare quality. |
