1. Introduction |
In industries ranging from retail to logistics and healthcare, RFID (Radio Frequency Identification) and barcode technologies are widely used for inventory management, asset tracking, and a variety of other applications. Both technologies serve similar purposes but differ significantly in terms of their technical capabilities, costs, and security features. |
This comparison will focus on: |
The cost differences between RFID and barcode technologies, covering both initial investments and ongoing maintenance. |
The efficiency differences, including speed, scalability, and data capacity. |
The security aspects, examining the protection of data and privacy concerns. |
|
2. Cost Comparison |
2.1 Initial Setup Costs |
Barcode: |
Barcodes are generally cheaper to implement than RFID. The initial setup costs for barcode technology primarily consist of purchasing barcode labels (paper or synthetic), barcode scanners, and the necessary software to interpret the barcode data. |
A basic barcode scanner can cost as little as $50 for a handheld device, with higher-end models reaching several hundred dollars. In addition, barcode labels themselves are inexpensive, with costs of only a few cents per label. |
RFID: |
RFID systems are typically more expensive due to the cost of the tags, readers, and antennas. Passive RFID tags are generally less expensive than active RFID tags, but active tags come with the benefit of greater read range and battery life. |
A passive RFID tag costs between 10 to 30 cents per unit, depending on the volume. In contrast, active RFID tags can range from $10 to $50 per unit or more, depending on the type and range. |
The RFID readers are also more expensive than barcode scanners, with basic RFID readers starting at a few hundred dollars and advanced models reaching thousands of dollars. |
The infrastructure required to support an RFID system, such as antennas and readers, adds to the overall setup costs. For instance, a fixed RFID reader can cost upwards of $1,000. |
2.2 Operational Costs |
Barcode: |
Barcodes do not require batteries or complex hardware, and as a result, the operational costs are low. Barcode printers are the primary operational costs, but these can be easily managed with standard label printers. |
Barcode labels need to be replaced regularly, especially in industries where products are handled frequently, such as in retail or warehouses. However, barcode labels remain one of the most cost-effective ways to track products. |
RFID: |
Passive RFID tags require no power supply, but active RFID tags require periodic battery replacement, adding to operational costs. |
RFID readers may also require maintenance, including software upgrades, which can increase the operational costs. The higher initial investment can also translate into higher long-term maintenance costs. |
2.3 Total Cost of Ownership |
Barcode: |
Over time, barcodes are typically more economical to implement and maintain. Their simplicity in design and use results in lower overall costs, even when scaling up to large operations. |
However, in large-scale operations requiring high-speed scanning or environmental durability, barcode systems may still incur higher costs due to the need for multiple scanners or costly label printing systems. |
RFID: |
The total cost of ownership for RFID is higher than for barcodes, but it comes with the potential for greater automation, reducing the need for manual labor. Additionally, RFID systems can handle higher volumes and have the ability to read multiple tags at once, thus improving overall operational efficiency and saving on labor costs in the long run. |
RFID systems also offer better durability and reliability, reducing the need for frequent replacements or maintenance in the long term. |
|
3. Efficiency Comparison |
3.1 Speed of Operation |
Barcode: |
Barcodes require a line of sight to be scanned, which means that they typically need to be positioned directly in front of the scanner. This can slow down the process in busy environments where items must be manually oriented to the scanner. |
Barcodes also require one scan per item, meaning that in a warehouse or large retail setting, employees may need to spend time scanning each item individually. |
RFID: |
RFID has a significant advantage over barcodes in terms of speed. Passive RFID systems can read tags without a direct line of sight, allowing for quicker scanning. RFID readers can read multiple tags simultaneously, making them ideal for applications that require scanning large volumes of items at once. |
For instance, in logistics, RFID allows for the scanning of entire pallets or boxes without manually scanning individual items, resulting in faster throughput. |
3.2 Scalability |
Barcode: |
Barcodes are scalable in terms of implementation, but their scalability can be limited in high-volume environments. As the size of the operation grows, the number of barcode scanners required may increase, along with the frequency of label replacements. |
The process of manual barcode scanning may become inefficient in large warehouses or retail operations, slowing down throughput. |
RFID: |
RFID systems scale much better than barcode systems. Since RFID allows for batch scanning of multiple items, scaling up an operation often results in better productivity gains. |
Moreover, RFID systems can support a wide range of applications, from small operations to vast global supply chains. Once set up, the system’s read range and automatic tracking offer significant improvements as the operation expands. |
3.3 Data Capacity |
Barcode: |
Barcodes have limited data capacity. A 1D barcode, for example, can typically store around 20 characters of data, while a 2D barcode (like a QR code or DataMatrix) can store hundreds of characters, but still far less than what RFID can handle. |
This limited capacity often means that additional information about the product, such as its history or detailed specifications, must be stored elsewhere. |
RFID: |
RFID has far greater data capacity, especially when it comes to active RFID tags. An RFID tag can store more detailed information, such as the product's serial number, manufacturing date, location, and much more. |
Passive RFID tags also have greater storage than barcodes, though the amount of data depends on the tag’s memory. These tags can be updated with new information, offering more flexibility for long-term tracking. |
3.4 Durability |
Barcode: |
Barcodes are prone to physical damage. Printed barcodes can become smudged, torn, or faded over time, especially in harsh environments. As a result, barcode labels may need frequent replacement. |
However, barcode labels on durable materials, such as plastic or metal, can endure extreme conditions, though they tend to cost more. |
RFID: |
RFID tags, especially active RFID tags, are much more durable than barcodes. They can withstand harsher environments and are not subject to the same types of wear and tear as barcodes. |
RFID tags can be embedded in products or packaging, making them ideal for industrial or outdoor use where barcodes might fail due to exposure to elements like moisture, dirt, or heat. |
|
4. Security Comparison |
4.1 Data Security and Privacy |
Barcode: |
Barcodes are inherently more vulnerable to security issues. Anyone with access to a barcode scanner can scan and read the information stored in a barcode, which could potentially compromise privacy or sensitive data. |
The data stored in a barcode is typically unencrypted and can be easily copied, making it less secure than RFID in scenarios where sensitive information is involved. |
RFID: |
RFID tags, especially active RFID tags, offer more robust security mechanisms. RFID tags can be encrypted to ensure that data transmitted between the tag and the reader is protected from interception. |
Passive RFID tags, however, are not immune to security concerns. Though they are less vulnerable to hacking than barcodes, skimming attacks (where unauthorized parties read the tag’s information remotely) are possible unless additional security measures, like encryption or authentication, are implemented. |
RFID tags can also be password-protected or use cryptographic protocols to prevent unauthorized access. |
4.2 Anti-Tampering Capabilities |
Barcode: |
Barcodes offer no inherent anti-tampering mechanisms. If a barcode is removed or altered, there is no easy way to detect that the label has been tampered with. In environments where tampering is a concern, additional security measures, like tamper-evident labels, must be used. |
RFID: |
Some RFID tags come with tamper-evident features that alert when a tag has been removed or tampered with. This makes RFID systems more secure in high-risk environments like asset tracking or authentication systems. |
4.3 Physical Security |
Barcode: |
Physical security in barcode systems typically involves controlling access to the scanning and labeling equipment. Barcodes themselves do not provide additional physical security features. |
RFID: |
RFID systems can be integrated with physical security systems such as gates and doors. When RFID is used for access control, security systems can automatically lock or unlock based on the RFID tag’s authentication. |
|
5. Conclusion |
In summary, both RFID and barcode technologies have their advantages and disadvantages. Barcodes offer a more economical solution for small to mid-sized operations, are easy to implement, and are well-suited for environments where speed and durability are not critical. On the other hand, RFID offers greater efficiency, scalability, and durability, making it a better choice for large-scale operations, high-volume environments, and industries that demand a higher level of security. |
Cost, efficiency, and security all play key roles in determining which technology is appropriate for a given application. While barcode technology remains a cost-effective and widely-used solution, RFID's advantages in automation, data handling, and security are pushing its adoption in industries that demand higher performance and flexibility. |
Each technology can be the right choice depending on the specific needs of a business or application. |
|
Let’s dive into a detailed comparison of the equipment used by RFID and barcode systems, focusing on the printers and readers involved in each technology. |
1. RFID Printers vs Barcode Printers |
RFID printers and barcode printers both serve to produce readable labels, but the underlying technology and complexity vary. |
1.1 RFID Printers: |
RFID printers are specialized to print RFID tags, which contain an embedded microchip and an antenna. They not only print the information on the label but also encode the RFID chip with data. |
Components: |
Printer head: RFID printers use a thermal transfer or direct thermal print head to apply ink on the label. This is the same as barcode printers. |
RFID Encoder: This component writes data onto the RFID chip embedded within the label. The printer communicates with an RFID tag to encode it with the necessary information (such as serial numbers or asset IDs). |
Antenna & Chip: Unlike barcodes, RFID tags contain an embedded antenna and chip. This combination allows the RFID system to transmit data wirelessly. |
Printers’ Features: |
RFID printers often come with integrated encoders and antenna configuration tools. |
Typically larger, as they need to handle both the label and the encoding process for RFID tags. |
Higher upfront cost due to additional hardware, especially for encoding functionality. |
1.2 Barcode Printers: |
Barcode printers only print linear or 2D barcodes on labels and do not have the functionality to encode an RFID chip. These printers are simpler compared to RFID printers. |
Components: |
Printer head: Most barcode printers use thermal transfer or direct thermal technology, much like RFID printers, for printing on the label. |
Barcode Imaging: The printer prints standard 1D (e.g., Code 128, UPC) or 2D (e.g., QR code, DataMatrix) barcodes. |
Printers’ Features: |
Barcode printers are generally smaller, more affordable, and have lower maintenance costs than RFID printers. |
The printhead and ribbon system are simpler, with no need to handle the encoding of chips. |
|
2. RFID Readers vs Barcode Scanners |
2.1 RFID Readers: |
RFID readers are specialized devices designed to communicate with RFID tags and extract the encoded data. They use radio frequency signals to interact with the RFID chip in the tag, enabling wireless data exchange. |
Types of RFID Readers: |
Fixed Readers: These are permanently installed readers used in environments like warehouses or access control systems. They often have an integrated antenna and support multiple tags at once (called 'bulk reading'). |

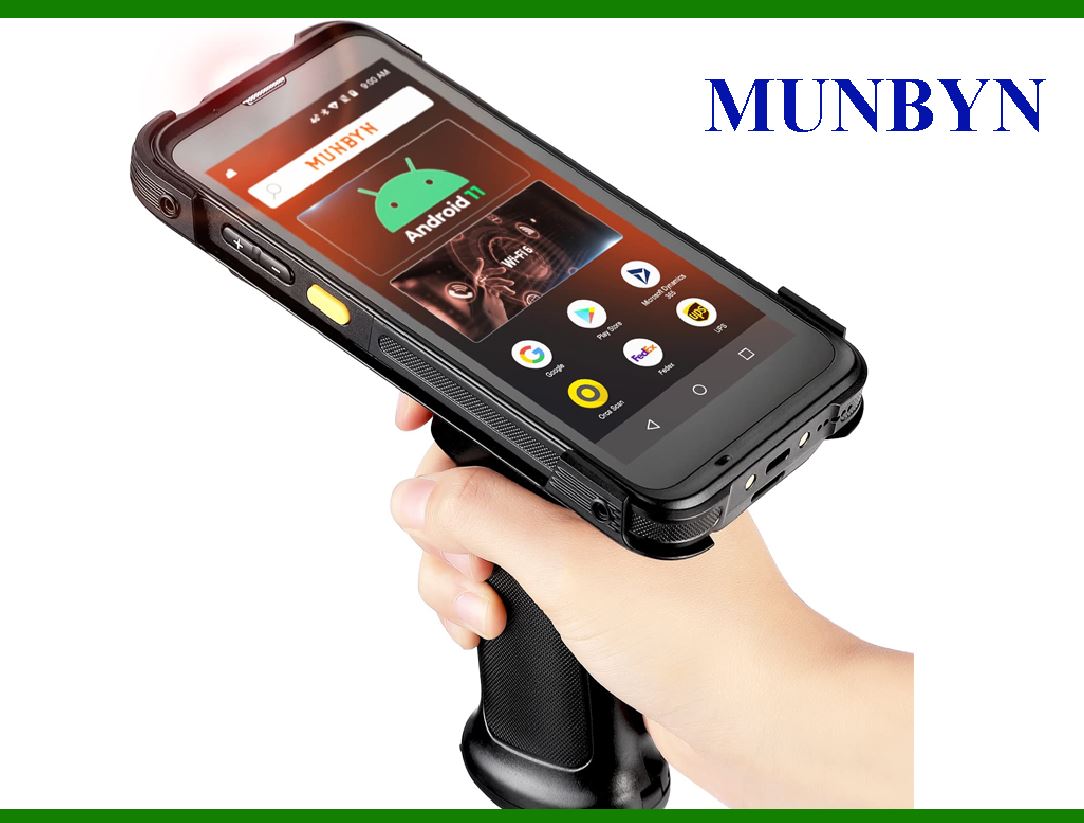

Mobile Handheld Readers: These portable devices are used for scanning RFID tags on the go and are commonly found in inventory management and asset tracking. |
Components: |
RFID Antenna: The antenna emits and receives radio signals to communicate with the RFID tags. It is often designed for specific frequencies (low, high, or ultra-high frequencies). |
RFID Microprocessor: Processes the data from the tag and forwards it to a computer or database. |
Signal Processor: Filters and decodes the signal received from the RFID tag. |
Reader Features: |
Longer Range: RFID readers can read tags from distances ranging from a few centimeters to several meters, depending on the technology and type of antenna. |
Multi-tag Reading: Most RFID systems can read multiple tags simultaneously, which is useful for applications like inventory and logistics. |
Communication: Can communicate wirelessly with databases or centralized systems, often via protocols like TCP/IP or Bluetooth. |
2.2 Barcode Scanners: |
Barcode scanners read printed barcodes using optical scanning technology. The scanner interprets the visual pattern of bars and spaces to decode the data contained in the barcode. |
Types of Barcode Scanners: |
Laser Scanners: These use laser beams to scan barcodes. Laser scanners are primarily used for 1D barcodes and can read them from a distance. |
CCD (Charge-Coupled Device) Scanners: CCD scanners use an array of light sensors to capture the barcode image. These are more versatile than laser scanners and can scan both 1D and 2D barcodes. |
Imager Scanners: These can capture 2D barcodes (e.g., QR codes, DataMatrix) and use a camera-like sensor to capture the image and decode it. |
Components: |
Light Source: Lasers (for laser scanners) or LEDs (for CCD and imager scanners) are used to illuminate the barcode. |
Sensor: The sensor collects the reflected light from the barcode. In laser scanners, it measures the intensity of light reflected off the barcode, while in imager scanners, it captures an image of the barcode. |
Decoder: The decoded information is passed through the reader's processor and transmitted to the computer system for further processing. |
Scanner Features: |
Short Range: Barcode scanners typically have a shorter reading range, from a few inches to a couple of feet, depending on the type of scanner. |
Line-of-Sight Requirement: Barcodes need to be in the line of sight of the scanner for successful reading, whereas RFID can be read without direct sight of the tag. |
Single-tag Reading: Barcode scanners generally read one tag at a time, although advanced models can scan multiple codes in one scan. |
|
3. Key Differences in Equipment |
3.1 Cost: |
RFID Equipment: RFID printers and readers tend to have higher upfront costs due to the added technology (e.g., encoding RFID chips, specialized antennas). |
Barcode Equipment: Barcode printers and scanners are generally more affordable, with simpler equipment and fewer components involved. |
3.2 Speed and Efficiency: |
RFID: RFID systems can read multiple tags simultaneously, significantly speeding up processes like inventory management and access control. RFID tags also do not require line-of-sight for scanning, allowing for faster and more flexible reading. |
Barcode: Barcode systems require line-of-sight, and scanning typically involves reading one barcode at a time, making them less efficient in environments where large quantities of items need to be processed. |
3.3 Durability and Environmental Resistance: |
RFID Equipment: RFID tags can be embedded into products or labels, making them more durable in harsh environments. RFID readers can handle tough environments, especially fixed readers designed for industrial use. |
Barcode Equipment: Barcode labels, especially those printed on paper, are vulnerable to wear and tear. Scanners are more delicate and may struggle in harsh conditions, especially in environments with dust, dirt, or moisture. |
3.4 Data Capacity: |
RFID Tags: RFID tags typically offer higher data storage than barcodes. While barcodes can store a limited amount of information (a few hundred characters at most), RFID tags can store kilobytes of data, allowing for more detailed information to be encoded on each tag. |
Barcode Labels: Barcode systems are limited in the amount of data they can store. For example, a typical 1D barcode can hold a product identifier, while 2D barcodes like QR codes can store much more, though still significantly less than RFID tags. |
3.5 Security: |
RFID: RFID tags can be encrypted for added security, and the data transmitted between the reader and the tag can be secured using authentication protocols. However, RFID tags can also be vulnerable to unauthorized reading or cloning unless proper security measures are implemented. |
Barcode: Barcodes do not offer built-in security features. However, they are more transparent since the information is visible in the printed code. To add security, barcodes might be used in combination with other methods like QR codes for multi-factor authentication. |
Conclusion |
The equipment used by RFID and barcode systems serves similar purposes but with notable differences in complexity, range, and data capacity. RFID systems are more suited for applications that require high-volume scanning, long-range reading, and multi-tag handling. Barcode systems, on the other hand, remain more cost-effective, simpler, and widely used in less complex applications where line-of-sight scanning and limited data capacity are sufficient. |
|
Comparison of Requirements for Operators: RFID vs Barcode |
Both RFID and barcode technologies require human operators to interact with the systems during various stages, such as scanning, managing data, and maintaining the equipment. However, their operational demands vary significantly, including error rates, user training, and efficiency. Here’s a detailed comparison: |
1. Training and Skill Requirements |
Barcode: |
Basic Training: Barcode scanners are typically easy to use, requiring minimal training. Operators usually need to know how to position the scanner correctly and align it with the barcode. |
Advanced Training: For specialized applications (e.g., 2D barcodes or high-density barcodes), operators might need extra training to handle more complex scanning situations (e.g., scanning from an angle or dealing with damaged barcodes). |
RFID: |
Basic Training: RFID systems are more complex. Operators may need to understand how to manage RFID readers, tag placement, and antenna configurations. |
Advanced Training: More sophisticated RFID systems, especially those involving network management, require higher levels of expertise to troubleshoot, configure, and maintain the system, as well as to address issues such as interference or multi-path reflections. |
|
2. Error Rate Probability |
Barcode: |
Error Types: Common errors include poor print quality (fuzzy or damaged barcodes), incorrect alignment, or occlusion of the barcode. Scanning issues are more likely with worn-out barcodes or misaligned scanners. |
Error Rate: Generally higher than RFID in situations where the barcode is poorly printed, damaged, or out of view of the scanner. Barcodes require perfect alignment to be read properly. Misalignment or poor condition increases the likelihood of scanning errors. |
Operator Influence: Operators can reduce error rates by ensuring clean, unobstructed scans. However, they cannot easily overcome physical barcode issues (e.g., a damaged barcode on a product). |
RFID: |
Error Types: Errors can occur due to interference from materials (e.g., metal or liquid), low battery power in tags, or issues with the reader’s range or angle. |
Error Rate: Lower compared to barcode in many scenarios, particularly because RFID can be read without line-of-sight and can handle damaged tags better. However, RFID's error rate may still rise in environments with strong interference or when tags are placed improperly. |
Operator Influence: RFID operators must ensure that tags are placed in the correct orientation or position to maximize reading success. While less manual intervention is needed compared to barcodes, poor tag placement or environmental interference can lead to failures. |
|
3. Speed and Efficiency |
Barcode: |
Scanning Speed: Scanning speed is generally fast, but operators need to scan each item individually. If barcodes are not aligned properly, additional time is spent correcting the positioning. |
Operator Efficiency: Operators need to focus on scanning each item carefully, which can be slow when handling a large volume of items, especially if items need to be repositioned. |
RFID: |
Scanning Speed: RFID is much faster in terms of reading items. RFID tags can be read in bulk (e.g., scanning an entire pallet of products at once) without line-of-sight requirements. This significantly speeds up the process. |
Operator Efficiency: Operators can scan many items simultaneously without needing to carefully position each one. This increases efficiency, especially in environments with high throughput. |
|
4. Environmental Factors and Operator Adaptability |
Barcode: |
Environmental Sensitivity: Barcode readability can be affected by environmental factors such as lighting, dirt, or damaged barcodes. Operators must be aware of these conditions and handle the equipment accordingly (e.g., cleaning scanners or ensuring good lighting). |
Adaptability: Operators must be able to adapt to changing conditions such as poorly printed or damaged barcodes. In these cases, they may need to resort to alternative methods like manual entry. |
RFID: |
Environmental Sensitivity: RFID is less impacted by lighting or dirt but can be affected by other factors, such as metallic surfaces or liquids, which can obstruct the signal. However, RFID operators usually have fewer environmental concerns than barcode operators, especially in adverse conditions. |
Adaptability: RFID systems tend to be more forgiving of environmental factors (e.g., low-quality tags or dirt). However, operators may still need to adjust tag positioning to avoid interference and optimize performance. |
|
5. Error Correction and Handling |
Barcode: |
Error Handling: Errors in barcode scanning usually require the operator to reposition the scanner or present a different part of the item. In case of significant damage, manual data entry may be required, which increases the chance for human error. |
Error Correction: Barcodes often have built-in error correction (e.g., PDF417 and QR codes), but it is not always enough to recover from significant damage or poor print quality. Operator intervention (e.g., manually entering data or re-scanning) is often required. |
RFID: |
Error Handling: RFID systems have robust error correction mechanisms that allow them to recover from minor signal interference or weak reads. However, if the RFID tag is damaged or improperly placed, the system may fail to read it, requiring operator intervention to reposition the tag or replace it. |
Error Correction: The error correction in RFID is generally more sophisticated due to the nature of the technology, which includes checksum and redundancy features. This allows for more reliable data capture in challenging environments. |
|
6. Cost of Operation for Operators |
Barcode: |
Initial Setup: Barcode systems tend to be less expensive in terms of equipment costs (scanners, printers, etc.). However, the ongoing costs can be higher due to the need for manual interventions and labor-intensive processes. |
Operational Cost: While barcode technology is inexpensive, the operator’s time is the main cost. Scanning a large number of items individually can be labor-intensive, and any error can add more time and resources. |
RFID: |
Initial Setup: RFID systems require higher upfront investment in RFID readers, tags, and potentially more sophisticated software. |
Operational Cost: Although RFID has a higher initial cost, its ability to handle bulk scanning reduces the time and effort required from operators. This makes RFID more cost-efficient in high-volume operations, where labor costs are a major concern. |
|
7. Operator Fatigue and Workload |
Barcode: |
Fatigue: In environments where operators need to scan large volumes of items, the repetitive nature of the work can lead to fatigue and potential errors due to human factors. |
Workload: Operators can experience higher workloads due to the need for careful alignment, re-scanning, and occasional manual entry. |
RFID: |
Fatigue: RFID tends to reduce operator fatigue because it often requires less manual effort (e.g., no need for line-of-sight scanning or item-by-item scanning). |
Workload: RFID reduces the physical and mental workload on operators, allowing them to focus on overseeing the process rather than handling every item individually. |
Conclusion |
RFID is generally easier for operators to handle due to its hands-off nature, higher efficiency, and lower error rates in many environments. Operators require less specialized training and can work more quickly and with fewer interruptions, particularly in high-volume applications. |
Barcode systems, while cost-effective and straightforward, demand more manual intervention, higher operator skill levels, and are more susceptible to errors from environmental factors or poor print quality. However, barcode systems still hold a crucial role in scenarios where RFID may be cost-prohibitive. |
|
Compare the advantages and disadvantages of RFID and barcode in terms of environmental protection in detail. |
When comparing RFID (Radio Frequency Identification) and barcode technologies in terms of environmental protection, there are several factors to consider, such as their impact during manufacturing, usage, and disposal stages. Let's break down the advantages and disadvantages of each technology in this context. |
1. Material Usage and Production Process |
RFID: |
Advantages: |
Less Paper Use: RFID tags are often made from plastic or other durable materials, meaning they don’t rely on paper, which can help reduce deforestation. In some cases, RFID tags are also made from recyclable materials. |
Longevity: RFID tags are often more durable than barcodes. They don’t require paper, ink, or adhesive labels and can withstand harsh environmental conditions, reducing the frequency of replacements. |
Potential for Reusability: Some RFID tags, especially those used for asset management, can be reused multiple times, leading to reduced production and waste. |
Disadvantages: |
Complex Manufacturing Process: The production of RFID tags can be more energy-intensive and resource-heavy compared to barcodes. The chips, antennas, and other components used in RFID tags may require a variety of materials, including metals, plastics, and rare earth elements, which can have a higher environmental impact. |
Energy Consumption: The process of manufacturing the electronic components inside the RFID tags (particularly the chips) can generate a considerable carbon footprint, depending on the energy sources used in production. |
Barcode: |
Advantages: |
Low Resource Consumption: Barcodes are typically printed on paper or other materials with minimal use of resources. The process of printing barcodes does not involve complex electronics or materials, leading to lower energy consumption during production. |
Simpler Production: Barcode technology is much simpler to produce, involving just ink and paper (or adhesive labels), which makes it less resource-demanding and potentially more environmentally friendly. |
Disadvantages: |
Paper and Ink Usage: Barcodes are often printed on paper labels, which can lead to deforestation if non-recycled materials are used. Additionally, ink and adhesives used in barcode printing can be harmful to the environment, especially if they are not biodegradable or recyclable. |
Frequent Replacement: Since barcode labels can degrade, especially in harsh conditions (like exposure to moisture or rough handling), they often need to be replaced more frequently than RFID tags, leading to more waste and consumption of resources. |
|
2. Energy Consumption During Operation |
RFID: |
Advantages: |
No Line of Sight Required: RFID tags don’t need a direct line of sight for scanning, meaning they can be used more efficiently and often require fewer resources (in terms of operator time and energy) to track items, reducing energy usage over time. |
Passive RFID Tags: For passive RFID tags, the tag itself doesn’t require a power source; it relies on energy from the reader, which is an energy-efficient way of tracking items. This reduces the need for battery-powered components and contributes to energy savings. |
Disadvantages: |
Active RFID Tags: These tags require batteries, and although they are generally low-power, battery disposal can become an environmental concern if not properly recycled or disposed of. The need for replacement batteries also contributes to the overall environmental footprint. |
Energy-Hungry Readers: RFID readers, especially long-range ones, can consume significant amounts of energy. When scaled across industries, this can contribute to higher energy consumption in comparison to barcode scanners. |
Barcode: |
Advantages: |
Low Power Consumption: Barcode scanners are generally low-power devices, requiring minimal energy to function. There are no batteries or power sources required for the barcode itself, making it a low-energy system overall. |
Simplicity: Since barcodes are just visual symbols, there’s no need for complex electronic systems, making barcode technology inherently more energy-efficient in terms of both scanning and data processing. |
Disadvantages: |
Scanner Power Requirements: While barcode scanning technology itself is simple, barcode scanners can consume more power in larger-scale operations (such as warehouses with many scanners) due to the need for frequent use and multiple scans. |
|
3. Waste and Disposal |
RFID: |
Advantages: |
Reusability: RFID tags, especially those in industrial applications, can be reused multiple times, significantly reducing waste. After the tag’s lifetime, some RFID tags can be recycled or refurbished, which helps mitigate the environmental impact. |
Durability: RFID tags are generally more durable than paper barcodes. This means they last longer, which reduces waste and the need for frequent replacements. |
Disadvantages: |
Electronic Waste: While RFID tags are more durable, they still have electronic components, such as chips and antennas, which can contribute to electronic waste when they are no longer in use. Improper disposal of these components can lead to pollution from non-biodegradable materials, particularly plastics and metals. |
Difficult to Recycle: Due to the materials used in RFID tags (e.g., plastic and metal), recycling can be challenging. Not all RFID tags are designed with recyclability in mind, which leads to higher environmental impacts when discarded. |
Barcode: |
Advantages: |
Biodegradable: Barcodes printed on paper can biodegrade, especially if they are made from recycled materials. This makes barcodes less problematic in terms of landfill waste when compared to RFID tags. |
Recyclability: In most cases, paper barcode labels can be recycled along with other paper products, reducing waste and supporting circular economy practices. |
Disadvantages: |
Limited Durability: Paper-based barcode labels are often short-lived and can tear or fade over time. This frequent replacement leads to more waste. |
Ink and Adhesive Concerns: The ink and adhesives used in barcode labels can sometimes be difficult to remove and recycle properly. If not handled correctly, they can contaminate recycling streams or cause pollution. |
|
4. Long-Term Sustainability |
RFID: |
Advantages: |
Longer Lifecycle: RFID tags can potentially be used for many years, making them a better long-term investment in terms of reducing waste. |
Data Collection Efficiency: RFID allows for more efficient data collection, reducing the need for paper-based records and waste associated with manual processes. |
Disadvantages: |
Environmental Impact of Manufacturing: The production process of RFID tags can still be relatively resource-intensive, especially for active RFID tags. These require batteries, microchips, and other materials that contribute to the overall environmental impact. |
Barcode: |
Advantages: |
Simple and Cost-Effective: Barcodes are simple and inexpensive, requiring less investment in complex materials and technology, which may lead to a lower environmental impact over time. |
Eco-Friendly Options: There is an increasing use of biodegradable, recycled, and eco-friendly materials for barcode labels, which is helping reduce their environmental footprint. |
Disadvantages: |
Shorter Lifespan: Paper-based barcode labels generally have a shorter lifespan than RFID tags, requiring more frequent replacements. This increases the amount of waste generated, especially in industries with high turnover rates. |
Environmental Impact of Replacement: As barcode labels are often replaced frequently, the environmental impact from the manufacturing and disposal of these labels can be significant over time. |
Conclusion |
In terms of environmental protection: |
RFID technology tends to offer advantages in durability and reusability, which can reduce waste and the need for frequent replacements. However, its electronic components and potential for creating electronic waste present challenges that need to be addressed in recycling and disposal practices. |
Barcodes have a lower initial environmental impact in terms of manufacturing and energy consumption. However, their reliance on paper and ink, combined with the need for more frequent replacements, leads to higher waste generation. |
In the long run, RFID could be considered more sustainable for industries that require high durability and reusability, while barcode technology may remain more suitable for low-cost applications with less environmental burden in terms of energy consumption. |
|
Compare the performance of RFID and barcode in harsh environments (such as battlefields) and their current practical applications in detail. |
The performance of RFID and barcode systems in harsh environments, such as battlefields, presents unique challenges and considerations. In such environments, conditions like extreme temperatures, physical damage, moisture, dust, and electromagnetic interference (EMI) can significantly impact the reliability and effectiveness of these technologies. Below is a detailed comparison of RFID and barcode performance in such environments, along with their practical applications: |
1. Resilience to Physical Damage |
Barcode: |
Barcodes, particularly 1D types like Code 128 or 2D types like QR codes, are susceptible to physical damage such as scratches, tears, or smudges. In a battlefield environment, items may be subject to rough handling, extreme weather, and even direct physical impact (e.g., from explosions or collisions), all of which can degrade or destroy a barcode's readability. |
Solution: To mitigate this, barcodes are often printed on durable materials such as plastic tags or metal plates, or encoded onto rugged surfaces like those used in military gear. Specialized coatings or lamination can also improve durability, but barcodes remain less robust compared to RFID in these conditions. |
RFID: |
RFID tags (both passive and active) are generally more resilient to physical damage. Since RFID uses radio frequency to transmit data, it does not rely on line-of-sight for scanning, and the tag itself can often be more durable, particularly if embedded in tough materials (such as metal or ceramic). |
Solution: RFID tags can be embedded in military equipment, clothing, or vehicles and remain functional even if they are scratched, exposed to extreme heat, or submerged in water. However, the main challenge for RFID in harsh environments is ensuring the integrity of the radio signal in the presence of metallic surfaces or strong interference. |
|
2. Environmental Conditions |
Barcode: |
Barcodes are highly sensitive to environmental factors like moisture, dirt, and extreme temperatures. For example, water or dust covering a barcode can obscure its readability, and high or low temperatures can cause the ink or material to fade, crack, or peel off. |
Solution: Protective coatings (such as weather-resistant ink or plastic covering) can be applied to barcodes to enhance their longevity in outdoor conditions. However, this adds extra weight and cost, which can still be insufficient in extreme battlefield environments. |
RFID: |
RFID tags, particularly those designed for industrial use, tend to perform better under harsh environmental conditions. Passive RFID tags, for instance, can operate in temperatures ranging from -40°C to +85°C, while active RFID tags can withstand even broader ranges. |
The ruggedness of RFID tags allows them to function in wet, dusty, or muddy conditions, where barcodes would be difficult to read. However, issues such as water absorption, extreme pressure, and exposure to radiation (especially nuclear environments) can still affect RFID's reliability. |
Solution: Military-grade RFID tags are designed with specialized enclosures, coatings, and materials that resist corrosion and abrasion. These features make RFID more adaptable to environments that involve water, snow, or mud. |
|
3. Line of Sight and Read Range |
Barcode: |
Barcodes require a direct line of sight between the scanner and the printed code. In a battlefield, where visibility might be impaired (e.g., in smoke, rain, or fog), the need for line-of-sight can be a serious limitation. |
Solution: Some barcode types, like Data Matrix codes, can be read at a greater distance or with less precise alignment than traditional 1D barcodes. However, these still require the operator to be able to point a scanner at the code. |
RFID: |
One of the main advantages of RFID is that it does not require line-of-sight to function. This is crucial in combat or military scenarios, where objects might be obscured by debris, shields, or barriers. |
The read range of RFID depends on the type of tag: passive RFID has a shorter range (up to 10 meters), while active RFID can read over much greater distances (up to 100 meters or more). This capability makes RFID especially effective for tracking assets such as vehicles, personnel, or supplies in battlefields or warehouses. |
|
4. Signal Interference |
Barcode: |
Barcodes are not impacted by radio frequency interference (RFI) or electromagnetic interference (EMI). However, their readability can be impaired by environmental factors like dirt or physical damage. |
Solution: Ensuring the barcode is clean and unblocked is important, but in an environment with high EMI or physical damage, the barcode may become unreadable. |
RFID: |
RFID is susceptible to signal interference from various sources, such as metals, liquids, and high-powered electronic equipment. In a battlefield, electromagnetic interference from weapons or communications systems could potentially interfere with RFID signals. |
Solution: To mitigate this, military-grade RFID systems are designed to minimize the impact of EMI and RFI. Some advanced RFID systems use frequency hopping or multiple frequencies to avoid interference. Additionally, RFID tags can be designed to perform better in certain environments (e.g., using specialized coatings or metal-resistant materials). |
|
5. Power Requirements |
Barcode: |
Barcodes do not require any power to operate. This makes them particularly useful in field environments where batteries and power sources may be limited. The lack of power requirements also makes barcodes less vulnerable to electronic failure in environments where power is inconsistent. |
RFID: |
RFID systems typically require some form of power. Passive RFID tags harvest energy from the RFID reader’s signal, so they do not require batteries, which is an advantage in remote or combat settings. Active RFID tags, on the other hand, are powered by their own batteries, which may require replacement or recharging in the field, a potential limitation in a prolonged conflict scenario. |
Solution: The battery life of active RFID tags can range from 1 to 10 years, depending on usage. For continuous monitoring, RFID systems can be optimized to extend battery life, though in a battlefield environment, energy conservation remains a critical factor. |
|
6. Security Considerations |
Barcode: |
Barcodes are inherently less secure compared to RFID systems. They can be easily copied, and their data can be accessed by anyone with a scanner. This makes them unsuitable for environments where security is a concern, like military operations or sensitive logistics. |
Solution: Barcodes can be encoded with more secure information (e.g., encryption) or combined with other security measures, but these solutions often require additional infrastructure. |
RFID: |
RFID offers better security through encryption, access control, and authentication mechanisms. Some RFID systems, especially those used in military or government applications, employ sophisticated cryptographic techniques to prevent unauthorized access and tampering. |
Solution: RFID provides a higher level of security, which is particularly important for asset tracking in battlefields or military applications, where preventing unauthorized access or tampering with critical information is paramount. |
|
7. Practical Applications in Battlefields |
Barcode: |
While barcodes are less ideal for battlefield environments due to their susceptibility to damage, they are still useful for tracking and inventory management in controlled areas (e.g., supply depots or warehouses). Barcodes are often used on military assets, such as weapons, ammunition, and supplies, when stored in more stable, secure locations. |
Barcodes are also used in logistics for tracking shipments and packaging in less hazardous areas. |
RFID: |
RFID has found extensive application in military environments. It is used for tracking and managing assets, equipment, personnel, and vehicles in real-time. RFID tags are placed on military gear, vehicles, or containers to track their location and ensure proper inventory management. |
Additionally, RFID is used for personnel identification and access control at checkpoints or secure areas within a military installation. RFID systems are especially useful in situations requiring real-time tracking of valuable or critical resources, such as medical supplies or combat equipment, in harsh and dynamic environments like battlefields. |
|
Conclusion |
In summary, RFID offers significant advantages over barcodes in harsh environments like battlefields due to its resilience to physical damage, ability to operate without line-of-sight, and better performance in challenging conditions such as dust, moisture, and extreme temperatures. RFID’s security features and longer range make it more suitable for tracking valuable assets and personnel in such high-risk environments. Barcodes, while cheaper and power-independent, are limited by their vulnerability to environmental conditions, physical damage, and the need for direct line-of-sight, making them less reliable in military or battlefield settings. |
cs@easiersoft.com
