RFID Reader |
1.Introduction to RFID Readers Radio-Frequency Identification (RFID) technology utilizes electromagnetic fields to automatically identify and track tags attached to objects. At the heart of this technology are RFID readers, which are devices that emit radio waves and receive signals back from RFID tags. RFID readers can be fixed or mobile devices and typically include an antenna, a transceiver, and a processor to decode the tag's data. The functionality and efficiency of an RFID system largely depend on the type of reader used and how well it integrates with other system components. |
|
2.Components of an RFID Reader The primary components of an RFID reader are: |
Antenna: Facilitates communication between the reader and RFID tags. Transceiver: Transmits and receives radio frequency signals. Processor: Decodes the information received from the RFID tags and processes it accordingly. |
3.Types of RFID Readers RFID readers can be broadly categorized into two types: |
Fixed RFID Readers: These readers are installed in a specific location and are typically used in environments where objects pass through a particular point, such as at warehouse docks, retail store exits, or airport luggage handling systems. Mobile RFID Readers: These readers are portable and can be carried by personnel to read tags in various locations. They are commonly used in inventory management, asset tracking, and field operations. |
|
4.Fixed RFID Readers Fixed RFID readers are often used in controlled environments where the movement of tagged items is predictable. For instance, in a warehouse setting, a fixed reader might be installed at the entrance or exit to monitor incoming and outgoing goods. Fixed readers generally offer higher performance due to their larger antennas and the ability to connect to multiple antennas, providing a broader read range and better tag detection. |
5.Mobile RFID Readers Mobile RFID readers offer flexibility and mobility, making them suitable for a variety of applications, including inventory counting, asset tracking, and field service operations. These readers are often handheld devices, similar in appearance to a barcode scanner, and can connect wirelessly to backend systems for real-time data updates. Some advanced mobile readers also include features such as touchscreens, GPS, and wireless communication capabilities. |
|
6.How RFID Readers Work The operation of an RFID reader involves several key steps: |
Emission of Radio Waves: The reader's transceiver sends out radio waves through the antenna. These waves propagate through the air and interact with RFID tags within the reader's range. Tag Activation: Passive RFID tags (which do not have their own power source) are activated by the energy from the reader's radio waves. Active tags (which have their own power source) may continuously broadcast their signal. Signal Reception: The activated tag responds by transmitting its unique identifier and other stored information back to the reader via radio waves. Data Decoding: The reader's processor decodes the signal received from the tag and extracts the information, which can then be processed or transmitted to a backend system for further action. |
7.Communication Protocols RFID readers and tags communicate using specific protocols, which define the rules for data exchange. Some common protocols include: |
EPCglobal Class 1 Gen 2: Widely used in supply chain applications, this protocol supports high-speed reading of multiple tags. ISO 18000-6C: An international standard similar to EPCglobal Class 1 Gen 2, often used in logistics and inventory management. ISO 14443: Used for proximity cards and contactless payment systems. ISO 15693: Used for vicinity cards and applications requiring a longer read range. |
|
8.Frequency Bands RFID readers operate in different frequency bands, each with its own characteristics: |
Low Frequency (LF): Operating at 125-134 kHz, LF readers have a short read range (up to 10 cm) and are less susceptible to interference from metals and liquids. They are commonly used in access control and animal tracking. High Frequency (HF): Operating at 13.56 MHz, HF readers have a moderate read range (up to 1 meter) and are used in applications such as contactless payment and smart cards. Ultra-High Frequency (UHF): Operating at 300 MHz to 3 GHz (typically 860-960 MHz), UHF readers offer a long read range (up to 12 meters) and high data transfer rates, making them suitable for supply chain and logistics applications. Microwave Frequency: Operating at 2.45 GHz, microwave RFID readers can achieve very long read ranges but are more susceptible to interference and are typically used in specialized applications. |
9.Read Range and Power Output The read range of an RFID reader depends on several factors, including the power output of the reader, the sensitivity of the receiver, the gain of the antenna, and the environment in which it operates. Higher power output generally results in a longer read range, but it also increases the likelihood of interference and regulatory compliance issues. In many regions, regulatory bodies such as the FCC in the USA and ETSI in Europe set limits on the power output of RFID readers to minimize interference with other radio services. |
|
10.Environmental Factors The performance of RFID readers can be influenced by environmental factors such as the presence of metals, liquids, and other sources of radio frequency interference. Metals can reflect and absorb radio waves, creating dead zones and reducing the effective read range. Liquids can also absorb radio waves, particularly in the UHF band, further complicating tag detection. To mitigate these issues, readers may use specialized antennas or employ techniques such as frequency hopping and adaptive power control. |
11.Examples of RFID Reader Applications |
Retail: Fixed readers at store entrances and exits monitor inventory movement and prevent theft, while mobile readers assist with stock taking and replenishment. Logistics and Supply Chain: Fixed readers at loading docks track incoming and outgoing shipments, ensuring accurate inventory records and reducing errors. Mobile readers allow workers to quickly locate and verify items in large warehouses. Healthcare: Fixed readers in hospitals track medical equipment and supplies, ensuring they are available when needed. Mobile readers assist with patient identification and medication administration. Access Control: Fixed readers at entry points control access to buildings and restricted areas, enhancing security. Mobile readers can be used by security personnel to verify identities in the field. |
|
12.Integration with Backend Systems RFID readers are often integrated with backend systems such as enterprise resource planning (ERP), warehouse management systems (WMS), and customer relationship management (CRM) systems. This integration allows for real-time data updates and streamlined operations. For example, an RFID reader in a warehouse can automatically update inventory levels in the WMS as items are received or shipped, reducing manual data entry and improving accuracy. |
13.Security Considerations As with any technology that involves the transmission of data over the air, security is a critical consideration for RFID systems. Potential security threats include eavesdropping, where unauthorized parties intercept RFID signals, and spoofing, where malicious tags mimic legitimate ones. To mitigate these risks, RFID systems may employ encryption, authentication, and access control measures. For instance, secure communication protocols and encryption algorithms can protect the data transmitted between readers and tags, while access control mechanisms can restrict reader access to authorized personnel only. |
|
RFID Antenna |

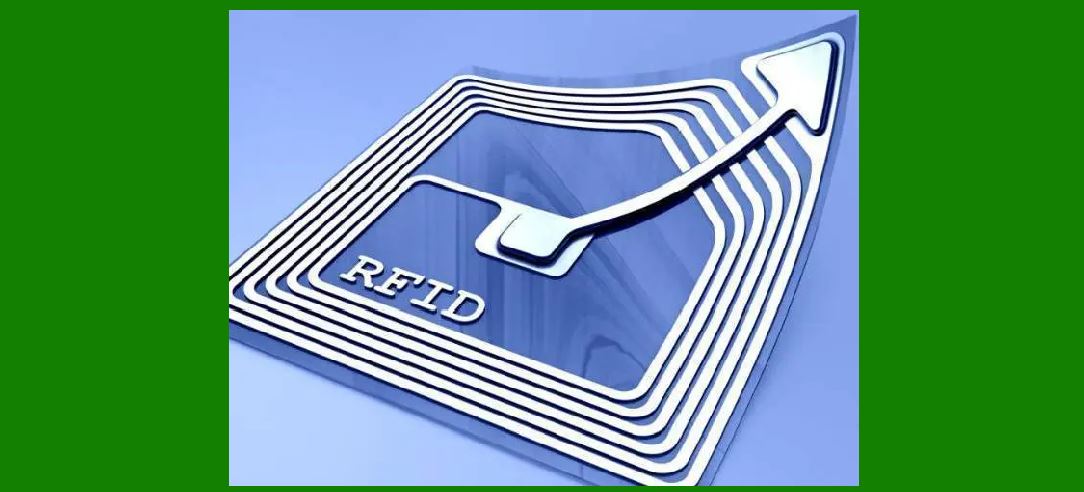

1.Introduction to RFID Antennas The RFID antenna is a critical component of both RFID readers and tags. It facilitates communication between the tag and the reader by transmitting and receiving radio waves. Antennas can be embedded within the reader or installed separately, and their design and placement significantly impact the performance of an RFID system. The antenna's role is to convert electrical signals into radio waves for transmission and vice versa for reception, enabling the reader to detect and interact with RFID tags. |
2.Types of RFID Antennas RFID antennas can be categorized based on their design, polarization, and intended application: |
Linear Polarized Antennas: These antennas emit radio waves in a single plane, making them suitable for applications where the orientation of the tag is known and consistent. They are often used in conveyor systems and access control points. Circular Polarized Antennas: These antennas emit radio waves in a circular pattern, allowing them to read tags regardless of their orientation. They are ideal for environments where the tag orientation is unpredictable, such as in retail and warehouse settings. Near-Field Antennas: Designed for short-range communication, near-field antennas create a magnetic field to interact with RFID tags. They are commonly used in applications requiring precise tag localization, such as payment systems and item-level tracking. Far-Field Antennas: These antennas are used for long-range communication and create an electromagnetic field to interact with RFID tags. They are suitable for applications such as asset tracking and vehicle identification. |
|
3.Antenna Design and Performance The design of an RFID antenna, including its size, shape, and material, significantly impacts its performance. Key design considerations include: |
Frequency Band: The antenna must be designed to operate at the specific frequency band used by the RFID system (LF, HF, UHF, or microwave). Gain: Antenna gain refers to its ability to focus the transmitted power in a particular direction, improving the read range and sensitivity. Higher gain antennas provide longer read ranges but may have a narrower beamwidth. Impedance Matching: Proper impedance matching between the antenna and the reader ensures maximum power transfer and minimizes signal reflections, enhancing performance. Radiation Pattern: The radiation pattern of an antenna describes how it emits radio waves in different directions. Depending on the application, an antenna may require a directional or omnidirectional radiation pattern. |
4.Embedded vs. External Antennas RFID antennas can be embedded within the reader or installed externally: |
Embedded Antennas: These antennas are integrated into the reader's housing, resulting in a compact and all-in-one design. They are commonly used in handheld and mobile readers, as well as in fixed readers designed for close-range applications. External Antennas: External antennas are separate from the reader and can be installed in various locations to optimize tag detection. They offer greater flexibility in terms of placement and can be positioned to cover larger areas or specific zones. External antennas are often used in fixed reader installations, such as at dock doors or along conveyor belts. |
|
5.Antenna Placement and Coverage The placement and orientation of RFID antennas are critical to achieving optimal coverage and performance. Factors to consider include: |
Read Zone Definition: The read zone is the area within which RFID tags can be reliably detected. Proper antenna placement ensures that the read zone covers the desired area without gaps or overlaps. Orientation and Tilt: The orientation and tilt of the antenna can affect its ability to read tags, especially in environments with varying tag orientations. Adjusting the antenna angle can help maximize tag detection. Height and Distance: The height at which the antenna is installed and its distance from the expected tag location influence the read range and coverage. Antennas should be positioned to provide consistent coverage across the target area. Environmental Considerations: The presence of metal, liquids, and other materials can affect the performance of RFID antennas. Antennas should be placed to minimize interference and reflections, ensuring reliable tag detection. |
6.Examples of RFID Antenna Applications |
Retail: Antennas are placed at store entrances, exits, and throughout the store to monitor inventory movement, prevent theft, and assist with stock management. Circular polarized antennas are often used to accommodate varying tag orientations. Logistics and Supply Chain: Antennas are installed at loading docks, along conveyor belts, and within warehouses to track shipments, manage inventory, and ensure accurate record-keeping. Linear polarized antennas may be used in conveyor systems where tag orientation is consistent. Healthcare: Antennas are used to track medical equipment, monitor patient movements, and manage supplies. Near-field antennas are often used for precise item-level tracking in medication management systems. Access Control: Antennas are installed at entry points to control access to buildings and restricted areas. They ensure that only authorized personnel can enter and exit, enhancing security. |
|
7.Integration with RFID Readers RFID antennas must be compatible with the readers they are paired with. This involves ensuring that the antenna's frequency, impedance, and power handling capabilities match those of the reader. Proper integration ensures efficient power transfer, optimal read range, and reliable tag detection. Some readers support multiple antennas, allowing for greater coverage and flexibility in antenna placement. |
8.Advanced Antenna Technologies Advances in antenna technology continue to enhance the performance and capabilities of RFID systems. Some notable developments include: |
Beam Steering Antennas: These antennas can dynamically adjust their beam direction to focus on specific areas, improving tag detection and read accuracy. They are useful in environments with high tag density or where tags are moving rapidly. Adaptive Antennas: Adaptive antennas can adjust their characteristics, such as polarization and gain, based on the environment and tag conditions. This flexibility helps maintain optimal performance in changing conditions. Miniaturized Antennas: Advances in materials and design have led to the development of smaller antennas without compromising performance. These miniaturized antennas are ideal for applications where space is limited, such as in wearable devices or small electronic items. |
|
9.Challenges and Solutions Implementing RFID antenna systems can present several challenges, including interference, signal reflections, and environmental factors. Solutions to these challenges include: |
Interference Mitigation: Using frequency hopping, shielding, and careful placement can reduce the impact of interference from other electronic devices and radio sources. Signal Reflection Management: Placing antennas at angles and using absorptive materials can minimize signal reflections from metal surfaces, improving tag detection. Environmental Adaptation: Selecting antennas designed for specific environmental conditions, such as waterproof or ruggedized models, ensures reliable performance in harsh or variable environments. |
|
10.Future Trends in RFID Antennas The future of RFID antenna technology is likely to see continued innovation and improvement. Emerging trends include: |
Integration with IoT: As the Internet of Things (IoT) expands, RFID antennas will increasingly be integrated with IoT devices and networks, enabling more seamless and interconnected systems. Smart Antennas: The development of smart antennas with built-in processing capabilities will allow for more intelligent and autonomous RFID systems, capable of adapting to their environment and optimizing performance. Advanced Materials: The use of advanced materials, such as metamaterials and nanomaterials, will lead to the creation of more efficient and compact antennas with enhanced performance characteristics. |
|
11.Case Study: Retail Inventory Management In a retail environment, an RFID system comprising fixed readers and circular polarized antennas is installed at store entrances and exits. Additional antennas are strategically placed throughout the store to ensure complete coverage. The readers continuously monitor the movement of RFID-tagged items, updating the inventory management system in real-time. This setup allows store personnel to quickly locate items, manage stock levels, and prevent theft, ultimately improving operational efficiency and customer satisfaction. |
12.Case Study: Warehouse Logistics A large distribution center implements an RFID system with fixed readers and linear polarized antennas along conveyor belts and at loading docks. Mobile readers with embedded antennas are used by warehouse staff to perform inventory counts and locate specific items. The system tracks the movement of goods from receipt to shipment, ensuring accurate inventory records and reducing errors. The integration with the warehouse management system provides real-time updates and enhances overall efficiency. |
13.Case Study: Healthcare Asset Tracking A hospital deploys an RFID system with near-field antennas to track medical equipment and supplies. Fixed readers with embedded antennas are installed in key areas, such as operating rooms and storage areas, while mobile readers are used by staff to locate equipment and verify patient identities. The system ensures that critical equipment is always available when needed, improves asset utilization, and enhances patient safety. |
|
14.Conclusion RFID readers and antennas are fundamental components of RFID systems, enabling the automatic identification and tracking of tagged objects. The choice of reader and antenna, as well as their placement and integration, significantly impact the performance and effectiveness of the system. By understanding the principles and considerations outlined in this detailed explanation, organizations can implement RFID solutions that meet their specific needs and achieve their operational goals. As technology continues to advance, RFID systems will become even more powerful and versatile, opening up new possibilities for automation and efficiency in various industries. |
