MaxiCode is a two-dimensional (2D) barcode symbology developed by United Parcel Service (UPS) in 1992. It is designed primarily for high-speed, high-density applications in the shipping and logistics industry, capable of encoding large amounts of data in a compact format. MaxiCode is known for its unique bullseye pattern, which allows omnidirectional scanning.

Encoding Structure of MaxiCode

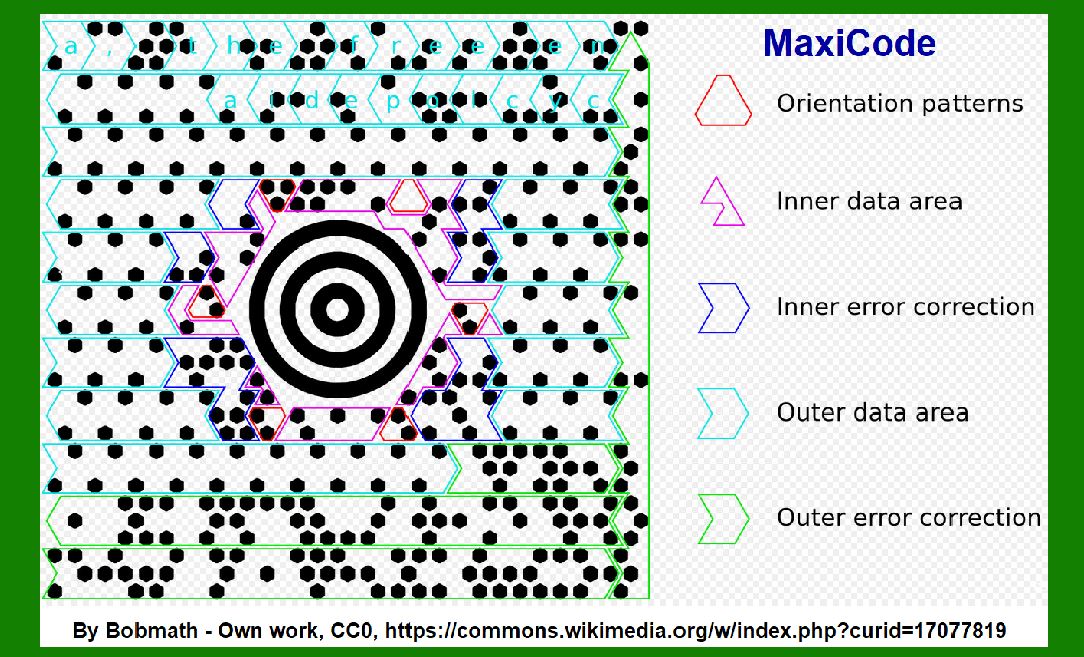

1. Symbol Structure

MaxiCode consists of several concentric rings forming a bullseye pattern, with a central finder pattern that aids in locating and decoding the symbol. The symbol is divided into three main concentric zones: the outer ring, the inner ring, and the central finder pattern.

2. Data Capacity

MaxiCode can encode up to 93 alphanumeric characters or 138 numeric digits, making it suitable for encoding shipping information such as tracking numbers, destination ZIP codes, and package weight.

3. Encoding Process

MaxiCode encoding involves several key steps:

Step 1: Message Construction

The data to be encoded is first formatted according to the MaxiCode specifications. This includes determining the type of data (numeric, alphanumeric, or binary) and organizing it into specific fields as required by the application.

Step 2: Error Correction Coding

MaxiCode uses Reed-Solomon error correction to enhance data reliability. This ensures that even if part of the code is damaged or obscured, the decoder can still reconstruct the original data. Error correction coding adds redundancy to the encoded data, which is essential for applications where reliability is critical, such as package tracking.

Step 3: Data Placement

The encoded data is strategically placed within the bullseye pattern of the MaxiCode symbol. The placement ensures efficient use of space while maintaining the integrity of the encoded information. The structure of the bullseye pattern allows for omnidirectional scanning, meaning the MaxiCode symbol can be read from any orientation.

Step 4: Symbol Generation

Once the data is formatted, error corrected, and placed within the symbol structure, the MaxiCode symbol is generated. This involves converting the structured data into the unique bullseye pattern that defines MaxiCode. The symbol is typically generated digitally and can be printed on labels or directly on packages for scanning purposes.

4. Example of MaxiCode Encoding

Let's consider an example where a MaxiCode symbol is used to encode shipping information for a package:

Data to Encode:

Tracking number: 1Z12345E1512345676

Destination ZIP code: 90210

Package weight: 5.5 lbs

Message Construction:

Format the data according to MaxiCode specifications:

Tracking number: '1Z12345E1512345676'

Destination ZIP code: '90210'

Package weight: '5.5'

Error Correction Coding:

Apply Reed-Solomon error correction to ensure data integrity.

Data Placement:

Distribute the formatted and error corrected data within the bullseye pattern of the MaxiCode symbol, ensuring efficient use of space and omnidirectional readability.

Symbol Generation:

Generate the MaxiCode symbol digitally, converting the structured data into the unique bullseye pattern.

5. Conclusion

MaxiCode's encoding process ensures efficient and reliable data encoding for applications in shipping and logistics. By utilizing a unique bullseye pattern and Reed-Solomon error correction, MaxiCode symbols can encode large amounts of data in a compact space while maintaining readability from any orientation. This makes MaxiCode a preferred choice for high-speed package sorting and tracking systems used by logistics companies worldwide.
