1. Introduction to Telepen Error Correction |
Telepen is a unique barcode symbology that was developed to encode full ASCII data without requiring shift codes, which makes it particularly useful for environments where alphanumeric and ASCII data need to be encoded efficiently. One of the significant aspects of any barcode system is its ability to handle errors, whether they occur due to printing defects, damage, or reading inaccuracies. Error correction in Telepen is designed to ensure that the data encoded can be accurately retrieved even in the presence of such errors. |
|
2. Fundamentals of Error Correction |
Error correction involves the detection and correction of errors within the encoded data. This is crucial for maintaining data integrity and reliability. The basic principles involve: |
2.1. Error Detection |
Error detection is the first step, where the system identifies if an error has occurred during data reading. |
2.2. Error Correction |
Once an error is detected, error correction techniques are applied to restore the original data. |
2.3. Redundancy |
To enable error detection and correction, redundant data is added to the original information. This redundancy allows the system to recognize and correct errors. |
|
3. Telepen's Error Correction Mechanism |
3.1. Structure of Telepen |

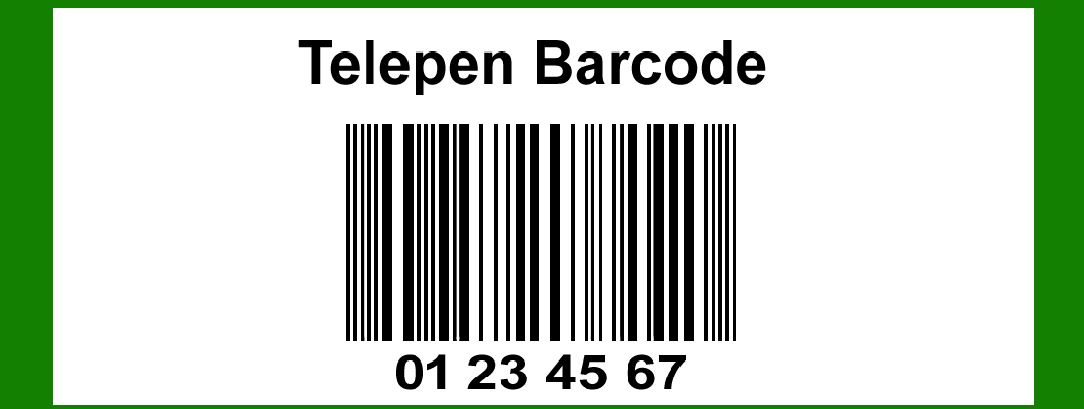

Telepen barcodes encode data in a series of bars and spaces of varying widths. Each character is represented by a pattern of bars and spaces, with each pattern forming a unique sequence. |
3.2. Encoding Process |
In Telepen, the encoding process involves converting the data into binary sequences, which are then represented as specific bar and space patterns. During this process, error correction codes are also incorporated into the barcode to facilitate the detection and correction of errors during scanning. |
3.3. Types of Errors |
Errors can occur due to various reasons: |
Print Defects: Smudging, ink splatter, or other defects that distort the barcode. Physical Damage: Tears, scratches, or other physical damage to the barcode. Scanning Errors: Inaccurate scanning due to poor alignment or scanner malfunctions. |
3.4. Error Detection and Correction Codes |
Telepen employs error detection and correction codes, which are additional bits added to the data to ensure integrity. These codes help in detecting the location and type of error and correcting it to retrieve the original data. |
|
4. Implementing Error Correction in Telepen |
4.1. Parity Bits |
Parity bits are simple error detection codes used in Telepen. Each character is encoded with a parity bit that indicates whether the number of ones in the binary representation of the character is even or odd. |
4.2. Checksum Calculation |
A more sophisticated error detection and correction technique involves the use of checksums. A checksum is a calculated value that represents the sum of the data values. In Telepen, checksums are used to verify the integrity of the data. |
4.2.1. Generating Checksum |
The checksum is generated by summing the values of all characters in the data and adding the result as an additional character in the barcode. |
4.2.2. Verifying Checksum |
When the barcode is scanned, the checksum is recalculated from the scanned data and compared to the checksum encoded in the barcode. If there is a discrepancy, an error is detected. |
4.3. Reed-Solomon Error Correction |
Telepen can also employ more advanced error correction codes like Reed-Solomon codes. These codes are capable of correcting multiple errors within the data. |
4.3.1. Reed-Solomon Encoding |
Reed-Solomon encoding works by treating the data as coefficients of a polynomial, which is then divided by a generator polynomial to produce a remainder. This remainder is added to the data as error correction codes. |
4.3.2. Reed-Solomon Decoding |
During decoding, the same generator polynomial is used to divide the received data, including the error correction codes. Any discrepancies indicate the presence of errors, which can then be corrected by solving the polynomial equations. |
|
5. Practical Example of Telepen Error Correction |
5.1. Encoding Data with Error Correction |
Consider a Telepen barcode encoding the data 'HELLO'. The ASCII values for 'HELLO' are 72, 69, 76, 76, and 79. |
5.1.1. Generating Parity Bits |
For each character, calculate the parity bit: |
H (72): 01001000 (even parity, add 0) E (69): 01000101 (odd parity, add 1) L (76): 01001100 (even parity, add 0) L (76): 01001100 (even parity, add 0) O (79): 01001111 (odd parity, add 1) |
5.1.2. Generating Checksum |
Sum the ASCII values: 72 + 69 + 76 + 76 + 79 = 372. The checksum is 372 mod 256 = 116. Add the checksum to the data, encoding it with parity: |
Checksum (116): 01110100 (even parity, add 0) |
5.2. Introducing an Error |
Assume an error occurs during scanning, and the character 'L' (76) is misread as 'I' (73). |
5.2.1. Detecting Error with Checksum |
Recalculate the checksum for the scanned data: 72 + 69 + 73 + 76 + 79 = 369. The expected checksum is 116, but 369 mod 256 = 113. The discrepancy indicates an error. |
5.2.2. Correcting Error with Reed-Solomon |
Reed-Solomon codes are more robust for correcting multiple errors. The polynomial representation of the data can be used to identify and correct the erroneous character. |
|
6. Conclusion |
Error correction in Telepen barcodes is essential for ensuring data integrity and reliability. By using a combination of parity bits, checksums, and advanced error correction codes like Reed-Solomon, Telepen can effectively detect and correct errors. This process involves encoding additional redundant data with the original information, which is used to identify and correct discrepancies during data retrieval. Understanding and implementing these error correction mechanisms is crucial for maintaining the accuracy and reliability of data encoded in Telepen barcodes. |
|
