The Modified Plessey (MSI) barcode, also known as Modified Plessey Code, is a type of linear barcode commonly used in inventory management, primarily for marking retail shelves and small items. It was developed as an enhancement to the original Plessey Code to improve its accuracy and reliability. In this detailed description, we will explore the components, structure, encoding scheme, applications, advantages, and limitations of MSI barcodes.

Components of MSI Barcode

The MSI barcode consists of several key components that determine its structure and functionality:

1.Start Character: Marks the beginning of the barcode and helps scanners identify the start of the data sequence.

2.Data Characters: These characters encode the actual data to be transmitted. In MSI barcodes, the data characters are typically numeric, from 0 to 9.

3.Check Character: A calculated character that provides error detection capability. It ensures the accuracy of data transmission and helps identify possible scanning errors.

4.Stop Character: Marks the end of the barcode, signaling to the scanner that the entire barcode sequence has been read.

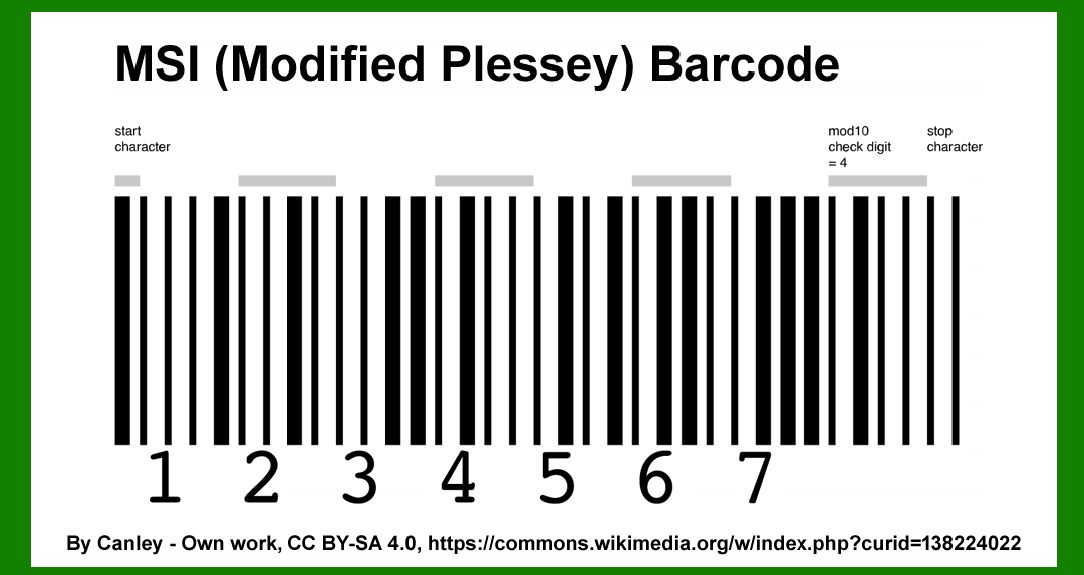

Structure of MSI Barcode

The structure of an MSI barcode is straightforward but effective for its intended purposes:

Character Set: MSI barcodes encode numeric data only (0-9).

Variable Length: MSI barcodes can vary in length depending on the amount of data they need to encode.

Quiet Zones: Like all barcodes, MSI barcodes require quiet zones on either side of the barcode to ensure accurate reading by scanners.

Encoding Scheme of MSI Barcode

MSI barcodes use a binary encoding scheme to represent each numeric digit. The encoding scheme typically involves encoding each decimal digit (0-9) into a binary format that scanners can read accurately. Here's a simplified example of how digits are encoded in an MSI barcode:

Each numeric digit (0-9) is represented by a unique pattern of bars and spaces.

The width and spacing of these bars and spaces determine the binary representation of each digit.

For instance, a binary encoding might represent the digit '1' as a specific pattern of narrow bars and spaces, while the digit '2' would have a different pattern.

Applications of MSI Barcode

MSI barcodes find application in various industries, primarily where numeric data needs to be quickly and accurately scanned:

1.Retail Inventory Management: Used to track items on retail shelves and manage inventory efficiently.

2.Document Management: Sometimes used for document tracking within organizations.

3.Library Systems: Used to manage and track books and other materials.

4.Healthcare: Used for patient identification and tracking medical supplies.

Advantages of MSI Barcode

Numeric Data Handling: MSI barcodes are efficient for handling numeric data, making them suitable for applications that require simple identification and tracking.

Ease of Printing: MSI barcodes can be easily printed on various surfaces using standard printing technologies, making them cost-effective for many applications.

Wide Industry Support: MSI barcodes are widely supported by barcode scanners and software systems, ensuring compatibility across different industries.

Limitations of MSI Barcode

Limited Data Capacity: MSI barcodes are limited to numeric characters, restricting the type and amount of data that can be encoded.

Error Sensitivity: While the check character helps detect errors, MSI barcodes can still be sensitive to printing defects or damage, which may affect readability.

Not Suitable for Complex Data: Due to their numeric nature, MSI barcodes are not suitable for encoding complex data such as alphanumeric strings or large amounts of text.

Conclusion

The Modified Plessey (MSI) barcode is a reliable and widely used linear barcode system designed primarily for numeric data encoding and quick scanning applications. Its structure, which includes start and stop characters, data encoding, and error detection capabilities, makes it suitable for various industries where efficient inventory management and data tracking are crucial. While MSI barcodes have limitations, such as their numeric-only encoding and sensitivity to errors, they remain a valuable tool in barcode technology, especially in environments where simplicity and reliability are paramount.
