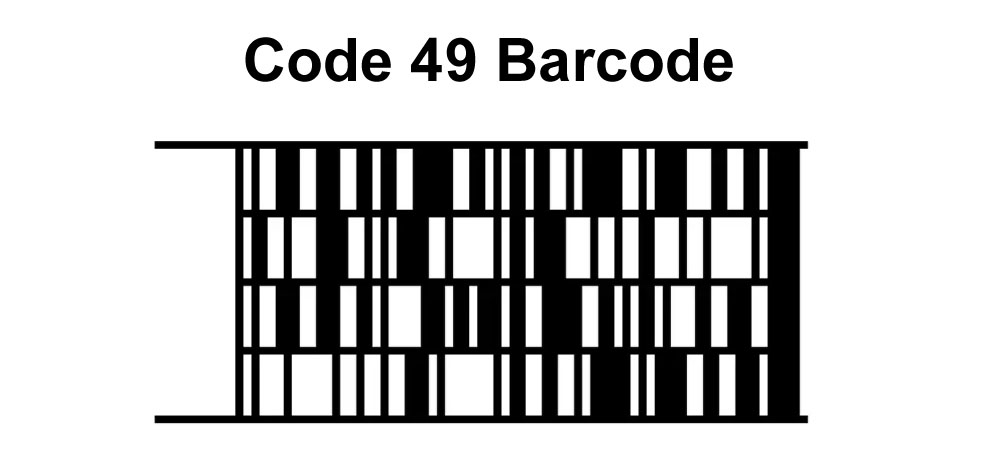

Code 49 is a high-density, variable-length 2D barcode symbology that was developed in the late 1980s by Intermec Technologies Corporation. It was designed to encode large amounts of alphanumeric data in a compact format, making it suitable for applications requiring dense information storage on limited space. Here, I'll detail the components and structures of the Code 49 barcode system, illustrating its features and how it encodes data effectively.

Components of Code 49 Barcode:

1.Module:

Code 49 barcodes consist of rectangular modules arranged in a grid pattern. Each module represents a binary state (black or white) and contributes to the overall encoding of data.

2.Grid Matrix:

The barcode is structured into a grid matrix, where each module can hold data. The grid format allows for flexibility in encoding different types and lengths of data.

3.Start and Stop Patterns:

Code 49 includes specific patterns at the beginning and end of the barcode to indicate the start and stop of data reading. These patterns help scanners identify where to begin decoding and when the data stream ends.

4.Data Encodation:

Data in Code 49 barcodes is encoded both horizontally and vertically within the grid matrix. This dual-axis encoding method allows for compact representation of data, optimizing space usage while maintaining readability.

Structures of Code 49 Barcode:

1.Basic Unit:

The basic unit of a Code 49 barcode is a single rectangle or module. This unit can either be black (binary '1') or white (binary '0').

2.Rows and Columns:

Code 49 organizes data in rows and columns within its grid structure. The number of rows and columns can vary depending on the amount of data encoded.

3.Encoding Modes:

Code 49 supports multiple encoding modes to accommodate different types of data. These modes include numeric, alphanumeric, and binary, allowing flexibility in encoding various characters and data types.

4.Compactness:

One of the key features of Code 49 is its compactness. By utilizing both horizontal and vertical encoding, it can encode large amounts of data in a relatively small area compared to linear barcodes.

5.Error Correction:

To enhance reliability, Code 49 incorporates error correction techniques. These techniques ensure that even if parts of the barcode are damaged or obscured, the data can still be accurately recovered during scanning.

6.Orientation and Rotation:

Code 49 barcodes can be read from any orientation and are designed to handle rotations up to 180 degrees. This feature adds to its versatility in various scanning environments.

Example of Code 49 Structure:

Let's visualize a simplified example of a Code 49 barcode structure encoding the alphanumeric string 'ABC123DEF456':

Data String: ABC123DEF456

Grid Matrix Representation:

Start Pattern | Data Cells | Stop Pattern

----------------------------------------

1 0 1 0 1 | 1 0 0 0 | 1 0 1 0 1

0 1 0 1 0 | 0 1 1 0 | 0 1 0 1 0

1 0 1 0 1 | 0 0 1 1 | 1 0 1 0 1

0 1 0 1 0 | 1 1 0 0 | 0 1 0 1 0

1 0 1 0 1 | 0 0 1 0 | 1 0 1 0 1

In this example:

Each '1' or '0' in the grid represents a black or white module.

The start and stop patterns are distinct sequences that indicate the beginning and end of the barcode.

Data cells hold the encoded alphanumeric characters.

Conclusion:

Code 49 barcode's structure and components enable it to efficiently encode and decode large amounts of data in a compact format. Its grid-based matrix, dual-axis encoding, error correction capabilities, and support for various data types make it suitable for applications requiring high-density information storage. This detailed breakdown illustrates how Code 49 leverages its design to meet diverse industry needs for efficient data management and retrieval.
