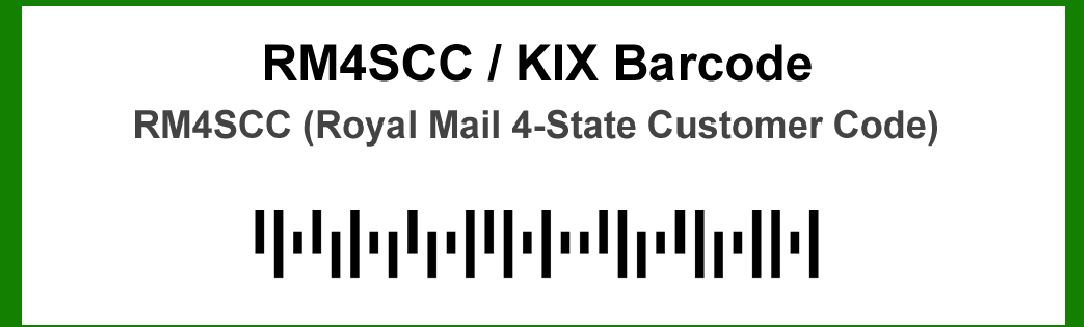

RM4SCC, or Royal Mail 4-State Customer Code, is a barcode symbology primarily used in the United Kingdom by Royal Mail for efficient mail sorting and delivery. It is designed to encode postcode information and other data related to mail items. Let's delve into the components and structures of RM4SCC in detail.

Components of RM4SCC

RM4SCC consists of several key components that define its structure and functionality:

1.Start Sentinel (Guard Bar):

RM4SCC begins with a start sentinel, which is a unique pattern of bars and spaces used to indicate the beginning of the barcode. It helps scanners identify and properly interpret the start of the barcode data.

2.Customer Information Field (CIF):

The CIF section of RM4SCC encodes the main postal information, typically the postcode or other customer-specific data. It consists of a combination of bars and spaces that represent alphanumeric characters.

3.Check Character:

RM4SCC includes a check character at the end of the CIF. This character is used for error detection and ensures the accuracy of the data encoded in the barcode. The check character is computed based on a specific algorithm applied to the CIF data.

4.Stop Sentinel (Guard Bar):

Similar to the start sentinel, the stop sentinel marks the end of the barcode. It helps scanners determine where the barcode data concludes, ensuring complete and accurate reading of the encoded information.

Structures of RM4SCC

RM4SCC has a specific structure that dictates how data is encoded and decoded:

1.Encoding Scheme:

RM4SCC encodes data using a 4-state symbology, meaning each character in the CIF can be represented by one of four possible states: full bar, half bar, tracker, or absent (no bar). This allows for efficient use of space and quick scanning by barcode readers.

2.Character Set:

The character set used in RM4SCC includes 36 characters: digits 0-9 and letters A-Z (excluding I, M, O, and Q to avoid confusion with numerals). This alphanumeric character set allows RM4SCC to encode postcode data accurately and efficiently.

3.Data Encoding:

Each character in the CIF is represented by a specific combination of bars and spaces. The sequence and arrangement of these elements follow predefined rules that ensure readability and error detection. For example, the encoding for each character is designed to minimize ambiguity and maximize scanning reliability.

Examples of RM4SCC Structures

Let's consider an example to illustrate how RM4SCC encodes postcode information:

Postcode: SW1A 1AA

In RM4SCC, the postcode 'SW1A 1AA' would be encoded as follows:

Start Sentinel: Indicates the beginning of the barcode.

CIF: Encodes 'SW1A 1AA' using the alphanumeric character set and the 4-state encoding scheme.

Each character (S, W, 1, A, 1, A, A) is represented by a specific pattern of bars and spaces.

Check Character: Added at the end of CIF to ensure data accuracy.

Stop Sentinel: Marks the end of the barcode.

The specific bar and space patterns for each character in the CIF are derived from the RM4SCC encoding rules and algorithms. These patterns are designed to be distinct and easily distinguishable by barcode scanners, ensuring reliable and efficient data capture.

Conclusion

RM4SCC is a robust barcode symbology used by Royal Mail for encoding postcode and other postal information. Its structured components, including the CIF, check character, and sentinels, ensure accurate and efficient data encoding and decoding. By following specific encoding rules and using a 4-state symbology, RM4SCC enables reliable sorting and delivery of mail items throughout the United Kingdom.
