DataMatrix Decoded: A Technical Deep-Dive |
Executive Summary |
In the aerospace industry, the margin for error is zero, and the need for traceability is absolute. Every component, from the smallest fastener to the largest airframe section, must be identifiable throughout its entire operational life, which can span decades. To meet this stringent requirement, the industry has adopted DataMatrix direct part marking (DPM) as its gold standard for permanent, machine-readable identification . This involves using technologies like laser etching or dot peening to inscribe a DataMatrix code directly onto the surface of a component, creating a digital 'birth certificate' that accompanies the part from manufacturing through maintenance and retirement. This process is mandated by regulations from the Federal Aviation Administration (FAA) and the European Union Aviation Safety Agency (EASA) and is enforced through standards like MIL-STD-130, AS9132, and NASA-STD-6002 . |
This permanent marking is not just about tracking; it is a critical defense against the infiltration of counterfeit and unapproved parts, a problem the FAA estimates affects 2% of the 26 million aircraft parts installed annually . By encoding a unique identifier that links the physical part to its digital documentation (e.g., Certificate of Conformity, material test reports), DataMatrix DPM ensures that every component's pedigree is verifiable at a glance. This article explores the technical details of this application, the standards that govern it, and the profound impact it has on safety and efficiency in the American aerospace industry, featuring real-world examples from NASA, the Department of Defense, and commercial leaders. |
|
Part One: The Technical Imperative for DataMatrix in Aerospace |
Chapter 1: Why Aerospace Needs Direct Part Marking |

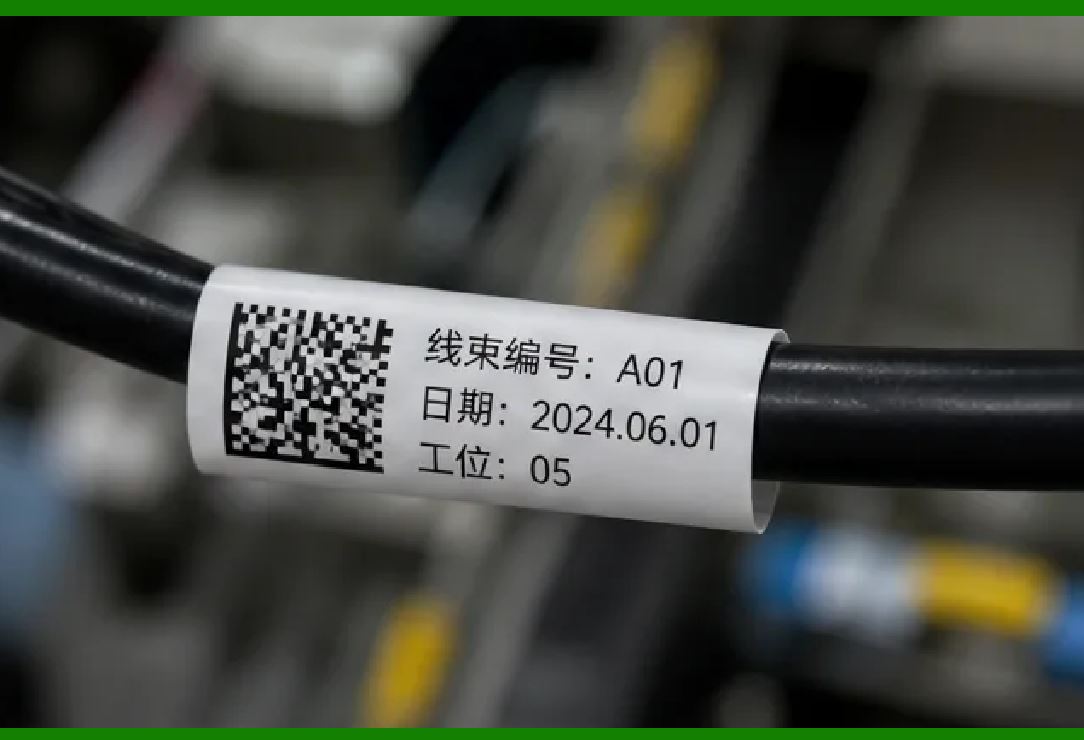

Traditional identification methods like adhesive labels, ink stamps, or engraved nameplates are insufficient for the harsh realities of aerospace. A component on a jet engine is subjected to extreme temperatures, high-velocity airflow, caustic chemicals, and significant vibration. Labels can peel, ink can fade, and plates can be sheared off. Permanent direct part marking is necessary because the identification must survive the entire lifecycle of the part---a period that can exceed 50 years . |
Chapter 2: The Digital Birth Certificate Concept |
A DataMatrix code on an aerospace part acts as a unique digital identifier, a 'birth certificate' that is permanently linked to its digital records . When a technician scans the code, they can instantly access a wealth of information: the part's manufacturing batch, material certifications, inspection results, and installation history. This concept of a 'digital thread' is central to modern aviation safety and maintenance. |
Chapter 3: The Preferred Symbology - ECC 200 |
NASA and the Department of Defense have mandated the use of the ECC 200 Data Matrix symbology for direct part marking . This variant, which uses Reed-Solomon error correction, is exceptionally robust. It can be decoded even if a significant portion of the symbol is damaged, making it ideal for the wear-and-tear of aerospace environments . |
|
Chapter 4: The Challenge of Aerospace Materials |
Aerospace components are made from a vast array of challenging materials. The marking process must be carefully tailored to each one to ensure the mark is permanent and does not compromise the part's structural integrity. |
Chapter 5: Laser Etching for Metal Alloys |
Fiber lasers with a wavelength of 1064 nm are the most popular solution for marking metal alloys like titanium, aluminum, and stainless steel . The process creates contrast by ablating the surface (removing material) or annealing it (changing its color through heat). For critical parts like turbine blades, deep engraving of at least 100 micrometers ensures the code can only be destroyed through significant material removal, offering maximum protection against tampering . |
Chapter 6: Dot Peen Marking |
Dot peen marking uses a pneumatic or electromagnetic pin to create a series of tiny indentations on the part's surface . It is a cost-effective, robust solution for creating deep, durable marks that can survive post-treatments like shot peening and coating. It is widely used for marking hard metals and identification plates where a deep mark is required . |
|
Chapter 7: Laser Marking of Composites |
Modern aircraft can be up to 50% composite material by weight. Marking these materials is delicate; traditional lasers can cause micro-cracks and delamination. For Carbon Fiber Reinforced Polymers (CFRP), UV lasers (355 nm wavelength) are often used . The photochemical interaction of UV light minimizes heat-affected zones, reducing the risk of structural damage. |
Chapter 8: Tamper-Proof Design |
The permanence of DPM makes it a powerful anti-counterfeiting tool. A laser-etched DataMatrix code cannot be removed and replaced with a counterfeit label. If someone attempts to grind it off or alter it, the mark is destroyed, signaling a potential issue. Deep engraving (>100 um) ensures the code can only be removed by destroying the part itself . |
Chapter 9: The Challenge of Post-Processing |
A critical mistake in aerospace marking is applying the mark *before* final surface treatments. Processes like anodizing, painting, or shot peening can obscure or destroy the code. Best practice is to apply the DataMatrix mark as the last operation in the production cycle . |
|
Chapter 10: Verification and Quality Control |

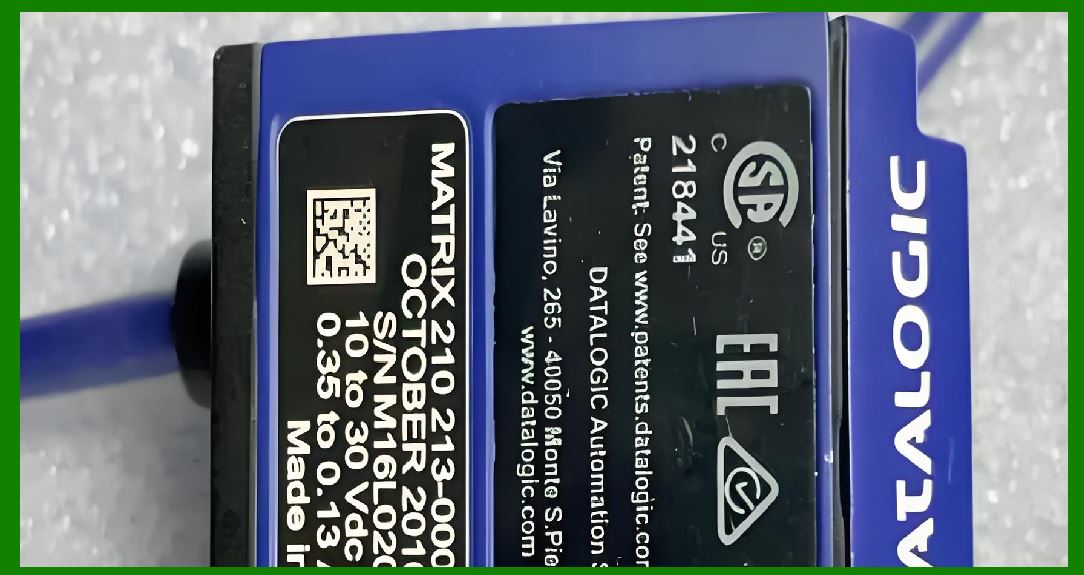

It is not enough to simply mark a part; the mark must be verifiable. Quality standards require that a marked DataMatrix code be read successfully 10 out of 10 times under controlled conditions. Automated vision systems are often used to verify the code's contrast, cell size, and lack of geometric deformation immediately after marking . |
Chapter 11: Grading the Mark |
Verification is a process of grading the mark's quality. Key parameters include contrast, modulation, and axial defects. For critical aerospace applications, a minimum quality grade of 'B' (and ideally 'A') is required . This ensures the code will remain readable throughout the part's life, even as it accumulates wear. |
Part Two: The Regulatory and Standards Framework |
Chapter 12: NASA-STD-6002: The Foundation |
NASA has been a pioneer in DPM, developing standards after the Challenger accident to prevent parts quality issues. NASA-STD-6002 is a foundational document that mandates the use of ECC 200 Data Matrix symbols as the direct part marking method for all flight hardware and associated ground support equipment . |
Chapter 13: MIL-STD-130: The Department of Defense Mandate |
For the U.S. Department of Defense (DoD), MIL-STD-130 is the governing standard for identification marking of military property . It mandates that items with an acquisition cost exceeding $5,000 must be marked with a 2D Data Matrix symbol that achieves a minimum verification grade of 'B' . |
|
Chapter 14: AS9132: The Quality Systems Standard |
AS9132 (now EN 9132) is the European and international aerospace standard for 'Data Matrix Quality Requirements for Parts Marking' . This standard, often incorporated into broader quality management systems (like AS9100), provides detailed requirements for marking methods, quality, and verification, ensuring consistency across the supply chain. |
Chapter 15: ATA Spec 2000 and FAA Regulations |
The airline industry uses ATA Spec 2000 for common data exchange, which includes requirements for part marking. The Federal Aviation Administration (FAA) and EASA rely on these industry standards to enforce compliance and ensure that all aircraft are assembled from identifiable, traceable components . |
Chapter 16: The Content of the Data Matrix |
The data encoded in the symbol is structured. For legacy NASA programs, this includes a part number followed by an Enterprise Identifier (EI) separated by a space . The goal is to create a globally unique identifier that links the physical part to its enterprise system. |
|
Part Three: American Applications in Action |
Chapter 17: Turbine Blade Traceability |
A Tier 1 turbine blade manufacturer implemented deep-engraved DataMatrix codes in their final finishing cell. The result was a dramatic improvement in end-to-end traceability (a +35-point increase in their performance metric) and a 30% reduction in non-conformances. They were also able to reduce inspection time by 92%, with the investment paying for itself in just six weeks . |
Chapter 18: NASA's Return to Flight |
After the Challenger accident, NASA began extensive studies on DPM to improve configuration management. The development of NASA-STD-6002 and its accompanying handbook (NASA-HDBK-6003) formed the basis for most other international part marking standards. This work was directly aimed at preventing the use of unmarked or misidentified parts . |
Chapter 19: Eliminating Counterfeit Parts |
The FAA estimates that 2% of the 26 million aircraft parts installed annually are counterfeit or unapproved . For an aerospace supplier, implementing a robust DPM system is a primary defense against this threat. It creates an immutable link between the physical part and its approved documentation, making it extremely difficult for a counterfeit part to infiltrate the supply chain . |
|
Chapter 20: The Department of Defense IUID Program |
The DoD requires a Unique Item Identifier (IUID) for all property under its control. The DataMatrix code, as mandated by MIL-STD-130, is the carrier for this IUID. This enables the military to track equipment from acquisition to disposal, improving logistics, readiness, and lifecycle cost management . |
Chapter 21: A Legacy of Safety - The Boeing 737 MAX Connector Recall |
In a real-world scenario, Boeing had to manage a Service Bulletin affecting specific batches of electrical connectors on its 737 MAX aircraft. Using UID marking implemented according to MIL-STD-130, the company was able to quickly identify the 2,847 affected components across 412 aircraft and 28 different operators. The identification was completed in just 4 days, and the replacement process was completed in 12 days---a task that would have taken months using traditional paper records . |
Chapter 22: Automating Recall Management |
When a quality issue is discovered, speed is critical. A component manufacturer faced a recall on valves installed in several military helicopter fleets. Due to MIL-STD-130 compliant DataMatrix marking, they were able to locate and contain the issue in 72 hours instead of the weeks that would have been required with traditional tracking systems . |
|
Chapter 23: The Unmarkable Part - Nanocode |
Not all parts can be directly marked. Some are too small, too delicate, or made of materials that cannot be safely engraved. NASA developed a workaround: Nanocode. This is a chemical taggant sprayed onto parts that can be read by x-ray fluorescence (XRF) and decoded as a DataMatrix symbol. This allows even 'unmarkable' parts to be digitally identified . |
Chapter 24: Quality Control in the Supply Chain |
Subcontractors in the aerospace supply chain are required to deliver fully identified components. Dot peen and laser marking systems are integrated with quality control stations to provide a formal grade verification for each marked part. This prevents non-conformances from reaching the assembly line and ensures every part meets the 'B' grade standard . |
Chapter 25: Composite Fuselage Panels |
When marking CFRP fuselage panels, traditional fiber lasers caused radial microcracks in the material. By switching to a UV laser with lower energy per pulse and increasing the number of passes, manufacturers achieved equivalent contrast without any structural damage visible on ultrasonic inspection . |
|
Chapter 26: Aiding Audit Readiness |
Verification records are not just for quality; they are for compliance. By maintaining records of DataMatrix verification, aerospace manufacturers can easily demonstrate adherence to MIL-STD-130 and ISO standards during audits, avoiding costly penalties and contract issues . |
Chapter 27: A Small Mark for a Big Purpose |
A 10x10 DataMatrix symbol can be placed on the head of a straight pin. This tiny footprint allows for permanent identification on components where there is simply no room for a traditional human-readable label . |
Chapter 28: Enhancing Supply Chain Visibility |
By using standardized DataMatrix codes, OEMs can gain unprecedented visibility into their supply chain. Each scan of a part as it moves from the sub-tier supplier to the assembly line updates its digital record, creating a complete and transparent lifecycle history . |
|
Chapter 29: Reducing Inspection Time |
A Tier 1 supplier found that inspecting parts using traditional methods took a significant amount of time. With DPM, scanning the DataMatrix code instantly brings up the part's certification and quality records, reducing the time to verify a part's origin by 92% . |
Chapter 30: The Future of In-Process Marking |
Modern marking systems can be integrated directly into the manufacturing cell. A part can be marked, immediately verified by an integrated vision system, and the result sent to the MES/ERP system---all in less than 8 seconds . |
|
Detailed Summary |
DataMatrix direct part marking is not merely a convenience for the aerospace industry; it is a non-negotiable requirement for safety, compliance, and supply chain integrity. By permanently inscribing a machine-readable, error-correcting code directly onto a component, the industry creates an immutable link between the physical part and its digital documentation---a true 'birth certificate.' This process, mandated by a rigorous framework of standards including MIL-STD-130 from the Department of Defense and NASA-STD-6002 from NASA, ensures that every component, from a tiny rivet to a massive turbine blade, can be traced throughout its operational life, which may span decades . |
The technologies used to create these marks---such as fiber laser etching for metals and UV lasers for composites---are carefully selected to balance durability with the preservation of the part's structural integrity . Verification systems, utilizing high-resolution cameras, grade the mark's quality to ensure it meets the strict 'B' grade requirement, guaranteeing readability even after years of exposure to heat, vibration, and chemicals . |
The real-world benefits are tangible and profound. DPM systems have demonstrated the ability to reduce inspection time by over 90%, cut non-conformance rates by 30%, and slash recall response times from weeks to just days . In the fight against counterfeit parts---a problem affecting 2% of all parts installed---DPM serves as a critical defensive line . A manufacturer's ability to quickly identify, locate, and replace defective components relies entirely on the integrity and universality of the DataMatrix mark. |
|
In American aerospace, DataMatrix DPM is the silent sentinel that ensures the aircraft flying overhead are built from parts that are genuine, traceable, and safe. It stands as a testament to how a simple grid of black and white squares can underpin the complex, life-critical systems that connect our world. |
