DataMatrix Decoded: A Technical Deep-Dive |
Executive Summary |

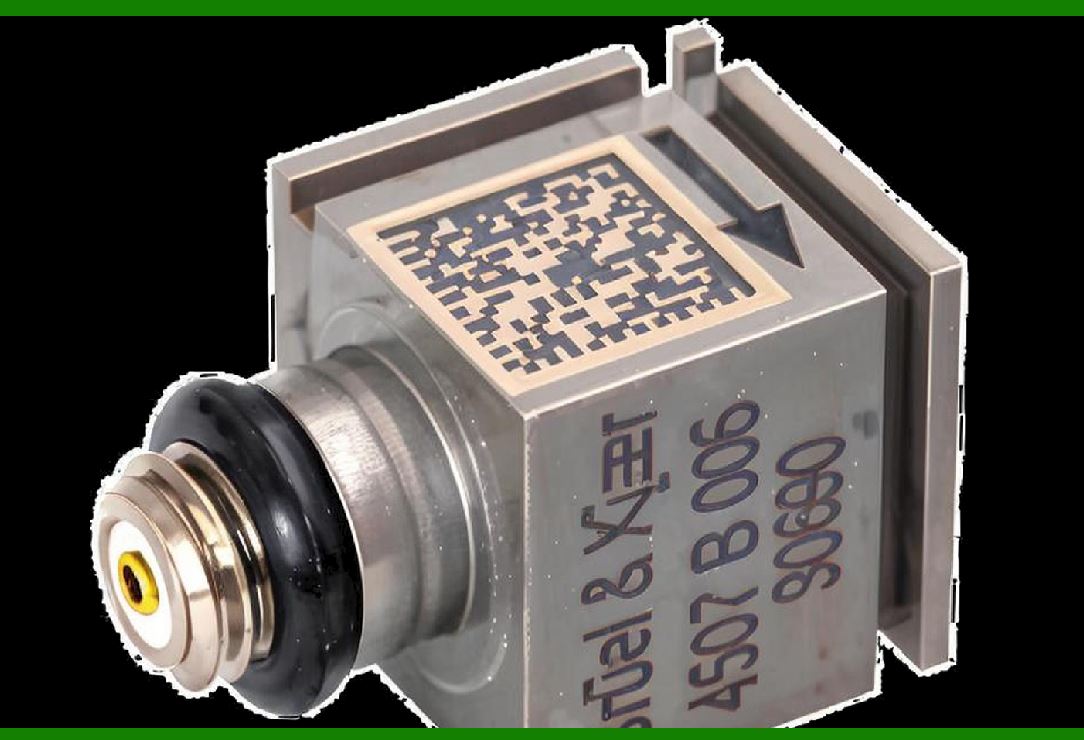

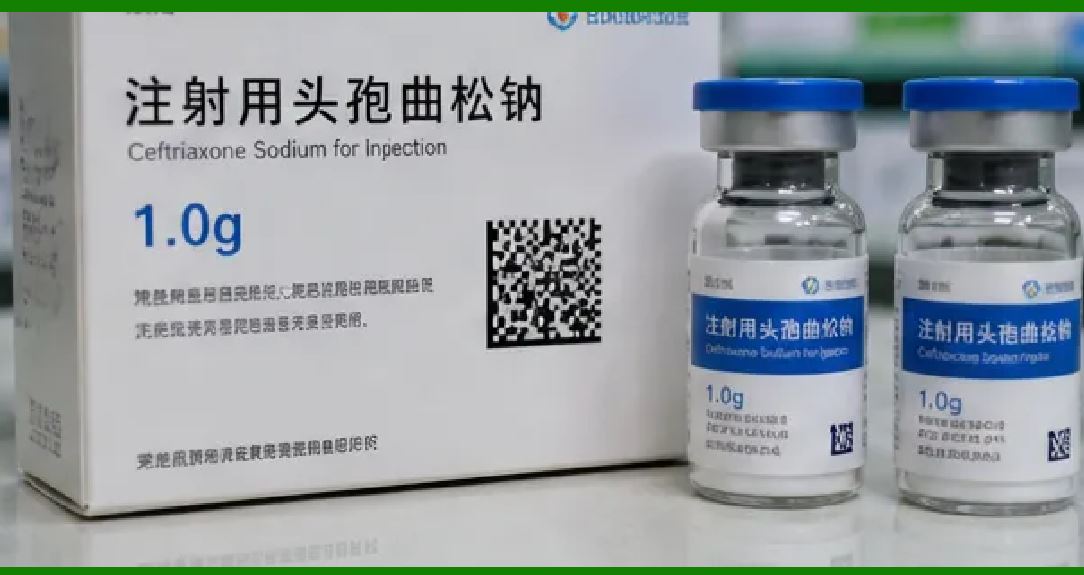

In the world of logistics and parcel sorting, speed and accuracy are paramount. Processing facilities must handle thousands of packages per hour, routing each one to its correct destination with near-perfect reliability. DataMatrix codes have emerged as a critical technology for meeting this challenge, complementing traditional linear barcodes with their superior space efficiency, error correction, and ability to be read from any orientation. |
The United States Postal Service (USPS) has developed the Intelligent Mail Matrix Barcode (IMmb), a GS1 DataMatrix symbol that contains the same data as the traditional linear IMpb barcode but in a more robust, space-efficient format . The IMmb's smaller footprint allows two such barcodes to be added to shipping labels, providing redundancy that dramatically improves read rates when packages become creased or distorted during automated processing . This redundancy reduces manual processing delays, improves package visibility, and enhances customer satisfaction . |
Private carriers are also adopting 2D barcodes for their logistics operations. DHL, for example, uses DataMatrix codes alongside traditional barcodes in its sorting facilities . The broader logistics industry is moving toward 2D symbologies to support richer data payloads, improved error tolerance, and better integration with warehouse management systems . This article explores the technical implementation of DataMatrix in logistics, the regulatory drivers, and the real-world applications that are transforming how packages move through the American supply chain. |
|
Part One: The Role of DataMatrix in USPS Operations |
Chapter 1: The Evolution of Postal Barcodes |
The United States Postal Service has a long history of using barcodes to automate mail processing. In the 1980s, POSTNET (Postal Numeric Encoding Technique) used groups of five half- and full-length bars to encode ZIP codes, enabling automated sorting of letters . This was later complemented by the PLANET (Postal Alpha Numeric Encoding Technique) barcode for tracking and confirmation of delivery . |
In the mid-2000s, the USPS introduced the Intelligent Mail barcode (IMb), a 4-State Customer Code that combined the features of POSTNET and PLANET into a more advanced symbology with higher data density . The IMb fully replaced both legacy systems in 2013 . However, the IMb remained a linear (1D) barcode, which has inherent limitations when printed on flexible or irregular packaging. |
|
Chapter 2: The Intelligent Mail Matrix Barcode (IMmb) |
To address the challenges of reading linear barcodes on distorted packaging, the USPS developed the Intelligent Mail Matrix Barcode (IMmb), a two-dimensional GS1 DataMatrix symbol . The IMmb contains the exact same data payload as the traditional Intelligent Mail Package Barcode (IMpb) but is encoded as a GS1 DataMatrix (2D) barcode rather than a GS1-128 (linear) barcode . |
The IMmb offers two key advantages over the linear IMpb. First, GS1 DataMatrix is more space-efficient, allowing the code to fit in unused areas of existing shipping labels . Second, it has Reed-Solomon error correction that can allow damaged barcodes to still be read . This is critical for packages that become creased, crinkled, or distorted during automated parcel processing. |
|
Chapter 3: Redundancy and Improved Visibility |
The smaller footprint of the IMmb allows two supplemental IMmb barcodes to be added to standard shipping labels in addition to the primary linear IMpb . This provides redundancy: if the primary linear barcode becomes unreadable due to damage or distortion, the sorter has two additional chances to read a DataMatrix code . |
This redundancy boosts the potential for more complete enroute visibility, increasing the volume and quality of scan data collected on processing equipment . Benefits include reduction in delays due to manual processing, increased customer satisfaction, and reduction in calls to call centers . |
|
Chapter 4: Regulatory Requirements for IMmb |
The USPS has mandated the use of IMmb barcodes on all package shipping labels . IMmb has been required on HAZMAT packages since January 2024, and beginning January 19, 2025, it became required on USPS Ground Advantage, Priority Mail, Priority Mail Express, Parcel Select, Bound Printed Matter, Media Mail, Library Mail, USPS Marketing Mail, Parcel Return Service, and USPS Return . |
The IMmb is printed by all USPS platforms, including Retail Units, Self Service Kiosks, Click-N-Ship, and WebTools, as well as by Mail Service Providers, Shipping Solution Vendors, and PC Postage companies . Technical specifications and guidance on barcode placement are available through the USPS PostalPro website . |
|
Chapter 5: Technical Specifications and Placement |
The IMmb technical specifications are published by the USPS and provide detailed guidance on barcode format, size, and placement . The IMmb must be placed to the left of the delivery address on standard shipping labels, with a second IMmb recommended but not required . |
The use of GS1 DataMatrix for the IMmb ensures interoperability with scanning equipment used throughout the USPS processing network. The code format follows GS1 standards for data structure, enabling consistent interpretation across different systems and facilities. |
|
Part Two: Logistics and Parcel Sorting Infrastructure |
Chapter 6: High-Speed Sortation Systems |
Modern logistics hubs rely on automated sortation systems that process thousands of packages per hour. These systems use conveyor belts, singulation stations, and high-speed barcode scanners to route packages to their correct destinations . |
Tunnel scanners are the primary technology for reading barcodes in sortation systems. These scanners use arrays of camera-based imagers positioned around the conveyor tunnel, capturing images from multiple angles simultaneously . Five-sided reading configurations (top plus four sides) are common, with some systems offering six-sided reading (including the bottom) to achieve maximum read rates . |
|
Chapter 7: Scanner Technologies for 2D Barcodes |
Reading DataMatrix codes in logistics requires imaging scanners capable of decoding 2D symbologies. Cognex, a leading provider of machine vision systems, offers DataMan readers that support 1D/2D QuickSort decoding for high-speed, high-angle multi-symbol label reading . These readers support DataMatrix, QR Code, MaxiCode, and a range of 1D symbologies . |
The DataMan 580 series, for example, is designed for logistics tunnel applications, with firmware supporting object tracking and high-speed decoding . These systems are capable of reading barcodes at conveyor speeds, with throughput rates for tilt-tray and crossbelt sorters reaching 10,000 to 20,000 packages per hour . |
|
Chapter 8: Barcode Quality for Sortation |
High-speed sortation demands excellent barcode quality. Industry requirements specify a minimum print quality grade of 'B' (with 'A' preferred), full quiet zone compliance, consistent label placement, and labels in good condition with no wrinkles, tears, or obscuring tape . |
No-read rates should be below 0.2% for well-designed systems . Common causes of no-reads include poor print quality, label placement outside the scanner field of view, damaged or wrinkled labels, and scanner contamination from dust on lenses . Regular maintenance, including weekly cleaning of scanner lenses and monthly calibration against reference barcodes, is essential for maintaining performance . |
|
Chapter 9: Private Carrier Practices |
Private carriers have adopted various 2D barcode technologies for logistics. DHL and Deutsche Post use DataMatrix codes alongside traditional barcodes in their sorting facilities, leveraging the 2D symbology's high error tolerance for tracking items over long distances and across multiple touchpoints . |
UPS, historically, developed MaxiCode, a fixed-size 2D barcode with a distinctive hexagonal grid and central bull's-eye finder pattern, specifically for high-speed parcel sorting . MaxiCode encodes ship-to postal code, country code, service class, and tracking number, and its fixed size enables reliable reading at speeds of up to 100 feet per second on high-speed conveyor belts . While UPS continues to use MaxiCode, the broader logistics industry has largely standardized on Code 128, GS1-128, and DataMatrix for package labeling . |
|
Chapter 10: The Shift to 2D Barcodes |
The logistics industry is increasingly adopting 2D barcodes, including DataMatrix, for several reasons . 2D codes can encode larger amounts of data, such as product SKUs, batch information, or URLs, making them useful for internal operations and consumer interactions . They also offer improved error tolerance, with Reed-Solomon correction enabling recovery even when parts of the code are damaged . |
The shift to 2D barcodes requires upgrades to scanning equipment and label printing capabilities. Migrating to 2D support involves inventorying existing equipment, running controlled pilots, and scaling once key performance indicators (KPIs) hit target levels . This transition is part of a broader industry movement toward richer data payloads and improved supply chain visibility. |
|
Part Three: American Applications in Action |
Chapter 11: USPS Package Processing |
The USPS processes billions of packages annually through its network of processing and distribution centers. The IMmb DataMatrix code is integral to this operation, providing redundant scanning opportunities that improve package visibility and reduce manual handling . |
When a package enters a USPS facility, it passes through high-speed tunnel scanners that attempt to read both the primary linear IMpb and the supplemental IMmb DataMatrix codes. If the linear barcode is damaged or obscured, the DataMatrix code provides a backup, allowing the sorter to continue routing the package without manual intervention . |
|
Chapter 12: FedEx and DHL Sorting Hubs |
Private carriers also use DataMatrix and other 2D codes in their sorting hubs. DHL's sorting facilities use DataMatrix codes for tracking items, leveraging the high error tolerance of 2D symbologies to maintain visibility across long distances and multiple touchpoints . FedEx's broader logistics operations are also adopting 2D barcodes to support richer data payloads and improved scanning reliability . |
The transition to 2D barcodes in private carrier operations reflects the same drivers as the USPS: space efficiency, error correction, and the ability to encode more data in a smaller footprint . As e-commerce volumes continue to grow, these capabilities are essential for maintaining processing speed and accuracy. |
|
Chapter 13: E-commerce Fulfillment Centers |
E-commerce fulfillment centers, which handle millions of packages annually, rely on automated sortation systems that use DataMatrix and other 2D codes for routing and tracking. These systems integrate barcode scanning with dimensioning and weighing to capture comprehensive package data, feeding into carrier billing, package optimization, and capacity planning . |
The use of DataMatrix in fulfillment centers enables more efficient returns processing, as the code can store information about the original order, enabling faster restocking and reconciliation. It also supports integration with warehouse management systems (WMS) and transportation management systems (TMS) through standardized data formats . |
|
Chapter 14: Cold Chain Logistics |
In cold chain logistics, DataMatrix codes are used to encode temperature-sensitive product information, enabling real-time monitoring of shipping conditions. When a package passes through a sorting facility, the DataMatrix code links to temperature logs in a database, allowing operators to verify that the cold chain has been maintained. |
The error correction capabilities of DataMatrix are particularly valuable in cold chain applications, where condensation on packaging can obscure traditional barcodes. The compact footprint of the code also allows it to be placed on small packages or labels where linear barcodes would not fit. |
|
Detailed Summary |
DataMatrix codes have become an essential technology for logistics and parcel sorting, enabling high-speed automated processing, improved package visibility, and reduced manual intervention. The USPS's Intelligent Mail Matrix Barcode (IMmb) is a prime example, using the compact footprint and error correction of GS1 DataMatrix to provide redundant scanning opportunities on shipping labels . |
The IMmb's smaller footprint allows two supplemental barcodes to be added to existing shipping labels, giving sorters two additional chances to read the code when the primary linear barcode becomes damaged or distorted . This redundancy reduces delays due to manual processing, improves enroute visibility, and enhances customer satisfaction . The IMmb has been mandated on all USPS package shipping labels, with technical specifications and placement guidance available through the USPS . |
Private carriers also leverage DataMatrix for logistics. DHL uses DataMatrix codes alongside traditional barcodes in its sorting facilities . UPS developed MaxiCode, a fixed-size 2D barcode, specifically for high-speed parcel sorting . The broader logistics industry is shifting toward 2D barcodes to support richer data payloads and improved error tolerance . |
High-speed sortation systems rely on tunnel scanners with five- or six-sided reading configurations to capture barcodes from any orientation. These systems process thousands of packages per hour, with throughput rates for tilt-tray and crossbelt sorters reaching 10,000 to 20,000 packages per hour . The transition to 2D barcodes requires upgrades to scanning equipment, label printing capabilities, and verification processes to ensure code quality meets industry standards . |
|
From the USPS processing facility to the private carrier sorting hub, DataMatrix codes on parcel labels silently ensure that packages are routed accurately, tracked reliably, and delivered on time. The tiny 2D barcode has become the foundation of a more efficient and transparent logistics system, enabling the seamless movement of goods that underpins the American economy. |
