DataMatrix Decoded: A Technical Deep-Dive |
Executive Summary |
In the operating room, a single surgical instrument---a scalpel, a clamp, or a retractor---must be absolutely reliable. Its sterility must be guaranteed, its function must be flawless, and its history must be known. If an infection occurs post-surgery, the ability to trace the instruments used back to their sterilization cycles, maintenance schedules, and even their manufacturer can be a matter of patient safety and legal accountability . To meet this need, hospitals and regulatory bodies are increasingly turning to a permanent, machine-readable solution: the DataMatrix code. |
Each reusable surgical instrument is now being laser-marked with a unique DataMatrix code, a direct part marking (DPM) that creates an indelible 'digital fingerprint' . This code, often as small as 0.8 by 1.6 millimeters, stores a unique identifier that links the physical instrument to a comprehensive digital record . This record can contain not just the instrument's name and model, but its complete lifecycle: every sterilization cycle it has undergone, its maintenance history, and its exact location within the hospital. When scanned, the system automatically verifies that the correct instruments are in a set, logs sterilization parameters, and provides instant visibility for inventory management . |
This application is at the intersection of regulatory mandate and operational necessity. The U.S. Food and Drug Administration's (FDA) Unique Device Identification (UDI) rule requires that devices intended for reprocessing be directly marked with a UDI . The use of DataMatrix codes, following GS1 standards, is the primary method for this direct part marking, ensuring that instruments can be tracked from manufacturing to the patient's bedside and beyond . This article explores the technical foundations of this application and the real-world examples demonstrating its transformative impact on healthcare safety and efficiency. |
|
Part One: Technical Foundations of Surgical Instrument Traceability |
Chapter 1: The Challenge of Individual Instrument Traceability |
The central sterile supply department of a modern hospital is a high-stakes logistical operation. A single instrument set for a complex surgery can contain dozens or even hundreds of individual items, including scalpels, clamps, retractors, scissors, and forceps . Each of these instruments must be meticulously cleaned, assembled into the correct set, and sterilized before every use. Historically, this process was managed with paper checklists and manual counts, a system prone to human error. A missing instrument or a mis-assembled set could lead to surgical delays or, worse, compromise patient safety. |
The challenge is compounded by the need for legal and clinical accountability. If an infection is traced back to an improperly sterilized instrument, the hospital must be able to prove that the correct sterilization protocol was followed . Without individual traceability, this is nearly impossible. |
|
Chapter 2: The FDA UDI Mandate for Reusable Instruments |
The regulatory driver for this technology is the FDA's Unique Device Identification (UDI) system, established under 21 CFR Part 830 . The UDI rule requires that every medical device distributed in the United States be identified with a unique identifier. This is composed of a Device Identifier (DI), which identifies the specific model and labeler, and a Production Identifier (PI), which includes dynamic data like lot number, serial number, or expiration date . |
For reusable surgical instruments that are intended to be reprocessed, the FDA requires a UDI to be permanently marked directly on the device itself . This is known as Direct Part Marking (DPM). The FDA specifically states that DPM methods, such as laser etching, must be validated to ensure the mark remains readable and durable throughout the device's expected lifetime of cleaning and sterilization cycles . The regulation further requires that device history records (DHR) include verification that the DPM is present and readable . |
The FDA has provided guidelines and a phased compliance timeline for the UDI rule. This has been a key driver for hospitals and manufacturers to adopt standardized DPM solutions . |
|
Chapter 3: The GS1 DataMatrix as the Preferred Carrier |
While several data carriers are available, the GS1 DataMatrix code is the industry standard for direct part marking of surgical instruments . Its compact size is critical; the code can fit onto the smallest instruments, requiring a minimal area of just 0.8 by 1.6 millimeters . This is achieved using standardized GS1 Application Identifiers (AIs), such as AI (01) for the GTIN (serving as the DI) and AI (21) for the serial number (a PI). By using a globally recognized standard, hospitals can ensure that instruments from different manufacturers can be read by the same scanning infrastructure, eliminating the risk of proprietary lock-in and establishing a common language across the healthcare supply chain . |
|
Chapter 4: The Superiority of Laser Marking |

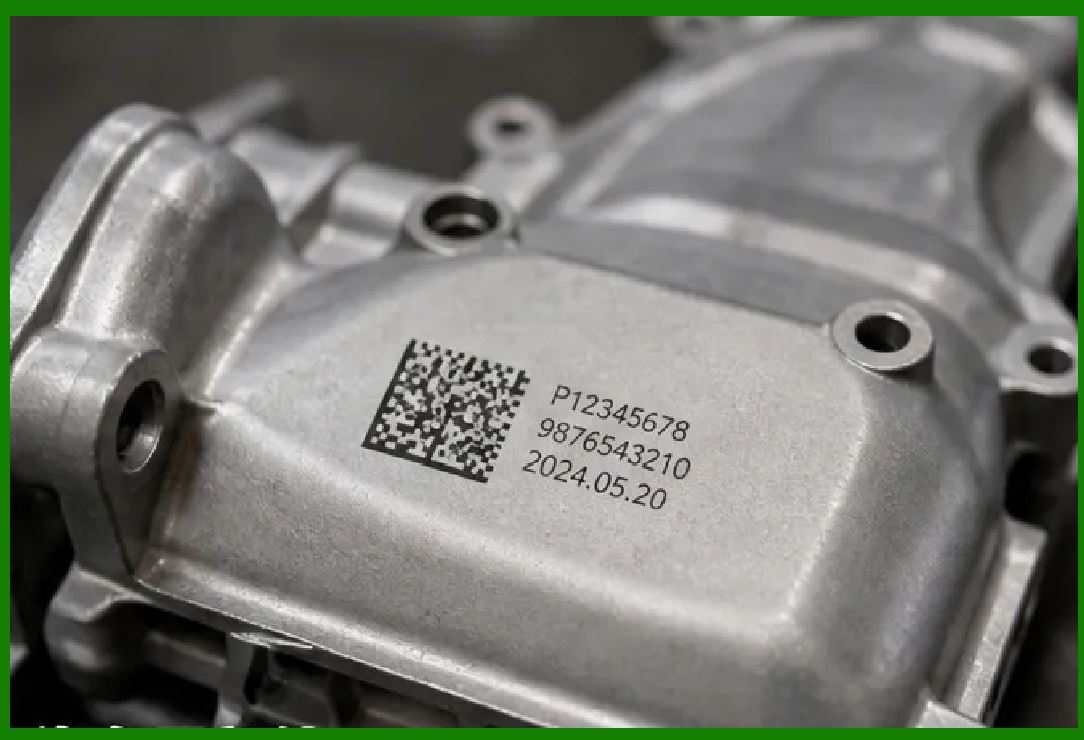

For creating a permanent DataMatrix code on a surgical instrument, laser marking has emerged as the superior technology . Fiber lasers or UV lasers are used to etch the code directly onto the instrument's metal surface. The process must be meticulously controlled to create a mark that is high-contrast yet does not compromise the instrument's structural integrity. |
A 2023 study published in PubMed evaluated the evolution of laser and micropercussion markings over 250 sterilization cycles . The study found that laser markings initially had very good visibility but were quickly affected by corrosion, with 12% of markings showing corrosion after just 5 cycles. However, other research and commercial implementations have shown that with appropriate laser parameters and design, DataMatrix codes can withstand hundreds of sterilization cycles . For instance, 'Key Dots,' a type of laser-engraved DataMatrix code from Fairfield Labels, are tested to last up to 200 processing cycles . |
The study also noted that micropercussion markings were less susceptible to corrosion but initially showed poorer contrast, making them less ideal for immediate, reliable reading . This has led to a general preference for laser marking as the primary method for creating high-quality, durable DataMatrix codes. |
|
Part Two: American and Global Applications in Action |
Chapter 5: The KenusSystem by Ulrich Swiss (Global Example with US Relevance) |
The most prominent example of a fully realized DataMatrix traceability system is the Kenussystem, developed by Ulrich Swiss and powered by Cognex In-Sight machine vision systems . While Ulrich Swiss is a European company, this system is a benchmark for U.S. hospitals evaluating similar technologies. |
In the Kenus system, each surgical instrument is permanently marked with a 2D DataMatrix code, which is created using a drill to incorporate the dots into a recessed surface, making it resistant to damage and chemical corrosion . This code is the key to a comprehensive digital record. |
The workflow is precise and rigorous: |
1. Instrument Marking and Database: Each instrument receives a unique DataMatrix code. This code is linked in a central database to its image, name, type, and other metadata. |
2. Instrument Set Assembly: When a surgical team needs a set of instruments, they use a handheld scanner to scan the filter (or tray) barcode. The system's software displays a picture of the filter on a monitor, showing exactly which instruments belong in that specific set for that particular department. |
3. Error-Proof Loading: Staff must scan each instrument's DataMatrix code before placing it in the filter. The system verifies that the instrument belongs in the set. If the wrong instrument is scanned, or if an instrument is scanned twice, the system alerts the user, preventing assembly errors. |
4. Sterilization and Logging: Once the filter is correctly assembled, it is sent for sterilization. The system can track how many times an instrument has been sterilized and used, enabling proactive maintenance scheduling. |
5. Recall and Traceability: The system provides 'total recall.' If an issue is discovered, the hospital can instantly identify exactly which instruments were used on which patient, a critical capability for both patient safety and legal defense . |
The Kenus system sets a new standard for operating theatre safety and administrative efficiency. The ability to know with certainty that a filter contains the correct instruments and that its sterilization cycle was correctly logged is a powerful step forward in patient care . |
|
Chapter 6: A Taiwanese UDI Barcode Tracking System - Proven Effectiveness |
A more recent and compelling case study comes from a Taiwanese hospital, published in a 2025 issue of *Antimicrobial Stewardship & Healthcare Epidemiology*. This peer-reviewed study describes the development and implementation of a UDI barcode tracking system for surgical instruments that yielded quantifiable improvements . |
The hospital implemented a system where each surgical instrument underwent laser engraving with a UDI barcode, encompassing relevant data such as the instrument's name, image, model, and specifications . The system was designed with several key features: |
Automatic Identification: When a staff member scans an instrument's engraved serial number, the system automatically discerns whether it belongs to the designated set. |
Integrated Monitoring: Mechanical, chemical, and biological sterilization monitoring indicators are integrated into the tracking system. If all criteria are met, the system automatically releases the instruments for storage. If not, it issues a notification for review . |
The results over a one-year period were impressive : |
157,614 instrument sets were equipped with the system, enabling staff to achieve a zero-error rate in rapid and precise instrument identification. |
4,026 high-temperature and 380 low-temperature sterilization cycles were monitored. |
- The system saved a total of 4,406 A4 sheets of paper by eliminating manual documentation, automating what was previously a paper-heavy process. |
- A total of 85,899 packages were dispensed, each linked to a patient's medical record number, establishing a clear chain of custody. |
This study provides clear, quantitative evidence that DataMatrix-based tracking systems significantly improve processing quality, reduce errors, and enhance staff satisfaction . |
|
Chapter 7: Enabling Technologies and the Role of GS1 Standards |
The implementation of surgical instrument traceability is not just about hardware; it is about a standardized data ecosystem. The GS1 system provides a common framework for this ecosystem. GS1's partner directory, for example, lists companies like Fairfield Labels that provide laser marking services for surgical instruments with GS1 codes . They offer 'Key Dots,' which are small, laser-engraved DataMatrix codes that contain a unique GTIN or Global Individual Asset Identifier (GIAI) . |
The use of GS1 standards ensures that a hospital's scanning system can read and interpret codes from any supplier that follows the standard . This interoperability is crucial. As noted in a case study from GS1, a French hospital project highlighted the necessity for UDI regulation to avoid a situation where every hospital develops its own proprietary code . The adoption of GS1 DataMatrix, as endorsed by the FDA through its recognition of GS1 as a UDI issuing agency, provides that necessary clarity and standardization . |
|
Detailed Summary |
The application of DataMatrix codes to surgical instruments represents a powerful convergence of regulatory mandate and operational best practice, fundamentally transforming how hospitals manage their most critical assets. Each scalpel, clamp, and retractor is now marked with a permanent, machine-readable digital fingerprint that links it to a comprehensive digital history. This ensures that instruments are correctly assembled, properly sterilized, and fully traceable, dramatically reducing the risk of errors that could compromise patient safety. |
The technology is built on a solid foundation. The FDA's UDI mandate requires direct part marking on reusable devices, and the GS1 DataMatrix, with its compact size and high durability, has emerged as the preferred carrier . Laser marking is the primary method for creating these codes, balancing initial contrast with long-term durability . Real-world applications, such as the Kenussystem and a recent Taiwanese study, prove the technology's effectiveness, demonstrating zero-error rates, significant reductions in manual paperwork, and enhanced operational efficiency . |
The integration of DataMatrix codes into surgical instrument management is more than a technological upgrade; it is a commitment to a new standard of safety and accountability. By connecting the physical instrument to its digital record, hospitals can ensure that every instrument is ready for use and can be traced throughout its lifecycle, contributing to a safer, more efficient, and more transparent healthcare system. |
