DataMatrix Decoded: A Technical Deep-Dive |
Executive Summary |
DataMatrix barcodes come in two major families: the obsolete ECC 000-140 variants and the current ECC 200 standard. The older variants, developed in the early years of DataMatrix technology, used convolutional error correction and were designed for simple, closed-loop applications where reading conditions were controlled. However, they suffered from fundamental limitations: they required odd numbers of modules, could not be rectangular, and were highly susceptible to distortion when encoding large amounts of data. The ECC 200 variant, introduced in the mid-1990s, revolutionized the technology by implementing Reed-Solomon error correction, eliminating distortion problems, and adding rectangular format support. Today, ECC 200 is the only internationally standardized version and is used in every major American application, from Department of Defense equipment tracking to FDA-mandated pharmaceutical serialization. This article explains the technical differences between these variants and presents dozens of real-world examples showing why ECC 200 has become the indispensable standard across American industry. |
|
Part One: Understanding the Two Variants |
Chapter 1: What Are ECC 000-140 |
ECC 000-140 refers to a family of five older DataMatrix variants: ECC 000, ECC 050, ECC 080, ECC 100, and ECC 140 . The 'ECC' stands for 'Error Checking and Correction,' and the number indicates the level of error correction protection provided. These variants were developed in the early years of DataMatrix technology and use convolutional error correction, an older method that adds redundancy to the data in a relatively simple way . |
Chapter 2: The Convolutional Error Correction Method |
Convolutional error correction works by processing data through a series of shift registers and combining bits using modulo-2 addition. The output depends on both the current input and previous inputs, creating a 'memory' effect that allows the decoder to detect and correct errors. Each successive level of error correction in the ECC 000-140 family dedicates more of the symbol to redundant data: ECC 000 has no protection, ECC 050 dedicates one quarter of the symbol, ECC 080 dedicates one third, ECC 100 dedicates one half, and ECC 140 dedicates three quarters . This approach was state-of-the-art when DataMatrix was first developed but has significant limitations. |
Chapter 3: The Module Count Limitation |
One of the most visible differences between the variants is module count. ECC 000-140 symbols can only have odd numbers of rows and columns, ranging from 9 by 9 modules up to 49 by 49 modules . This odd-number constraint limits the symbol sizes available and makes the codes more difficult to print accurately on certain surfaces. The odd module count also meant that these variants could only be square, never rectangular, which severely limited their utility for applications with narrow marking spaces. |
|
Chapter 4: The Distortion Problem |
The most serious limitation of ECC 000-140 was their vulnerability to distortion. As data size increases, even slight physical distortion of the code such as from printing imperfections, surface curvature, or viewing angle makes reading extremely unreliable . This is because convolutional codes, while effective for random errors, are less robust against systematic distortions that affect the entire symbol. In real-world manufacturing environments where codes are applied to curved or rough surfaces, this vulnerability proved to be a major obstacle. |
Chapter 5: Why ECC 000-140 Became Obsolete |
The limitations of ECC 000-140 made them unsuitable for modern applications. They required very controlled printing and reading conditions, could not handle the complex data structures needed for supply chain management, and were not internationally standardized. The standard itself eventually removed support for these variants . Today, ECC 000-140 symbols should only be used in closed systems where all equipment is under the control of a single organization and where distortion risks are minimal . Even then, most organizations prefer to use ECC 200 for future-proofing. |
Chapter 6: The Introduction of ECC 200 |
ECC 200 was introduced in the mid-1990s as a major upgrade to the DataMatrix specification. It replaced the convolutional error correction method with the Reed-Solomon algorithm, which is far more powerful and robust . The new error correction capacity eliminated the distortion problems that plagued earlier versions, and ECC 200 became the internationally standardized version of DataMatrix under ISO/IEC 16022 . |
|
Chapter 7: The Reed-Solomon Revolution |
Reed-Solomon error correction, developed in 1960 by Irving Reed and Gustave Solomon, is a sophisticated mathematical technique that adds redundant codewords to the data . The decoder uses these codewords to detect and correct errors, including both substitution errors (wrong data) and erasure errors (missing data). For every two error correction codewords added, the system can correct one unknown error or two known erasures . This mathematical elegance makes Reed-Solomon far more powerful than convolutional codes for the same amount of redundancy. |
Chapter 8: Fixed Error Correction Capacity |
Unlike ECC 000-140 where the error correction level could be selected, ECC 200 has a fixed error correction capacity determined by the symbol size . The Reed-Solomon algorithm is applied to the entire symbol, and the amount of redundancy varies with size: smaller symbols dedicate a higher proportion of codewords to error correction. For example, a 10 by 10 symbol can recover up to approximately 25% of its data, while a 144 by 144 symbol can recover up to about 28% . This fixed capacity simplifies implementation and ensures consistent performance. |
Chapter 9: The Even Module Count |
ECC 200 symbols must have even numbers of rows and columns, ranging from 10 by 10 modules up to 144 by 144 modules . This even-number requirement is a direct consequence of the Reed-Solomon encoding process. The even module count also enables the second major advantage of ECC 200: support for rectangular formats . Rectangular codes are essential for applications where horizontal or vertical marking space is constrained. |
|
Chapter 10: Rectangular Format Support |
ECC 200 can be configured in six rectangular formats in addition to the square formats . This flexibility is critical for narrow labels, cylindrical objects, and edge markings where a square code would not fit. The 2024 revision of ISO/IEC 16022 made rectangular formats mandatory for all new implementations, underscoring their importance in modern applications . |
Chapter 11: International Standardization |
ECC 200 is the version of DataMatrix that is internationally standardized under ISO/IEC 16022 . It was registered as an AIM International standard in 1996 and as an ISO/IEC standard in 2000 . This international recognition means that ECC 200 symbols produced anywhere in the world can be read by any compliant scanner, a feature essential for global supply chains. The older variants were never standardized internationally. |
Chapter 12: The GSM DataMatrix Requirement |
The GS1 system, which governs supply chain standards globally, requires ECC 200 for all GS1 DataMatrix applications. This includes pharmaceutical serialization, medical device identification, and retail product labeling. The GS1 specification mandates ECC 200 because of its reliability and international standardization. |
|
Chapter 13: Visual Differences |
Visually, ECC 200 symbols are distinguished by their even module count, which results in a grid that is always divisible by two. Older ECC 000-140 symbols have odd module counts, giving them a subtly different appearance. In practice, however, modern scanners do not rely on visual inspection; they automatically detect the symbol type during the decoding process. The fact that virtually all DataMatrix symbols in use today are ECC 200 means that most people never see the older variants. |
Chapter 14: Why ECC 200 is the Default |
When someone refers to a 'DataMatrix code' today, they almost always mean ECC 200 . The older variants are so rarely used that many barcode generation and reading tools do not even support them. ECC 200 is the default in all major barcode libraries and the only variant required by industry standards. |
Chapter 15: Transitioning from Old to New |
For organizations that still have ECC 000-140 symbols in their systems, migration to ECC 200 is recommended. The process involves regenerating the codes using the new specification and updating scanning equipment if necessary. In practice, most modern scanners support both variants, so the transition can often be done without hardware upgrades. The key benefit of transitioning is compatibility with modern supply chain systems and international standards. |
|
Part Two: Technical Deep-Dive into ECC 200 |
Chapter 16: How Reed-Solomon Works |
Reed-Solomon error correction works by treating data as a mathematical polynomial. The encoder generates additional codewords by evaluating this polynomial at specific points, and these codewords are appended to the data. When a scanner reads the code, it reconstructs the polynomial from the available codewords. If some codewords are missing or corrupted, the decoder uses the mathematical properties of the polynomial to recover the original data . This process is mathematically complex but computationally efficient, making it practical for real-time decoding. |
Chapter 17: Interleaving for Robustness |
In larger DataMatrix symbols, the codewords are interleaved before being placed in the matrix . This means that data from different parts of the message are spread across the symbol in a systematic way. Interleaving ensures that even if a localized area of the code is damaged, the damage affects codewords from different parts of the data rather than a single contiguous block. This dramatically improves the chance of successful recovery and is one reason DataMatrix can withstand up to 30% damage. |
Chapter 18: The Syndrome Decoding Method |
The reference decoding algorithm specified for DataMatrix uses a syndrome-based approach . The decoder first computes syndrome values from the received codewords, which indicate whether errors are present and provide clues about their location and magnitude. It then computes the error locator polynomial, finds the error locations, and computes the error values. This four-step process is standardized and ensures that all compliant decoders produce the same result from the same input. |
|
Chapter 19: Error Correction Capacity by Symbol Size |
The error correction capacity of ECC 200 varies with symbol size. Smaller symbols, which are used on tiny components, have a higher proportion of error correction codewords, making them more robust relative to their size. Larger symbols, while having more absolute error correction codewords, have a slightly lower proportion because the data capacity grows faster than the error correction overhead. In practice, DataMatrix codes can typically recover from damage affecting up to about 25-30% of the code area, which is sufficient for most industrial applications . |
Chapter 20: Data Versus Error Correction Codewords |
The proportion of codewords dedicated to error correction versus data varies by symbol size. For a 10 by 10 symbol, a significant portion of the codewords are error correction, giving high robustness but low data capacity. For a 144 by 144 symbol, the error correction portion is smaller relative to the total, allowing much more data storage while still providing excellent protection. This trade-off between capacity and robustness is carefully balanced in the ECC 200 specification to provide adequate protection for all use cases. |
Chapter 21: ECI and UTF-8 Support |
ECC 200 supports Extended Channel Interpretations (ECI), which enable characters from multiple character sets to be encoded . This includes non-Latin scripts such as Arabic, Chinese, Cyrillic, Greek, and Hebrew. The 2024 revision of ISO/IEC 16022 made ECI support mandatory and added explicit support for UTF-8 encoding. This makes ECC 200 suitable for global applications where product information must be displayed in multiple languages. |
|
Part Three: American Applications Requiring ECC 200 |
Chapter 22: Department of Defense Unique Identification |
The U.S. Department of Defense requires ECC 200 DataMatrix symbols for Item Unique Identification (IUID) marking . Under MIL-STD-130L, which took effect in 2007, all items delivered to the DoD must carry a permanent machine-readable mark that encodes a unique identifier . The technology used for this marking is specifically the Data Matrix ECC 200 Symbol . This requirement applies to everything from small components to major weapon systems and ensures traceability throughout the military lifecycle. |
Chapter 23: DoD Compliance and Verification |
DoD IUID marks must meet strict quality standards. They are verified using ISO 15415, AS9132, or AIM DPM quality criteria, and ECC 200 is the only DataMatrix variant that can consistently meet these standards . The DoD's requirement has driven the adoption of ECC 200 across the American defense supply chain, with thousands of suppliers implementing ECC 200 marking to maintain their contracts. |
Chapter 24: Pharmaceutical Serialization |
The Drug Supply Chain Security Act (DSCSA), enacted in 2013, mandates the serialization of prescription drugs. Each package must carry a product identifier that includes the National Drug Code, lot number, and expiration date. GS1 DataMatrix, which specifically requires ECC 200, is the standard format for encoding this information . The DSCSA has driven the adoption of ECC 200 across the entire American pharmaceutical supply chain, from manufacturers to pharmacies. |
|
Chapter 25: FDA Unique Device Identification |
The FDA's Unique Device Identification (UDI) requirements for medical devices rely on ECC 200 DataMatrix codes . The codes are applied to everything from surgical instruments to implantable devices, enabling tracking throughout their lifecycle. The FDA requires that the UDI be encoded in a format that complies with GS1 or HIBCC standards, both of which mandate ECC 200. |
Chapter 26: Aerospace Parts Marking |
The American aerospace industry uses ECC 200 DataMatrix for part marking and traceability . Components such as turbine blades, engine housings, and airframe structures are marked with ECC 200 using laser etching. The codes must survive extreme temperatures and harsh environments, and the Reed-Solomon error correction of ECC 200 provides the needed robustness. NASA has issued guidance on the application of DataMatrix to aerospace parts, specifying ECC 200 as the required variant. |
Chapter 27: Automotive Industry Traceability |
American automotive manufacturers use ECC 200 for parts tracking and quality control . Components from engine blocks to electronic control units carry ECC 200 codes. The Automotive Industry Action Group (AIAG) has established standards for DataMatrix marking in the automotive supply chain, specifically requiring ECC 200 for its superior error correction and reliability. |
|
Chapter 28: Electronics Manufacturing |
The American electronics industry uses ECC 200 DataMatrix for component identification . PCBs, semiconductor packages, and other components are marked with ECC 200 codes. The variant's ability to fit in tiny spaces (smaller codes can be as small as 10 by 10 modules, i.e., 2.5 mm square) and its robustness make it ideal for this application. The Electronics Industries Alliance recommends DataMatrix ECC 200 for component marking. |
Chapter 29: Medical Device Manufacturers |
American medical device manufacturers rely on ECC 200 for device identification . The codes are applied to surgical instruments, implants, and diagnostic equipment. The variant's Reed-Solomon error correction ensures that the codes remain readable despite sterilization cycles, handling, and exposure to bodily fluids. Hospitals use ECC 200 codes to track devices throughout their lifetime, supporting patient safety and regulatory compliance. |
Chapter 30: USPS Package Routing |
The United States Postal Service has adopted a DataMatrix-based symbol called the Intelligent Mail Matrix Barcode (IMmb) for use on package labels. The IMmb is based on ECC 200 and provides a smaller footprint and redundant reads alongside the existing Intelligent Mail Package Barcode. The USPS's adoption of ECC 200 demonstrates the technology's viability for large-scale logistics applications. |
|
Chapter 31: Logistics and Parcel Delivery |
Private logistics companies including FedEx and UPS use ECC 200 DataMatrix on package labels. The codes are read by high-speed tunnel scanners at sorting hubs, enabling automated routing. The error correction of ECC 200 is essential for these applications because packages often arrive at sorting equipment with damaged, smudged, or partially obscured labels. The 360-degree readability of ECC 200 codes allows packages to be scanned from any orientation. |
Chapter 32: Hospital Patient Safety |
American hospitals use ECC 200 DataMatrix codes on patient wristbands and medication packages . The codes link to electronic health records, enabling verification of patient identity and medication administration. The robust error correction of ECC 200 provides an additional safety layer in critical healthcare environments, ensuring that codes remain readable despite wear, moisture, and handling. |
Chapter 33: Laboratory Sample Tracking |
Clinical laboratories across the United States use ECC 200 DataMatrix codes on specimen containers, slides, and test tubes. The codes' small size allows multiple identifiers to be placed on even the smallest containers. The Reed-Solomon error correction ensures that codes on often-handled laboratory items remain readable, reducing sample identification errors. |
|
Chapter 34: Industrial Tools and Equipment |
American manufacturers of industrial tools and equipment use ECC 200 DataMatrix for asset tracking . Tools, engine components, and motor parts are permanently marked with ECC 200 codes. The codes enable tracking of maintenance history, calibration records, and usage data. The variant's durability ensures that codes on tools used in harsh industrial environments remain readable. |
Chapter 35: Chemical and Biomedical Instruments |
American manufacturers of chemical and biomedical analysis instruments use ECC 200 DataMatrix for component identification . The codes are applied to consumables, reagents, and instrument parts. They enable traceability of test results back to the specific components used, supporting quality control and regulatory compliance. |
Chapter 36: Electronic Circuit Boards |
American electronics manufacturers use ECC 200 DataMatrix on printed circuit boards . The codes encode board specifications, revision numbers, and manufacturing parameters. The small size of ECC 200 codes allows them to fit on even the most compact circuit boards without interfering with component placement. |
|
Chapter 37: Small Pharmaceutical Packages |
American pharmaceutical companies use ECC 200 DataMatrix on small vials, ampoules, and syringes . The codes encode drug identifier, lot number, and expiration date. The small size of ECC 200 is essential for these packages, which may have only a few square centimeters of label space. The error correction ensures readability despite the tiny module size. |
Chapter 38: Document Management |
American government agencies and corporations use ECC 200 DataMatrix on archival folders and documents. The codes link physical documents to scanned digital copies. The small size of ECC 200 codes allows them to be printed on labels or directly on documents without obscuring content. The error correction ensures that codes on aged or handled documents remain readable. |
Chapter 39: Access Control |
American organizations use ECC 200 DataMatrix for special access control applications . The codes are printed on identification badges, access cards, and visitor passes. They encode user credentials and access permissions, enabling automated entry management. The reliability of ECC 200 is essential for security applications where a failed read would delay or deny entry. |
|
Chapter 40: Mail and Document Tracing |
The USPS and private couriers use ECC 200 DataMatrix for mail and document tracing . The codes on envelopes and packages enable automated routing and tracking. The small footprint of ECC 200 allows codes to be placed on envelopes without obscuring address information. |
Chapter 41: Retail Sunrise 2027 |
The American retail industry's Sunrise 2027 initiative aims to enable scanning of 2D barcodes at point-of-sale. DataMatrix ECC 200 is one of the 2D symbologies being adopted for this purpose. The initiative will enable richer product information, traceability, and consumer engagement. |
Chapter 42: Apparel and General Merchandise |
American apparel and general merchandise retailers are adopting ECC 200 DataMatrix for product identification. The codes encode style numbers, sizes, and dye lots, enabling automated sorting in distribution centers. The codes also allow consumers to access product information through their mobile devices. |
|
Chapter 43: Aerospace Cabin Interiors |
American aerospace manufacturers use ECC 200 DataMatrix on cabin interior components, including seat tracks and overhead bins. The codes tie installation records to aircraft tail numbers for maintenance tracking. The durability of ECC 200 ensures that codes survive the rigors of airline operations. |
Chapter 44: Defense Supply Chain |
The American defense industrial base uses ECC 200 DataMatrix throughout the supply chain. Suppliers mark components with ECC 200 codes that are read at multiple points in the logistics system. The traceability provided by these codes supports the DoD's requirements for equipment accountability and maintenance tracking. |
Chapter 45: EV Battery Manufacturing |
American electric vehicle battery manufacturers are using ECC 200 DataMatrix on battery cells and modules. The codes link to formation test data, capacity, and internal resistance readings. The durability of ECC 200 is essential because codes on batteries must survive assembly and decades of operation. |
|
Chapter 46: Solar Panel Manufacturing |
American solar panel manufacturers use ECC 200 DataMatrix on panel frames and junction boxes. The codes encode panel serial numbers, IV-curve data, and warranty start dates. The error correction of ECC 200 ensures that codes on outdoor equipment remain readable despite weather exposure. |
Chapter 47: 3D Printed Parts |
American manufacturers of 3D printed parts embed ECC 200 DataMatrix codes directly into the CAD model. After printing, the code is integral to the part itself. The even module requirement of ECC 200 is compatible with the layer-by-layer printing process, making it the preferred variant for this emerging application. |
Chapter 48: Medical Implants |
American medical implant manufacturers use ECC 200 DataMatrix on devices such as hip stems, pacemaker cases, and dental screws. The codes enable post-sale tracking and identification even after the implant is in the body. The Reed-Solomon error correction of ECC 200 ensures that codes remain readable despite the extremely small size and the demanding marking conditions. |
|
Chapter 49: Construction Structural Steel |

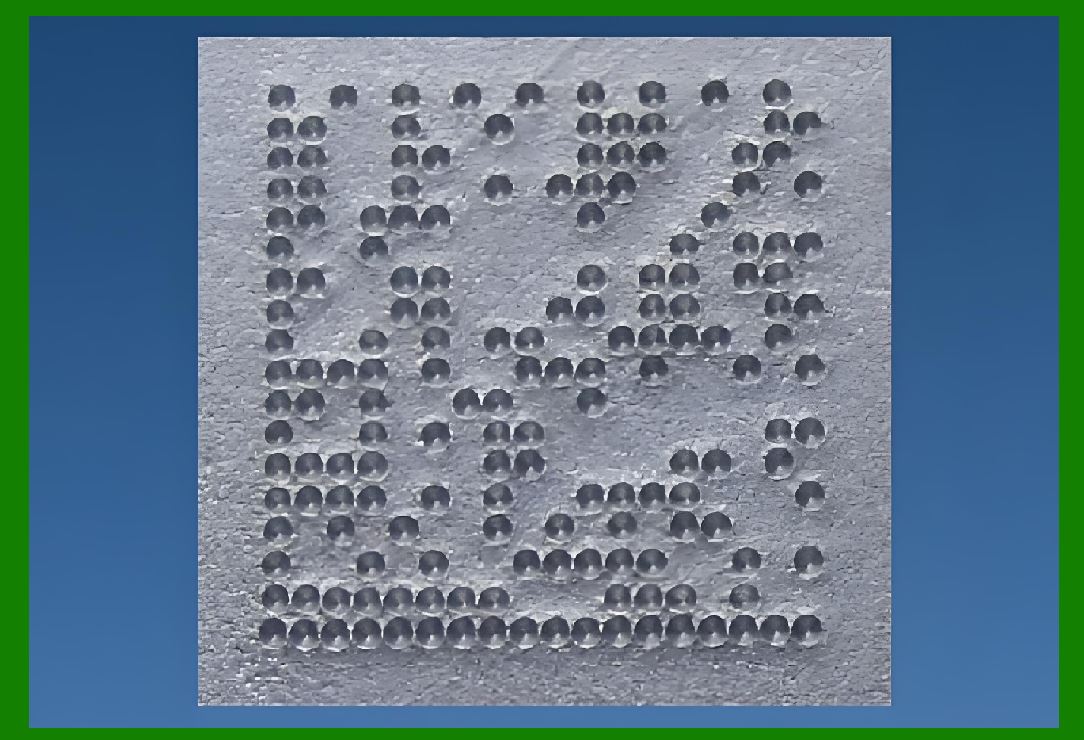

American steel fabricators apply ECC 200 DataMatrix to structural steel beams using dot-peen markers. The codes encode yield strength and mill certification data, enabling structural engineers to verify materials on-site. The durability of ECC 200 ensures that codes on steel beams survive construction handling and decades of service. |
Chapter 50: The Future of ECC 200 |
ECC 200 will continue to be the standard DataMatrix variant for the foreseeable future. The 2024 revision of ISO/IEC 16022 has reinforced its position by removing the obsolete variants and adding new features. As American industries continue to digitize and the demand for traceability grows, ECC 200 will remain a central technology, quietly ensuring the reliability and safety of our material world. |
|
Detailed Summary |
DataMatrix barcodes come in two fundamentally different variants: the obsolete ECC 000-140 family and the current ECC 200 standard. The ECC 000-140 variants, which use convolutional error correction, were developed in the early years of DataMatrix technology and suffer from significant limitations. They require odd module counts, are square only, and are highly susceptible to distortion when encoding large amounts of data. These variants were never internationally standardized and are now considered obsolete, used only in closed systems where reading conditions are carefully controlled. |
ECC 200, introduced in the mid-1990s, represents a complete redesign of the DataMatrix technology. It uses Reed-Solomon error correction, a mathematically sophisticated algorithm that provides far greater robustness than convolutional codes. ECC 200 symbols have even module counts, support rectangular formats, and are internationally standardized under ISO/IEC 16022. The error correction capacity is fixed based on symbol size, and the system can typically recover from damage affecting up to 25-30% of the code area. ECC 200 is the only DataMatrix variant that supports GS1 applications, which require its reliability and standardization. |
The superiority of ECC 200 is reflected in its widespread adoption across American industry. The U.S. Department of Defense mandates ECC 200 for Item Unique Identification marking under MIL-STD-130L, ensuring traceability of military equipment from acquisition to disposal. The Food and Drug Administration requires ECC 200 for pharmaceutical serialization under the Drug Supply Chain Security Act and for Unique Device Identification of medical devices. The aerospace industry uses ECC 200 for part marking, with NASA issuing guidance on its application. The automotive industry uses ECC 200 for parts tracking and quality control. The USPS uses ECC 200 for package routing in the Intelligent Mail Matrix Barcode. Hospitals use ECC 200 for patient safety and medication verification. Clinical laboratories use ECC 200 for sample tracking. |
ECC 200's error correction capabilities are particularly important for direct part marking applications, where codes are permanently inscribed on metal, glass, or plastic. These codes must survive harsh environments, including extreme temperatures, chemical exposure, and physical abrasion. The Reed-Solomon algorithm enables recovery even when the code is scratched, dirty, or partially obscured. This reliability has made ECC 200 the preferred data carrier for industries where failure is not an option. |
|
The future of ECC 200 is assured by its international standardization and continuous improvement. The 2024 revision of ISO/IEC 16022 has added UTF-8 support, mandatory rectangular formats, and enhanced print quality measurements. As American industries prepare for the retail industry's Sunrise 2027 initiative and the broader digitization of supply chains, ECC 200 will play an increasingly central role. From tiny semiconductor dies to massive structural steel beams, from pharmaceutical vials to jet engines, ECC 200 DataMatrix silently secures our material world, providing the traceability and reliability that modern industry depends on. |
