DataMatrix Decoded: A Technical Deep-Dive |
Chapter 50: Summary and Future Outlook |
Executive Summary |
DataMatrix has evolved from a niche industrial marking solution into a foundational technology for traceability, authentication, and data capture across the global economy. Its unique combination of a tiny physical footprint, high fault tolerance through Reed-Solomon error correction, and massive data capacity ensures it remains the preferred 2D code for harsh environments where labels fail and reliability is paramount. With the rise of Industry 4.0, digital twins, and blockchain-based traceability, DataMatrix is being further enhanced by artificial intelligence for decoding damaged marks and color variants for multi-layer data. From a grain of rice to a jet engine, DataMatrix silently secures our material world. |
This chapter synthesizes the technical strengths that make DataMatrix indispensable, examines the forces shaping its future, and provides real-world examples from American industry that demonstrate its enduring value. As the retail industry transitions to 2D barcodes through initiatives like Sunrise 2027, DataMatrix's role is expanding alongside QR codes, each serving complementary purposes in a more connected and transparent supply chain. |
|
Part One: The Enduring Technical Strengths of DataMatrix |
Chapter 1: The Three Pillars of DataMatrix Reliability |
DataMatrix's dominance in industrial and medical applications rests on three core technical attributes: size, fault tolerance, and data capacity. |

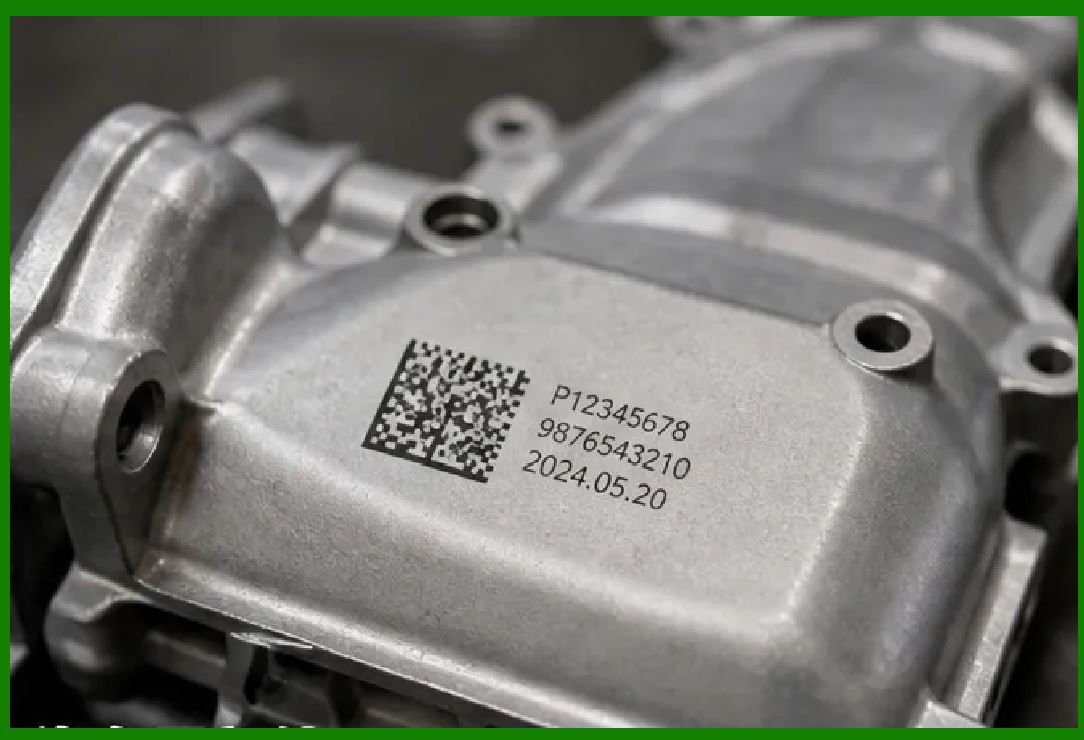

First, the tiny footprint of DataMatrix is unparalleled. The code requires a quiet zone of only one module width, compared to four modules for QR codes. A DataMatrix symbol can encode substantial data in a space as small as 2.5 by 2.5 millimeters---small enough to fit on a semiconductor die, a pharmaceutical vial, or a surgical instrument. This compactness is why DataMatrix is the standard for direct part marking on components where every square millimeter matters. |
Second, DataMatrix's high fault tolerance is a direct result of its Reed-Solomon error correction. In a landmark test commissioned by the U.S. Army in the early 1990s, DataMatrix was evaluated alongside PDF417 and Code 39 for ammunition logistics applications. The test decoded over 94 million characters, and DataMatrix exhibited zero data errors attributable to the symbology. This remarkable reliability---demonstrated over three decades ago---remains a cornerstone of DataMatrix's value proposition for mission-critical applications like military munitions and aerospace components. |
Third, the massive data capacity of DataMatrix enables it to store not just a product identifier but a complete digital record. A single 144 by 144 module symbol can hold up to 2,335 alphanumeric characters---enough to encode GTINs, serial numbers, batch numbers, expiration dates, and even URLs, all in a format that is machine-readable and globally interoperable. |
|
Chapter 2: The Role of Industry Standards in Ensuring Interoperability |
The success of DataMatrix is inseparable from the standards that govern it. ISO/IEC 16022 defines the technical specification, while the GS1 system provides the data structure through Application Identifiers (AIs). This standardization ensures that a DataMatrix code printed in one country can be read by any compliant scanner anywhere in the world. |
The GS1 DataMatrix standard, in particular, has become the cornerstone of traceability in regulated industries. It encodes structured data---GTINs, batch/lot numbers, expiration dates, and serial numbers---using standardized AIs. This structured approach enables automated data capture, efficient recall management, and seamless integration with electronic health records and supply chain systems. |
In the United States, GS1 DataMatrix is the mandatory standard for pharmaceutical serialization under the Drug Supply Chain Security Act (DSCSA) and the preferred carrier for FDA Unique Device Identification (UDI) on medical devices. As Melanie Nuce-Hilton of GS1 US noted, DataMatrix is recommended as the preferred data carrier for healthcare products across both retail and non-retail environments. |
|
Part Two: Forces Shaping the Future of DataMatrix |
Chapter 3: Sunrise 2027 and the Retail 2D Barcode Transition |
The most significant driver of 2D barcode adoption in the United States is the GS1 Sunrise 2027 initiative. This industry-wide effort aims to enable scanning of 2D barcodes at retail point-of-sale by the end of 2027. While 1D barcodes are not being phased out---'That 1D barcode is not going anywhere,' as GS1's Andrew Morehead emphasized---2D barcodes add critical context by storing batch numbers, expiration dates, and serial numbers that a 1D code simply cannot hold. |
The transition is being driven by retail mandates rather than legislation. As Chuck Lasley, CTO of Dillard's, made clear, 'We're going to give you a minimum requirement. But what you choose to add, in addition to that, is entirely up to you'. Those minimums include a GTIN, a serial number, and ideally a brand URL, all encoded to the GS1 Digital Link standard. Wegmans Food Markets is also preparing a formal communication to suppliers, emphasizing the value statements of 2D barcodes. |
For DataMatrix, this transition means increased adoption in sectors where its compact footprint and error correction are advantageous. While QR codes are more commonly used for consumer engagement, DataMatrix remains the preferred choice for healthcare and industrial applications where reliability and small size are paramount. |
|
Chapter 4: AI-Enhanced Decoding for Severely Damaged Marks |
One of the most significant technological advances shaping DataMatrix's future is the integration of artificial intelligence into decoding algorithms. AI models are now being used to recover data from codes that are blurred, damaged, or missing critical finder patterns. |
In 2026, Dynamsoft introduced AI-powered barcode detection models that can locate DataMatrix and QR codes with missing or damaged finder patterns. The company's deblur models provide effective recovery from motion and focus blur, while color inversion detection automatically handles both normal and inverted DataMatrix barcodes without processing the entire image twice. This represents a significant leap in the ability to read codes in challenging environments---whether they are etched on curved metal surfaces, printed on wrinkled packaging, or damaged by wear and tear. |
Parallel processing strategies also improve decoding speed. Barcode decoding now uses a breadth-first approach that decomposes a single task into localization and decoding work streams, improving thread utilization and reducing the chance that a slow deblur attempt blocks faster decoding attempts. |
AI is also enabling predictive analytics in barcode operations. AI-driven systems can analyze scanning patterns, identify inefficiencies, and predict outcomes such as inventory demand and potential errors. This shifts the role of barcodes from passive data carriers to active participants in operational intelligence. |
|
Chapter 5: The Rise of Digital Twins and Blockchain Traceability |
DataMatrix codes are increasingly becoming the physical anchors for digital twins---comprehensive digital models of physical objects. When a DataMatrix code is scanned, it retrieves not just static data like a GTIN, but a complete digital history that includes manufacturing parameters, test results, installation records, and maintenance logs. |
Blockchain technology adds an immutable layer to this traceability. By recording a DataMatrix code's identifier on a distributed ledger, stakeholders can verify the authenticity of a product and trace its journey through the supply chain with cryptographic certainty. This is particularly valuable for high-value products, pharmaceuticals, and components subject to counterfeiting. |
The U.S. Department of Defense's Item Unique Identification (IUID) program is a prominent example of this trend. DataMatrix codes on military equipment are linked to the IUID Registry, providing through-life traceability from acquisition to disposal. Similar frameworks are emerging in the EU through Digital Product Passport regulations, which mandate a permanently attached machine-readable identifier for products to support circular economy initiatives. |
|
Chapter 6: The Convergence of 2D Barcodes and RFID |
While DataMatrix and other 2D barcodes are at the center of Sunrise 2027, they are increasingly used in combination with RFID technology. RFID enables bulk scanning of multiple items without line-of-sight, while 2D barcodes provide a cost-effective backup and a method for item-level verification. |
GS1 is actively working on frameworks to align RFID encoding with 2D barcode data, enabling a single product to benefit from both technologies. As Jonathan Gregory of GS1 noted, the Sunrise 2027 initiative delivers synergies between 2D barcodes and RFID, with barcodes potentially driving further RFID adoption in areas such as perishable foods. |
This convergence is particularly valuable in logistics and retail, where RFID enables rapid inventory counts while 2D barcodes ensure accurate item-level tracking at point-of-sale. |
|
Chapter 7: Color DataMatrix and Multi-Layer Data |
Emerging research points toward the development of color DataMatrix codes that can encode multi-layer data. By using different colors or color combinations to represent data modules, a single symbol could store multiple datasets in the same physical space. This could enable, for example, a single code to encode both supply chain data and consumer-facing content, or to store encrypted and unencrypted data in the same symbol. |
While color DataMatrix is not yet standardized, the concept reflects the ongoing evolution of DataMatrix technology to meet the increasing demand for data capacity in increasingly small spaces. |
|
Part Three: American Applications Demonstrating DataMatrix's Enduring Value |
Chapter 8: Miami VA Medical Center's UDI Scanning Success |
The Miami Veterans Affairs Medical Center in Florida has demonstrated the profound benefits of DataMatrix scanning for medical device tracking. As medical device manufacturers mark their products with GS1 DataMatrix codes to comply with the FDA's UDI Rule, the Miami VA has integrated scanning into its workflow to improve operational efficiency and patient safety. |
The results are remarkable. Hospital technicians found that manually entering a single device code took an average of 70 seconds, whereas with a barcode scanner, the same data could be captured in just 20 seconds. Over the course of a week, this amounted to more than an hour of time savings for approximately 100 procedures. |
The system also reduces waste by identifying products nearing their expiration date. The medical center estimates a savings of $5,000 to $10,000 each month as a result of using inventory that might otherwise have expired. In the event of a recall, the UDITracker system can show every patient in which a recalled device was used and where the remaining devices are stored. |
|
Chapter 9: Fresenius Kabi's Unit-of-Use Pharmaceutical Serialization |
Fresenius Kabi, a global healthcare company, has marked more than 700 pharmaceutical products with GS1 DataMatrix codes in the United States. Many of these products are in small packaging like vials and syringes, where space is extremely limited and a compact code is essential. |
The GS1 DataMatrix code encodes the GTIN (which contains the FDA National Drug Code), lot number, and expiration date---critical drug information that enables efficient and accurate identification in today's digital environment. By scanning the code, clinicians can automatically capture medication information, eliminating manual data entry and improving patient safety. |
|
Chapter 10: Merck's Global DataMatrix Adoption |
Merck, known as MSD in some markets, has adopted GS1 DataMatrix for pharmaceutical products supplied to hospitals, providing a model for global interoperability. The company encodes not only GTIN, expiration date, and lot number but also unique serial numbers, enabling pharmacists to verify product authenticity and detect anomalies at the point of dispensing. |
In the event of a product recall, Merck can quickly identify affected batches and conduct effective recalls with minimal disruption. This aligns with regulatory requirements in over 75 countries, where GS1 DataMatrix is a recommended or required standard for pharmaceutical traceability. |
|
Chapter 11: Dillard's and the New Retail Compliance Reality |
At GS1 Connect, Dillard's CTO Chuck Lasley sent a clear message to brand owners: Sunrise 2027 and the move to 2D barcodes will not be optional. While Dillard's doesn't sell groceries, the company's position reflects a broader industry reality. 2D barcodes may not be legislated mandates, but they will function as such through retail compliance requirements. |
Walmart, Wegmans, and other major retailers are expected to follow suit. Wegmans is preparing a formal communication to suppliers that will explain the value statements of 2D barcodes and encourage brands to review the full suite of GS1 Application Indicators for their products. The collaboration between retailers and brands is essential, as 2D codes can only occupy so much label space before losing scan-ability. |
|
Detailed Summary |
DataMatrix has proven itself over more than three decades as the most reliable 2D barcode for industrial, medical, and regulated applications. Its three pillars---a tiny footprint, high fault tolerance through Reed-Solomon error correction, and massive data capacity---make it indispensable for environments where reliability is paramount. |
The technical foundation is supported by robust standards. ISO/IEC 16022 defines the symbology, while GS1's Application Identifiers provide structured data for supply chain interoperability. These standards ensure that a DataMatrix code produced in one country can be read by scanners anywhere in the world. |
The future of DataMatrix is being shaped by several forces. The Sunrise 2027 initiative is driving adoption of 2D barcodes across retail, with GS1 DataMatrix playing a key role in healthcare and industrial sectors where its compact footprint and reliability are essential. AI-enhanced decoders are enabling reading of severely damaged or blurred codes, extending DataMatrix's reach into even more challenging environments. Digital twins and blockchain traceability are creating immutable digital records linked to DataMatrix codes, enhancing authenticity and lifecycle visibility. The convergence of 2D barcodes with RFID is enabling bulk scanning alongside item-level verification. |
American applications demonstrate DataMatrix's enduring value. The Miami VA Medical Center uses GS1 DataMatrix scanning for UDI compliance, saving $5,000 to $10,000 monthly in expired inventory and enabling rapid recall response. Fresenius Kabi has marked over 700 pharmaceutical products with GS1 DataMatrix codes, improving patient safety and operational efficiency. Merck's global adoption of GS1 DataMatrix for pharmaceutical traceability sets a standard for regulatory compliance in over 75 countries. Dillard's and other retailers are making 2D barcodes a compliance requirement for shelf space, accelerating adoption across consumer goods. |
|
From a grain of rice to a jet engine, DataMatrix silently secures our material world. Its marriage of tiny footprint, high fault tolerance, and massive data capacity ensures it will outlast many competing symbologies. As Industry 4.0, digital twins, and blockchain traceability become the new normal, DataMatrix will remain the preferred 2D code for harsh environments---a quiet but essential guardian of our material world. |
