Chapter 68: Printed Electronics |
Imagine walking into a supermarket in the near future. You pick up a carton of milk, a bag of coffee beans, and a new t-shirt. As you drop them into your shopping bag, a silent reader by the door instantly knows exactly what you bought, when it expires, and where it was made. You do not scan a single barcode. You do not wait in a checkout line. The entire transaction happens in the blink of an eye, powered by tiny radio frequency identification tags that cost almost nothing to produce. That is the promise of printed electronics. |
For decades, RFID tags have been too expensive for everyday items. A simple passive RFID tag might cost a few cents, while a barcode costs a fraction of a cent. That cost gap has kept RFID confined to high-value goods like passports, toll transponders, and inventory for expensive apparel. But a quiet revolution in materials science and manufacturing is about to change everything. Conductive inks, which are liquid suspensions of silver, copper, carbon, or conductive polymers, can now be printed directly onto paper, cardboard, and plastic packaging using the same high-speed printing presses that make barcodes. When that happens, RFID antennas become as cheap as barcodes. The tag itself becomes part of the package, not an add-on. The physical world becomes silently mapped, item by item, without human effort. |
This chapter explores how printed electronics will make ultra-low-cost RFID antennas a reality. We will look at the science of conductive inks, the printing methods that turn them into functional antennas, and the many industries that will be transformed. We will avoid formulas and tables, and instead focus on real-world examples that show why this matters. By the end, you will understand why the barcode's days as the primary identifier of physical goods are numbered, and why the printed RFID tag will become the new invisible infrastructure of global commerce. |
|
A Short Summary at the Start |
Printed electronics uses conductive inks to create electronic circuits, including RFID antennas, on flexible and cheap substrates like paper, cardboard, and plastic films. These inks are made from silver nanoparticles, copper, carbon nanotubes, graphene, or conductive polymers. They are deposited using screen printing, inkjet printing, gravure printing, flexography, or aerosol jet printing. The result is an RFID antenna that costs a fraction of a cent, can be printed at speeds of hundreds of meters per minute, and can be integrated directly into product packaging during the normal printing process. Once this becomes widespread, RFID tags will cost the same as barcodes. That means every milk carton, every loaf of bread, every shirt, and every package of screws can have its own unique identity. The physical world will be mapped in real time, with no manual scanning. This chapter describes the technologies, the manufacturing processes, and dozens of applications across retail, logistics, healthcare, agriculture, manufacturing, and consumer goods. |
|
The Problem with Barcodes |
Barcodes are wonderful. They are cheap, universal, and reliable. A barcode is essentially a printed pattern of black bars on a white background. It costs almost nothing to print because it uses ordinary ink. A laser scanner reads the pattern and converts it into a number. That number is a product code, not a unique identifier. Every identical carton of milk has the same barcode. The barcode does not know if this particular carton is expired, if it has been recalled, or if it is sitting in the wrong warehouse. It only knows the product type. |

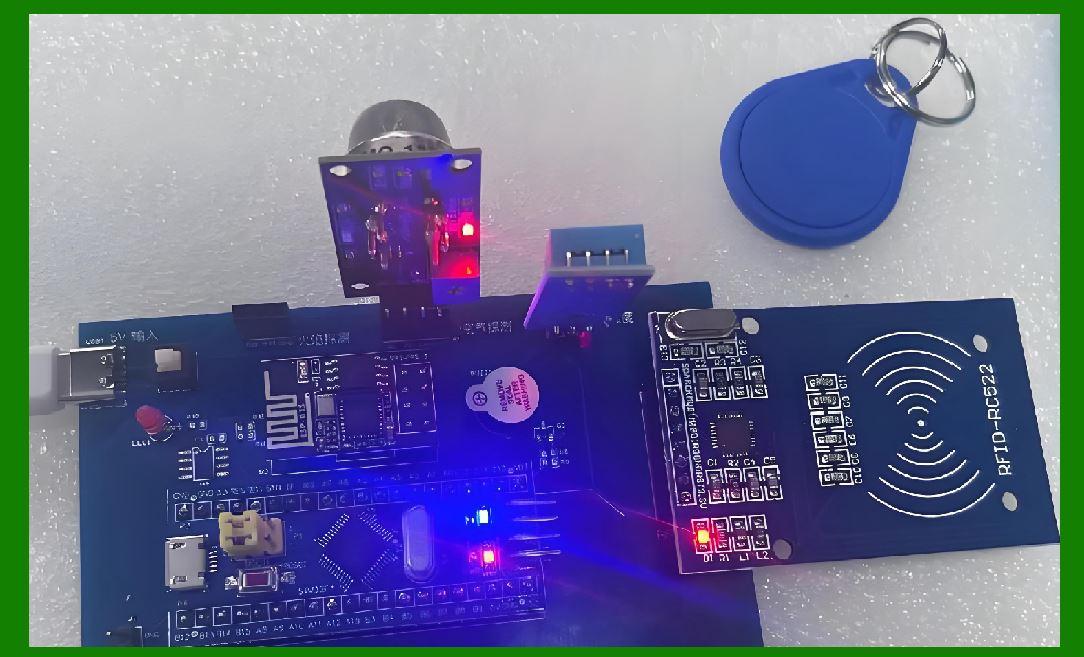

RFID solves that problem. An RFID tag contains a tiny chip and an antenna. The chip stores a unique number, and the antenna allows the chip to communicate with a reader via radio waves. A reader can scan hundreds of tags per second, from a distance, without line of sight. That means a pallet of goods can be inventoried in seconds. A shopping cart can be checked out instantly. A hospital can track every syringe, every sponge, and every implant. But RFID tags have been too expensive for low-margin items. A barcode costs less than a tenth of a cent. An RFID tag costs five to fifteen cents. For a company selling millions of cheap items, that difference is the entire profit margin. |
The cost of an RFID tag is dominated by two things: the silicon chip and the antenna. The chip is a tiny integrated circuit, and it has become very cheap, often just a few cents. The antenna is usually made of copper or aluminum etched on a plastic film. That etching process is slow, chemical-heavy, and expensive. The antenna can cost as much as the chip. If the antenna could be printed with conductive ink, the cost would plummet. That is exactly what printed electronics promises. |
|
What Are Conductive Inks |
Conductive inks are liquids that contain conductive materials. When printed and dried, they form a solid film that conducts electricity. The most common conductive material is silver, because silver is the most conductive metal and it does not oxidize easily. Silver nanoparticles are suspended in a solvent, along with a binder to help the ink adhere to the substrate. When the ink is heated, the solvent evaporates, and the nanoparticles sinter together, forming a continuous conductive network. Silver ink is excellent, but silver is expensive. So researchers have developed copper ink, which is much cheaper but oxidizes quickly. They have also developed carbon-based inks, using carbon nanotubes or graphene, which are less conductive but very cheap and flexible. And they have developed conductive polymers, such as PEDOT:PSS, which can be printed like ink and are naturally flexible. |
Each type of ink has trade-offs. Silver ink gives the best performance, with conductivity close to bulk silver. It is used for high-frequency RFID antennas, especially at ultra-high frequencies where signal loss matters. Copper ink is cheaper but needs a protective coating to prevent oxidation. Carbon ink is the cheapest and most flexible, but its conductivity is lower, so it works best for low-frequency RFID or for short-range near-field communication. Conductive polymer ink is transparent and flexible, making it ideal for printed sensors and displays, but it is not as conductive as metal inks. |
The key point is that all of these inks can be printed. They do not need etching, vacuum deposition, or photolithography. They can be deposited by a printing press, roll to roll, at high speed. That is the manufacturing revolution. |
|
Printing Methods for RFID Antennas |
There are several printing methods that can deposit conductive inks. The choice depends on the required resolution, speed, and cost. Screen printing is the oldest and most common. A screen is made with a patterned mesh. Ink is pushed through the open areas onto the substrate. Screen printing can deposit thick layers of ink, which is good for low-resistance antennas. It is relatively slow, but it is cheap and can be used on flexible substrates. Many printed RFID antennas for smart labels are made by screen printing. |
Inkjet printing is like a desktop printer. It drops tiny droplets of ink onto the substrate. It is very flexible, because the pattern can be changed instantly by software. It is good for prototyping and for small batches. But it is slow for mass production, and the ink must be very stable to avoid clogging the print heads. Some companies use inkjet printing to make customized RFID tags for special events or limited editions. |
Gravure printing is used for high-volume magazines and packaging. A engraved cylinder picks up ink and transfers it to the substrate. It can print very fine lines at very high speeds, hundreds of meters per minute. It is ideal for printing RFID antennas on paper or plastic film. The cylinder cost is high, but for millions of tags, the per-unit cost is tiny. Gravure printing is likely to be the workhorse for ultra-low-cost RFID. |
Flexography is similar to gravure but uses a flexible rubber plate. It is used for printing on corrugated cardboard, plastic bags, and labels. It is fast and cheap, but its resolution is lower than gravure. It can print simple RFID antennas for low-frequency or high-frequency tags. Many corrugated boxes could have printed RFID antennas directly on the cardboard. |
Aerosol jet printing is a newer method that uses a focused beam of aerosolized ink to write very fine lines. It can print on curved surfaces and even on three-dimensional objects. It is slow and expensive, but it is used for high-performance antennas and for repairing circuits. It is not for mass production of cheap tags, but it shows what is possible. |
The common thread is that all these methods are additive. They add material only where it is needed. They do not subtract material like etching. That means less waste, fewer chemicals, and lower cost. And they can be integrated into existing printing workflows. A package printer already prints logos, text, and barcodes. Adding an RFID antenna is just another layer. |
|
Integrating the Chip |
Printing the antenna is only half the battle. The RFID tag also needs a silicon chip. The chip must be attached to the printed antenna and connected electrically. That is called flip-chip bonding. The chip is tiny, often less than a millimeter square. It has bumps of gold or copper that align with the antenna pads. The chip is placed on the antenna and bonded with conductive adhesive or anisotropic conductive film. This process is fast and automated, but it is not yet as cheap as printing. The chip placement is the bottleneck for ultra-low-cost RFID. |
However, there are two solutions. First, the chip itself is getting cheaper. Companies are making specialized chips for RFID that cost only a few cents. Second, researchers are developing chipless RFID. A chipless tag uses only the printed antenna to encode information. The antenna's shape or resonance properties determine a unique signature. A reader can read that signature without a chip. Chipless tags are extremely cheap, because they are only printed ink. But they have limited data capacity and range. They are perfect for applications where you only need a simple identifier, like a serial number or a product code. For many packaging applications, chipless RFID is enough. |
Another approach is to print the chip itself. Printed transistors and printed memory are still in the laboratory, but they are improving rapidly. In the future, a fully printed RFID tag, including the chip, could be printed on a single press. That would make RFID truly as cheap as barcodes. We are not there yet, but the trajectory is clear. |
|
Why Printed RFID Will Be as Cheap as Barcodes |
Let us do a simple comparison. A barcode is printed with black ink on a label or package. The ink cost is negligible. The printing cost is negligible. The only cost is the label and the adhesive, if it is a separate label. A printed RFID antenna uses conductive ink, which is more expensive than black ink. Silver ink might cost a few cents per tag. But as production scales up, the cost of silver ink drops. And copper or carbon ink is much cheaper. The printing process is similar to barcode printing, so the labor and machine time are similar. The chip is the main extra cost. But chipless tags have no chip. And even with a chip, the chip cost is falling to one or two cents. |
So the total cost of a printed RFID tag could be one to three cents. That is still more than a barcode, which is a fraction of a cent. But consider the value. A barcode requires manual scanning, one item at a time. An RFID tag can be read automatically, hundreds at a time. The labor savings alone can be enormous. For a retailer, the cost of a cashier scanning each item is far more than a few cents. For a warehouse, the cost of counting inventory by hand is far more than a few cents. So even if the tag costs a few cents, the total system cost is lower. And as printed electronics improves, the tag cost will approach the barcode cost. When that happens, the barcode will become obsolete for many applications. |
|
Industry Applications: Retail |
Retail is the most visible application. Imagine a clothing store where every item has a printed RFID tag on the price label. When a customer picks up a shirt, a reader in the fitting room can show them available sizes and colors. When they walk out with the shirt, the reader at the door automatically charges their account. No checkout line. No scanning. The store knows exactly what is in stock, in real time. Printed RFID makes this possible because the tag is cheap enough to put on a t-shirt that sells for ten dollars. |
Another retail example is grocery. A carton of milk with a printed RFID tag can tell the smart refrigerator when it expires. The refrigerator can warn the consumer or automatically reorder. A bag of coffee beans can tell the grinder the optimal grind setting. A package of meat can tell the oven the cooking time. These are not fantasies. They are being tested today with printed sensors and printed RFID. |
In apparel, companies like Zara and Uniqlo already use RFID tags for inventory. But those tags are traditional etched antennas. Printed antennas would reduce the cost and allow the tags to be integrated into the fabric itself. Imagine a shirt with a printed RFID antenna woven into the care label. The shirt can be tracked from the factory to the store to the consumer's closet. The consumer can use a smartphone to read the tag and get care instructions, provenance, and recycling information. When the shirt is worn out, the tag can help sort it for recycling. |
|
Industry Applications: Logistics and Supply Chain |
Logistics is where RFID has already proven its value. A pallet of goods with an RFID tag can be read as it enters a warehouse, as it is stored, and as it is shipped. No manual scanning. No errors. Printed RFID takes this further. Instead of a tag on the pallet, every case and every item can have a printed tag. That means granular tracking. A shipment of electronics can be traced item by item. If a recall is needed, the company knows exactly which items are affected and where they are. |
Consider a package delivery company. Every package has a printed RFID label. As the package moves through the network, readers at each hub automatically update its location. The customer can see exactly where the package is, in real time. If a package is misrouted, the system knows immediately. If a package is delayed, the system can reroute it. The cost of the printed tag is so low that it can be put on every envelope and every box. That is already happening with traditional RFID for high-value packages, but printed RFID will make it universal. |
In cold chain logistics, printed RFID tags with temperature sensors can monitor food and pharmaceuticals. A printed sensor can detect if the temperature goes above a threshold. The RFID tag records that event. When the shipment arrives, the receiver can read the tag and know if the cold chain was broken. This is critical for vaccines, insulin, and fresh produce. Printed sensors are cheap enough to be disposable. |
|
Industry Applications: Healthcare |
Healthcare is a natural fit for printed RFID. Hospitals need to track thousands of items: syringes, bandages, surgical instruments, implants, blood bags, and medications. A printed RFID tag on a syringe can tell the nurse if it is the right medication, the right dose, and the right time. It can prevent medication errors. A printed RFID tag on a surgical sponge can ensure that no sponge is left inside a patient. A printed RFID tag on a blood bag can track its temperature and location. These tags must be sterile, disposable, and cheap. Printed electronics can be made on medical-grade paper or film and sterilized with gamma radiation or ethylene oxide. |
Another healthcare application is patient tracking. A printed RFID wristband can be given to every patient. It can hold their medical record number, allergies, and medications. A reader at the bedside can verify the patient's identity before administering a drug. A reader at the door can track patient movement. Printed RFID wristbands are already used in some hospitals, but printed antennas would make them cheaper and more comfortable. |
In pharmaceutical manufacturing, printed RFID tags can be placed on individual blister packs. That allows dose-level tracking. A patient can use a smartphone to read the tag and get a reminder to take the pill. The pharmacy can verify that the right pill is in the right package. The manufacturer can track the drug from the factory to the patient. This is called track and trace, and it is becoming a legal requirement in many countries. |
|
Industry Applications: Agriculture and Food |
Agriculture is a huge opportunity for printed RFID. A cow with a printed RFID ear tag can be tracked from birth to slaughter. The tag can record vaccinations, feed, and health events. When the cow is processed, the tag can be linked to the cuts of meat. A consumer can scan the tag on a steak and see the farm where it was raised. Printed RFID ear tags are cheaper than traditional ones, so they can be used on smaller farms. |
In food packaging, printed RFID tags can monitor freshness. A printed sensor can detect gases released by spoiling meat or fish. The RFID tag can change its state when the food spoils. The consumer can scan the tag with a smartphone and see a green, yellow, or red indicator. This reduces food waste and improves safety. Printed electronics can also be used for smart labels on milk, juice, and beer. The label can tell the consumer if the product has been opened or if it has been stored at the wrong temperature. |
In crop management, printed RFID tags can be attached to seed bags or fertilizer bags. The farmer can scan the bag to verify the seed variety and the treatment. The tag can also record the field where the seed was planted. That data can be used for precision agriculture. Printed sensors in the soil can measure moisture and nutrients, and printed RFID can transmit that data to a central system. The low cost of printed tags means that hundreds of sensors can be deployed per field. |
|
Industry Applications: Manufacturing |
Manufacturing is all about efficiency and quality. Printed RFID tags can be attached to work-in-progress items on an assembly line. A car body with a printed RFID tag can tell the robots what color to paint it and what options to install. A printed circuit board with a printed RFID tag can record its test results and its firmware version. A tool with a printed RFID tag can tell the system when it needs calibration. Printed tags can survive harsh environments if they are printed on durable substrates like polyimide or coated paper. |
In aerospace, printed RFID tags can track parts through a long and complex supply chain. A turbine blade with a printed RFID tag can record its manufacturing history, its inspections, and its flight hours. That data is critical for safety and maintenance. Printed tags are lighter than traditional tags, which matters for aircraft. They can also be embedded in composite materials without creating stress points. |
In electronics manufacturing, printed RFID tags can be used for anti-counterfeiting. A printed tag can be embedded in a phone or a laptop. The tag can store a cryptographic key that proves the device is genuine. A reader can verify the key. Printed tags are hard to clone because the printing process introduces random variations that can be used as a fingerprint. This is called a physically unclonable function. It is a powerful anti-counterfeiting tool. |
|
Industry Applications: Consumer Goods and Smart Packaging |
Smart packaging is the killer app for printed electronics. A printed RFID tag on a package can do much more than identify the product. It can interact with the consumer. A cereal box with a printed RFID tag can tell a smartphone to display a game or a recipe. A wine bottle with a printed RFID tag can tell the consumer about the vineyard and the vintage. A cosmetic bottle with a printed RFID tag can tell the consumer if the product is authentic and if it has expired. |
Printed sensors can be combined with printed RFID to create intelligent packages. A package of cheese can have a printed humidity sensor. If the humidity is too high, the cheese will spoil. The sensor changes its resistance, and the RFID tag reports that change. The consumer can scan the tag and see a warning. A package of medicine can have a printed temperature sensor. If the medicine gets too hot, the sensor records that event. The RFID tag reports it. The pharmacist can check the tag before dispensing. |
In the future, printed RFID tags could be used for interactive marketing. A poster with a printed RFID tag can send a coupon to a smartphone. A product label with a printed RFID tag can enter the consumer into a competition. The possibilities are endless, and the cost is low enough to be disposable. |
|
Industry Applications: Automotive and Transportation |
Cars are full of RFID tags. A modern car has dozens of RFID tags for keyless entry, tire pressure monitoring, and immobilization. Printed RFID tags can be used for component tracking. A bumper with a printed RFID tag can be tracked from the supplier to the assembly line. A tire with a printed RFID tag can record its pressure and temperature. A windshield with a printed RFID tag can be used for toll collection. Printed tags can be embedded in the glass or the plastic. |
In public transportation, printed RFID tickets are already common. A paper ticket with a printed RFID antenna can be used for a subway or a bus. The ticket is cheap enough to be disposable. The reader can scan the ticket without contact. Printed RFID tickets can also be used for events, ski lifts, and ferries. They can be printed at home or at a kiosk. |
In road tolling, printed RFID stickers can be placed on a windshield. The sticker contains a printed antenna and a chip. The reader at the toll booth scans the sticker and charges the account. Printed toll stickers are cheaper than traditional transponders, so they can be used for temporary vehicles or rental cars. |
|
Industry Applications: Construction and Mining |
Construction sites are chaotic. Tools, materials, and equipment are constantly moving. Printed RFID tags can be attached to tools and materials. A concrete block with a printed RFID tag can record its curing time and its strength. A pipe with a printed RFID tag can record its pressure rating and its installation date. A tool with a printed RFID tag can be tracked to prevent theft and loss. Printed tags can survive dust, moisture, and rough handling if they are printed on durable substrates. |
In mining, printed RFID tags can be used for safety. A miner's helmet with a printed RFID tag can track the miner's location underground. A printed sensor can detect dangerous gases. The RFID tag can transmit an alarm. Printed tags are intrinsically safe because they do not produce sparks. They can be used in explosive atmospheres. |
|
Industry Applications: Waste Management and Recycling |
Recycling is a growing market for printed RFID. A plastic bottle with a printed RFID tag can be sorted automatically at a recycling plant. The tag identifies the type of plastic and the color. A reader can activate a diverter that sends the bottle to the correct bin. Printed tags are cheap enough to be put on every bottle and every package. That increases the recycling rate and reduces contamination. |
In waste collection, printed RFID tags on bins can track when the bin is emptied. The truck can read the tag and record the time and location. The municipality can use that data to optimize routes and to charge residents based on usage. Printed tags are durable enough to survive the life of the bin. |
|
The Technical Challenges |
Printed electronics is not without challenges. The conductivity of printed inks is lower than bulk metal. That means printed antennas may be less efficient than etched antennas. For high-frequency RFID, the antenna must be precisely tuned. Printed antennas can have variations in thickness and shape, which detune them. That reduces the read range. Researchers are working on better inks and better printing methods to improve consistency. |
The sintering process is another challenge. After printing, the ink must be heated to fuse the nanoparticles. That heating can damage the substrate. Paper and plastic can deform or burn. So researchers are developing low-temperature sintering inks and methods like photonic sintering, which uses intense light to heat the ink without heating the substrate. That allows printing on cheap materials like paper. |
The chip placement is still a bottleneck. The chip is tiny, and placing it accurately on a printed antenna at high speed is difficult. But pick-and-place machines are getting faster and cheaper. And chipless tags avoid the problem entirely. |
Finally, there is the issue of standards. RFID tags must comply with international standards for frequency, protocol, and data format. Printed tags must meet the same standards. That is not a technical problem, but it is a business problem. The industry must agree on specifications for printed tags. |
|
The Environmental Impact |
Printed electronics is generally greener than traditional electronics. It uses additive manufacturing, so less material is wasted. It uses less energy than etching, which requires high temperatures and toxic chemicals. It can use biodegradable substrates like paper, so the tag can be composted. It can use carbon-based inks instead of silver, reducing the demand for mining. However, silver ink is still a concern because silver mining is environmentally damaging. Copper ink is better, but copper mining is also damaging. The best solution is to use recycled silver or to use conductive polymers that are made from renewable resources. |
The recycling of printed RFID tags is also a challenge. The tag contains a chip, which is made of silicon and metals. The tag is often attached to a package, which may be recycled. The tag must be separated or it will contaminate the recycling stream. Researchers are working on water-soluble inks and adhesives that allow the tag to be washed off. They are also working on biodegradable chips, but that is still in the laboratory. |
|
The Future: Fully Printed RFID |
The ultimate goal is a fully printed RFID tag. That means the antenna, the chip, the memory, and the sensor are all printed on the same substrate in a single roll-to-roll process. No silicon. No pick-and-place. Just ink and paper. That would make RFID truly as cheap as barcodes. Printed transistors are already being developed for flexible displays. Printed memory is being developed for smart labels. Printed sensors are already commercial. The integration of these components into a single printed tag is the next step. |
When that happens, the barcode will become a legacy technology. Not immediately, because barcodes are deeply entrenched. But gradually, as printed RFID becomes cheaper and more capable, it will replace barcodes in many applications. The physical world will be mapped in real time, with unique identities for every item. That is the silent network. |
|
A Detailed Summary at the End |
Let us summarize what we have covered. Printed electronics uses conductive inks to create RFID antennas on cheap substrates like paper, cardboard, and plastic. These inks are made from silver, copper, carbon, or conductive polymers. They are printed using screen printing, inkjet printing, gravure printing, flexography, or aerosol jet printing. The printing process is additive, high-speed, and low-cost. The antenna is then connected to a silicon chip or used as a chipless tag. The result is an RFID tag that costs a few cents or less. That cost is approaching the cost of a barcode. |
The implications are enormous. In retail, every item can have a unique identity. Checkout becomes automatic. Inventory becomes real-time. In logistics, every package can be tracked. In healthcare, every syringe and sponge can be tracked. In agriculture, every cow and every package of meat can be tracked. In manufacturing, every part can be tracked. In consumer goods, every package can interact with a smartphone. In automotive, every component can be tracked. In construction, every tool and material can be tracked. In waste management, every bottle and bin can be tracked. |
The technical challenges are being solved. Conductivity is improving. Sintering is getting faster and cooler. Chip placement is getting cheaper. Chipless tags are emerging. Standards are being developed. The environmental impact is being addressed through biodegradable substrates and recyclable inks. |
The future is a world where the physical world is mapped silently. Every object has a printed RFID tag that costs almost nothing. The tag communicates with readers in the environment. The data flows into the cloud. The cloud knows where everything is, what it is, and what condition it is in. That is the silent network. Printed electronics is the key that unlocks it. Conductive inks will allow ultra-low-cost RFID antennas to be printed directly onto packaging, making RFID as cheap as barcodes. And when that happens, the barcode will fade into history, and the silent network will become the invisible infrastructure of modern life. |
