Code 93 is a linear barcode symbology that is an enhancement of Code 39. It allows for higher data density and includes a checksum digit for improved data integrity. Let's delve into the components and structures of the Code 93 barcode in detail.

Components of Code 93 Barcode

1.Start/Stop Characters:

Code 93 begins and ends with special start and stop characters. These characters are used to signify the beginning and end of the barcode and help scanners detect the barcode's boundaries.

2.Data Characters:

Code 93 can encode the following characters: uppercase letters (A-Z), numeric digits (0-9), and a few special characters (-, ., $, /, +, %, and space). Each character is represented by a unique pattern of bars and spaces.

3.Checksum Character:

Code 93 includes a checksum character that is calculated based on the preceding data characters. This character helps verify the accuracy of the scanned data.

4.Optional Full ASCII Support:

Code 93 can encode the full ASCII character set by using double-density encoding. This mode allows encoding of lowercase letters, additional punctuation marks, and control characters, albeit at the cost of increased barcode length.

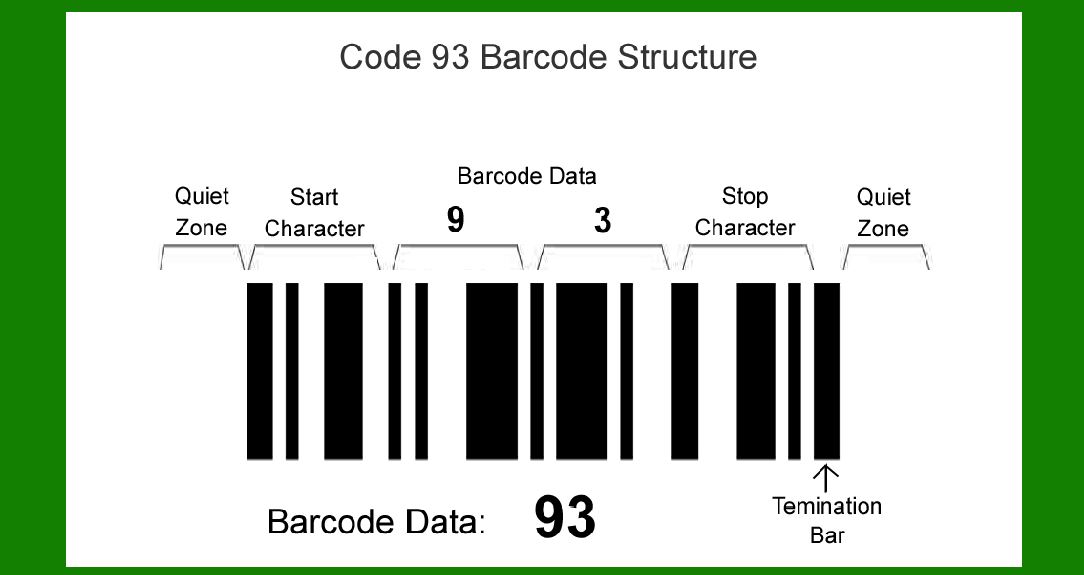

Structures of Code 93 Barcode

1.Barcode Characters:

Code 93 barcodes consist of a series of bars and spaces arranged in specific patterns to represent data characters. Each character is encoded using a combination of bars and spaces of varying widths.

2.Quiet Zones:

Like other barcode types, Code 93 requires quiet zones on both sides of the barcode. These are clear spaces that must be free of any printing or other marks to ensure accurate scanning.

3.Module Width:

The module width (the width of the narrowest element in the barcode) is critical for the readability of the barcode. It determines the overall width of the barcode and affects its scanning accuracy.

4.Character Encoding:

Each character in Code 93 is represented by a specific pattern of bars and spaces. The barcode scanner reads these patterns to decode the encoded data. For example:

Character 'A' might be represented by the pattern '101011000'.

Character '1' might be represented by the pattern '100100101'.

5.Start/Stop Patterns:

Code 93 begins with a special start character and ends with a stop character. These patterns are unique and distinguishable from the data characters. They help scanners identify the beginning and end of the barcode.

6.Checksum Calculation:

The checksum character in Code 93 is computed based on a modulo 47 algorithm. It adds an extra level of data validation by ensuring that the scanned data matches the expected checksum value.

Example of Code 93 Barcode Structure

Let's illustrate the structure of a Code 93 barcode encoding the data 'CODE93':

Data to Encode: 'CODE93'

Start Character: '*'

Encoded Data (including checksum): '*CODE93C'

In this example:

The barcode starts with the '*' character, indicating the beginning of the barcode.

Each character ('C', 'O', 'D', 'E', '9', '3') is encoded using specific bar and space patterns.

The checksum character ('C') is calculated based on the preceding characters ('CODE93') and added to the end of the encoded data.

The barcode ends with the 'C' character, signifying the end of the barcode.

Conclusion

Code 93 barcode structure involves specific components such as start/stop characters, data characters, checksum calculation, and optional support for full ASCII characters. Understanding these components and structures is essential for designing, printing, and scanning Code 93 barcodes accurately in various applications.
