A Data Matrix is a two-dimensional code consisting of black and white 'cells' or dots arranged in either a square or rectangular pattern, also known as a matrix.

The information to be encoded can be text or numeric data. Usual data size is from a few bytes up to 1556 bytes.

A Data Matrix barcode is a type of 2D barcode that can store a large amount of data in a small space. It is particularly useful for marking small items due to its high data density. Here is a detailed description of the Data Matrix barcode:

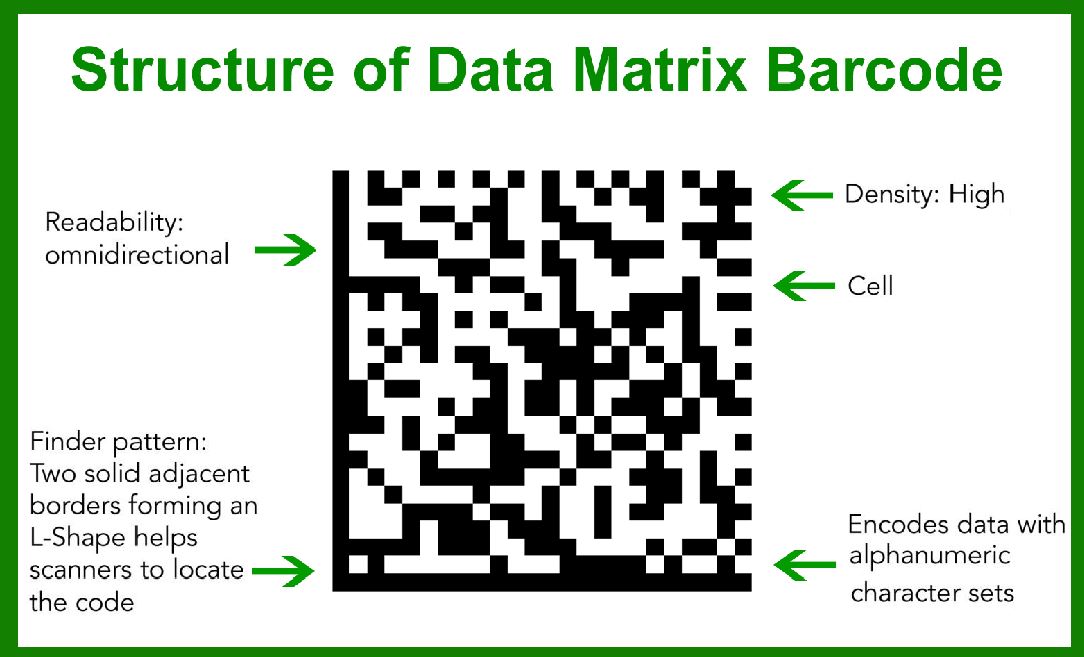

Structure

1.Shape:

Square or Rectangle: Data Matrix barcodes are typically square but can also be rectangular. The square shape is most common.

2.Modules:

Cells or Dots: The barcode consists of black and white cells or dots arranged in a grid pattern. Each cell represents a bit of data.

3.Finder Pattern:

L-shaped Pattern: The barcode has an L-shaped finder pattern along the perimeter on two adjacent sides, known as the 'solid border' or 'clock pattern'. This pattern helps the scanner to locate and read the barcode.

Alternating Pattern: The other two sides of the perimeter feature an alternating pattern of black and white cells, known as the 'timing pattern'.

4.Data Region:

Data Cells: The area inside the perimeter is the data region, where the actual data is encoded in the form of black and white cells.

Error Correction: Data Matrix uses Reed-Solomon error correction, which allows the barcode to be read even if part of it is damaged or obscured.

Encoding Capacity

Numeric Data: Up to 3,116 characters.

Alphanumeric Data: Up to 2,335 characters.

Binary Data: Up to 1,556 bytes.

Kanji Data: Up to 778 characters.

The capacity depends on the size of the barcode and the level of error correction applied.

Error Correction

Reed-Solomon Algorithm: Provides robust error correction capabilities, allowing the barcode to be read even if up to 30% of the symbol is damaged.

Applications

1.Small Item Marking: Ideal for small parts and items due to its high data density.

2.Medical Devices: Used for tracking and inventory management.

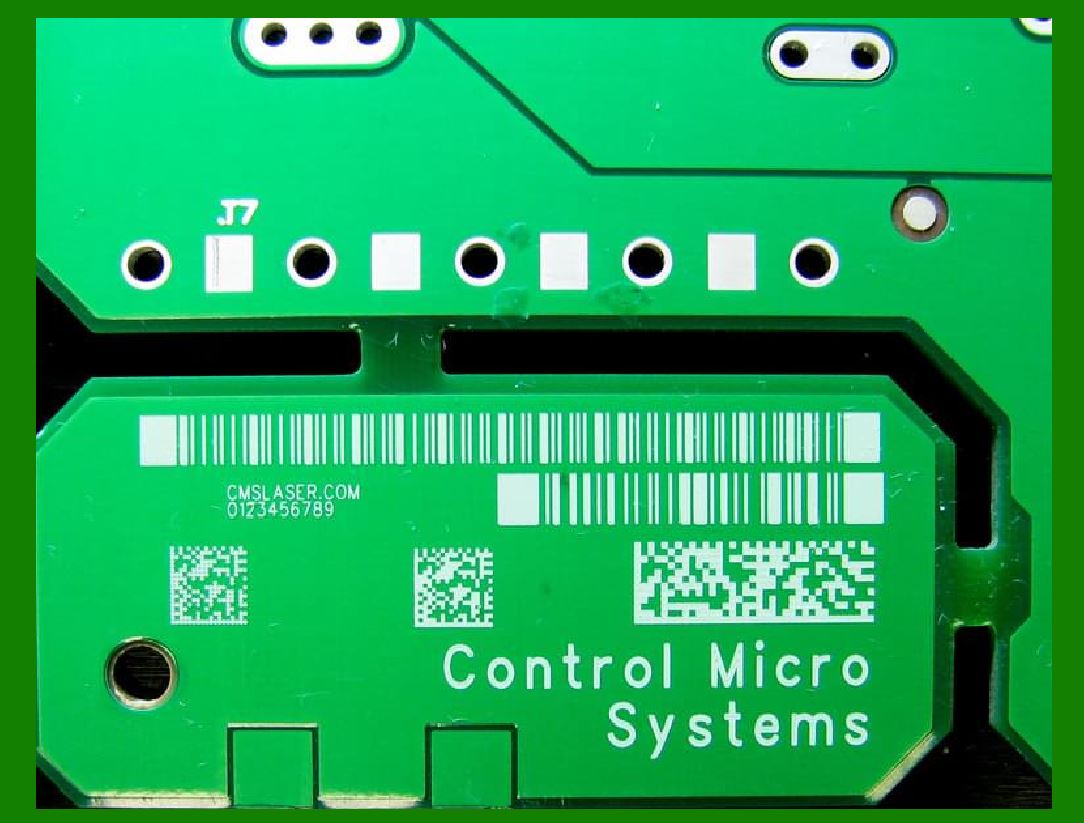

3.Printed Circuit Boards (PCBs): Common in electronics manufacturing.

4.Postal Services: Used for mail and parcel tracking.

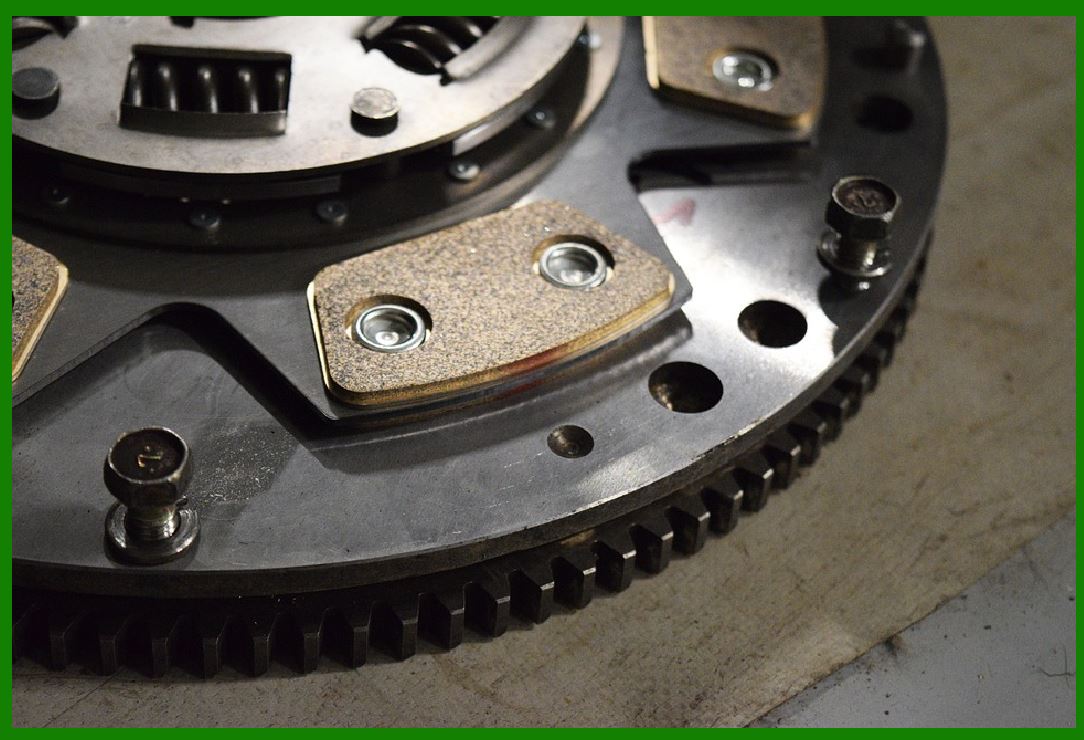

5.Automotive Industry: For parts identification and tracking.

6.Pharmaceuticals: For medication packaging and tracking.

Advantages

High Data Density: Can encode a large amount of information in a very small space.

Damage Resistance: Robust error correction allows for partial damage without loss of data.

Orientation Independence: Can be read in any orientation, making it versatile for different applications.

Size Flexibility: Can be scaled to various sizes while retaining readability.

Reading and Scanning

Imaging Scanners: Most modern barcode scanners can read Data Matrix codes, including CCD and camera-based systems.

Laser Scanners: Some advanced laser scanners are also capable of reading Data Matrix codes.

Standards

ISO/IEC 16022: The primary standard for Data Matrix barcodes, defining the encoding, error correction, and other specifications.

In summary, Data Matrix barcodes are highly efficient and reliable for encoding large amounts of data in a small space. They are widely used in various industries due to their versatility, error correction capabilities, and ease of reading.
