PDF417 is a two-dimensional barcode symbology that encodes data in a stacked format using patterns of dark (bars) and light (spaces) regions. Central to PDF417 encoding is the concept of codewords, which are representations of numbers ranging from 0 to 928. Understanding codewords involves grasping their structure, encoding method, and the patterns they form within the barcode.

Codeword Structure and Representation

Each codeword in PDF417 corresponds to a specific pattern of bars and spaces. This pattern consists of four bars and four spaces, where the total width is 17 times the width of the narrowest vertical bar, denoted as X. This width sets the scale for the entire barcode, ensuring uniformity in scanning and decoding processes.

The minimum height of a row, denoted as Y, must be at least three times the X dimension to accommodate the patterns effectively.

Groups and Clusters

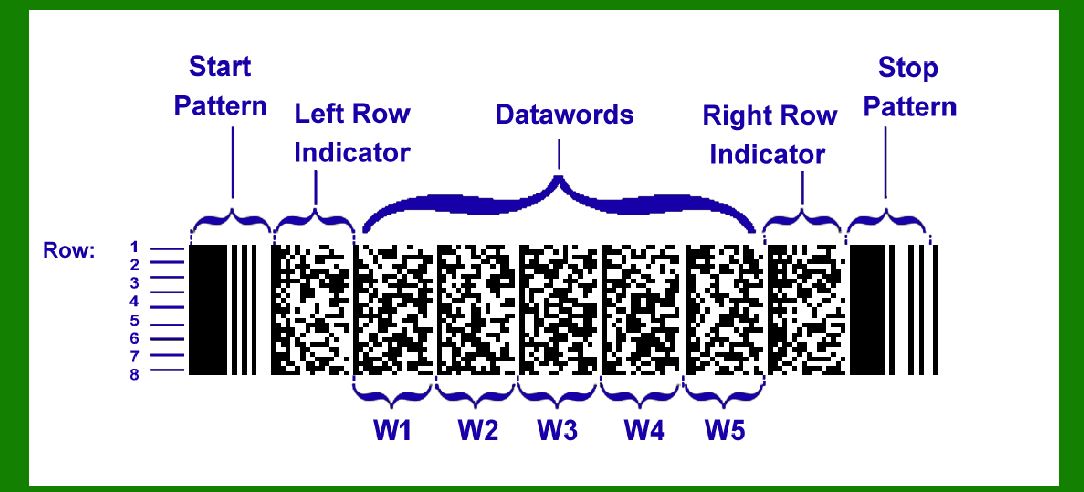

PDF417 organizes its codeword patterns into three distinct clusters: 0, 3, and 6. Each cluster contains unique bar-space patterns that are assigned cyclically to different rows within the barcode. For instance, row 1 uses patterns from cluster 0, row 2 from cluster 3, row 3 from cluster 6, and this cycle repeats. This systematic arrangement aids in robust scanning and decoding strategies, particularly when scanning is skewed or at an angle.

Determining the Cluster

The cluster for a particular codeword within a row can be determined using specific equations involving the widths of bars or the distances between edges within the barcode symbol:

1.Using Bar Widths (b1, b2, b3, b4): K=(b1-b2+b3-b4+9)mod--9K = (b1 - b2 + b3 - b4 + 9) \mod 9K=(b1-b2+b3-b4+9)mod9 Here, K represents the cluster number.

2.Using Edge-to-Edge Distances (E1, E2, E5, E6): K=(E1-E2+E5-E6+9)mod--9K = (E1 - E2 + E5 - E6 + 9) \mod 9K=(E1-E2+E5-E6+9)mod9 Ei represents distances between edges in the barcode symbol.

These equations provide a reliable method to determine the cluster based on the physical characteristics of the barcode as scanned.

Purpose of Clusters

The primary function of clustering in PDF417 is to facilitate row identification and decoding. By organizing patterns into clusters and cyclically assigning them to rows, PDF417 ensures that even if a scan is skewed or starts at an arbitrary point, the scanner can correctly interpret the data. This resilience to scanning variations is crucial in applications where barcodes may be scanned at different angles or under less-than-ideal conditions.

Practical Application

Consider a scenario where a PDF417 barcode is scanned. The scanner may start scanning from row 6 but end at row 10 due to the skew. Initially, it detects a constant start pattern followed by symbols in cluster 6. As the scan progresses to row 7, it encounters symbols in cluster 0. This transition provides the scanner with crucial information about the direction and degree of skew. By the time the scan concludes on row 10, the scanner reads symbols in cluster 0 again, followed by a constant stop pattern.

This methodical progression through clusters ensures that the scanner maintains alignment and accurately deciphers the encoded information, regardless of the scanning conditions.

Conclusion

In essence, PDF417 codewords are structured sequences of bars and spaces that encode numeric data from 0 to 928. These codewords are organized into clusters that rotate cyclically through barcode rows, facilitating robust decoding even under skewed scanning conditions. The use of clusters and their systematic assignment ensures reliability in data retrieval, making PDF417 suitable for applications requiring high-density data storage and robust scanning capabilities. This structured approach to barcode symbology highlights the engineering behind efficient and reliable data encoding and retrieval systems.
