MicroPDF417 is a two-dimensional stacked barcode symbology designed primarily for applications requiring high-density data encoding, such as logistics, inventory management, and healthcare.

This detailed explanation will delve into the structure and encoding of Data Codewords within MicroPDF417, focusing on their composition, encoding rules, and the overall architecture of this barcode format.

Introduction to MicroPDF417

MicroPDF417 is an extension of the PDF417 barcode, optimized for compactness and efficient data storage. It supports a wide range of characters and symbols, making it versatile for encoding alphanumeric data. Unlike linear barcodes that encode data in one dimension, MicroPDF417 organizes information in stacked rows, each capable of holding multiple codewords.

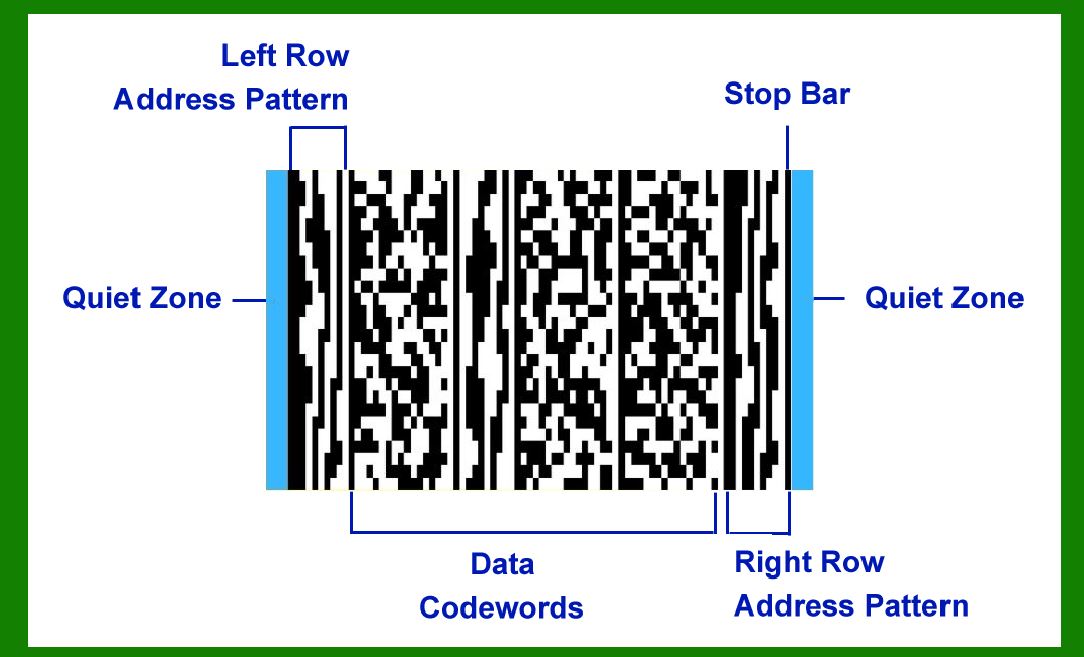

Data Codeword Structure

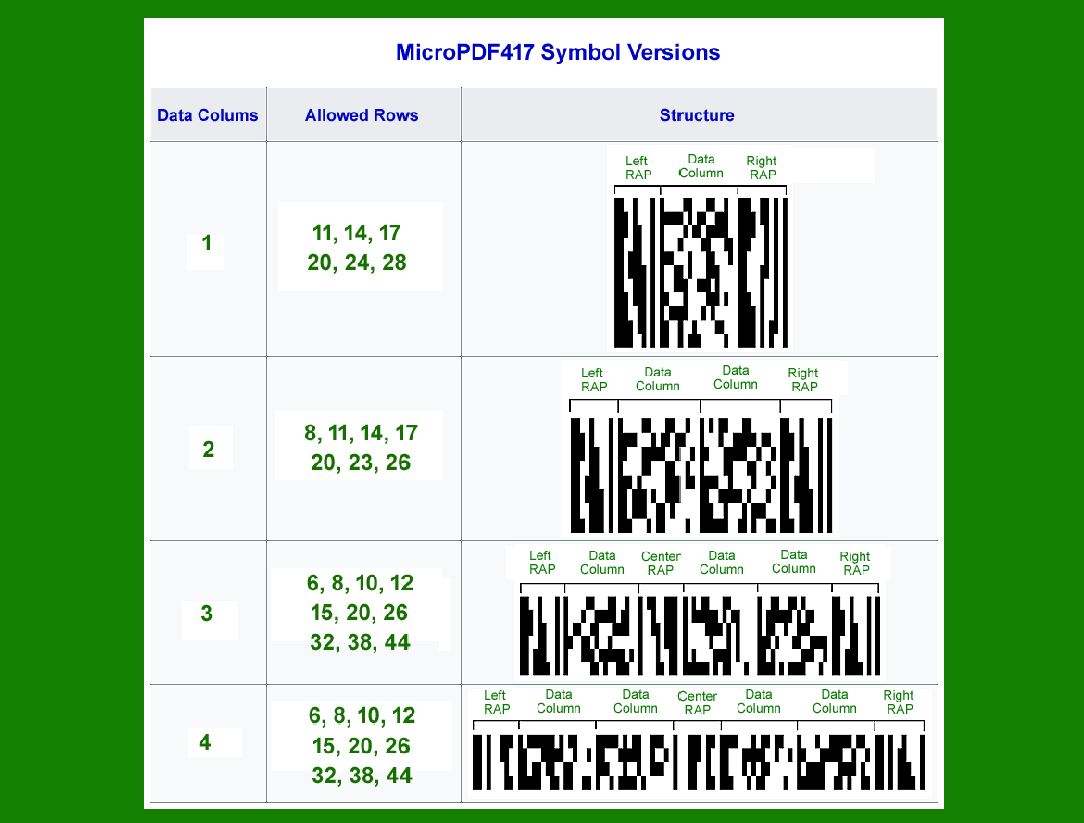

In MicroPDF417, data is encoded into modules arranged in rows. Each row consists of a specific number of codewords, with the structure designed to maximize data density while ensuring reliable scanning and decoding. Let's delve into the specifics of the Data Codewords and how they are structured:

Row Structure

1.Width and Modules:

Each row in MicroPDF417 is composed of 17 modules (units of width), which are used to encode black bars and white spaces.

These 17 modules are divided into segments: 4 black bars and 4 white spaces, where the sizes of these segments can vary from 1 to 6 modules.

2.Codeword Encoding:

Every codeword in MicroPDF417 represents a number ranging from 0 to 928.

Codewords are grouped into clusters, specifically in clusters numbered 0, 3, and 6. The cluster number is determined based on a formula involving the Left RAP (Row Address Pattern) values present in the row.

Encoding Details

Codeword Clustering

The clustering of codewords into groups 0, 3, and 6 is crucial for the decoding process in MicroPDF417. The determination of which cluster a codeword belongs to is based on the modulo operation involving the Left RAP values within the row. Here's how the clustering is determined:

cluster=((LeftRAP-1)mod 3)×3\text{cluster} = ((\text{LeftRAP} - 1) \mod 3) \times 3cluster=((LeftRAP-1)mod3)×3

Where:

LeftRAP: Refers to the number of Left RAP values (ranging from 1 to 52) present in the current row.

The formula calculates the cluster number by taking the remainder of (LeftRAP - 1) when divided by 3, then multiplying by 3.

This calculation ensures that codewords are correctly assigned to their respective clusters based on the distribution of Left RAP values within the row.

Practical Example

Let's illustrate this with a practical example:

Suppose a MicroPDF417 row has 17 modules and contains Left RAP values as follows: 7, 13, 24.

1.Calculate the number of Left RAP values (LeftRAP) = 3 (since there are three values).

2.Apply the formula:

cluster=((3-1)mod 3)×3\text{cluster} = ((3 - 1) \mod 3) \times 3cluster=((3-1)mod3)×3 cluster=(2mod 3)×3\text{cluster} = (2 \mod 3) \times 3cluster=(2mod3)×3 cluster=2×3\text{cluster} = 2 \times 3cluster=2×3 cluster=6\text{cluster} = 6cluster=6

Thus, the codewords in this row would belong to Cluster 6.

Conclusion

MicroPDF417's Data Codewords are structured and encoded in a way that maximizes data density and ensures reliable decoding. The clustering of codewords into groups 0, 3, and 6 based on the number of Left RAP values provides a systematic approach to organizing and decoding information stored within the barcode. Understanding these encoding principles is essential for effectively utilizing MicroPDF417 in various applications where compact and efficient data encoding is required.

This detailed explanation provides insight into the intricacies of MicroPDF417's Data Codewords, offering a comprehensive overview of how information is structured and encoded within this barcode symbology.
