Encoding of Code 39 Barcode

Code 39 is a widely used barcode symbology that allows alphanumeric data to be encoded into a series of wide and narrow bars and spaces. It is known for its simplicity and versatility in various applications such as inventory management, shipping, and asset tracking. This detailed description will cover the encoding principles of Code 39, the structure of its characters, and how the barcode is interpreted by scanning devices.

1. Basic Structure and Components

Code 39 encodes data using a set of bars and spaces representing characters. It includes:

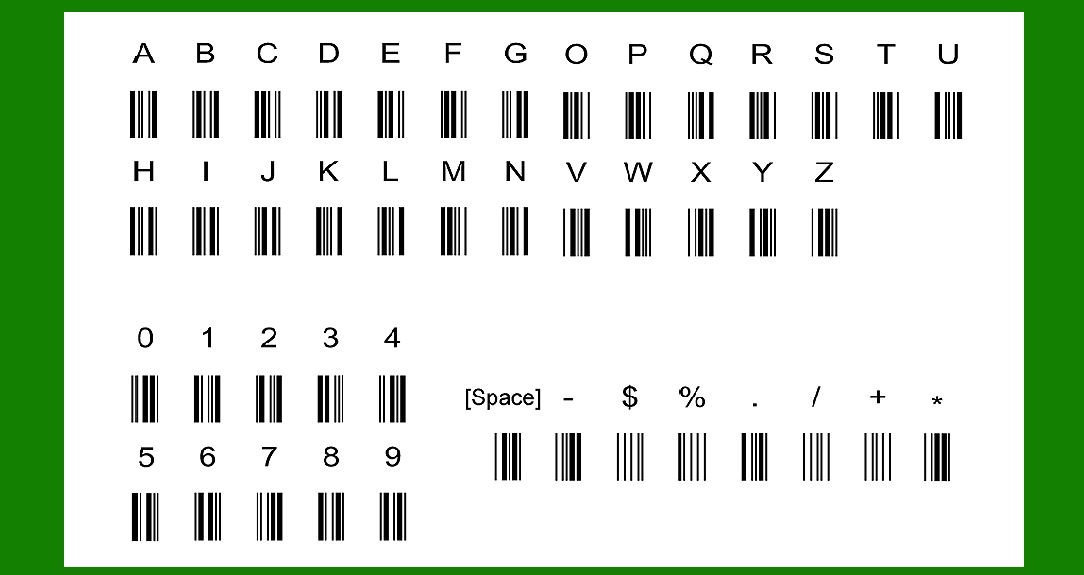

Character Set: Code 39 can encode 43 characters: 0-9, A-Z, and seven special characters (-, ., $, /, +, %, and space).

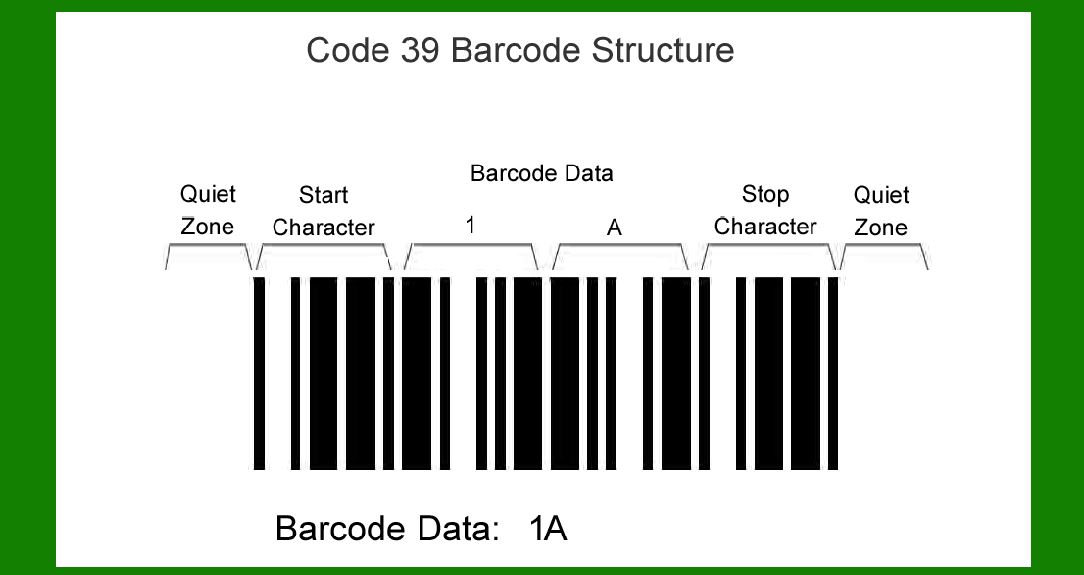

Start/Stop Character: The asterisk (*) serves as both the start and stop character in Code 39. It is not a true encodable character but marks the beginning and end of the barcode.

Character Mapping: Each character is represented by a unique pattern of bars and spaces.

2. Character Representation

Each character in Code 39 is encoded using a series of nine elements (either bars or spaces), where five elements can be wide (W) and four elements are narrow (N). The specific pattern of wide and narrow elements determines the character being represented.

Wide Bars and Spaces: Out of the nine elements, two are wide. These positions are crucial as they encode a number between 1 and 10.

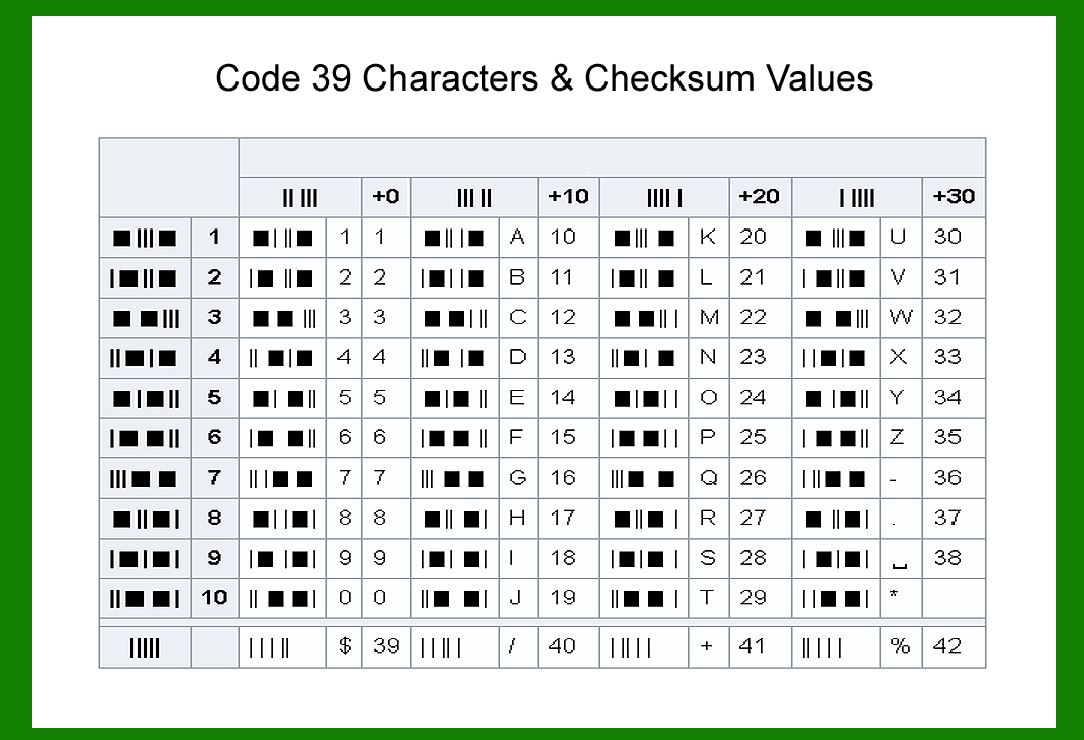

Character Groups: Characters are categorized into four groups based on the position of the wide space within the nine-element structure:

Letters (+30): U-Z

Digits (+0): 0-9

Letters (+10): A-J

Letters (+20): K-T

3. Encoding Example

Let's encode the letter 'P' (the 16th letter in the alphabet) as an example:

Character 'P':

Number: 16 (since P is the 16th letter)

Bars: NWWNN (wide bars at positions 2 and 4)

Group: Letters (+20) (wide space in the far right position)

4. Special Cases

Encoding '10': The number '10' is used to represent the character '0' in Code 39.

Start/Stop and Special Characters: The asterisk (*) serves as both the start and stop character. Other special characters are encoded using positions not used by alphanumeric characters.

5. Checksum Calculation

Code 39 includes a simple checksum algorithm to ensure data integrity:

Each character is assigned a value based on its position (e.g., A=10, B=11, ..., Z=35).

The checksum character is calculated by summing these values and taking the result modulo 43. This checksum character is then appended to the barcode.

6. Applications and Usage

Versatility: Code 39 is widely used in various industries due to its ability to encode alphanumeric data.

Scanning: Barcode scanners interpret the width of bars and spaces to decode the encoded information.

Human-Readable Text: Barcodes are often printed with human-readable text to aid manual entry and verification.

7. Conclusion

In summary, Code 39 is a robust barcode symbology that efficiently encodes alphanumeric data into a series of bars and spaces. Its simple structure and widespread compatibility make it a popular choice for many applications requiring data encoding and retrieval. Understanding its encoding principles allows for effective implementation and utilization in diverse industrial and commercial settings.

This detailed explanation covers the essential aspects of Code 39 encoding, from its basic structure and character representation to its practical applications and checksum calculation. As technology evolves, Code 39 continues to play a significant role in barcode technology, ensuring efficient data management and accessibility across various sectors globally.
