1. Introduction |
The semiconductor industry is currently facing an era of rapid innovation and significant challenges, particularly as it strives to scale production of smaller semiconductor nodes. These nodes, such as those below 3 nm, represent the cutting edge of semiconductor manufacturing, with critical applications spanning from high-performance computing to advanced mobile devices and artificial intelligence. However, as semiconductor nodes shrink, the complexities of manufacturing and the associated yield issues become more pronounced. The push towards even smaller nodes, like 2 nm and 1 nm, has highlighted the inherent difficulties in producing these chips in mass quantities at a competitive cost. |
This detailed exploration will focus on the core issues related to manufacturing smaller semiconductor nodes, including the relationship between node size and yield, the impact of cutting-edge technologies like extreme ultraviolet (EUV) lithography, and the economic consequences of these challenges. The discussion will also cover the technological bottlenecks that make scaling increasingly difficult, the role of yield in determining the economic viability of advanced semiconductor production, and the key factors influencing both the cost and success of producing semiconductors at these tiny scales. |
|

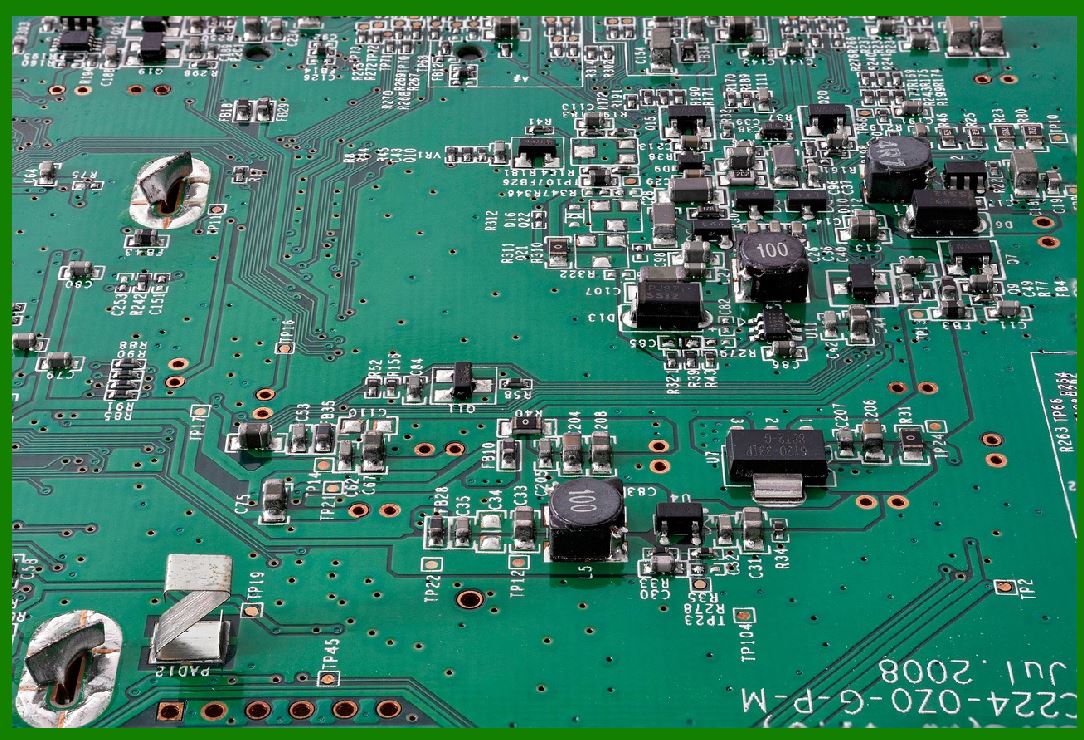

2. The Basics of Semiconductor Manufacturing |
Before diving into the challenges of smaller nodes, it's important to first understand the fundamentals of semiconductor manufacturing. At its core, semiconductor manufacturing is a multi-step process that includes wafer fabrication, photolithography, etching, deposition, and packaging. The goal is to create integrated circuits (ICs) that are capable of executing complex tasks, such as processing data or transmitting signals, by arranging millions or even billions of transistors onto a single silicon wafer. |
As the demand for faster, smaller, and more energy-efficient chips grows, the industry has continually pushed to reduce the size of these transistors. The size of a transistor is typically described by the 'node size,' which refers to the smallest feature that can be created during the manufacturing process, usually measured in nanometers (nm). A node size of 3 nm means that the smallest feature on the chip is 3 nm wide. Historically, semiconductor nodes have shrunk roughly every two years in line with Moore's Law, which predicted that the number of transistors on a chip would double approximately every two years, leading to increased performance and reduced cost. |
However, as the node size approaches the atomic scale, the physical limitations of materials and manufacturing processes become more significant, making it increasingly difficult to maintain the rate of progress predicted by Moore's Law. |
|
3. Challenges of Scaling Down to Smaller Nodes |
3.1. Physical Limitations and Quantum Effects |
As semiconductor nodes decrease in size, they approach atomic dimensions, where quantum mechanical effects become more pronounced. At smaller nodes, electrons may exhibit behaviors that differ from classical expectations, such as quantum tunneling, where electrons 'leak' through barriers that would normally be insurmountable. This leads to issues with power consumption, heat generation, and reliability, which are particularly problematic in advanced chips. |
The shrinking of transistors also exacerbates issues related to signal integrity and device variability. At smaller scales, there are fewer atoms and electrons in a given material volume, making the performance of each transistor more susceptible to fluctuations. This means that slight variations in manufacturing can lead to larger deviations in chip performance, which significantly impacts the yield of functional chips. |
3.2. Limitations of Photolithography |
One of the most critical technologies in semiconductor manufacturing is photolithography, a process where light is used to transfer patterns onto the surface of a semiconductor wafer. The smaller the node, the shorter the wavelength of light required for patterning, as this determines the precision with which fine features can be printed on the wafer. As the industry pushes towards 3 nm and beyond, traditional photolithography methods, such as deep ultraviolet (DUV) lithography, are no longer sufficient to create these tiny features. |
To overcome this limitation, the semiconductor industry has turned to extreme ultraviolet (EUV) lithography. EUV uses much shorter wavelengths (around 13.5 nm), allowing for finer details and better resolution. However, even EUV comes with its own set of challenges. The equipment required for EUV is incredibly expensive and complex, and it's not yet fully capable of meeting the demands of mass production at the 3 nm scale and below. Furthermore, the EUV light source is inherently unstable, and ensuring a consistent and reliable exposure is a difficult task that significantly increases the cost and complexity of the manufacturing process. |
|
4. Manufacturing Smaller Nodes: Key Technological Challenges |
4.1. Photomask Complexity and Defect Control |
At smaller nodes, the complexity of the photomask-the tool that defines the patterns transferred onto the wafer-also increases. As the node size shrinks, more layers of the mask are needed to define the intricate patterns required for modern semiconductor designs. These masks are incredibly costly and must be manufactured with extreme precision. Even tiny defects in the mask can lead to manufacturing defects in the final chip, which in turn affects yield. |
The increase in photomask complexity, combined with the potential for defects in both the mask and the wafer, means that defect detection and repair have become critical components of the manufacturing process. Sophisticated optical inspection systems and mask repair technologies are required to ensure that any defects are identified and corrected before the wafer proceeds through subsequent stages of production. |
4.2. Process Variation and Statistical Lithography |
At smaller nodes, process variation becomes a more significant issue. Process variation refers to the differences in how each transistor or circuit element is fabricated, even when using the same design and manufacturing process. This can be caused by small variations in materials, temperature fluctuations, equipment malfunctions, or imperfections in the semiconductor wafer. |
As nodes shrink, the impact of process variation is amplified. The tolerances for these variations become tighter, and a small deviation can result in a transistor that doesn't function as expected, leading to a failure. To combat this, the industry has turned to statistical lithography, a technique that involves creating models to predict how process variations might affect the final product and making design adjustments accordingly. However, even with these advanced techniques, the yield remains a constant concern. |
4.3. Etching and Deposition Challenges |
As semiconductor nodes decrease, the processes of etching and deposition become more critical in defining the final structure of the chip. Etching is used to carve patterns into the wafer, and deposition is used to layer materials onto the wafer surface. At smaller nodes, achieving the necessary precision in both of these processes becomes exceedingly difficult. |
For instance, in the etching process, smaller features require higher aspect ratios (i.e., deeper and thinner structures), which makes it more difficult to control etching uniformity. Any irregularities in the etching process can result in defects that reduce yield. Similarly, in deposition, the need for thinner and more uniform layers of material puts pressure on the precision of deposition equipment. |
4.4. Lithography-Related Defects and Yield Loss |
One of the most significant issues with scaling to smaller nodes is the increase in lithography-related defects. At smaller nodes, the required resolution for the photolithography step increases, leading to a higher likelihood of defects caused by diffraction limits or inadequate exposure. Even slight imperfections in the alignment of patterns, exposure, or resist application can result in faulty chips. |
These defects not only lead to lower yield but also complicate the detection of failures. As the number of transistors on a chip grows, the potential for defects increases, making it harder to isolate which particular defects are responsible for a chip's failure. This increases the cost of testing and reworking chips, further driving up production costs and reducing overall yield. |
|
5. Yield Challenges in Advanced Semiconductor Manufacturing |
5.1. Yield and Cost Trade-Offs |
Yield refers to the percentage of chips on a wafer that meet the required specifications and pass quality control tests. At smaller nodes, maintaining a high yield becomes increasingly difficult. The more advanced the process, the more sensitive it becomes to minute variations in the manufacturing process. As a result, the yield tends to decrease, especially as the size of the transistor approaches atomic dimensions. |
The relationship between yield and cost is a fundamental concern in semiconductor manufacturing. The lower the yield, the higher the cost per functional chip, as more wafers are needed to produce a given number of working chips. In some cases, the cost of producing chips at smaller nodes can outweigh the benefits of the improved performance and energy efficiency these chips provide. In extreme cases, the cost of production can become prohibitive, limiting the commercial viability of such chips. |
5.2. Defect Density and Statistical Process Control |
Defect density, or the number of defects per unit area on a wafer, is a key factor in determining yield. As defect density increases, the likelihood that a given chip will fail also increases. Semiconductor manufacturers use sophisticated statistical process control (SPC) techniques to monitor and control defect density, but as nodes shrink, the ability to maintain low defect density becomes more challenging. Defects that were once tolerable at larger nodes become more critical at smaller nodes, leading to further yield losses. |
Manufacturers use advanced inspection and metrology tools to detect defects at various stages of production, from wafer inspection to final testing. These tools are necessary to maintain high yield but are also expensive and add complexity to the production process. |
|
6. Economic Implications of Yield and Manufacturing Challenges |
6.1. High Capital Expenditure |
Manufacturing advanced semiconductors at nodes smaller than 3 nm requires significant capital expenditure. The equipment necessary for cutting-edge lithography, etching, deposition, and testing is highly specialized and expensive. For example, EUV lithography machines can cost over $100 million each, and maintaining such equipment is also costly. Additionally, the factories required to house this equipment are massive, with costs in the billions of dollars for a fully operational fab capable of producing advanced chips at scale. |
As yield decreases at smaller nodes, these high capital expenditures become harder to justify. The return on investment (ROI) for advanced manufacturing nodes relies on achieving a high yield and minimizing defects, but as yields drop, the overall profitability of producing these chips at smaller nodes becomes more uncertain. |
6.2. Market Impact |
The challenges associated with producing chips at smaller nodes also have significant market implications. As the cost of manufacturing increases, chip prices tend to rise, which could lead to higher prices for end-user products like smartphones, laptops, and servers. At the same time, limited yields may constrain the availability of high-performance chips, leading to supply shortages and further price inflation. For consumers and businesses, this creates a cycle of rising costs and limited availability of the most advanced technology. |
In some cases, manufacturers may choose to delay the introduction of smaller nodes or shift focus to more mature nodes in order to ensure a steady supply of chips at lower costs. This decision may impact the pace of technological progress and slow the rollout of next-generation technologies, such as 5G, artificial intelligence, and quantum computing. |
|
7. Conclusion |
The transition to smaller semiconductor nodes, particularly below 3 nm, presents significant challenges to manufacturers. As node size shrinks, the complexity of the manufacturing process increases exponentially. Issues like photomask complexity, process variation, etching and deposition precision, and lithography-related defects all contribute to yield loss, driving up costs and limiting the ability to meet market demand. While advancements like EUV lithography provide some solutions, they come with their own set of challenges, both in terms of cost and process stability. |
Ultimately, as the industry pushes towards nodes smaller than 3 nm, balancing yield, cost, and technological progress will become increasingly difficult. For the semiconductor industry to continue advancing, innovative solutions and breakthroughs in manufacturing technologies will be necessary. However, the ability to scale production while maintaining high yields and controlling costs will remain a key factor in determining the commercial viability of these next-generation chips. |
|
What new technologies will improve this in the future? |
1. Introduction |
The ongoing challenges in semiconductor manufacturing, especially as we push toward nodes smaller than 3 nm, necessitate the development of new technologies and innovations to maintain the pace of progress while improving yield, reducing costs, and overcoming the physical limitations of current processes. These technologies will not only address the bottlenecks in manufacturing smaller transistors but also open up new possibilities for achieving better efficiency and performance. In this section, we explore several emerging technologies and advancements that have the potential to significantly improve semiconductor manufacturing in the future. |
|
2. Extreme Ultraviolet (EUV) Lithography Enhancements |
While extreme ultraviolet (EUV) lithography has been one of the most important innovations for scaling down semiconductor nodes, its current limitations-such as the high cost of equipment, issues with mask defects, and power consumption-remain barriers to achieving efficient, large-scale production at the 3 nm node and below. However, ongoing improvements in EUV technology are likely to provide significant solutions to these challenges in the near future. |
2.1. High Power EUV Sources |
One of the major limitations of current EUV lithography is the power of the light source. EUV sources are not yet powerful enough to provide the throughput required for high-volume manufacturing. Researchers are working on improving the power output of EUV light sources by developing new laser technologies, such as high-repetition-rate lasers and plasma-based sources, which could allow for faster and more efficient processing. These advancements would reduce the cost per chip and improve overall production efficiency. |
2.2. EUV Multi-patterning |
To further enhance resolution and allow for smaller features, EUV lithography is being coupled with advanced multi-patterning techniques. Multi-patterning involves running multiple lithographic passes to create smaller features than the EUV system can produce in a single pass. Innovations in multi-patterning, such as the development of advanced mask designs and resist materials, will continue to help scale down to smaller nodes. |
2.3. Next-generation EUV: High Numerical Aperture (NA) EUV Lithography |
The development of High-NA EUV lithography promises to significantly improve the resolution and depth of focus of EUV systems, allowing for even smaller nodes, possibly down to 1 nm. High-NA EUV uses lenses with a higher numerical aperture, which improves the imaging quality of the lithography system and allows for smaller features to be printed with greater precision. Companies like ASML are already developing this technology, but it is still several years away from being fully deployed in mass production. High-NA EUV will play a critical role in pushing the industry toward 2 nm and 1 nm nodes. |
|
3. Directed Self-Assembly (DSA) |
Directed Self-Assembly (DSA) is a promising technique that leverages the natural tendency of certain materials to organize themselves into specific patterns. DSA can be used to create extremely fine features on semiconductor wafers by manipulating block copolymer materials. These materials spontaneously assemble into nanoscale patterns, which can be used as a template for further patterning. |
3.1. Reducing Patterning Complexity |
DSA could simplify the patterning process by potentially reducing the need for expensive and complex photomasks. This would allow for lower manufacturing costs, especially as transistor sizes continue to shrink. Additionally, DSA can potentially provide better resolution and accuracy than conventional photolithography at extremely small scales. |
3.2. Hybrid DSA and Lithography |
A hybrid approach, combining DSA with traditional photolithography, is one potential solution to address the challenges of creating patterns at smaller nodes. By using DSA to define certain structures and photolithography for others, semiconductor manufacturers could achieve the fine feature sizes needed for advanced chips while controlling costs and improving throughput. Hybrid DSA-lithography systems could also reduce the number of patterning steps, leading to more efficient manufacturing. |
|
4. Quantum Dots and Quantum Computing Integration |
As the industry faces the limits of classical semiconductor scaling, quantum computing holds potential as a paradigm-shifting technology. Quantum computers leverage the principles of quantum mechanics to solve problems that are intractable for classical computers. This includes not only breaking through traditional scaling barriers but also creating new types of materials and structures. |
4.1. Quantum Dot Transistors |
Quantum dot-based transistors are one of the most promising candidates for future computing. These transistors use quantum dots-nanoscale semiconductor particles that can trap and manipulate electrons- to achieve better control over electron flow. Unlike traditional transistors that rely on voltage control, quantum dots could allow for faster switching and less energy consumption, potentially revolutionizing chip design and manufacturing. |
4.2. Topological Quantum Materials |
Topological quantum materials, such as topological insulators, have unique electronic properties that could enable more efficient and stable semiconductor devices. These materials could be used to develop new types of semiconductors with fewer defects and lower power consumption. Researchers are investigating how these materials can be integrated into manufacturing processes to overcome the limitations of current semiconductors. |
|
5. 3D Stacked Integrated Circuits (ICs) |
As the two-dimensional scaling of semiconductor devices approaches physical limits, 3D stacking offers a promising alternative to traditional scaling. In 3D ICs, multiple layers of transistors and circuits are stacked vertically, allowing for greater transistor density without shrinking individual transistors. This vertical stacking helps overcome many of the challenges associated with smaller node sizes, such as heat dissipation and power consumption. |
5.1. Through-Silicon Vias (TSVs) |
Through-Silicon Vias (TSVs) are vertical electrical connections that pass through a silicon wafer, enabling communication between stacked layers. TSV technology is one of the key enablers of 3D ICs, as it allows for high-density interconnects between different layers. Innovations in TSV technology, such as reducing the size of vias and improving the reliability of the connections, will make 3D ICs more viable for mass production. |
5.2. Memory and Logic Integration |
Another advantage of 3D stacking is the potential to integrate different types of chips (e.g., memory and logic) within the same package. By stacking memory directly on top of processing units, for example, data transfer speeds could be dramatically increased, reducing bottlenecks associated with traditional memory hierarchy. This would allow chips to operate faster and more efficiently, while also reducing the need for complex interconnects between separate chips. |
|
6. Carbon Nanotubes and Graphene Transistors |
Carbon-based materials, such as carbon nanotubes (CNTs) and graphene, have the potential to revolutionize semiconductor manufacturing by enabling the creation of smaller, faster, and more energy-efficient transistors. |
6.1. Carbon Nanotube Transistors |
Carbon nanotubes are cylindrical structures made from carbon atoms and exhibit extraordinary electrical properties, making them ideal candidates for next-generation transistors. CNTs have much higher electron mobility than traditional silicon, allowing for faster switching speeds and lower energy consumption. As a result, CNT-based transistors could operate at much smaller scales than silicon-based devices while overcoming some of the limitations of current semiconductor materials. |
The challenge with CNTs, however, is their production. While they can be synthesized in lab environments, scaling up the production of high-quality CNTs for semiconductor applications remains difficult. However, ongoing research into CNT synthesis, purification, and integration with existing semiconductor manufacturing techniques could eventually lead to commercial viability. |
6.2. Graphene for Interconnects and Transistors |
Graphene, a single layer of carbon atoms arranged in a two-dimensional lattice, has been touted as a material that could replace traditional copper in interconnects due to its superior electrical conductivity. Additionally, graphene-based transistors could potentially offer higher performance than silicon-based devices due to their ability to operate at much faster speeds and with lower power consumption. |
While graphene's use as a transistor material faces challenges related to bandgap engineering (which is necessary for switching), its potential in interconnects remains a more immediate and achievable application. In combination with other materials, graphene could help overcome the power and heat challenges that limit the performance of current semiconductors. |
|
7. Artificial Intelligence and Machine Learning for Process Optimization |
As semiconductor manufacturing becomes increasingly complex, artificial intelligence (AI) and machine learning (ML) are being applied to optimize every aspect of the process. AI and ML can be used to predict and detect defects, optimize lithography and etching processes, and manage the vast amounts of data generated in modern fabs. |
7.1. AI-driven Defect Detection |
AI-based systems can analyze massive amounts of imaging data from wafer inspections and detect defects much faster and more accurately than human inspectors or traditional methods. These systems can also learn from past production data to predict where defects are likely to occur, allowing manufacturers to take proactive measures to prevent them. This could significantly improve yield and reduce the cost of defective chips. |
7.2. Process Control and Optimization |
AI and ML are also being used to optimize process control during manufacturing. For example, AI algorithms can adjust parameters in real time to ensure that each wafer is processed under optimal conditions, minimizing variations that could lead to defects. This dynamic control can improve yield, reduce waste, and make production more efficient. |
|
8. Conclusion |
The future of semiconductor manufacturing lies in the continued development and integration of a diverse array of emerging technologies. From the advancement of EUV lithography and the exploration of quantum dot and quantum computing technologies to the rise of 3D stacked ICs, carbon nanotubes, and artificial intelligence-driven optimization, the industry is well-positioned to overcome the limitations associated with shrinking transistor sizes. As these technologies mature and are refined, they will address critical issues such as yield, cost, and power consumption, driving the next wave of semiconductor innovation. Ultimately, these breakthroughs will be key to meeting the ever-growing demand for faster, smaller, and more efficient electronic devices. |
|
Case studies |
1. Introduction to Semiconductor Case Studies |
In the context of semiconductor manufacturing, numerous case studies illustrate the application of new technologies and innovations to address the challenges of shrinking node sizes, improving yield, and optimizing cost. These case studies often showcase how companies have navigated the complexities of advanced manufacturing techniques such as Extreme Ultraviolet (EUV) lithography, Directed Self-Assembly (DSA), carbon nanotubes, and quantum computing, to name a few. In this section, we examine several case studies that highlight key advancements in semiconductor manufacturing at the cutting edge. |
|
2. Case Study 1: TSMC's 3 nm Process Development |
2.1. Background |
Taiwan Semiconductor Manufacturing Company (TSMC), the world's largest and most advanced foundry, has been at the forefront of pushing the boundaries of semiconductor manufacturing, particularly in developing and scaling advanced process nodes. The company's 3 nm (N3) process, which is based on FinFET (Fin Field-Effect Transistor) technology, represents a significant milestone in the industry's efforts to shrink transistor sizes while maintaining high performance and low power consumption. |
2.2. Challenges Faced |
The key challenge TSMC faced during the development of its 3 nm process was maintaining a high yield while leveraging new materials and technologies. The primary concerns included: |
Photomask Complexity: At the 3 nm node, the complexity of photomasks increased significantly, which in turn increased production costs. |
EUV Lithography: While EUV technology was crucial for achieving the necessary resolution, its high cost, power demands, and relatively low throughput at the early stages of adoption posed challenges to achieving mass production efficiently. |
Defect Management: The smaller feature sizes amplified the effects of defects in the manufacturing process, reducing yield and increasing the need for sophisticated defect detection and correction systems. |
2.3. Solutions Implemented |
Advanced EUV Lithography: TSMC implemented state-of-the-art EUV lithography to address the limitations of traditional DUV (Deep Ultraviolet) lithography. The use of EUV allowed for more precise patterning at smaller nodes, enabling the production of 3 nm chips. |
Advanced Yield Enhancement: To improve yield, TSMC employed advanced in-line inspection and metrology tools combined with machine learning algorithms to detect and correct defects in real-time. This helped increase yield and minimize losses. |
Process Optimization: TSMC also fine-tuned its process control techniques by using sophisticated statistical methods and AI-driven process optimization. These innovations helped control variations in the manufacturing process, improving consistency and reducing defects. |
2.4. Outcomes |
The successful development and commercialization of the 3 nm process allowed TSMC to maintain its position as a leader in advanced semiconductor manufacturing. By overcoming the challenges of EUV lithography, photomask complexity, and defect management, TSMC delivered high-performance chips to customers such as Apple, Qualcomm, and AMD, who required the latest in semiconductor technology for applications such as smartphones, tablets, and high-performance computing. |
|
3. Case Study 2: Intel's 10 nm and 7 nm Node Transition |
3.1. Background |
Intel, one of the largest semiconductor manufacturers in the world, faced significant challenges in transitioning to its 10 nm and 7 nm process nodes. Historically known for maintaining a lead in process technology, Intel's delays in moving from its 14 nm node to 10 nm, and later to 7 nm, raised concerns within the industry. The challenges Intel faced during this transition highlight some of the critical technological and manufacturing bottlenecks that the industry must overcome when scaling down semiconductor nodes. |
3.2. Challenges Faced |
Intel's delays were attributed to several critical challenges: |
Yield Issues: Achieving acceptable yields at the 10 nm and 7 nm nodes proved particularly difficult due to issues with process variation and defect density. The complexity of the manufacturing process at these smaller nodes meant that even minute variations could lead to large-scale defects, resulting in a lower yield of functional chips. |
EUV Readiness: While Intel invested heavily in EUV lithography, it faced difficulties in integrating this technology into its 10 nm process. The transition to EUV was slower than anticipated due to the complexity of the equipment and its high cost. |
Material Challenges: Moving to smaller nodes required new materials to address the physical limitations of silicon, especially with regard to electron leakage and power consumption. Intel struggled to implement these materials effectively, further delaying progress. |
3.3. Solutions Implemented |
Improved Process Technologies: Intel overcame its manufacturing bottlenecks by improving process technologies, particularly around transistor design. The company transitioned to a new, more advanced transistor architecture known as SuperFin, which allowed for better performance and efficiency at smaller nodes. |
Collaboration with ASML on EUV: Intel partnered closely with ASML, the company that manufactures EUV lithography equipment, to overcome the challenges of using EUV at 10 nm and 7 nm. Although EUV implementation was delayed, Intel was able to integrate it into its 7 nm process, which helped in overcoming scaling limitations and improving the accuracy of lithography. |
New Materials and Transistor Designs: To address the challenges of power leakage and high heat generation at smaller nodes, Intel developed new materials such as cobalt for interconnects, replacing traditional copper. Additionally, Intel adopted new transistor designs, including gate-all-around (GAA) transistors, which offered better control over current flow and improved the performance of chips at the 7 nm node. |
3.4. Outcomes |
Despite the delays, Intel was able to catch up by developing its 10 nm SuperFin technology and its 7 nm process. The company was able to regain some of its competitive edge, delivering products like the Alder Lake series processors (using 10 nm) and the Meteor Lake chips (using 7 nm). However, Intel's slower-than-expected transition to these nodes allowed competitors like AMD and TSMC to take market share in high-performance computing applications. |
|
4. Case Study 3: Samsung's 5 nm and 3 nm Process Nodes |
4.1. Background |
Samsung Electronics, another major player in semiconductor manufacturing, has been aggressively pursuing advancements in semiconductor node scaling. Samsung's 5 nm and 3 nm nodes have been central to its strategy to compete in the high-performance computing, mobile, and AI chip markets. |
4.2. Challenges Faced |
FinFET to GAA Transition: Samsung was among the first to adopt Gate-All-Around (GAA) transistor technology at the 3 nm node. This transition was critical for overcoming power leakage and improving the efficiency of transistors at smaller nodes. |
Process Variation and Defects: As with other manufacturers, managing process variation and minimizing defects became increasingly difficult as Samsung moved to the 5 nm and 3 nm nodes. |
Heat Dissipation: As transistor density increases, the issue of heat dissipation becomes more significant. Samsung faced challenges in developing efficient thermal management solutions for chips produced at the 3 nm node. |
4.3. Solutions Implemented |
GAA Transistor Design: Samsung introduced its own version of the GAA transistor known as MBCFET (Multi-Bridge Channel FET) at the 3 nm node. MBCFET improves on traditional FinFET designs by allowing for better electrostatic control over the transistor's current, improving performance and reducing power consumption. |
Advanced Lithography and Process Control: Samsung leveraged EUV lithography to scale down its 5 nm and 3 nm processes. In addition to EUV, the company utilized advanced process control techniques, including AI-based defect detection systems, to improve yield and reduce manufacturing defects. |
Thermal Management: To address heat dissipation issues, Samsung implemented new materials such as high-k dielectrics for transistors and designed more efficient interconnects to reduce the impact of heat on chip performance. |
4.4. Outcomes |
Samsung's 5 nm and 3 nm process nodes have been used to manufacture a range of products, including Exynos processors for smartphones and chips for mobile and AI applications. The successful transition to GAA technology and the adoption of EUV helped Samsung improve both the power efficiency and performance of its chips, positioning the company as a strong competitor to TSMC in advanced semiconductor manufacturing. |
|
5. Case Study 4: IBM's Research into Carbon Nanotubes and Quantum Transistors |
5.1. Background |
IBM has been at the forefront of research into post-silicon materials, particularly carbon nanotubes (CNTs) and quantum computing technologies. In 2021, IBM unveiled its work on carbon nanotube transistors, which are seen as one potential successor to traditional silicon-based transistors. |
5.2. Challenges Faced |
Synthesis and Integration: One of the main challenges IBM faced was scaling up the production of high-quality carbon nanotubes. CNTs must be synthesized in a controlled manner and aligned properly, which is a difficult task at large production scales. |
Electronics Integration: Integrating CNTs into existing semiconductor processes without requiring significant redesigns or new manufacturing equipment posed additional hurdles. |
Quantum Transistor Development: IBM's work in quantum computing involves the development of quantum transistors using materials like superconducting qubits. These qubits could eventually be used for both computing and memory applications. However, developing reliable and scalable quantum transistors remains a significant challenge. |
5.3. Solutions Implemented |
Carbon Nanotube Transistors: IBM developed a process for reliably producing single-walled carbon nanotubes and integrating them into the transistor structure. This allowed for faster switching speeds and lower power consumption compared to silicon-based transistors. |
Quantum Computing Integration: IBM also invested heavily in quantum computing research, creating superconducting qubits for its IBM Quantum platform. The company also pioneered advancements in quantum error correction, which is critical for the reliable operation of quantum computers. |
Hybrid Solutions: IBM has worked on hybrid solutions that combine traditional semiconductor devices with emerging quantum technologies. This includes using quantum processors for specific tasks while leveraging classical CMOS transistors for general-purpose computing. |
5.4. Outcomes |
IBM's research into CNTs and quantum transistors has helped position the company as a leader in future semiconductor technologies. While CNT-based transistors and quantum computing are not yet ready for widespread commercial use, IBM's advancements have laid the groundwork for the next generation of computing architectures. |
|
6. Conclusion |
These case studies showcase the challenges and successes semiconductor manufacturers have faced while pushing the boundaries of manufacturing processes at smaller nodes. Companies like TSMC, Intel, Samsung, and IBM have made significant strides in overcoming bottlenecks related to yield, defect management, and material innovation. The continuous evolution of technologies such as EUV lithography, GAA transistors, carbon nanotubes, and quantum computing will be crucial for driving future advancements in semiconductor manufacturing, as the industry looks to scale down transistor sizes beyond the limits of traditional silicon-based technology. |
