Barcode Readers: Scanning Speed and Range |

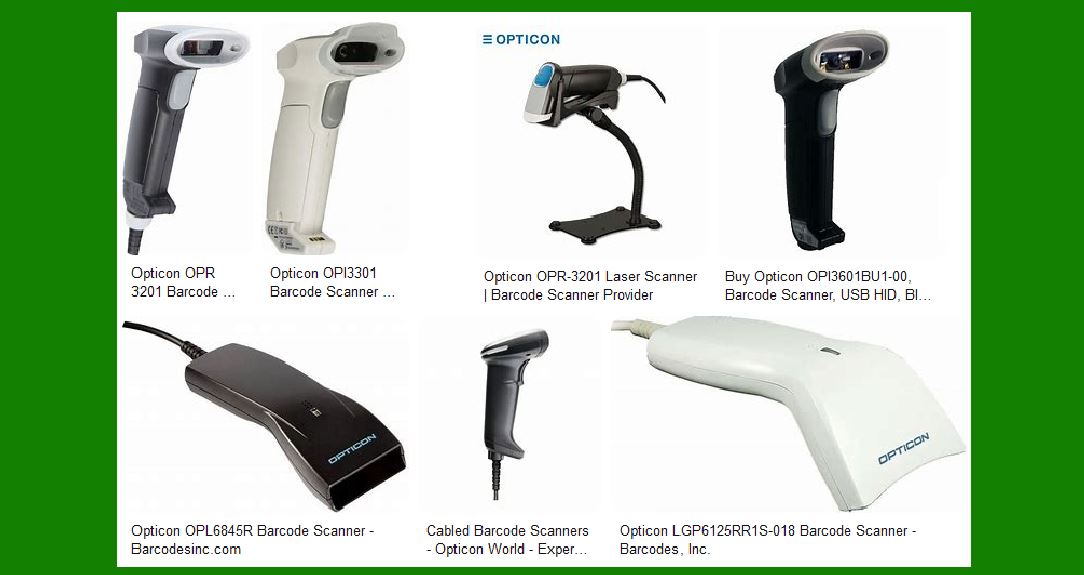

Barcode readers, commonly used in high-throughput environments like retail stores, warehouses, and distribution centers, play a crucial role in improving efficiency by automating the process of tracking and managing inventory, orders, and assets. The scanning speed and range of these devices significantly impact operational workflows, particularly in industries that deal with large volumes of items and require precise and fast data capture. Achieving optimal scanning performance is crucial, as any delays or errors in the reading process can create bottlenecks, slow down operations, and lead to potential mistakes in inventory management. This detailed examination focuses on the various factors influencing scanning speed and range in barcode readers, and how these factors can be optimized to achieve better performance. |
|
1. Scanning Distance |
The effective scanning range of a barcode reader is primarily determined by the type of barcode being scanned, the resolution of the scanner's sensor, and the quality of the barcode itself. Scanning distance is an essential factor in determining how far away a barcode can be read and is closely related to the reader's optical capabilities and focus adjustments. |
1.1. Type of Barcode |
The type of barcode being scanned plays a significant role in determining scanning distance. Barcodes are typically divided into two categories: 1D and 2D barcodes. |
1D Barcodes: These are the traditional linear barcodes consisting of parallel lines and spaces. Examples include UPC (Universal Product Code), EAN (European Article Number), and Code 128. The scanning distance for 1D barcodes depends on the scanner's resolution, but in general, 1D barcodes can be read over greater distances compared to 2D barcodes, especially with higher-resolution scanners. The range of a 1D barcode reader can vary between a few inches to several feet, depending on the type of barcode, the quality of the print, and the scanner's specifications. |
2D Barcodes: These barcodes, such as QR codes, Data Matrix, and PDF417, consist of two-dimensional patterns, allowing them to store more data in a compact space. Due to their complex structure, 2D barcodes often require higher resolution scanners, and their scanning range is typically shorter than that of 1D barcodes. While 1D barcode readers are optimized for long-range scans, 2D barcode readers are often more sensitive to print quality and can experience difficulty when scanning barcodes from long distances. The scanning range of 2D barcode readers tends to be around 2 to 6 feet, depending on the model. |
1.2. Scanner Sensor Resolution |

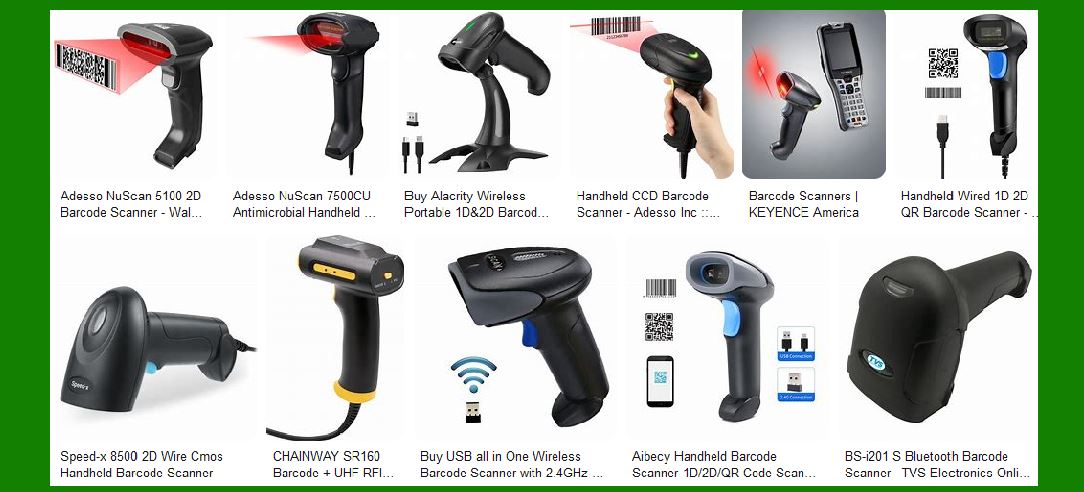

The resolution of a barcode scanner's sensor is another critical factor affecting scanning distance. A higher resolution sensor allows for a finer level of detail to be captured from the barcode, which is necessary for scanning smaller barcodes from farther away. Most modern barcode scanners employ laser, CCD (Charge Coupled Device), or imaging sensors to capture the barcode's information. |
Laser Scanners: These scanners use a laser beam to read the barcode and are often capable of scanning barcodes over longer distances. Laser scanners can typically read 1D barcodes at distances of up to 10 feet or more. However, they are less effective at reading 2D barcodes, as they depend on the reflection of light from the barcode. Laser scanners generally perform better with high-contrast barcodes printed on glossy surfaces, as the bright reflection enhances readability. |
CCD Scanners: These scanners use an array of light sensors to capture images of the barcode. While they can read both 1D and 2D barcodes, their scanning range is generally more limited than that of laser scanners, with effective scanning distances typically ranging from 3 to 8 feet. CCD scanners work well in environments where the barcode's print quality is not perfect, as they capture multiple light reflections to improve the accuracy of the scan. |
Imaging (Camera-Based) Scanners: These scanners use a camera sensor to capture a digital image of the barcode, which is then processed to extract the encoded data. Imaging scanners can read both 1D and 2D barcodes, and their range is more variable. While they excel in reading barcodes at shorter distances (usually up to 6 feet), they are typically less effective than laser scanners at scanning barcodes from further distances. |
1.3. Barcode Quality and Focus |
The quality of the printed barcode is another critical factor influencing the scanning range. Barcodes that are poorly printed or damaged can be challenging for barcode readers to scan, especially from a distance. Factors like ink smudging, incorrect contrast, or low-resolution printing can make it difficult for the reader to accurately decode the information. |
Additionally, focus plays a pivotal role in scanning distance. If the scanner is not able to focus properly on the barcode, it will be unable to capture a sharp image, which leads to slower scans or total scan failures. Modern scanners are equipped with auto-focus or adjustable focal length mechanisms to help mitigate this issue, but the resolution and depth of field of the scanner also play a role in determining its range. |
|
2. Motion and Movement |

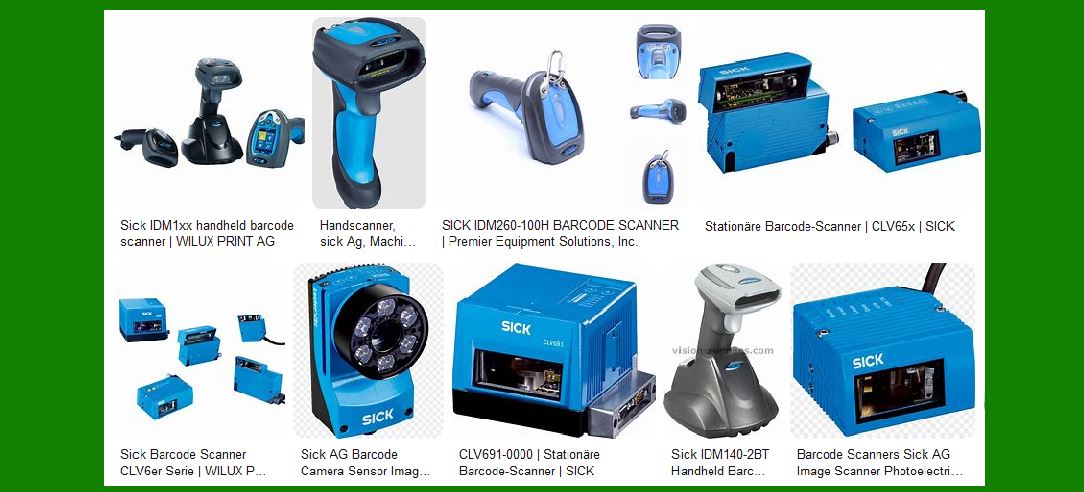

In environments where objects are moving quickly, such as in conveyor belts or on fast-moving carts, scanning becomes more complicated. The challenge lies in capturing a clean and steady image of the barcode, especially when the object or barcode is in motion. Even slight movements can cause the barcode to blur, resulting in missed or incorrect scans. |
2.1. Challenges of Motion |
When barcodes are moving rapidly through the scanner's field of view, the barcode image can become distorted or blurred. This is particularly problematic in high-speed environments, such as logistics centers where packages are processed on conveyor belts, or in retail environments where items are quickly scanned at the point of sale. |
Blurred Barcodes: If the barcode is moving too quickly, or if the scanner's shutter speed is too slow, the resulting image may be too blurry to decode effectively. This can lead to significant delays in processing, and even potential errors in inventory or order fulfillment. |
Misalignment: Rapid movements can also cause the barcode to be positioned at an angle that the scanner cannot properly interpret. Misalignment can result in the scanner being unable to capture the correct data or failing to recognize the barcode altogether. |
2.2. Solutions for Motion |
To address these issues, many advanced barcode readers employ imaging technologies that allow them to capture multiple frames in rapid succession. These scanners are equipped with high-speed processors capable of handling multiple images per second, increasing the likelihood of capturing a clear, readable image despite the motion. Additionally, advanced algorithms can be used to detect and correct minor distortions caused by movement, improving the overall accuracy of the scan. |
Motion Tolerance: Barcode readers equipped with motion tolerance features can successfully scan barcodes even if they are moving at high speeds. These scanners utilize high-frequency imaging technology to capture clear images in milliseconds, ensuring that each barcode is read accurately, even in fast-moving environments. |
Automatic Image Capture: Many modern barcode scanners are designed to automatically capture images once a barcode is within range, eliminating the need for manual triggering. This automatic image capture allows the reader to scan quickly without waiting for the object to come to a complete stop. |
|
3. Ambient Light Interference |
Ambient light interference can significantly affect the performance of barcode readers, especially those relying on visible light. Light sources such as sunlight, fluorescent lighting, or even the glare from nearby screens can impact the contrast between the barcode's black and white elements, making it difficult for the scanner to differentiate between the bars and spaces of the code. |
3.1. Effects of Ambient Light |
Overexposure to Bright Light: Excessive light can cause the scanner's sensors to become overwhelmed, resulting in poor contrast and difficulty reading the barcode. This is particularly problematic when scanning in environments with direct exposure to sunlight or harsh artificial lighting. |
Fluorescent Lighting: Fluorescent lights, commonly used in warehouses and retail environments, can also create flicker effects that interfere with the scanner's ability to read barcodes. These lights can emit light at a frequency that disrupts the barcode reader's sensor, leading to erroneous scans. |
3.2. Solutions for Ambient Light Issues |
To mitigate the effects of ambient light interference, some barcode scanners are equipped with infrared (IR) light sources or use narrow-band filters to reduce the impact of unwanted light sources. |
Infrared Light: Many modern barcode readers use infrared light rather than visible light for scanning. Infrared light is less susceptible to interference from ambient light, ensuring more consistent performance in environments with variable lighting conditions. |
Anti-Glare Filters: Some barcode readers incorporate anti-glare filters, which help to reduce the effects of direct light exposure or reflections from glossy surfaces. These filters improve the contrast between the dark and light portions of the barcode, enhancing readability in challenging lighting environments. |
Adaptive Lighting Technology: Advanced barcode readers often include adaptive lighting technology that adjusts the intensity and focus of the light source based on the surrounding environment. By automatically optimizing light levels, these readers can maintain consistent performance, even under difficult lighting conditions. |
|
Conclusion |
Achieving high scanning speed and range in barcode readers requires addressing multiple factors, including the type of barcode, the quality of the barcode, the scanner's resolution, and its ability to deal with motion and ambient light interference. While the development of advanced scanning technologies, such as imaging sensors and infrared light sources, has significantly improved barcode readers' performance in various environments, challenges such as motion blur and ambient light interference still require attention. The ability to scan quickly and accurately is essential in high-throughput environments, and as technology continues to evolve, barcode readers will likely become even faster, more precise, and more adaptable to diverse operating conditions. |
|
Related Electronic and Programming Technologies in Barcode Scanning |
Barcode scanning is a highly integrated technology that involves multiple electronic components, sensors, and software algorithms to ensure fast, accurate data capture. The various electronic and programming technologies involved in barcode readers are essential to understanding how they operate effectively in different environments. From sensor technologies and signal processing to software development and communication protocols, these technologies help optimize scanning speed, range, and reliability. |
Here's a deeper look into the electronic and programming technologies related to barcode scanning: |
1. Sensor Technologies |
The heart of a barcode reader lies in its sensor technology, which detects the barcode's image and converts it into digital information. Different types of sensors are employed in barcode readers, each with distinct features suited to various applications. |
1.1. Laser Scanners (Laser Diodes) |
Laser scanners use a laser diode to emit a light beam that is directed onto the barcode. The light reflected from the barcode is received by a photodiode, which converts the light into an electrical signal. This is the most traditional barcode scanning technology. |
Operation: Laser scanners operate by directing a laser beam across the barcode and measuring the amount of reflected light. The sensor's photodiode converts this reflection into a digital signal, which is processed and decoded into readable data. |
Electronic Components: The main electronic components of laser scanners are the laser diode, beam splitter, photodiode, and analog-to-digital converter (ADC). The ADC converts the analog signal from the photodiode into digital data that can be processed by the barcode reader's microprocessor. |
Applications: Laser scanners are often used for scanning 1D barcodes in retail, logistics, and inventory management, where scanning distances of several feet are necessary. |

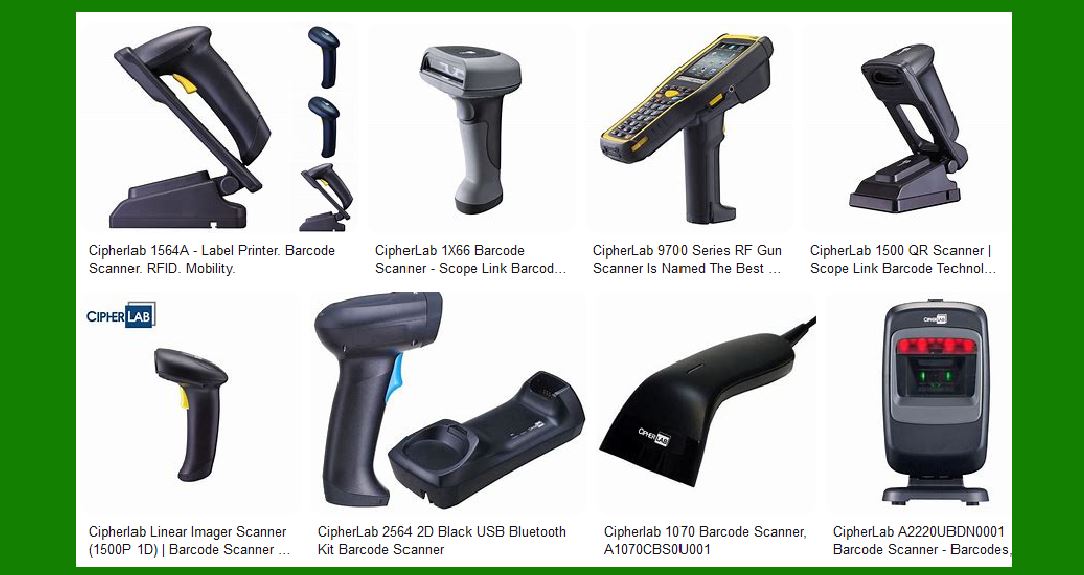

1.2. CCD Scanners (Charge Coupled Devices) |
CCD scanners use an array of photodiodes in a linear or matrix arrangement to capture light from the barcode. Unlike laser scanners, CCD scanners do not require moving parts, and they can capture a full image of the barcode in one go. |
Operation: CCD scanners work by capturing reflected light from a barcode using a series of light sensors arranged in a linear array. The photodiodes detect light intensity, which is converted into a digital signal and processed into readable data. |
Electronic Components: CCD scanners include a light source (often LEDs), a photodiode array, and an ADC. The signal is passed through to a processor, which interprets the data from the photodiodes and decodes the barcode. |
Applications: CCD scanners are effective for scanning both 1D and 2D barcodes and are often used in environments with moderate scanning distances, such as retail stores or warehouses. |

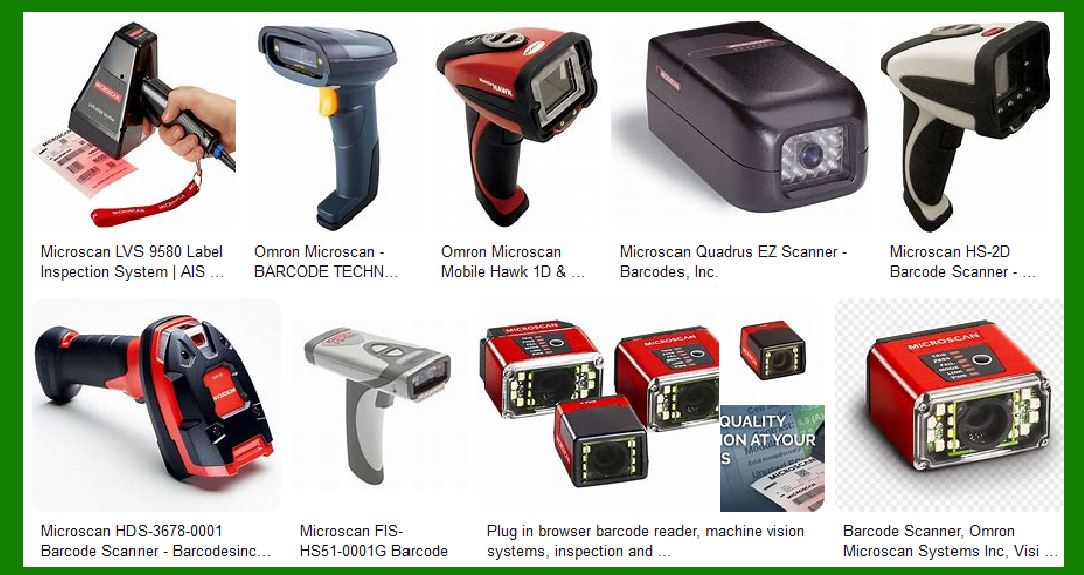

1.3. Imager Scanners (Camera-Based Scanners) |
Imager scanners use digital cameras to capture an image of the barcode. They work by using an imaging sensor, typically CMOS (Complementary Metal-Oxide-Semiconductor), to create a detailed digital image of the barcode, which is then processed by software to decode the data. |
Operation: Imager scanners use a camera with an image sensor that captures a snapshot of the barcode. The software then processes the image using algorithms to extract the barcode's data. The scanner can read both 1D and 2D barcodes, even at angles or in difficult lighting conditions. |
Electronic Components: Imager scanners include a CMOS sensor, LED light source, image processor, and a microprocessor for decoding. Some advanced imagers also incorporate a laser module for better scanning range in specific applications. |

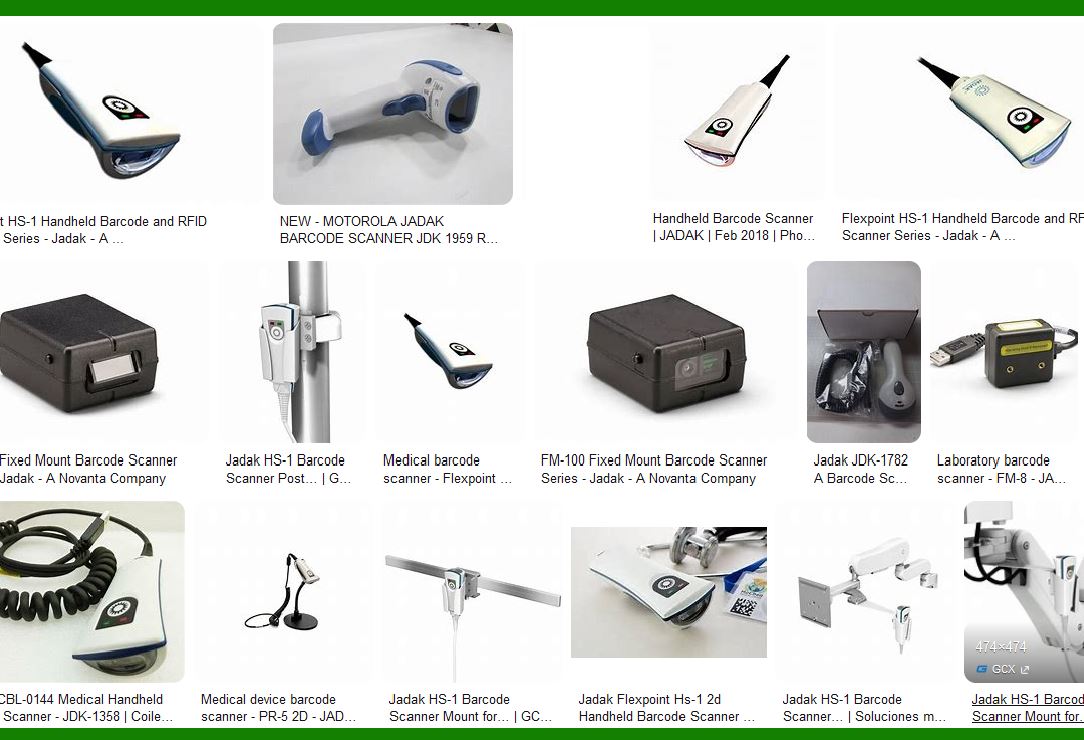

Applications: Imager scanners are versatile and used in applications requiring high precision and the ability to scan 2D barcodes, such as QR codes, DataMatrix, and PDF417. They are used in environments like mobile point-of-sale (mPOS), ticketing systems, and healthcare settings. |
|
2. Signal Processing and Data Decoding |
Once the sensor captures the barcode's image or light reflection, the data must be processed and decoded into meaningful information. Signal processing algorithms play a critical role in ensuring that the captured signal can be interpreted correctly, even in challenging conditions. |
2.1. Analog-to-Digital Conversion (ADC) |
The first step in processing the signal from a barcode scanner is to convert the analog signal (light intensity) into a digital signal. This is done using an Analog-to-Digital Converter (ADC). |
Role in Scanning: The ADC converts the analog signal, produced by the sensor's photodiodes, into digital data that can be understood by the scanner's processor. This data represents the intensity of the light reflected from the barcode, which corresponds to the barcode's dark and light bars (1s and 0s). |
Challenges: ADC resolution directly affects the scanner's ability to read barcodes with fine details. High-resolution ADCs are necessary to capture small or low-contrast barcodes, especially in low-light conditions. |
2.2. Digital Signal Processing (DSP) |
Digital Signal Processing (DSP) algorithms enhance the captured data to improve readability and performance, particularly in noisy environments or when dealing with low-quality barcodes. |
Role in Scanning: DSP techniques involve filtering, noise reduction, and enhancement of the barcode image. This is particularly important when the barcode has imperfections or is printed on a curved surface. DSP algorithms ensure that the captured barcode data is clean and ready for decoding. |
Example Techniques: DSP algorithms may include edge detection (to distinguish the dark and light bars), contrast enhancement (to improve barcode visibility against the background), and error correction (to handle barcode imperfections or distortions). |
2.3. Decoding Algorithms |
After signal processing, the decoded data is passed to a decoding algorithm that translates the data into its corresponding information. These algorithms vary based on the type of barcode (1D or 2D) being scanned. |
1D Barcode Decoding: Traditional 1D barcodes consist of varying widths of black and white bars. The decoding algorithm analyzes the spacing and width of the bars and then maps these patterns to the encoded information (e.g., product ID, price). |
2D Barcode Decoding: 2D barcodes store data in both horizontal and vertical directions. Decoding algorithms for 2D barcodes are more complex and require the analysis of both the grid structure and the color patterns within the code. Algorithms like Reed-Solomon error correction are often employed to recover data in case of missing or damaged portions of the barcode. |
|
3. Software Development and Programming Technologies |
Barcode readers are not only reliant on hardware, but also on software to ensure proper functioning. Software is needed to manage the interaction between the barcode reader's hardware and the system it interfaces with, such as a computer or point-of-sale (POS) system. |
3.1. Embedded Systems and Firmware |
Barcode readers often run on embedded systems-specialized computing devices that are designed to control hardware. These systems use firmware, which is the low-level software that directly controls the scanner's hardware and performs tasks like signal processing, barcode decoding, and communication. |
Programming Languages: Firmware for barcode readers is typically written in low-level languages like C or C++, which allow direct interaction with the hardware components (e.g., sensors, processors). Assembly language may also be used for performance-critical sections of the code. |
Embedded Real-Time Operating Systems (RTOS): In high-speed applications, barcode scanners may use an RTOS to ensure that barcode capture and decoding happen within strict time constraints. RTOS ensures that processes related to scanning, processing, and transmitting data happen without delays or interruptions. |
3.2. Software Development for Integration |
Barcode readers often need to interface with other systems, such as inventory management software or POS systems. The integration is accomplished through communication protocols, APIs (Application Programming Interfaces), and drivers. |

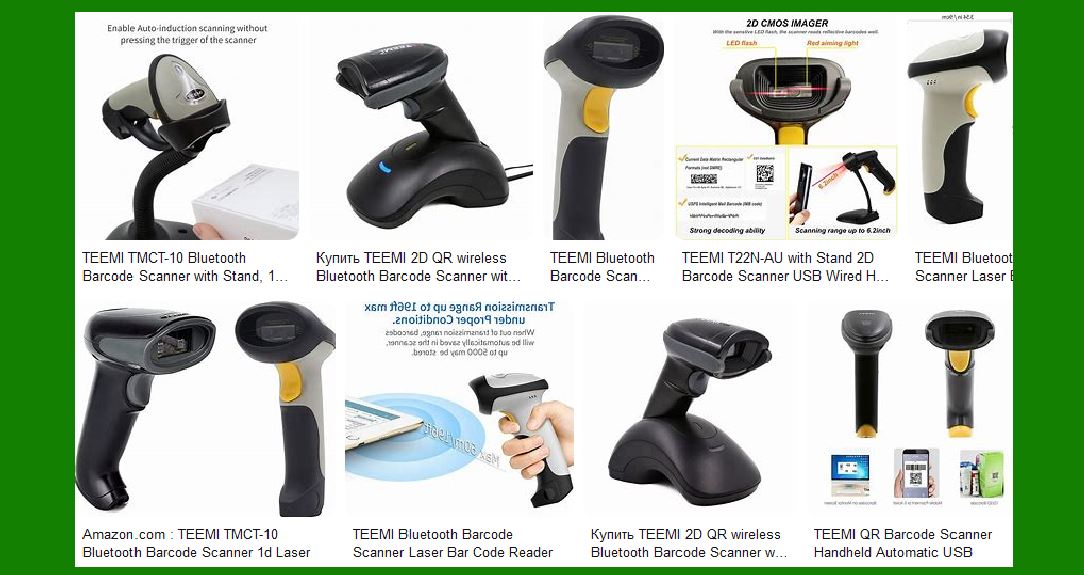

Communication Protocols: Barcode readers communicate with external systems via protocols like USB, Bluetooth, or Wi-Fi. These protocols ensure that data from the barcode reader is transmitted to the connected computer or device in a standard format. |
Programming Interfaces: Most modern barcode readers come with SDKs (Software Development Kits) that offer APIs for software developers to integrate barcode scanning functionality into custom applications. These SDKs are typically available in multiple programming languages such as Java, C, or Python, depending on the platform being used. |
Driver Software: Barcode scanners also require device drivers, which allow the operating system to communicate with the hardware. For example, USB-based barcode readers use drivers to communicate with computers, translating the raw scan data into a format that software applications can read. |
|
4. Power Management and Energy Efficiency |

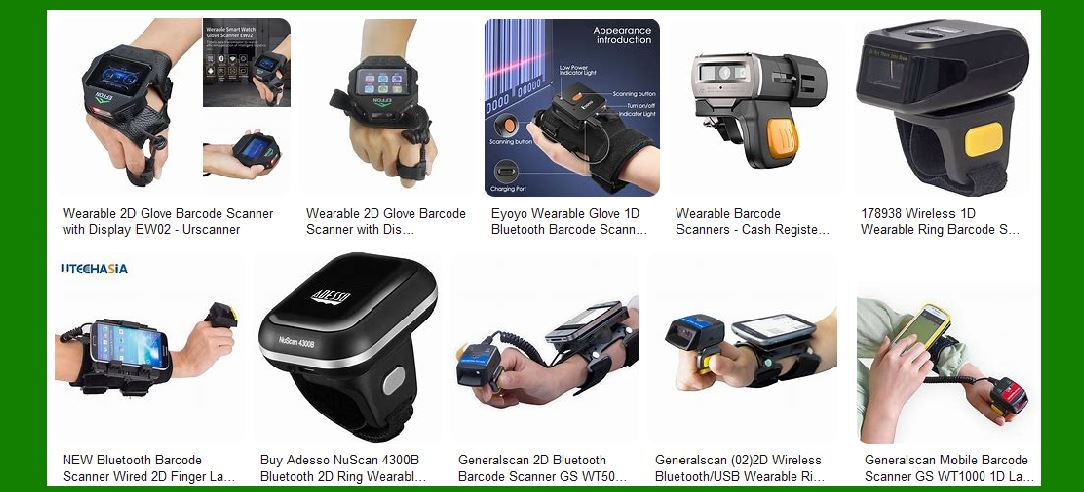

Barcode scanners, especially those used in mobile applications or rugged environments, need to be energy-efficient to operate for extended periods. Power management technologies are employed to optimize battery life and ensure that scanners perform consistently. |
4.1. Power Consumption Optimization |
Modern barcode scanners employ various strategies to reduce power consumption, such as using low-power components, enabling sleep modes when idle, and adjusting sensor settings based on usage. |
Low-Power LEDs: Barcode scanners, especially imager-based models, use LEDs with low power consumption. These LEDs provide adequate illumination without draining the scanner's battery. |
Power Saving Modes: Barcode scanners may enter a low-power state when not actively scanning, waking up quickly when a barcode is detected. |

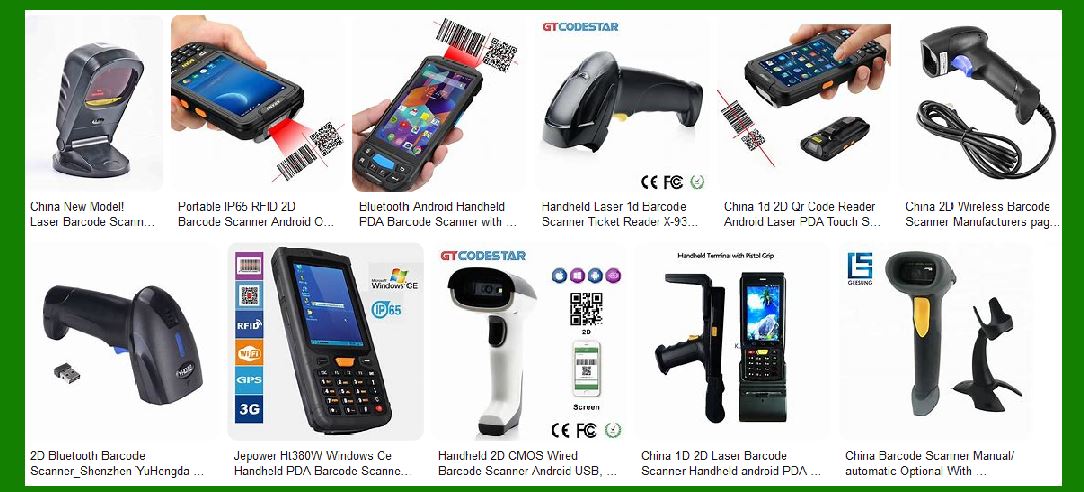

4.2. Battery and Charging Technologies |
In mobile barcode scanners, battery technology is critical to ensuring long usage times. Lithium-ion (Li-ion) and lithium-polymer (Li-poly) batteries are commonly used due to their high energy density and long life. |
Wireless Charging: Some advanced barcode readers incorporate wireless charging features, allowing for easy charging without the need to plug in cables. |
|
Conclusion |
The technology behind barcode readers encompasses a broad range of electronic and programming innovations, from sensors and signal processing to embedded systems and software integration. Whether in retail, logistics, healthcare, or other industries, barcode readers rely on advanced technologies to scan, decode, and transmit data quickly and accurately. As these technologies continue to evolve, barcode scanners will become even faster, more reliable, and more versatile in meeting the needs of high-throughput environments. |
