1. Secure Data Transmission Protocols |
Barcode scanners, especially those used in environments that handle sensitive or private data, must protect the data they scan to prevent unauthorized access and potential data breaches. These devices are increasingly becoming targets for cyber-attacks, which is why it is crucial for manufacturers to incorporate advanced security technologies. One of the key components of securing the data captured by a barcode scanner is the transmission of that data across networks. This section explores two of the most commonly used secure data transmission protocols in modern barcode scanners: AES (Advanced Encryption Standard) and SSL/TLS encryption. |
1.1 AES (Advanced Encryption Standard) |
AES is one of the most widely adopted encryption standards in the world, and it plays a critical role in securing the data scanned by barcode scanners. It is a symmetric encryption algorithm, meaning the same key is used both to encrypt and decrypt data. AES encryption is known for its efficiency, high security, and versatility. This standard can operate with key sizes of 128, 192, and 256 bits, with AES-256 being the most secure variant. |
When a barcode scanner scans a barcode containing sensitive information, it converts this data into a digital format, which can then be transmitted to a database, server, or another device. AES encryption ensures that this data is protected during transmission by converting the original data into an unreadable ciphertext. Only authorized devices or systems that have the correct decryption key can decrypt the data and read the original contents. This helps prevent hackers from intercepting sensitive data while it is in transit, making AES an essential security feature for barcode scanners used in industries like healthcare, finance, and retail. |
The AES encryption process involves several steps: |
SubBytes: Each byte of data is substituted using a predefined substitution table. |
ShiftRows: Rows of data are shifted to the left by a specified number of positions. |
MixColumns: Columns of data are mixed to produce diffused output. |
AddRoundKey: The data is combined with a round key for added security. |
Given its robustness, AES encryption helps ensure that any barcode data transmitted by scanners cannot be easily intercepted, altered, or deciphered by unauthorized parties. |
|
1.2 SSL/TLS Encryption |
Another vital security measure for barcode scanners is SSL/TLS encryption, particularly when data is transmitted over Wi-Fi or other internet-connected networks. SSL (Secure Sockets Layer) and its successor TLS (Transport Layer Security) are cryptographic protocols designed to provide secure communication over a computer network. Both SSL and TLS protocols utilize a combination of symmetric and asymmetric encryption to establish a secure, encrypted channel between two devices, such as a barcode scanner and a server or database. |
When a barcode scanner communicates over a network, SSL/TLS encryption ensures that the connection is secure, preventing man-in-the-middle (MITM) attacks, eavesdropping, and tampering. This is especially important in scenarios where barcode scanners are transmitting sensitive data over public networks, such as in a retail store with Wi-Fi connectivity. Without SSL/TLS encryption, data could be exposed to unauthorized individuals or malicious actors who might exploit the connection for nefarious purposes. |
The SSL/TLS handshake process involves several key steps: |
1.Client Hello: The barcode scanner (client) sends a message to the server requesting a secure connection, including supported encryption algorithms. |
2.Server Hello: The server responds by agreeing on the encryption algorithm and providing a digital certificate. |
3.Authentication and Key Exchange: The server's certificate is validated, and a shared secret key is established using asymmetric encryption (public/private key pair). |
4.Session Encryption: Once the handshake is complete, both the barcode scanner and the server can securely exchange data using symmetric encryption. |
SSL/TLS encryption not only secures the transmission of data but also verifies the identity of the server, ensuring that the barcode scanner is communicating with a legitimate, trusted source. |
|
2. User Authentication and Access Control |
As barcode scanners become integral to various industries, the need to secure not just the data but also access to the devices themselves becomes increasingly critical. Unauthorized access to barcode scanners can result in data breaches, misuse of sensitive information, or manipulation of barcode data. To address these concerns, manufacturers have introduced several user authentication and access control mechanisms that ensure only authorized users can operate the barcode scanner and access the sensitive data it handles. |
2.1 Authentication Mechanisms |
Authentication is a process that verifies the identity of a user or system before allowing access to a device or network. Barcode scanners that handle sensitive data often require some form of authentication before they can be used. Common authentication methods for barcode scanners include: |
2.1.1 Password-Based Authentication |
Password-based authentication is the simplest and most widely used method of securing barcode scanners. Users are required to enter a username and password combination before they can access the scanner's functionality. The password is usually stored in an encrypted format within the device, making it difficult for attackers to retrieve and misuse. |
While password-based authentication is relatively easy to implement, it has some drawbacks. Weak or easily guessable passwords can be exploited, and there is also the risk of password theft or leakage. As a result, many organizations are moving toward more robust authentication methods that are harder to bypass. |
2.1.2 Two-Factor Authentication (2FA) |
Two-factor authentication (2FA) adds an additional layer of security to the authentication process. In this case, users must provide two forms of verification: something they know (a password) and something they have (such as a smartphone, security token, or biometric scan). This significantly reduces the risk of unauthorized access since attackers would need both the password and the second factor to gain access. |
For barcode scanners, 2FA might involve scanning a QR code displayed on the scanner using a mobile authentication app, or it could require users to enter a code sent via SMS or email. By combining two forms of authentication, 2FA makes it much harder for attackers to impersonate authorized users, adding an essential layer of protection to barcode scanners. |
2.1.3 Biometric Authentication |
Biometric authentication relies on unique physiological characteristics, such as fingerprints, facial recognition, or iris scans, to identify users. This form of authentication offers a higher level of security than passwords or even 2FA, since biometric traits are difficult to replicate or steal. |
For barcode scanners, integrating biometric authentication could involve using a fingerprint scanner or facial recognition system. This is especially useful in environments where employees need to access sensitive data frequently, such as healthcare or financial services. Biometric authentication not only enhances security but also improves user experience by eliminating the need to remember complex passwords. |
2.2 Access Control |
Access control is another critical component of securing barcode scanners. It refers to the process of limiting access to sensitive data and system features based on predefined policies. Effective access control ensures that only authorized users can access or interact with certain barcode scanning functions, such as retrieving scanned data or configuring device settings. |
2.2.1 Role-Based Access Control (RBAC) |
Role-Based Access Control (RBAC) is a popular method for managing access permissions based on the roles assigned to users within an organization. With RBAC, a user is granted access to the barcode scanner and its data based on their specific role, such as an administrator, employee, or manager. |
For example, an administrator might have full access to all features of the barcode scanner, including the ability to configure device settings and access sensitive data. In contrast, a regular employee might only have permission to scan barcodes and view basic information, without the ability to change settings or access sensitive data. |
RBAC can be used to ensure that only authorized users with appropriate roles can access specific functions within a barcode scanning system. This minimizes the risk of unauthorized access or misuse of sensitive data. |
2.2.2 Time-Based Access Control |
Time-based access control involves restricting access to a barcode scanner based on the time of day or week. This can be particularly useful in environments where barcode scanners are used for specific tasks during designated hours. |
For example, a warehouse might restrict access to certain barcode scanning functions outside of regular working hours, preventing unauthorized access during off-hours. By setting time-based restrictions, organizations can further limit the risk of security breaches. |
2.2.3 IP-Based Access Control |
IP-based access control restricts access to the barcode scanner based on the IP address of the device attempting to connect. This ensures that only devices within a certain network or geographic location can access the scanner and its data. |
For instance, if an organization wants to ensure that barcode data is only accessible within its internal network, it can configure the scanner to reject requests from IP addresses outside the network. IP-based access control can provide an additional layer of security by preventing external devices from gaining unauthorized access. |
|
Conclusion |
In conclusion, securing barcode scanners is crucial in preventing data breaches and ensuring the confidentiality, integrity, and availability of sensitive data. By employing robust encryption technologies like AES and SSL/TLS for secure data transmission, and implementing strong user authentication and access control mechanisms, organizations can significantly reduce the risk of unauthorized access and cyber-attacks. As barcode scanners continue to play an integral role in various industries, the importance of security in these devices cannot be overstated. By integrating state-of-the-art encryption protocols and authentication mechanisms, manufacturers and organizations can ensure that barcode data remains protected and secure from start to finish. |
|
Case Studies: Barcode Scanner's Security and Encryption Application |
1. Healthcare: Protecting Patient Data with Barcode Scanners |
In the healthcare sector, security is paramount when handling sensitive patient data. Barcode scanners are often used to track medications, manage inventory, and verify patient identities. However, healthcare environments are prime targets for cyber-attacks, given the valuable nature of health records and personal information. This case study highlights the security measures implemented in a hospital environment using barcode scanners to ensure compliance with healthcare data protection regulations like HIPAA (Health Insurance Portability and Accountability Act). |
Scenario: |

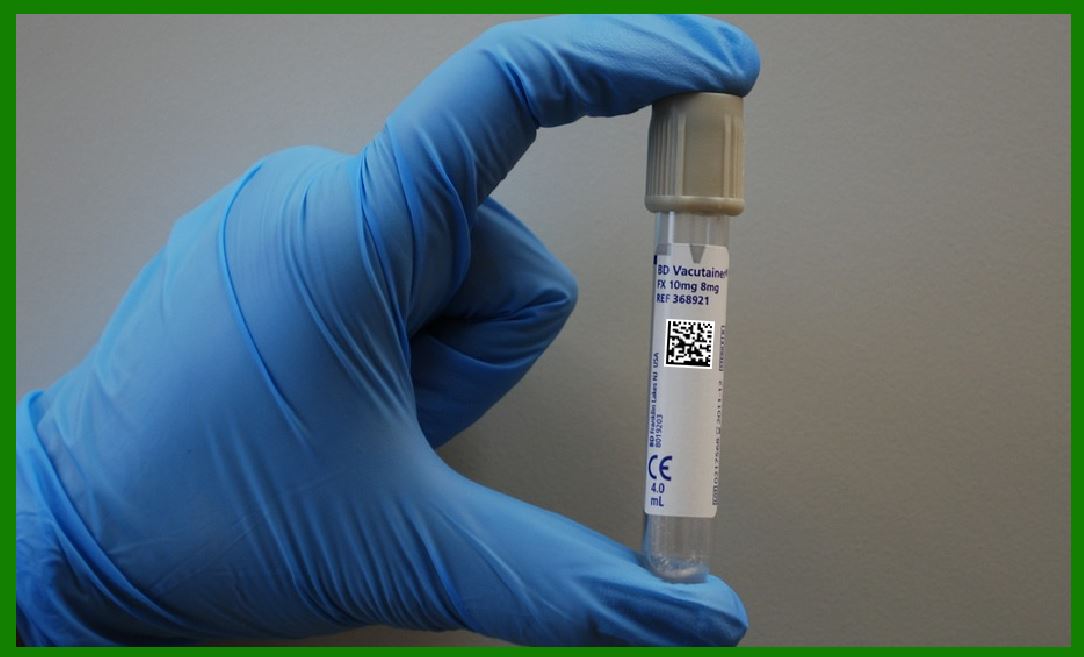

A large hospital network began utilizing barcode scanners for medication administration and patient identification. Each patient was assigned a barcode wristband containing sensitive health information. Healthcare professionals used barcode scanners to verify the patient's identity before administering medication, thereby minimizing the risk of medication errors. |
Security Measures Implemented: |
AES Encryption for Patient Data: Each barcode scanner was equipped with AES-256 encryption, ensuring that any data transmitted from the scanner to the hospital's central database was encrypted. This encryption prevented unauthorized users from accessing patient data, even if they intercepted the communication. |
SSL/TLS for Data Transmission: Since the barcode scanners were wirelessly connected to the hospital's central servers, the hospital utilized SSL/TLS encryption to protect the data transmitted over the Wi-Fi network. This ensured that any data sent from the scanner to the server was secure and protected from man-in-the-middle (MITM) attacks. |
Biometric Authentication for Users: To prevent unauthorized users from accessing sensitive patient data, biometric authentication was implemented. Healthcare professionals were required to use fingerprint scanners to authenticate their identities before accessing the barcode scanner for any data retrieval. This added a layer of security and ensured that only authorized staff could access patient information. |
Outcome: |
By implementing AES encryption and SSL/TLS, the hospital was able to meet HIPAA compliance requirements and reduce the risk of data breaches. The use of biometric authentication also helped ensure that only authorized personnel could access sensitive information, providing an additional layer of protection. |
|
2. Retail: Securing Point-of-Sale Transactions |
Barcode scanners in retail settings are essential for processing transactions, managing inventory, and improving customer service. However, these devices also represent a potential security vulnerability, especially when dealing with financial transactions or customer information. This case study examines how a global retail chain improved its security posture by implementing encryption technologies in its barcode scanning system. |
Scenario: |
A large retail chain with thousands of stores worldwide used barcode scanners at checkout counters to process purchases and manage inventory. During checkout, customer information-such as credit card numbers and personal details-was often transmitted through barcode scanners to the point-of-sale (POS) systems. Cybercriminals could potentially exploit these transmissions to intercept sensitive financial information if proper security measures were not in place. |
Security Measures Implemented: |
SSL/TLS Encryption for POS Transactions: The retail chain implemented SSL/TLS encryption for all data transmissions between barcode scanners and POS systems. This ensured that customer credit card details and personal information were securely transmitted and protected against eavesdropping during the checkout process. |
AES Encryption for Inventory Data: Barcode scanners used to manage inventory in the store were equipped with AES encryption to protect product and inventory data. Whenever product data was scanned and transmitted to the central inventory management system, it was encrypted, ensuring that no unauthorized third parties could access this sensitive information. |
Role-Based Access Control (RBAC): To prevent unauthorized personnel from accessing sensitive data, the retail chain implemented role-based access control (RBAC) in its barcode scanning system. Employees were assigned roles, such as cashier, manager, or stock clerk, and access to certain features-such as viewing customer information or altering inventory levels-was restricted based on their role. |
Outcome: |
The integration of SSL/TLS and AES encryption enhanced the security of both customer transactions and inventory data. The retail chain was able to significantly reduce the risk of data breaches or unauthorized access to sensitive information. Additionally, RBAC minimized the potential for internal fraud or mishandling of data, improving overall operational security. |
|
3. Logistics: Preventing Unauthorized Access to Shipment Data |
In logistics and supply chain management, barcode scanners are widely used to track shipments, monitor inventory, and verify product locations. However, the vast amount of sensitive shipment data being transmitted and stored makes logistics companies attractive targets for cyber-attacks. This case study examines how a logistics company implemented advanced security protocols to safeguard shipment data captured by barcode scanners. |
Scenario: |
A global logistics company utilized barcode scanners in its warehouses and distribution centers to track shipments and ensure accurate delivery of goods. These barcode scanners captured data related to shipment contents, delivery destinations, and shipping statuses, which were then transmitted to central systems for processing. The logistics company wanted to ensure that this data remained secure throughout its lifecycle, from the moment the barcode was scanned to the point it reached the central database. |
Security Measures Implemented: |
AES Encryption for Shipment Data: All shipment data captured by barcode scanners was encrypted using AES-256 before being transmitted to the company's servers. This ensured that even if a shipment barcode was intercepted, the data remained unreadable without the decryption key. |
SSL/TLS Encryption for Wireless Transmission: Given that the barcode scanners communicated with the central system over Wi-Fi networks in the warehouse, SSL/TLS encryption was used to protect data as it was transmitted wirelessly. This prevented unauthorized access to the data, even if the communication occurred over a public or unsecured network. |
User Authentication and Access Control: The company implemented a two-factor authentication (2FA) system for employees using barcode scanners. In addition to entering a secure password, employees were required to authenticate via a mobile app that generated time-based one-time passwords (TOTP) to access the scanning system. This ensured that only authorized personnel could scan and process shipment data. |
Outcome: |
By implementing AES and SSL/TLS encryption, the logistics company significantly reduced the risk of data theft during shipment tracking. The 2FA system ensured that only authorized personnel had access to the barcode scanners and associated shipment data. As a result, the company was able to protect both customer data and proprietary shipment information from unauthorized access or tampering, improving overall security. |
|
4. Government: Securing Identity Management Systems |
Government agencies often rely on barcode scanners to process sensitive personal identification data. This data includes government-issued IDs, social security numbers, and other private information that must be kept secure. This case study explores how a government agency used encryption technologies to protect personal data captured by barcode scanners in an identity management system. |
Scenario: |
A government agency responsible for issuing national IDs and passports employed barcode scanners to read data from identification cards. These barcode scanners captured and transmitted personal information, such as the cardholder's full name, date of birth, and biometric data, to a central database for processing and verification. The agency needed to ensure that all personal data was protected to prevent identity theft or unauthorized access. |
Security Measures Implemented: |
AES-256 Encryption for Personal Data: All personal information captured by barcode scanners was encrypted using AES-256 encryption before being transmitted to the central database. This encryption ensured that even if the data was intercepted, it could not be read without the proper decryption key. |
SSL/TLS for Secure Communication: The communication between the barcode scanners and the central database was secured using SSL/TLS encryption. This ensured that any data transmitted over the network, including sensitive identification details, was protected from man-in-the-middle attacks and eavesdropping. |
Multi-Factor Authentication (MFA): Employees using barcode scanners to process personal identification data were required to authenticate through multi-factor authentication. This included a combination of something they knew (password) and something they had (smartphone for OTP or biometric verification). This ensured that only authorized personnel could process sensitive government-issued IDs. |
Outcome: |
With AES encryption and SSL/TLS for secure transmission, the government agency was able to protect sensitive citizen information from potential cyber-attacks. The implementation of multi-factor authentication for employees ensured that only authorized individuals had access to personal data. As a result, the agency significantly enhanced its security posture and minimized the risk of identity theft or unauthorized access to government-issued identification data. |
|
Conclusion |
These case studies illustrate the critical importance of security and encryption in barcode scanning systems across various industries. Whether it's protecting patient health data, securing retail transactions, safeguarding logistics shipment details, or ensuring the integrity of government identity systems, barcode scanners equipped with robust encryption protocols like AES and SSL/TLS, along with user authentication and access control measures, help organizations maintain data security and mitigate the risks of unauthorized access. The continued evolution of encryption and security practices in barcode scanning systems will be key to keeping sensitive data safe in an increasingly digital and interconnected world. |
