RF Transceiver of RFID Reader: The Core Component of Signal Processing |
The RF transceiver is the heart of the RFID reader's electronic circuit. It is responsible for both transmitting and receiving signals between the reader and the RFID tags. The transceiver ensures that the data exchange occurs through efficient signal processing techniques. This section will break down the operation of the RF transceiver in RFID systems, focusing on its role in transmission, reception, and its operation across different frequency bands. |
|
1. Introduction to the RF Transceiver in RFID Systems |
RFID (Radio Frequency Identification) systems operate by using electromagnetic fields to identify and track objects. An RFID reader communicates with RFID tags by sending and receiving radio frequency (RF) signals. The RF transceiver is the key component in the reader that facilitates this communication. It interacts directly with the antenna to send and receive data from the RFID tags, performing essential signal processing operations. |
The transceiver functions in both the transmission and reception stages, ensuring that the encoded data is accurately conveyed between the reader and the RFID tags. Its ability to modulate, demodulate, and process RF signals forms the backbone of the RFID system's overall functionality. |
|
2. Key Components of an RF Transceiver |
An RF transceiver typically consists of several components that work together to perform the required signal processing tasks. These include: |
Oscillator: Generates the carrier signal for both transmission and reception. The oscillator's frequency determines the operating frequency of the RFID system. |
Modulator: Converts the baseband signal (digital data) into an RF signal for transmission. It modulates the carrier signal in such a way that the data can be encoded into the RF signal. |
Demodulator: Extracts the digital data from the received RF signal, decoding it back into baseband data that can be understood by the reader's microcontroller. |
Mixer: A critical component for both upconversion (transmission) and downconversion (reception) of signals. It combines signals from different frequency sources to produce the desired output. |
Amplifiers: Used to boost the signal strength. The power amplifier boosts the transmission signal for effective propagation, and the low-noise amplifier (LNA) amplifies weak incoming signals during reception without introducing significant noise. |
Filters: Ensure that only the desired frequency band is processed, filtering out unwanted signals and noise. |
These components enable the RF transceiver to carry out its dual function of transmitting and receiving signals over radio frequencies. |
|
3. RF Transceiver in the Transmission Process |
The transmission phase of an RFID system involves the RFID reader sending a signal to the RFID tags. This phase can be broken down into several steps: |
1.Baseband Signal Creation: The microcontroller or the digital signal processor (DSP) inside the RFID reader generates a baseband signal. This signal contains the data to be sent to the RFID tags, such as commands or queries. |
2.Signal Upconversion: The baseband signal is passed to the RF transceiver, where it is upconverted. In upconversion, the baseband signal is mixed with a high-frequency carrier signal generated by the oscillator. This step is essential because RFID systems use high-frequency signals for long-range communication, and the baseband signal must be shifted to the appropriate frequency range for effective transmission. |
3.Modulation: After upconversion, the signal is modulated. Modulation refers to the process of encoding data into the RF carrier wave. There are several modulation schemes that can be used, depending on the type of RFID system and the desired data transmission characteristics. Common modulation techniques include Amplitude Shift Keying (ASK), Frequency Shift Keying (FSK), and Phase Shift Keying (PSK). In RFID, ASK is often used, where the presence or absence of the carrier signal represents the binary data being transmitted. |
4.Signal Amplification: The modulated RF signal is sent to the power amplifier, which increases its strength. This ensures that the signal has enough power to reach the RFID tags, even at a distance. The antenna connected to the RF transceiver then radiates this signal into the environment. |
5.Antenna Propagation: The RF signal is transmitted from the reader's antenna into the surrounding environment. The signal propagates through the air, and RFID tags within range receive the signal. Depending on the system's design, the transmission range can vary from a few centimeters to several meters. |
The efficiency of this transmission process depends heavily on the quality of the RF transceiver components, including the oscillator stability, the modulation scheme, and the power amplification. |
|
4. RF Transceiver in the Reception Process |
The reception phase begins when the RFID tags reflect or respond to the transmitted RF signal. The RFID reader receives the reflected signal, which typically carries encoded data from the tags. The reception process can be broken down into the following steps: |
1.Antenna Reception: The RFID reader's antenna receives the RF signal that is reflected back from the RFID tags. Depending on the system, the tags may modulate the returned signal in a way that encodes their identification number or other data. |
2.Signal Downconversion: The received RF signal is typically weak due to attenuation during propagation and reflection. The transceiver's downconverter converts the received high-frequency signal into a lower baseband frequency that can be processed by the reader's microcontroller. The downconversion process involves mixing the incoming signal with a local oscillator signal. This lowers the frequency of the incoming signal, making it easier to process and decode. |
3.Demodulation: Once the signal has been downconverted to a baseband signal, the demodulator extracts the data embedded in the signal. This process involves reversing the modulation process used during transmission. In ASK modulation, for example, the demodulator identifies the presence or absence of the carrier wave to decode the binary data. |
4.Amplification: Since the received signal is often weak, it is passed through a low-noise amplifier (LNA) to boost its strength. The LNA ensures that the signal can be processed accurately without introducing significant noise, which could corrupt the data. |
5.Signal Processing: The demodulated signal is then passed to the microcontroller, which processes the decoded data. The microcontroller interprets the data to identify the RFID tag and perform the appropriate action, such as reading data or triggering a specific event. |
The success of the reception process is influenced by the quality of the RF transceiver components, including the mixer, amplifier, and demodulator. It is essential for these components to operate with high precision to recover the weak signals effectively. |
|
5. Operating Frequency Bands in RFID Systems |
RFID systems operate at various frequency bands, and the RF transceiver's performance is closely tied to the chosen frequency band. The main frequency bands used for RFID systems are: |
1.Low-Frequency (LF) - 125 kHz: This is the most basic frequency used in RFID systems, typically for short-range applications. The LF band has a shorter range due to its lower frequency and longer wavelength. LF RFID tags are commonly used in access control systems and animal tracking. |
2.High-Frequency (HF) - 13.56 MHz: This frequency is widely used in RFID systems for applications such as smart cards, ticketing, and inventory management. HF RFID systems typically have a range of a few centimeters to a meter. The 13.56 MHz frequency is favored for its balance of range and data transfer rate. |
3.Ultra-High Frequency (UHF) - 900 MHz: UHF RFID operates over a much higher frequency and can provide longer read ranges (up to 12 meters or more). This makes it ideal for supply chain management, asset tracking, and logistics. The UHF band offers higher data transfer rates, but the signals are more susceptible to interference from materials like water and metals. |
The frequency band chosen for an RFID system significantly impacts the RF transceiver's design. For example, UHF systems require more sophisticated transceivers with greater amplification and signal processing capabilities to maintain data integrity over longer distances. |
|
6. Factors Affecting RF Transceiver Performance |
Several factors influence the performance of the RF transceiver in an RFID system. These include: |
1.Signal Interference: RFID systems, especially in the UHF band, are susceptible to interference from other electronic devices, physical barriers, and environmental factors. A well-designed RF transceiver incorporates robust filtering and noise reduction techniques to minimize interference. |
2.Antenna Design: The antenna plays a crucial role in both the transmission and reception of signals. Its design and orientation can affect the range and signal quality. The RF transceiver must work in tandem with the antenna to ensure optimal signal propagation. |
3.Power Consumption: RFID systems, especially mobile or battery-powered readers, must carefully manage power consumption. The RF transceiver's design must ensure that it operates efficiently, transmitting and receiving signals without draining excessive power. |
4.Range and Throughput: The RF transceiver's ability to provide adequate transmission range and data throughput is essential for system performance. Higher-frequency systems like UHF RFID offer greater range but may require more complex signal processing techniques to handle high data rates. |
5.Regulatory Compliance: Different countries and regions have varying regulations regarding the allowable power levels and frequency bands for RFID systems. The RF transceiver must comply with these regulatory requirements to ensure legal and safe operation. |
|
7. Conclusion |
The RF transceiver is a fundamental component of RFID readers, responsible for both transmitting and receiving signals to and from RFID tags. It handles critical functions such as modulation, demodulation, upconversion, downconversion, and amplification. By operating within specific frequency bands, the RF transceiver ensures reliable communication, facilitating applications ranging from inventory management to access control and supply chain tracking. |
The design and performance of the RF transceiver are crucial to the efficiency and reliability of the entire RFID system. With advances in signal processing techniques, power management, and interference mitigation, modern RFID systems continue to evolve, enabling faster, more secure, and more efficient data exchange between readers and tags. |

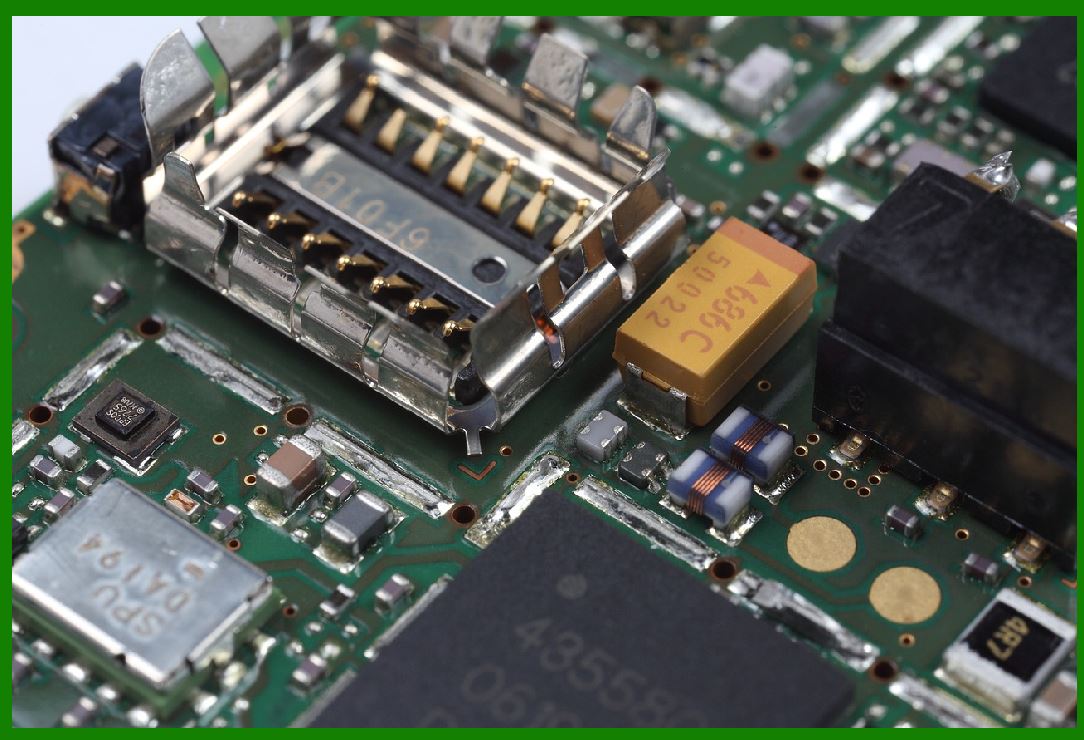

Common Failures Caused by the RF Transceiver of an RFID Reader and How to Check and Fix Them |
The RF transceiver in an RFID reader is critical for ensuring smooth communication between the reader and RFID tags. However, as with any electronic system, various issues can arise in the transceiver that may cause the RFID reader to malfunction. These failures can affect the system's range, data integrity, or power efficiency, ultimately leading to poor performance or complete system failure. |
|
Here are some common RF transceiver failures, along with methods to diagnose and fix them: |
1. Weak or No Signal Transmission |
Cause: |
Power Amplifier Failure: The power amplifier in the RF transceiver is responsible for boosting the transmission signal to the antenna. If the power amplifier fails, the signal may be too weak to reach the RFID tags. |
Faulty Antenna: A malfunctioning or disconnected antenna can cause weak or no transmission signal. |
Oscillator Issues: The oscillator generates the RF carrier signal, and if it's malfunctioning, the system may not be able to produce the necessary high-frequency signal for transmission. |
How to Check: |
Visual Inspection: Check for any physical damage or loose connections on the antenna, cables, and power amplifier. |
Signal Measurement: Use a spectrum analyzer to measure the output signal. If the output is too low or absent, it indicates an issue with the power amplifier or oscillator. |
Oscilloscope Testing: Use an oscilloscope to check the oscillator's output signal. If there's no signal or it is unstable, the oscillator may be at fault. |
How to Fix: |
Replace Power Amplifier: If the power amplifier is found to be faulty, replace it with a new one. Ensure that the amplifier is correctly matched with the operating frequency range of the system. |
Check Antenna: If the antenna is damaged or disconnected, replace or reconnect it. Verify that the antenna is designed for the correct frequency band. |
Replace or Repair Oscillator: If the oscillator is not producing the correct signal, replace it or check the components driving it, such as capacitors or inductors, which might have degraded over time. |
|
2. Interference from External Sources |
Cause: |
Electromagnetic Interference (EMI): External sources of electromagnetic radiation, such as nearby electronic devices or power lines, can interfere with the signal being transmitted or received by the RFID reader. |
Poor Shielding: If the RF transceiver or the RFID reader lacks proper shielding, external interference may cause signal degradation. |
How to Check: |
Environmental Scan: Move the RFID reader to different locations within the environment to see if the interference persists. Try turning off nearby devices or moving large metal objects away from the reader. |
Spectrum Analyzer: Use a spectrum analyzer to monitor the frequency spectrum around the RFID reader. Look for unwanted peaks that could indicate interference. |
How to Fix: |
Improve Shielding: Add additional shielding to the RFID reader and its components to prevent external interference. You can use metal enclosures or specialized EMI shielding materials. |
Reposition the Reader: Moving the reader to a different location or increasing the distance between the reader and potential sources of interference (e.g., computers, fluorescent lights, large machinery) may help reduce interference. |
Use Filters: Implement low-pass or band-pass filters to block unwanted noise or frequencies that could be causing the interference. |
|
3. Weak or No Signal Reception |
Cause: |
Low-Noise Amplifier (LNA) Failure: The LNA amplifies weak signals during reception. If the LNA fails, the reader may not be able to detect RFID tags that are further away or transmitting weak signals. |
Incorrect Antenna Orientation: If the antenna is poorly positioned or not oriented correctly, it can lead to weak or no reception. |
Signal Reflection and Multipath Issues: In environments with a lot of reflective surfaces (e.g., metal), the signal may reflect and cause multipath interference, where multiple versions of the signal interfere with each other. |
How to Check: |
Check LNA Performance: Use an oscilloscope or a spectrum analyzer to check the signal strength coming from the LNA. If the signal is significantly attenuated or absent, the LNA may be faulty. |
Antenna Alignment: Verify that the antenna is correctly aligned and positioned to receive the signal. This can be done by observing the reader's performance as the antenna is adjusted. |
Multipath Interference Testing: Use a signal analyzer to check for multipath interference. This occurs when the same signal reaches the receiver through multiple paths, leading to signal distortion or cancellation. |
How to Fix: |
Replace the LNA: If the LNA is faulty, replace it. Ensure that the replacement LNA is rated for the correct frequency and gain. |
Reposition the Antenna: Adjust the antenna's position or orientation to improve signal reception. If the environment is complex, consider using directional antennas to focus the signal in a specific direction. |
Use Antenna Diversity: If multipath interference is a problem, consider using antenna diversity, which uses multiple antennas to improve signal reception by selecting the best signal path. |
|
4. Signal Distortion and Data Loss |
Cause: |
Modulation/Demodulation Failure: If the modulation or demodulation components fail, the encoded data may not be correctly transmitted or received. This can result in data corruption, loss, or failure to read RFID tags. |
Signal Clipping: Overdriving the power amplifier or using a poor-quality amplifier can cause signal clipping, where the transmitted signal is distorted. This results in data that cannot be accurately decoded by the tag or reader. |
How to Check: |
Signal Integrity Check: Use an oscilloscope to check for clean, undistorted signal waveforms. Any clipping or irregularity in the waveform suggests a problem with the signal transmission. |
Error Detection: Analyze the error rates in the data received by the RFID reader. High error rates indicate problems with the modulation/demodulation process or signal distortion. |
How to Fix: |
Replace Modulation/Demodulation Circuitry: If the modulation or demodulation components are found to be faulty, replace them. Ensure that the modulation scheme is compatible with the RFID tags in use. |
Adjust Power Levels: Reduce the output power of the power amplifier to avoid clipping. Verify that the power amplifier is not overdriven and is appropriately matched to the antenna and frequency range. |
|
5. Low Data Transfer Rate |
Cause: |
Frequency Band Interference: If the RFID system operates in a congested frequency band, such as the UHF range, the system may experience reduced data transfer rates due to channel interference from other systems. |
Bandwidth Limitations: The RF transceiver may not have enough bandwidth to support the required data rates, particularly in high-frequency systems that need to handle large amounts of data. |
How to Check: |
Data Throughput Testing: Perform throughput tests using a known, reliable RFID tag to check if the data transfer rate is within expected parameters. |
Spectrum Analysis: Use a spectrum analyzer to detect overlapping signals in the operating frequency band that could be limiting the data transfer rate. |
How to Fix: |
Switch to a Different Frequency: If interference in the operating frequency band is detected, consider switching to a different, less congested frequency band. For example, moving from a crowded UHF band to an HF band might improve data transfer rates in some environments. |
Optimize Data Encoding: Evaluate the data encoding method used by the transceiver. Switching to more efficient encoding schemes can help increase data throughput. |
Upgrade Hardware: If the transceiver hardware does not support higher data rates, consider upgrading the RF transceiver to a model that supports faster data processing. |
|
6. Power Consumption Issues |
Cause: |
Inefficient Power Amplifier: If the power amplifier is inefficient or malfunctioning, it can lead to excessive power consumption without delivering the expected performance. |
Component Failures: Faulty components in the RF transceiver, such as the oscillator, amplifiers, or mixers, can result in higher-than-normal power consumption. |
How to Check: |
Current Draw Measurement: Measure the current draw of the RFID reader under typical operating conditions. A significant increase in current consumption can indicate power inefficiency or malfunctioning components. |
How to Fix: |
Replace Faulty Components: If specific components like the power amplifier are identified as inefficient, replace them with more energy-efficient alternatives. |
Implement Power Management: Consider using power-saving modes or integrating more efficient power management circuits into the RF transceiver design. |
|
Conclusion |
Failures in the RF transceiver of an RFID reader can manifest in various ways, from weak signals and poor reception to interference and data loss. Diagnosing and fixing these issues requires a combination of signal integrity checks, component testing, and troubleshooting techniques. By identifying the root cause of the failure-whether it's due to a faulty amplifier, interference, antenna issues, or other factors-you can take the necessary steps to restore optimal performance to the RFID system. |
|
Case Studies of Designing the RF Transceiver Circuit for RFID Readers |
Designing an RF transceiver circuit for an RFID reader is a complex task that requires deep understanding of radio frequency communication, signal processing, and hardware integration. The RF transceiver plays a crucial role in the RFID system, determining both the range and data transfer rate. Here are a few case studies that highlight various design challenges and solutions in creating the RF transceiver for RFID readers across different applications. |
Case Study 1: Design of a Low-Power UHF RFID Reader Transceiver for Asset Tracking |
Objective: |
Design a UHF RFID reader transceiver capable of tracking assets over a long range in an industrial environment while ensuring low power consumption for battery-operated devices. |
Challenges: |
Power Efficiency: UHF RFID systems require high transmission power for long-range communication, which leads to increased energy consumption. |
Range Requirements: The RFID reader must be capable of reading tags at distances up to 12 meters while maintaining a high data transfer rate. |
Interference Management: The system needs to work in environments where multiple RFID systems operate simultaneously, leading to potential interference. |
Design Process: |
1.Frequency Selection: |
After evaluating local regulations, the system was designed to operate in the 915 MHz UHF band, as it offers a balance between range and interference susceptibility. |
Frequency selection also considered interference from nearby devices and the need for multiple readers in the same area. |
2.Power Amplifier Design: |
The design included a Class-E power amplifier, which is efficient in terms of power usage while maintaining high output power. |
A feedback loop was implemented to dynamically adjust the transmission power based on the distance from the tags, reducing unnecessary energy consumption. |
3.Low-Noise Amplifier (LNA) Design: |
The LNA was carefully chosen to ensure the weak signals reflected by distant tags were amplified with minimal noise. |
A gain-controlled LNA was used to ensure signal amplification was optimal for both near and far-range readings, thus preventing saturation for closer tags. |
4.Modulation Scheme: |
The system used Ample Phase Shift Keying (APSK), a more efficient modulation technique that provides a good trade-off between range and data rate in the 915 MHz frequency band. |
This method improved the reader's ability to decode data at longer distances and reduced the impact of signal fading. |
5.Interference Mitigation: |
Time-Division Multiple Access (TDMA) was implemented in the transceiver's design to avoid interference from other RFID readers operating in the same area. This method allowed each reader to transmit at different times, reducing collision risk. |
Adaptive frequency hopping was introduced to dynamically change the transmission frequency if interference from nearby systems was detected. |
Results: |
The design successfully achieved the desired range of 12 meters in an industrial setting with up to 10 readers operating in close proximity without significant interference. |
The power consumption was reduced by 30% compared to traditional UHF RFID readers due to the dynamic power adjustment and efficient amplifier design. |
|
Case Study 2: Design of a High-Frequency (HF) RFID Reader Transceiver for Payment Systems |
Objective: |
Design a compact and secure HF RFID reader for use in contactless payment systems (e.g., credit cards or NFC-enabled smartphones) that operates at 13.56 MHz and ensures data integrity during high-speed transactions. |
Challenges: |
Data Integrity: High-frequency RFID systems need to reliably read and write data at fast speeds to ensure seamless payment transactions. |
Security: Ensuring secure encryption and authentication during data transfer between the reader and the tag. |
Small Form Factor: The reader needed to be compact enough to fit into payment terminals or point-of-sale (POS) systems. |
Design Process: |
1.Frequency Selection: |
The system was designed to operate at the 13.56 MHz frequency, as it is globally standardized for HF RFID and commonly used in payment systems. |
This frequency offers a balanced range (up to 10 cm) and supports relatively fast data transfer rates, essential for secure and efficient payments. |
2.Power Amplifier Design: |
A Class-D power amplifier was chosen due to its high efficiency and low heat generation, which was essential in compact designs. |
The design included dynamic power control to minimize power consumption, using a low-power mode when not actively reading or writing to the tags. |
3.Modulation and Data Transfer: |
The system used Amplitude Shift Keying (ASK) for modulation, which is commonly employed in HF RFID systems. This modulation technique is simple and efficient for short-range communication, fitting well with the small form factor required for payment terminals. |
To ensure fast data transfer, a high-speed encoding scheme (like the ISO 14443 standard) was incorporated, which allows for quick data exchanges in real-time. |
4.Security: |
To address security concerns, the RF transceiver circuit incorporated Public Key Infrastructure (PKI) encryption and Secure Message Authentication Codes (MAC) during communication. |
The system used encryption engines embedded within the transceiver to securely exchange authentication credentials and payment information with NFC-enabled smartphones and smart cards. |
5.Miniaturization: |
The design utilized surface-mount technology (SMT) for compactness, reducing the size of the transceiver circuit. |
High-density PCB layouts were employed to fit the circuit into small payment devices without compromising on performance. |
Results: |
The transceiver provided fast and secure data transfer, meeting the transaction speed requirements for contactless payments. |
The small form factor and low power consumption made it ideal for integration into POS terminals, and the system met the required security standards for financial transactions. |
The overall system achieved a transaction rate of 500 transactions per minute, with a reliable read range of 4 cm. |
|
Case Study 3: Design of a Passive RFID Reader Transceiver for Inventory Management |
Objective: |
Develop a passive UHF RFID reader transceiver designed for inventory management in a large warehouse. The system needs to support a high tag read rate and operate in a cluttered environment with many metal surfaces that can cause signal reflections and interference. |
Challenges: |
High Tag Read Rate: The reader must be capable of reading a large number of passive tags simultaneously and rapidly. |
Signal Reflection: The warehouse environment includes many metal surfaces that could cause multipath interference, reducing read accuracy. |
Durability: The RFID reader must be robust and able to operate under harsh warehouse conditions. |
Design Process: |
1.Frequency Selection: |
The system was designed to operate in the 915 MHz UHF band, which allows for long-range communication and is well-suited for passive tags in large warehouses. |
The reader was tuned for an effective read range of up to 10 meters. |
2.RF Transceiver Design: |
The transmitter circuit was designed using a power amplifier with a Class-C configuration, optimized for UHF frequencies and efficiency. |
Frequency modulation (FM) and Frequency Shift Keying (FSK) were implemented for reliable data transmission. |
A spectrum analyzer was used to monitor the signal and ensure that the frequency bands were not crowded, minimizing interference from other devices operating on nearby frequencies. |
3.Antenna Selection and Placement: |
A circularly polarized antenna was chosen to improve the reception of reflected signals and mitigate multipath interference, which is common in warehouse environments. |
Antenna placement was optimized based on simulations of the warehouse's physical layout, ensuring maximum coverage and signal strength in all areas. |
4.Multipath Interference Mitigation: |
Adaptive algorithms were used in the transceiver's firmware to adjust the reader's transmission power based on environmental factors. For example, the system could detect when multipath interference occurred and adjust its signal transmission characteristics (such as power and frequency) accordingly. |
The reader used directional antennas for reading tags in specific aisles to minimize interference from other readers operating in the same warehouse. |
5.Power Efficiency: |
To ensure long-term operation, the system incorporated low-power modes during idle times, powered by an internal rechargeable battery. |
The power consumption of the transceiver was minimized by using low-voltage logic circuits and efficient power conversion techniques. |
Results: |
The system achieved a high read rate of over 500 tags per second, which is essential for inventory management in large warehouses. |
The adaptive algorithms and antenna design successfully minimized multipath interference, providing stable reads even in highly reflective environments. |
The passive RFID reader proved to be durable and capable of handling the harsh conditions typically found in warehouse environments. |
|
Conclusion |
The design of an RF transceiver for RFID readers is influenced by the specific application requirements such as range, data rate, security, power consumption, and environmental factors. Each case study illustrates how careful selection of components, modulation schemes, power management techniques, and environmental considerations can help solve challenges unique to different RFID applications. Whether in asset tracking, payment systems, or inventory management, an efficient RF transceiver design is essential for ensuring the success and reliability of the RFID system. |
cs@easiersoft.com
