RFID Reader Architecture |
The architecture of an RFID reader is a complex but essential system that enables communication with RFID tags to identify, track, and manage data. It is comprised of several major components, each of which has a distinct function. Understanding the design and operation of these components is critical to understanding the overall workings of an RFID reader. Below is a detailed description of the key components of an RFID reader, including their functions and how they work together to facilitate efficient communication with RFID tags. |
|
1. Antenna |
The antenna is one of the most important components of an RFID reader, as it is responsible for both transmitting and receiving radio frequency (RF) signals to and from the RFID tags. The design of the antenna is crucial in determining the read range and performance of the RFID system. |
1.1. Transmitting Function |
In the transmitting mode, the RFID reader sends a signal to the RFID tags via its antenna. The reader generates a high-frequency electromagnetic wave, typically in the range of 125 kHz to 2.45 GHz, depending on the type of RFID system (low frequency, high frequency, or ultra-high frequency). The antenna is responsible for converting the electrical signals from the reader's RF transceiver into electromagnetic waves and radiating them into the environment. These waves propagate through space and reach nearby RFID tags. |
1.2. Receiving Function |
The receiving function is the reverse process of transmitting. When an RFID tag is in range, it responds to the reader's signals. The antenna picks up the signals reflected by the tag, which carry back the tag's stored information. The antenna must be designed to detect these returning signals with minimal interference. Once received, the antenna passes the signal to the RF transceiver for further processing. |
1.3. Types of Antennas |
Antennas used in RFID systems can be classified based on their design and the frequency of operation. Some of the most common types include: |
Dipole Antennas: Simple design, often used in low-cost systems. |
Patch Antennas: Used in high-frequency and UHF systems for better directional control. |
Loop Antennas: Provide larger read ranges for certain applications. |
Circularly Polarized Antennas: Used for applications where tags might be oriented in different directions. |
The choice of antenna type influences the coverage area, signal strength, and efficiency of the RFID system. |
|

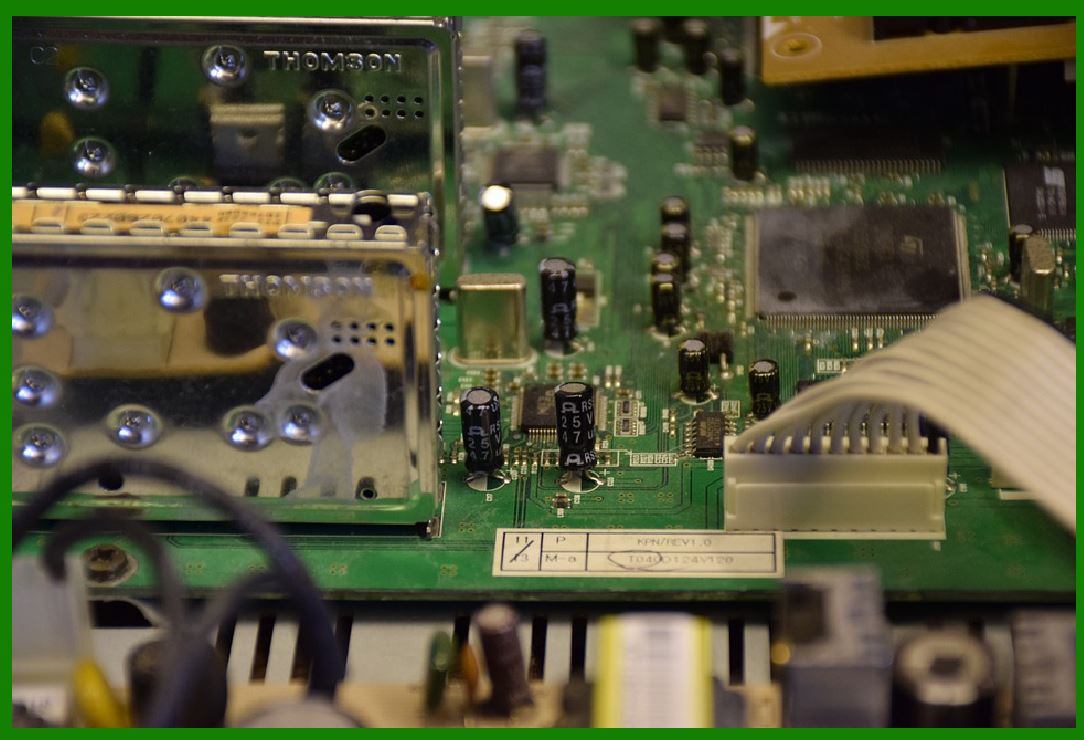

2. RF Transceiver |
The RF transceiver is a critical part of the RFID reader architecture as it is responsible for converting baseband signals into RF signals for transmission and vice versa for reception. It also controls the modulation and demodulation processes of the signal. |
2.1. Transmission |
When the RFID reader needs to transmit data to a tag, the microcontroller sends a baseband signal to the RF transceiver. The transceiver then converts this signal into a high-frequency RF signal using a process called modulation. The RF signal is then passed to the antenna for radiation into the environment. |
2.2. Reception |
When the RFID reader receives signals from tags, the antenna captures the RF signals reflected from the tag. These signals are then passed to the RF transceiver, which demodulates them and converts them into baseband signals. This demodulated signal is then sent to the signal processing unit for further processing. |
2.3. Modulation Techniques |
RF transceivers in RFID systems often use various modulation techniques to encode data onto the carrier wave. Some common techniques include: |
Amplitude Modulation (AM): Data is encoded by varying the amplitude of the carrier signal. |
Frequency Modulation (FM): Data is encoded by varying the frequency of the carrier signal. |
Phase Modulation (PM): Data is encoded by changing the phase of the carrier signal. |
The modulation technique chosen depends on the type of RFID system, the range required, and the specific application. |
2.4. Frequency Bands |
RF transceivers operate at specific frequency bands, which are standardized by regulatory bodies to avoid interference with other radio systems. The most common frequency bands for RFID are: |
Low Frequency (LF): Typically operates around 125 kHz or 134 kHz. |
High Frequency (HF): Operates at 13.56 MHz and is widely used for contactless smart cards. |
Ultra-High Frequency (UHF): Operates between 860 MHz and 960 MHz, providing longer read ranges. |
Microwave Frequency (MW): Operates at 2.45 GHz or 5.8 GHz, offering higher data rates. |
The choice of frequency depends on the range and type of application. |
|

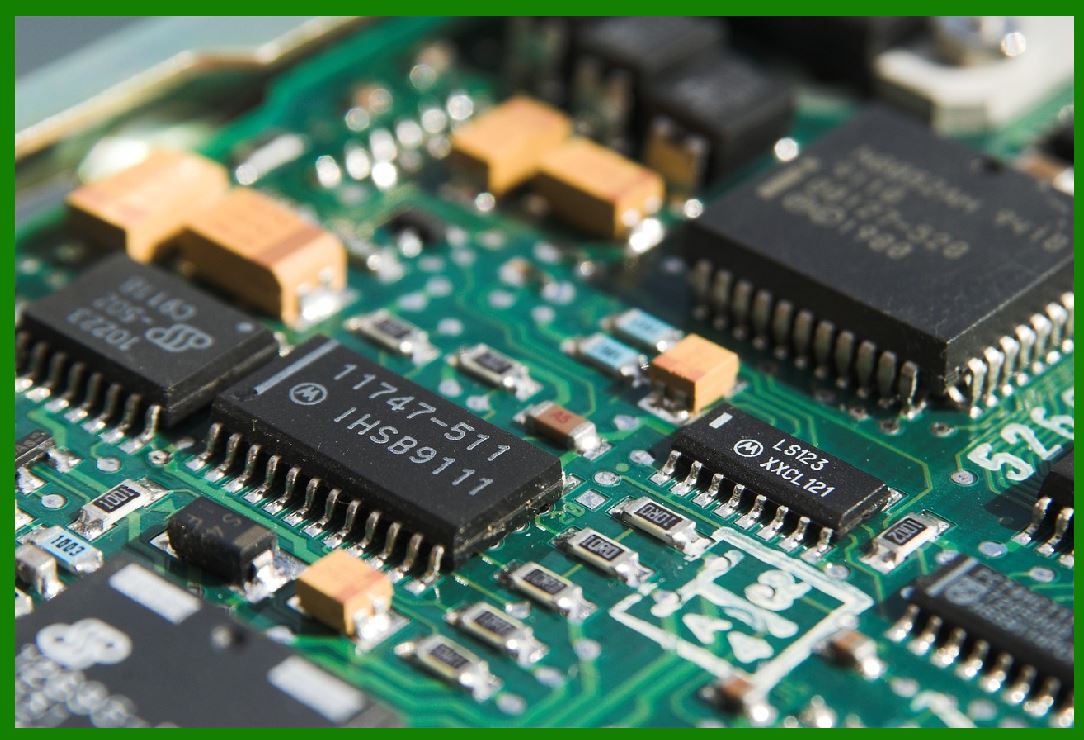

3. Microcontroller (MCU) |
The microcontroller is the brain of the RFID reader. It controls the overall operations of the reader, processes incoming signals, and manages communication between the reader and the host system. The microcontroller also interfaces with the various subsystems of the reader, such as the antenna, RF transceiver, and signal processing unit, to ensure proper functionality. |
3.1. Signal Processing |
The microcontroller receives demodulated signals from the RF transceiver and performs any necessary processing. This may involve filtering out noise, extracting data from the received signals, and managing timing and synchronization between the RFID tag and reader. The MCU may also handle tasks like error correction and data integrity checks. |
3.2. Communication with the Host System |

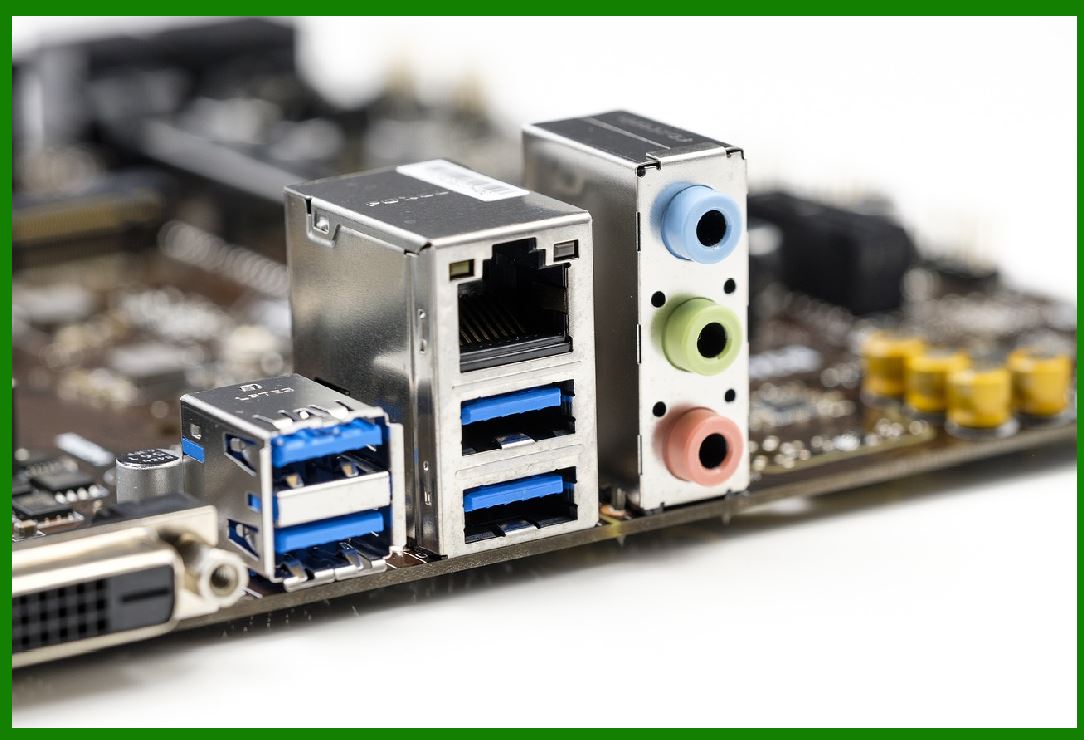

The microcontroller is responsible for establishing communication with the host system, whether it is a computer, server, or other devices. It formats the data collected from the RFID tags into a readable format and sends it to the host system via serial communication interfaces such as USB, Ethernet, or Wi-Fi. The MCU can also receive commands or instructions from the host system to control the reader's operation. |
3.3. Protocol Management |
The microcontroller also manages the communication protocols between the reader and the RFID tags. For example, it controls the timing and sequencing of requests and responses between the reader and tags, ensuring that the tags respond correctly to each query. The MCU may implement RFID protocols like ISO/IEC 14443, ISO/IEC 15693, or EPCglobal Gen2, depending on the RFID standard used in the system. |
3.4. Power Management |
In many RFID readers, the microcontroller is also responsible for managing the power supply, ensuring that the system operates efficiently and without overheating. It may control power modes, such as putting the system in a low-power state when not actively reading or writing to tags. |
|

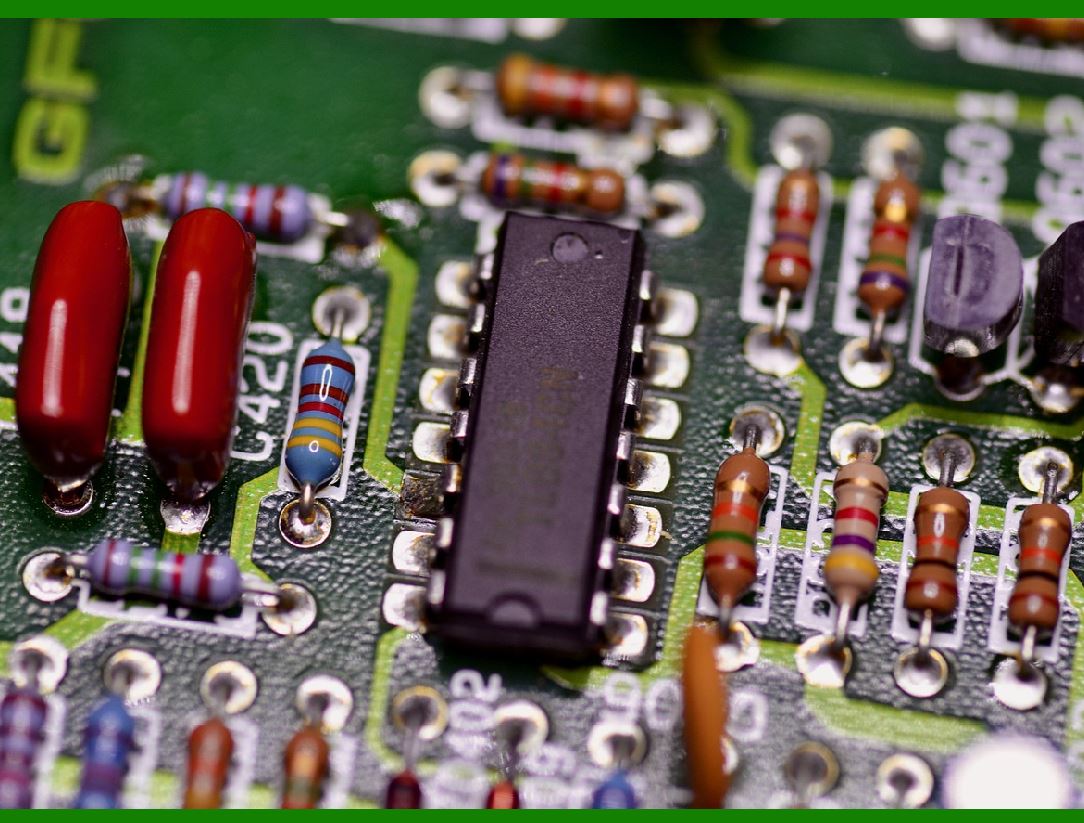

4. Signal Processing Unit |
The signal processing unit (SPU) is responsible for handling the signals transmitted and received by the RFID reader. Its main task is to filter, amplify, and clean the signals to ensure that the data received from the RFID tag is accurate and not corrupted by noise or interference. |
4.1. Filtering |
Filtering is an essential task for ensuring the integrity of the data being transmitted between the RFID reader and the tag. The signal processing unit uses filters to eliminate unwanted frequencies and noise from the received signal. This helps to ensure that only the relevant signal from the tag is processed. |
4.2. Amplification |
The received signal, especially from tags that may be far away or weak, may need to be amplified. The signal processing unit uses amplifiers to boost the strength of the signal to a level where it can be properly demodulated and processed by the RF transceiver and microcontroller. The amplification process must be carefully controlled to avoid distortion and maintain the integrity of the signal. |
4.3. Error Correction |
Error correction is another critical function of the signal processing unit. As RFID communication can be affected by noise, interference, or other environmental factors, the signal processing unit often performs error correction algorithms to ensure that the data transmitted from the RFID tag is accurate. These algorithms may involve redundancy, checksums, or other techniques to detect and correct errors in the received data. |
4.4. Digital-to-Analog and Analog-to-Digital Conversion |
Signal processing units often include Digital-to-Analog (DAC) and Analog-to-Digital Conversion (ADC) components. The DAC converts digital signals from the microcontroller into analog signals for transmission to the RF transceiver, while the ADC converts the received analog signals from the RF transceiver into digital signals that the microcontroller can process. |
|
5. Power Supply |
The power supply is a crucial component in any electronic system, including RFID readers. It provides the necessary electrical power for the operation of all the components of the RFID reader system, ensuring that each part of the system functions as required. |
5.1. Power Requirements |
RFID readers typically require a stable and reliable power source. The power supply unit must be able to provide the appropriate voltage and current to the antenna, RF transceiver, microcontroller, signal processing unit, and any other components. For handheld RFID readers, the power is typically provided by rechargeable batteries, while stationary RFID readers may be connected to an external power source like an AC outlet. |
5.2. Power Management |
Power management is an important aspect of RFID readers, especially for portable devices. The power supply system must ensure that the reader operates efficiently and avoids unnecessary energy consumption. This may include power-saving features such as automatic shutdown or low-power modes when the reader is idle. |
5.3. Voltage Regulation |
Voltage regulation is another key function of the power supply. Many RFID components operate at different voltage levels, so the power supply must include voltage regulators to ensure that each component receives the correct voltage for its operation. |
|
Conclusion |
In summary, the architecture of an RFID reader consists of several interconnected components, each with a specific function that contributes to the overall operation of the system. The antenna transmits and receives RF signals, the RF transceiver handles modulation and demodulation of the signals, the microcontroller controls the system's operation and manages communication with the host, the signal processing unit ensures signal integrity, and the power supply ensures that the system operates efficiently. Understanding the roles and interactions of these components is crucial for designing and optimizing RFID reader systems for a wide range of applications. |
|
What are the common failures of the RFID Reader? How to prevent them? |
RFID (Radio Frequency Identification) technology has become a cornerstone for various applications such as asset tracking, supply chain management, and access control. However, like any electronic system, RFID readers are prone to failures due to various factors such as hardware issues, environmental conditions, or poor design. Understanding the common causes of RFID reader failures and how to prevent them can help improve the reliability and longevity of the systems. |
1. Power Supply Failures |
1.1. Causes of Power Supply Failures |
Power Surge: Power surges or spikes can damage the RFID reader's power supply or sensitive components. These surges often occur during electrical storms or due to sudden changes in the power grid. |
Battery Failure (for Portable Readers): In handheld or mobile RFID readers, battery failure or improper charging can lead to the device malfunctioning or shutting down unexpectedly. |
Voltage Drops: Low or unstable voltage can lead to poor performance or complete failure of the RFID reader. |
1.2. Prevention Techniques |
Surge Protection: Use surge protectors or uninterruptible power supplies (UPS) to protect RFID readers from power surges. Surge protectors can prevent sudden spikes from damaging internal components. |
Battery Maintenance: For portable RFID readers, ensure proper battery maintenance, including regular recharging and replacing batteries that show signs of degradation. Choose high-quality, long-lasting batteries with a well-defined charge cycle. |
Voltage Regulators: Implement voltage regulators to maintain stable power input to the RFID system. This ensures that voltage fluctuations do not affect the performance of the reader. |
|
2. Antenna Malfunctions |
2.1. Causes of Antenna Failures |
Physical Damage: RFID antennas are often exposed to harsh environmental conditions, such as impact, bending, or corrosion, which can lead to malfunction. |
Connection Issues: Loose or corroded connections between the antenna and the RFID reader can lead to signal degradation or complete loss of communication. |
Environmental Interference: RF interference from other nearby devices, metals, or water sources can affect the antenna's ability to send and receive signals. |
2.2. Prevention Techniques |
Physical Protection: Use protective casings or enclosures for antennas, especially in environments prone to physical damage. Materials like shock-resistant plastics or protective mesh can reduce the risk of damage. |
Regular Maintenance: Inspect antenna connections regularly for corrosion, wear, and loose connections. Replace worn or damaged cables or connectors. |
RF Interference Minimization: Avoid placing RFID readers and antennas near large metallic objects, heavy machinery, or electromagnetic sources that could interfere with the RF signal. Use directional or circularly polarized antennas designed to minimize interference from surrounding structures. |
|
3. Signal Interference and Poor Read Range |
3.1. Causes of Signal Interference |
Environmental Factors: Metal, water, and concrete can attenuate or reflect RFID signals, leading to reduced read range or missed tag readings. |
Electromagnetic Interference (EMI): Devices that emit electromagnetic fields (e.g., motors, microwaves, or other wireless systems) can create interference, disrupting RFID communication. |
Tag Placement and Orientation: Incorrect placement or orientation of RFID tags can also result in poor signal strength or failure to read tags. |
3.2. Prevention Techniques |
Optimized Reader Placement: Properly position the RFID reader and antenna for optimal coverage. Ensure that the reader's signal is not obstructed by materials like metal or water, which can block or reflect radio waves. |
Use of Shielding: In environments where EMI is a concern, use shielding or Faraday cages around the RFID reader and antenna to block external interference. |
Tag Positioning and Orientation: For passive RFID systems, ensure that the tags are placed correctly on objects, especially in environments where the tags may be subjected to different orientations. Use labels or tags designed for the specific application (e.g., adhesive labels, ruggedized tags for metal surfaces). |
|
4. RF Transceiver Issues |
4.1. Causes of RF Transceiver Failures |
Signal Saturation: Overloading the RF transceiver with too strong a signal, either from the reader itself or from nearby transmitters, can cause signal clipping or distortion. |
Overheating: Extended use or poor ventilation can lead to the overheating of the transceiver, causing it to malfunction. |
Component Failures: Like other electronic components, transceivers may fail due to age, poor quality, or defects in the manufacturing process. |
4.2. Prevention Techniques |
Use of Filters: Install RF filters to protect the transceiver from high signal levels and prevent overloading. |

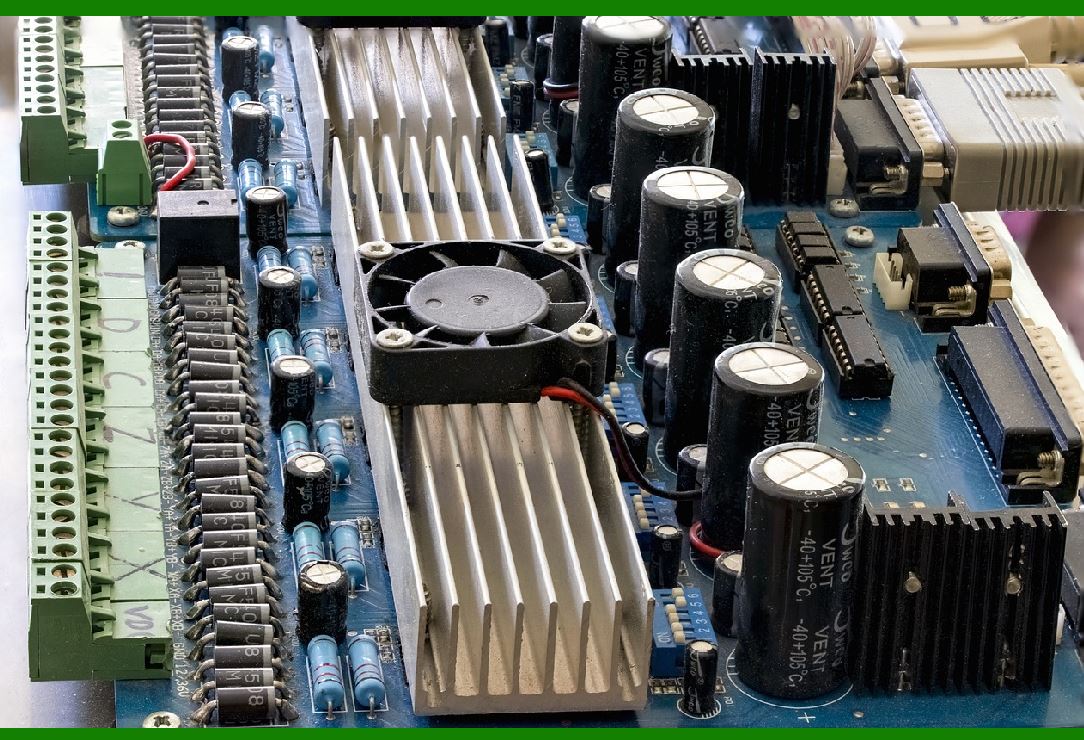

Cooling Systems: For high-performance RFID systems that run for long hours, consider adding cooling mechanisms such as heat sinks or fans to keep the transceiver cool. |
Regular Testing and Calibration: Perform routine testing and calibration of the RF transceiver to ensure it is functioning within the specified frequency ranges and power levels. |
|
5. Software or Firmware Malfunctions |
5.1. Causes of Software Failures |
Firmware Bugs: Errors in the firmware can cause the RFID reader to behave erratically or fail to communicate with tags correctly. |
Compatibility Issues: Software or firmware updates may cause compatibility issues with the host system or with specific types of RFID tags, leading to data corruption or missed readings. |
Corruption in Software: Corruption of software or data within the microcontroller can prevent the reader from processing or transmitting signals correctly. |
5.2. Prevention Techniques |
Regular Updates and Bug Fixes: Always keep the RFID reader's firmware up to date to ensure that it includes the latest bug fixes and compatibility improvements. Test new firmware thoroughly before deploying it across all readers. |
Stable Software Development: Develop software that is stable, scalable, and compatible with a range of host systems and RFID tag types. Conduct extensive testing under various conditions to ensure reliability. |
Backup and Recovery: Implement robust backup and recovery procedures for the RFID reader's software and configuration settings. This can help restore the system quickly in case of software failure. |
|
6. Physical Damage to the Reader |
6.1. Causes of Physical Failures |
Impact or Vibration: Physical damage due to impact or vibration can cause internal components to loosen or break, disrupting the functionality of the reader. |
Environmental Exposure: Harsh environmental conditions such as moisture, dust, and extreme temperatures can cause the RFID reader to fail if it is not properly protected. |
6.2. Prevention Techniques |
Enclosures and Protective Cases: Place RFID readers in rugged enclosures that protect them from physical damage and environmental hazards. These enclosures should be rated for dust, moisture, and shock resistance (IP rating). |
Environmental Controls: For readers used in harsh environments, install environmental control systems, such as temperature regulation or air conditioning, to maintain optimal operating conditions. |
|
7. Communication Failures Between Reader and Host |
7.1. Causes of Communication Failures |
Cable or Connection Issues: Faulty cables, connectors, or ports can result in lost communication between the RFID reader and the host system. |
Network Problems: Network failures or interference can disrupt communication in RFID systems that rely on wireless communication protocols such as Wi-Fi, Bluetooth, or Ethernet. |
7.2. Prevention Techniques |
Cable Management: Regularly inspect and replace cables that are frayed, damaged, or worn out. Use high-quality, shielded cables to minimize signal loss. |
Redundant Communication Paths: For critical applications, implement redundant communication pathways to ensure that failure of one path does not result in complete communication loss. |
Network Monitoring: Regularly monitor network performance to detect potential issues such as congestion, bandwidth problems, or interference that might affect the communication between the reader and the host. |
|
Conclusion |
RFID readers are complex systems that rely on a range of components, including antennas, RF transceivers, microcontrollers, and power supplies, to function effectively. Understanding the common failures that can occur in RFID systems and implementing preventive measures is essential for ensuring optimal performance and longevity. Regular maintenance, proper design considerations, and timely troubleshooting can help avoid the majority of failures, making the RFID system more reliable and efficient for its intended applications. By addressing issues related to power supply, antenna malfunctions, signal interference, RF transceiver failures, software bugs, physical damage, and communication failures, organizations can significantly reduce downtime and improve the overall user experience with RFID systems. |
