Chapter 21: Payload |
1. Introduction and Summary |
Payload is one of the most practical and easily understood performance metrics for industrial robots. In simple terms, payload defines the maximum mass a robot can manipulate at its end effector without suffering performance degradation. This means that if a robot is rated for a certain payload, it can pick up, move, and place an object of that mass while still meeting its specified speed, accuracy, repeatability, and structural stability requirements. Exceeding the payload rating does not usually cause the robot to fail immediately, but it does cause the robot to behave differently. The robot may vibrate more, settle more slowly, lose accuracy, or in extreme cases suffer mechanical damage. Payload is therefore not just a number on a datasheet. It is a practical limit that shapes what tasks a robot can perform, what tools it can carry, and what industries can benefit from its use. |
Articulated robots, which are the most common type of industrial robot, typically range from about 12 to 20 kilograms of payload in mid-size models. This range covers a large share of general manufacturing tasks such as machine tending, pick and place, and light assembly. Collaborative robots, which are designed to work safely alongside humans, have historically had lower payloads, often under 10 kilograms. However, collaborative robot technology has advanced rapidly, and some collaborative models now reach 45 kilograms of payload. This expansion has opened new applications in palletizing, packaging, and heavier assembly tasks that were previously reserved for traditional industrial robots. |
This chapter explains payload in clear, non-mathematical terms. It describes how payload is defined, how it is measured, and why it matters. It then explores payload in the context of different robot types, including articulated robots, collaborative robots, SCARA robots, delta robots, and mobile manipulators. The largest portion of the chapter is devoted to real-world application examples across many industries, including automotive, electronics, food and beverage, logistics, pharmaceuticals, metalworking, plastics, and agriculture. Each example shows how payload requirements influence robot selection and system design. The chapter closes with a detailed summary that ties together the key ideas and offers practical guidance for engineers, managers, and students. |
|
2. What Payload Really Means |
Payload is often described as the weight a robot can carry. That description is correct but incomplete. Payload is the mass that the robot can manipulate at the end effector while still meeting its published performance specifications. Those specifications include speed, acceleration, repeatability, and structural rigidity. If a robot is rated for 20 kilograms, it can move a 20 kilogram object through its working envelope at the speeds and accuracies promised in its datasheet. If the object weighs 25 kilograms, the robot may still lift it, but it may move more slowly, vibrate more, and position less accurately. In some cases, the robot may overheat or experience premature wear. |
Payload is closely related to the concept of moment and inertia. Moment is the tendency of a force to rotate an object around a pivot. Inertia is the resistance of an object to changes in its motion. A heavy object held far from the robot base creates a larger moment and requires more torque from the robot joints. A long tool or a large gripper also increases the effective load on the robot, even if the tool itself is not very heavy. This is why payload ratings are often accompanied by center of gravity limits. The center of gravity is the point where the weight of the object is concentrated. If the center of gravity is too far from the robot mounting flange, the robot may not be able to handle the rated payload safely. |
Another important concept is the distinction between rated payload and maximum payload. Rated payload is the mass the robot can handle continuously without performance degradation. Maximum payload is the absolute limit the robot can handle occasionally, often at reduced speed and with a risk of increased wear. Most manufacturers publish rated payload as the primary specification because it reflects normal operating conditions. Users should always design around rated payload, not maximum payload, to ensure long-term reliability. |
Payload also interacts with robot speed and acceleration. A robot moving quickly with a heavy payload experiences higher dynamic forces than a robot moving slowly with the same payload. These dynamic forces can cause vibration, reduce accuracy, and stress the robot structure. Many robot controllers automatically reduce speed and acceleration when the payload approaches the rated limit. This behavior is called payload-dependent speed limiting. It protects the robot but also means that cycle times may increase when handling heavy objects. |
|
3. How Payload Is Determined and Specified |
Robot manufacturers determine payload through a combination of engineering analysis and physical testing. During design, engineers calculate the torque and force requirements for each joint based on the expected payload, arm length, and acceleration profile. They also consider the stiffness of the arm structure and the performance of the motors and gearboxes. After the robot is built, it undergoes testing with calibrated weights at various positions within its working envelope. The manufacturer then publishes a payload rating that reflects the worst-case conditions the robot can handle while still meeting its specifications. |
Payload ratings are usually stated in kilograms. For articulated robots, the rating often applies to a specific center of gravity offset, such as 100 millimeters from the mounting flange. If the actual center of gravity is farther away, the effective payload must be reduced. Some manufacturers provide payload diagrams or charts that show the relationship between payload, center of gravity, and reach. These charts help users determine whether a specific tool and workpiece combination is within the robot's capabilities. |
In addition to payload mass, manufacturers often specify the allowable moment and inertia. Moment is measured in newton-meters, and inertia is measured in kilogram-square-meters. These specifications are important for tools that are long or rotate quickly. For example, a robot welding torch may be lightweight, but its length creates a significant moment. Similarly, a robot handling a large flat panel may have a modest mass but a large inertia because the mass is distributed far from the rotation axis. |
Collaborative robots have additional payload considerations because they are designed to work safely with humans. Their payload ratings are often lower than those of traditional industrial robots of similar size. However, collaborative robot manufacturers have made significant progress in increasing payload capacity. Some collaborative robots now offer payloads of 45 kilograms or more, which allows them to perform tasks such as palletizing and machine tending that were once limited to larger industrial robots. |
|
4. Payload Across Different Robot Types |
4.1 Articulated Robots |

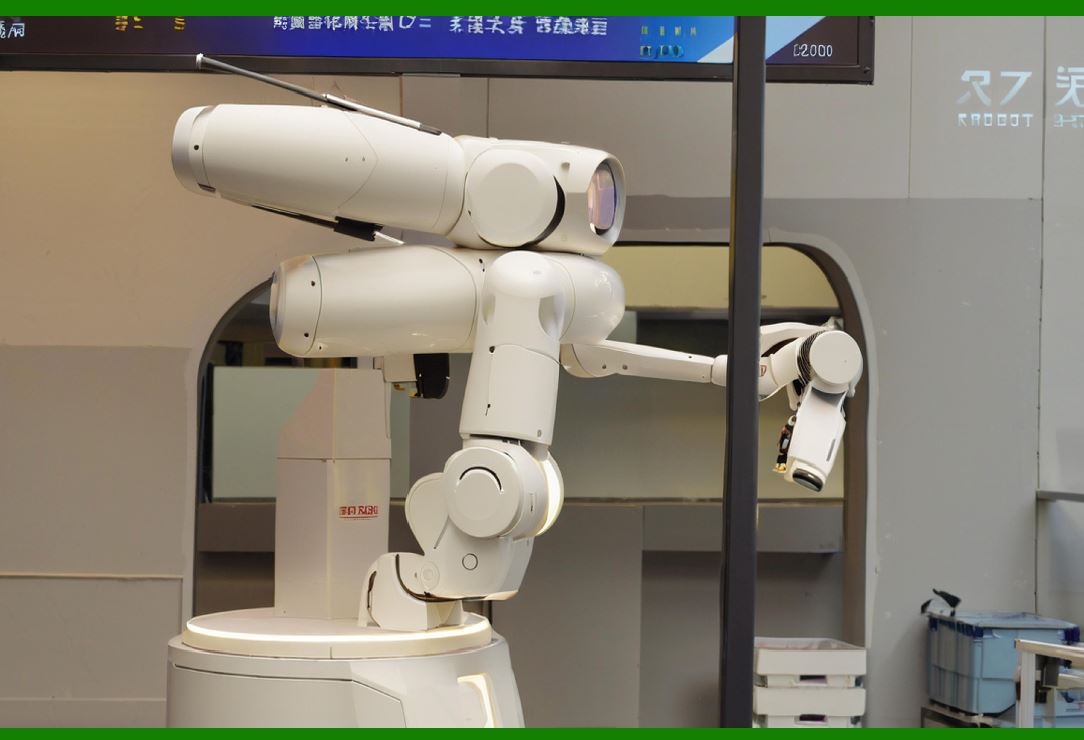

Articulated robots are the most versatile and widely used industrial robots. They have a series of rotary joints that allow them to move in many directions, similar to a human arm. Mid-size articulated robots typically have payload ratings between 12 and 20 kilograms. This range is well suited for tasks such as machine tending, pick and place, light assembly, and inspection. Larger articulated robots can handle payloads of 100 kilograms or more, and some specialized models can handle over 1,000 kilograms. These heavy-duty robots are used in automotive assembly, foundries, and heavy material handling. |
The payload of an articulated robot depends on its size and reach. A robot with a long reach must be stronger and stiffer to handle the same payload as a shorter robot. This is why long-reach robots often have lower payload ratings than compact robots with similar motor sizes. When selecting an articulated robot, engineers must balance payload, reach, speed, and accuracy. A robot with a very high payload may be slower or less accurate than a robot with a lower payload, so the choice depends on the specific application. |
4.2 Collaborative Robots |
Collaborative robots, often called cobots, are designed to share a workspace with humans. They typically have rounded joints, force sensing, and speed and separation monitoring to prevent injury. Historically, cobots had payload ratings of 3 to 10 kilograms. This limited them to light assembly, dispensing, and inspection tasks. However, newer cobots have pushed payload ratings to 20 kilograms, 30 kilograms, and even 45 kilograms. This increase has expanded their use into palletizing, packaging, and heavier machine tending. |
The payload of a collaborative robot is affected by its safety features. Force sensing and compliant control can reduce the effective payload because the robot must reserve some torque capacity for safety responses. Despite this, manufacturers have improved motor and gearbox technology to achieve higher payloads without sacrificing safety. The 45 kilogram collaborative robots now on the market can handle many tasks that previously required traditional industrial robots, and they can do so in shared workspaces without expensive fencing. |
4.3 SCARA Robots |
SCARA robots have a horizontal arm that moves in a plane, with a vertical axis for insertion and withdrawal. They are known for high speed and high repeatability in tasks such as electronic assembly, dispensing, and small part handling. SCARA robots typically have payload ratings of 1 to 20 kilograms. The lower payloads are common in electronics, where components are small and light. Higher payload SCARA robots are used in applications such as adhesive dispensing and palletizing of small boxes. |
Because SCARA robots move in a limited plane, they experience different forces than articulated robots. Their payload ratings are often limited by the torque of the horizontal joints and the stiffness of the arm. When selecting a SCARA robot, engineers consider payload, reach, and cycle time. A SCARA robot with a higher payload may have a shorter reach or slower speed, so the trade-offs must be evaluated carefully. |
4.4 Delta Robots |
Delta robots are parallel-link robots with three or four arms connected to a common base. They are extremely fast and are used for high-speed pick and place in food, pharmaceutical, and electronics industries. Delta robots typically have payload ratings of 1 to 8 kilograms. Their lightweight arms and low inertia allow them to achieve very high speeds, but they cannot handle heavy loads. The payload limit is determined by the strength of the links and the capacity of the motors. |
Delta robots are often used in packaging lines where small items such as candies, pills, or electronic components must be picked and placed at high speed. Their payload rating is sufficient for these tasks, and their speed provides a significant productivity advantage. When a heavier item must be handled, a different robot type is usually required. |
4.5 Mobile Manipulators |
Mobile manipulators combine a mobile base with a robotic arm. They can move through a facility and perform tasks at multiple locations. Payload for mobile manipulators is divided into two categories: the payload of the arm and the payload of the mobile base. The arm payload is similar to that of a fixed articulated or collaborative robot. The base payload includes the weight of the arm, any tools, and the objects being transported. Mobile manipulators are often used in logistics, inspection, and flexible manufacturing. Their payload capacity is limited by the size and power of the mobile base, as well as the stability of the platform. |
|
5. Why Payload Matters in Real Applications |
Payload matters because it determines what a robot can do. A robot with insufficient payload cannot lift the required object, or it can lift it only at reduced speed and accuracy. A robot with excessive payload may be larger, slower, and more expensive than necessary. Selecting the right payload is therefore a key step in robot selection. It affects cycle time, accuracy, safety, and cost. |
Payload also affects the design of the end effector. A heavy gripper reduces the available payload for the workpiece. If a robot has a 20 kilogram payload and the gripper weighs 5 kilograms, the maximum workpiece weight is 15 kilograms. Engineers often try to minimize gripper weight to maximize the usable payload. They may choose lightweight materials such as aluminum or carbon fiber, or they may use vacuum grippers instead of heavy mechanical grippers. |
Payload affects the robot's dynamic behavior. A heavy payload increases inertia, which makes it harder for the robot to accelerate and decelerate quickly. This can increase cycle time and cause vibration. Robot controllers use dynamic models to compensate for payload changes, but there are limits to how much compensation is possible. When payload is near the rated limit, the robot may need to move more slowly to maintain accuracy. This is why payload and speed are often traded off in system design. |
Payload also affects safety. A robot carrying a heavy payload has more kinetic energy, which means a collision could cause more damage or injury. In collaborative applications, payload is a key factor in risk assessment. The robot's speed and force limits must be set based on the payload and the proximity of humans. A heavy payload may require additional safety measures, such as reduced speed or restricted workspace. |
|
6. Application Examples Across Industries |
6.1 Automotive Manufacturing |
The automotive industry is one of the largest users of industrial robots. Payload requirements in automotive manufacturing vary widely. In body-in-white assembly, large articulated robots with payloads of 100 to 300 kilograms handle steel and aluminum panels. These robots are equipped with heavy spot welding guns, which can weigh 50 to 100 kilograms. The robot must handle the gun plus the force of the welding process. The payload rating ensures that the robot can move the gun quickly and accurately to thousands of weld points. |
In engine and transmission assembly, mid-size articulated robots with payloads of 12 to 20 kilograms are common. They pick up components such as pistons, gears, and housings and place them into fixtures. The payload must account for the component, the gripper, and any alignment forces. These robots often work in cells with human operators, so safety and accuracy are critical. |
In final assembly, collaborative robots with payloads of 5 to 15 kilograms are used for tasks such as installing screws, applying adhesives, and checking torque. These cobots work alongside human workers and must be able to handle tools and parts without compromising safety. The introduction of 45 kilogram cobots has expanded their use in automotive applications such as moving heavy battery modules for electric vehicles. |
|
6.2 Electronics and Semiconductor Manufacturing |
Electronics manufacturing involves small, light components and high precision. SCARA robots and delta robots are common in this industry. Payload ratings for these robots are often 1 to 5 kilograms, which is more than enough for printed circuit boards, connectors, and small displays. The main challenge is not payload but speed and accuracy. A delta robot with a 1 kilogram payload can pick and place thousands of components per hour with sub-millimeter accuracy. |
In semiconductor manufacturing, robots handle wafers and reticles that are fragile and expensive. Payload ratings are low, often under 5 kilograms, but the robots must be extremely clean and precise. Articulated robots with special coatings and sealed joints are used to prevent contamination. The payload specification ensures that the robot can handle the wafer without vibration or deformation. |
In display manufacturing, robots handle large glass panels that are heavy and flexible. Payload ratings for these robots can range from 50 to 500 kilograms. The robots must support the panel across its entire area to prevent sagging or breakage. Special end effectors with multiple suction cups are used to distribute the load. The payload rating must account for the panel, the end effector, and the dynamic forces during acceleration. |
|
6.3 Food and Beverage Processing |
Food and beverage processing uses robots for picking, packing, palletizing, and processing. Payload requirements depend on the product. In bakery applications, robots pick and place loaves of bread, cakes, and pastries. These items are light, often under 1 kilogram, so delta robots and small articulated robots are used. The robots must be washdown-capable and use food-grade lubricants. |
In meat and poultry processing, robots handle cuts of meat that can weigh 5 to 20 kilograms. Articulated robots with stainless steel construction and sealed joints are used. The payload rating must account for the meat, the gripper, and the forces required to cut or trim. These robots often work in cold, wet environments, so reliability is critical. |
In beverage palletizing, robots stack cases and bottles onto pallets. A case of bottles can weigh 10 to 25 kilograms. Articulated robots with payloads of 20 to 50 kilograms are used. Collaborative robots with 45 kilogram payloads are increasingly used in this application because they can work safely alongside human workers and do not require extensive fencing. The payload rating must account for the case, the gripper, and the palletizing pattern. |
|
6.4 Logistics and Warehousing |

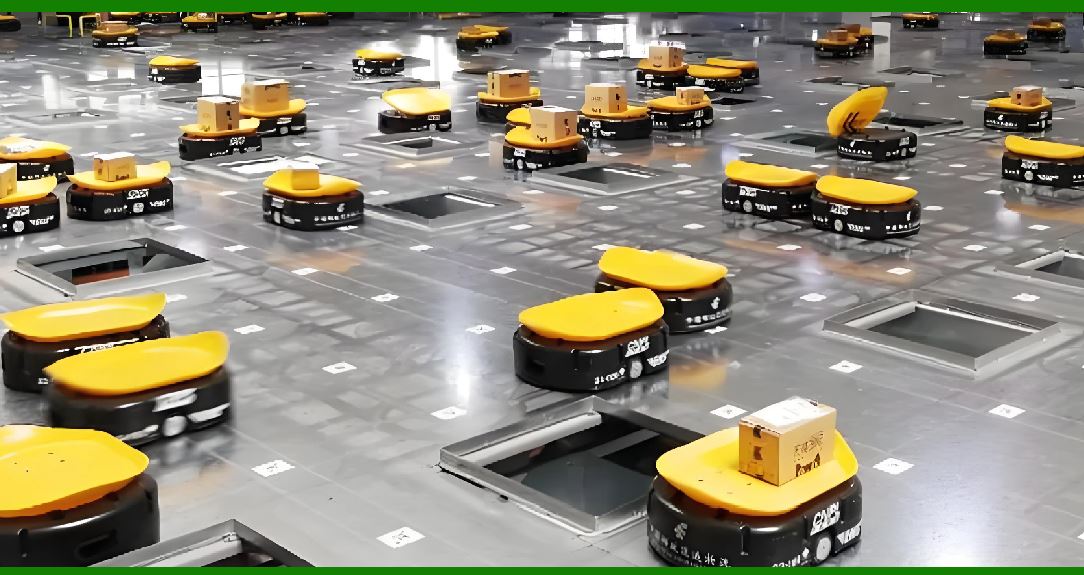

Logistics and warehousing have seen rapid growth in robot use, driven by e-commerce. Payload requirements range from a few kilograms for small parcel handling to hundreds of kilograms for pallet handling. In piece picking, mobile manipulators and collaborative robots with payloads of 3 to 10 kilograms pick items from shelves and place them into bins. These robots must navigate dynamic environments and handle a wide variety of items. |

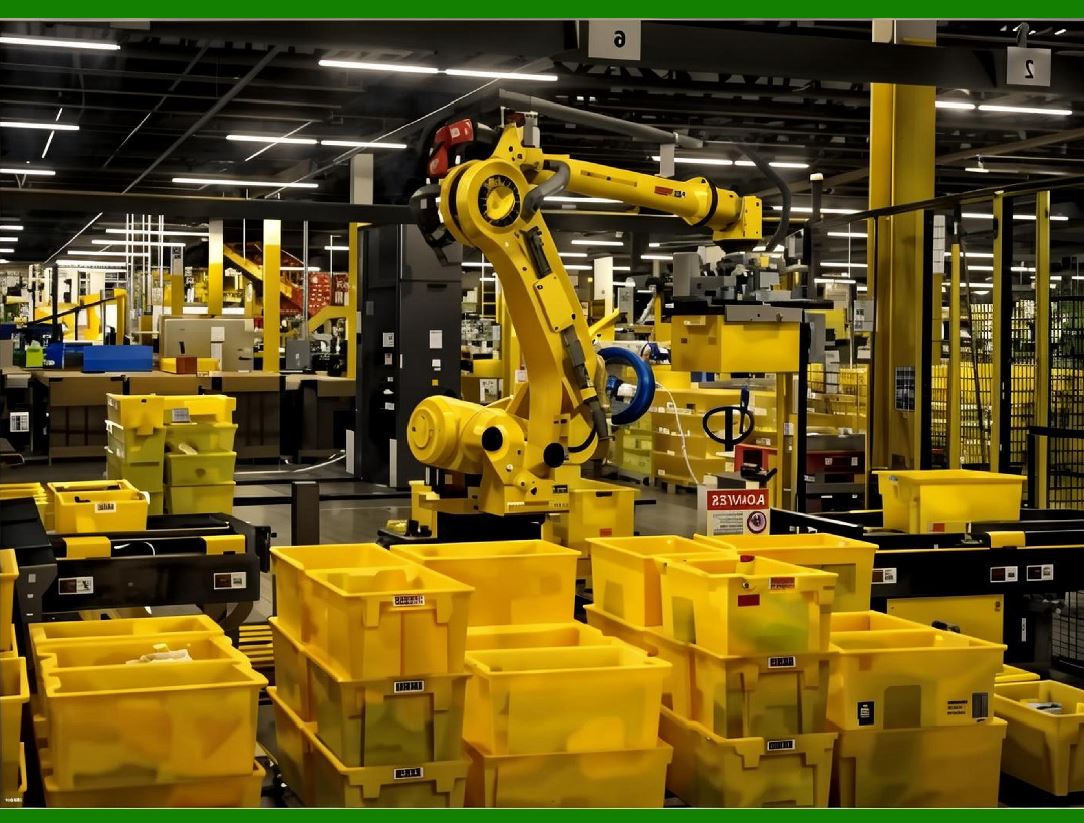

In palletizing and depalletizing, articulated robots with payloads of 20 to 100 kilograms are used. They move cases, bags, and boxes onto and off pallets. The payload rating must account for the weight of the item, the gripper, and the reach required to build a stable pallet. Some robots use vacuum grippers for boxes, while others use mechanical grippers for bags. |
In container unloading, robots with long reaches and payloads of 20 to 50 kilograms remove boxes from shipping containers. These robots must handle high speeds and varying box sizes. The payload rating ensures that the robot can move the boxes without dropping them or losing accuracy. |
|
6.5 Pharmaceuticals and Life Sciences |
Pharmaceutical and life science applications require high precision, cleanliness, and traceability. Payload requirements are often low, typically under 5 kilograms. Articulated robots and collaborative robots handle vials, syringes, and test tubes. The robots must be able to work in cleanrooms and withstand sterilization. The payload rating must account for the container, the gripper, and any liquid inside. |
In laboratory automation, robots handle microplates, pipettes, and samples. Payload ratings are often under 2 kilograms, but the robots must be extremely accurate and repeatable. Collaborative robots are popular because they can work alongside technicians without safety fencing. The payload rating ensures that the robot can handle the sample without contamination or damage. |
In medical device manufacturing, robots assemble components such as catheters, stents, and implants. Payload ratings range from 1 to 10 kilograms. The robots must be precise and clean, and they often operate in controlled environments. The payload rating must account for the component, the gripper, and any assembly forces. |
|
6.6 Metalworking and Machining |
Metalworking and machining involve heavy parts, sharp edges, and coolant. Payload requirements can be high, especially in machine tending. Articulated robots with payloads of 20 to 200 kilograms load and unload parts from lathes, milling machines, and grinders. The payload rating must account for the part, the gripper, and the forces required to insert and remove the part. The robots must be protected from chips and coolant, often with covers and seals. |
In welding, robots carry welding torches that weigh 5 to 15 kilograms. Articulated robots with payloads of 10 to 30 kilograms are common. The payload rating must account for the torch, the wire feeder, and the forces during welding. The robots must be able to follow seams accurately at high speeds. Collaborative robots with payloads of 10 to 20 kilograms are increasingly used for welding in small shops, where they can work alongside human welders. |
In grinding and deburring, robots carry grinders that weigh 5 to 20 kilograms. The payload rating must account for the tool, the abrasive wheel, and the forces applied to the workpiece. These applications require high stiffness and accuracy, so the robot must be selected with sufficient payload and rigidity. |
|
6.7 Plastics and Rubber |
Plastics and rubber manufacturing uses robots for injection molding, blow molding, and assembly. In injection molding, robots remove parts from molds and place them on conveyors or into bins. Payload requirements range from 1 to 20 kilograms, depending on the part size. The robots must be fast because they operate within the mold cycle time. The payload rating must account for the part, the gripper, and any sprue or runner. |
In blow molding, robots handle large containers such as bottles and tanks. Payload ratings can range from 10 to 50 kilograms. The robots must be able to grip the container without deforming it. The payload rating must account for the container, the gripper, and the dynamic forces during transfer. |
In plastic assembly, robots weld, glue, and snap together plastic parts. Payload ratings are often under 10 kilograms. Collaborative robots are popular because they can work alongside human workers. The payload rating ensures that the robot can handle the parts and tools without compromising safety or accuracy. |
|
6.8 Agriculture and Food Production |
Agriculture is an emerging market for robots. Payload requirements vary widely. In fruit and vegetable harvesting, robots pick items that weigh under 1 kilogram. Delta robots and small articulated robots are used. The robots must be gentle to avoid bruising the produce. The payload rating must account for the fruit, the gripper, and the forces required to detach the fruit from the plant. |
In livestock feeding, robots move feed and water. Payload ratings can range from 10 to 50 kilograms. The robots must be robust and able to work in dusty, wet environments. The payload rating must account for the feed, the container, and the forces during transport. |
In field operations, mobile manipulators handle tasks such as seeding, weeding, and spraying. Payload ratings range from 5 to 50 kilograms. The robots must be able to navigate uneven terrain and avoid obstacles. The payload rating must account for the tools, the seeds or chemicals, and the dynamic forces during movement. |
|
6.9 Construction and Heavy Equipment |
Construction and heavy equipment applications use large robots for tasks such as welding, cutting, and material handling. Payload ratings can range from 50 to 500 kilograms. Articulated robots with long reaches and high payloads are used to handle steel beams, concrete panels, and pipes. The payload rating must account for the material, the gripper, and the dynamic forces during lifting and placement. These robots often operate outdoors and must be protected from weather and dust. |
In demolition, robots with high payloads and specialized tools break concrete and cut steel. Payload ratings can range from 100 to 1,000 kilograms. The robots must be powerful and durable. The payload rating ensures that the robot can handle the tool and the forces of demolition without damage. |
|
6.10 Aerospace |
Aerospace manufacturing requires high precision and handling of large, expensive parts. Payload requirements range from a few kilograms for small components to hundreds of kilograms for wing panels and fuselage sections. Articulated robots with payloads of 50 to 500 kilograms are used for drilling, riveting, and assembly. The payload rating must account for the part, the tool, and the forces during machining. The robots must be extremely accurate and repeatable, often within a few thousandths of an inch. |
In composite layup, robots handle layers of carbon fiber that are light but large. Payload ratings are often under 20 kilograms, but the robots must be able to follow complex paths accurately. The payload rating must account for the material, the end effector, and the forces during placement. |
In engine assembly, robots handle components such as turbine blades and disks. Payload ratings range from 5 to 50 kilograms. The robots must be precise and clean. The payload rating ensures that the robot can handle the component without damage. |
|
7. Payload and End Effector Design |
The end effector is the tool at the end of the robot arm that interacts with the workpiece. It can be a gripper, a welding torch, a suction cup, or a specialized tool. The weight of the end effector reduces the available payload for the workpiece. If a robot has a 20 kilogram payload and the end effector weighs 5 kilograms, the maximum workpiece weight is 15 kilograms. This relationship is critical in system design. |
Engineers try to minimize end effector weight without sacrificing function. They use lightweight materials such as aluminum, titanium, and carbon fiber. They integrate functions to reduce the number of components. For example, a gripper may include force sensors and compliance mechanisms to avoid the need for separate devices. They also consider the center of gravity of the end effector. If the center of gravity is far from the mounting flange, the effective payload is reduced. Engineers may add counterweights or redesign the end effector to bring the center of gravity closer to the flange. |
Vacuum grippers are often lighter than mechanical grippers, but they require a vacuum source and may not work on all surfaces. Magnetic grippers are heavy but can handle ferrous materials. Mechanical grippers are versatile but can be heavy. The choice depends on the application, the workpiece, and the payload budget. |
|
8. Payload and Robot Selection |
Selecting a robot with the right payload is a balance of many factors. The first step is to determine the weight of the workpiece and the end effector. The second step is to determine the center of gravity and the moment. The third step is to consider the dynamic forces during acceleration and deceleration. The fourth step is to consider the reach and the working envelope. The fifth step is to consider the speed and accuracy requirements. The sixth step is to consider the environment and the safety requirements. |
A common mistake is to select a robot with a payload rating just above the workpiece weight. This leaves no margin for the end effector, dynamic forces, or future changes. A better approach is to select a robot with a payload rating that is at least 20 to 30 percent higher than the expected load. This margin accounts for uncertainties and ensures that the robot can operate at full speed and accuracy. |
Another common mistake is to ignore the center of gravity. A robot may be rated for 20 kilograms at a center of gravity of 100 millimeters, but it may only handle 10 kilograms at a center of gravity of 300 millimeters. Engineers must check the payload diagram provided by the manufacturer or calculate the moment and compare it to the robot specifications. |
Payload also affects the choice between a traditional industrial robot and a collaborative robot. Collaborative robots have lower payloads but can work safely alongside humans. If the payload is within the collaborative robot's range, it may be the better choice because it reduces the need for fencing and allows for flexible production. If the payload is higher, a traditional industrial robot may be required. |
|
9. Payload and Safety |
Payload is a safety-critical specification. A robot carrying a heavy payload has more kinetic energy, which means a collision could cause more damage or injury. In collaborative applications, the robot's speed and force limits must be set based on the payload. A heavy payload may require reduced speed or additional safety measures, such as safety-rated monitored stop or power and force limiting. |
Risk assessment must consider the payload and the end effector. The assessor must consider the maximum speed and force the robot can exert, the shape and stiffness of the end effector, and the proximity of humans. The assessor must also consider the consequences of a payload dropping or being ejected. Safety measures may include guards, light curtains, safety mats, and emergency stops. |
Payload also affects the robot's braking system. When the robot stops suddenly, the payload creates a moment that the brakes must resist. If the payload is too high, the brakes may not be able to hold the robot in position, leading to a dangerous situation. Manufacturers specify the maximum payload for braking, and users must not exceed it. |
|
10. Payload and Maintenance |
Payload affects the wear and tear on the robot. A robot that consistently operates at or near its payload limit will experience more wear on its joints, gears, and bearings. This can lead to reduced accuracy, increased vibration, and shorter service life. To maximize reliability, users should operate robots well within their payload limits and perform regular maintenance. |
Maintenance includes checking for backlash, lubrication, and structural cracks. Backlash is the play between moving parts, and it increases with wear. A robot with excessive backlash will have reduced accuracy. Lubrication reduces friction and wear, and it must be performed according to the manufacturer's schedule. Structural cracks can occur in the arm or base, especially in robots that handle heavy payloads. Regular inspection can detect cracks before they become dangerous. |
Payload also affects the calibration of the robot. If the payload changes, the robot's dynamic model may need to be updated. Many robot controllers allow the user to enter the payload mass and center of gravity, and the controller adjusts the motion parameters accordingly. If the payload is not entered correctly, the robot may vibrate or lose accuracy. Users should update the payload settings whenever the end effector or workpiece changes. |
|
11. Future Trends in Payload |
Payload capacity is increasing across all robot types. Collaborative robots are leading the way, with some models now reaching 45 kilograms. This trend is driven by advances in motor and gearbox technology, lightweight materials, and advanced control algorithms. As collaborative robots become stronger, they will take over more tasks from traditional industrial robots, especially in shared workspaces. |
Articulated robots are also improving. New materials and designs allow them to handle higher payloads without increasing size or weight. This is important in applications where floor space is limited. Mobile manipulators are becoming more capable, with higher payloads and better stability. This will enable them to perform more tasks in logistics, construction, and agriculture. |
Another trend is the integration of payload sensing. Some robots can measure the payload automatically and adjust their motion parameters. This reduces setup time and improves accuracy. Payload sensing can also detect if the payload is lost or if the robot collides with an object, improving safety. |
Finally, payload is becoming a key factor in energy efficiency. A robot with a lighter payload can use smaller motors and consume less energy. Engineers are optimizing payload and end effector design to reduce energy consumption and carbon footprint. This trend will continue as manufacturers and users focus on sustainability. |
|
12. Detailed Summary |
Payload is the maximum mass a robot can manipulate at the end effector without performance degradation. It is a practical limit that shapes what tasks a robot can perform, what tools it can carry, and what industries can benefit from its use. Articulated robots typically range from 12 to 20 kilograms in mid-size models, while collaborative robots now reach 45 kilograms. Payload is determined by the robot's structure, motors, gearboxes, and control system, and it is specified with consideration for center of gravity, moment, and inertia. |
Payload matters because it affects cycle time, accuracy, safety, and cost. A robot with insufficient payload cannot lift the required object, or it can lift it only at reduced speed and accuracy. A robot with excessive payload may be larger, slower, and more expensive than necessary. Selecting the right payload is a balance of workpiece weight, end effector weight, center of gravity, dynamic forces, reach, speed, accuracy, environment, and safety. |
Payload requirements vary across industries. In automotive manufacturing, payloads range from 5 kilograms for collaborative assembly to 300 kilograms for body-in-white welding. In electronics, payloads are often 1 to 5 kilograms, with a focus on speed and accuracy. In food and beverage, payloads range from under 1 kilogram for bakery items to 50 kilograms for beverage palletizing. In logistics, payloads range from 3 kilograms for piece picking to 100 kilograms for palletizing. In pharmaceuticals, payloads are often under 5 kilograms, with a focus on cleanliness and precision. In metalworking, payloads range from 10 kilograms for welding to 200 kilograms for machine tending. In plastics, payloads range from 1 kilogram for small parts to 50 kilograms for blow molding. In agriculture, payloads range from under 1 kilogram for harvesting to 50 kilograms for feeding. In construction, payloads range from 50 to 500 kilograms. In aerospace, payloads range from a few kilograms for small components to 500 kilograms for wing panels. |
End effector design is critical to payload management. The weight of the gripper or tool reduces the available payload for the workpiece. Engineers minimize end effector weight by using lightweight materials, integrating functions, and optimizing the center of gravity. Vacuum grippers, magnetic grippers, and mechanical grippers each have advantages and disadvantages, and the choice depends on the application. |
Robot selection must consider payload margin. A common guideline is to select a robot with a payload rating at least 20 to 30 percent higher than the expected load. This margin accounts for uncertainties and ensures that the robot can operate at full speed and accuracy. Engineers must also check the payload diagram for center of gravity limits and consider the dynamic forces during acceleration and deceleration. |
Payload is a safety-critical specification. A heavy payload increases kinetic energy and the risk of injury or damage. Risk assessment must consider the payload, the end effector, the maximum speed and force, and the proximity of humans. Safety measures may include guards, light curtains, safety mats, and emergency stops. Collaborative robots have additional safety requirements, and their payload ratings are set with safety in mind. |
Payload affects maintenance and reliability. A robot that consistently operates at or near its payload limit will experience more wear on its joints, gears, and bearings. Users should operate robots well within their payload limits and perform regular maintenance, including checking for backlash, lubrication, and structural cracks. Payload settings should be updated whenever the end effector or workpiece changes. |
|
Future trends point to higher payloads, especially for collaborative robots. Advances in motors, gearboxes, materials, and control algorithms are enabling collaborative robots to reach 45 kilograms and beyond. Articulated robots are also improving, with higher payloads in smaller packages. Mobile manipulators are becoming more capable, and payload sensing is becoming more common. Energy efficiency is also a growing consideration, with lighter payloads and optimized end effectors reducing energy consumption. |
In conclusion, payload is a fundamental performance metric that connects robot design, application requirements, and safety. Understanding payload is essential for anyone involved in selecting, designing, or operating industrial robots. By considering payload carefully, engineers and managers can ensure that robots perform their tasks efficiently, accurately, and safely, and that they deliver value across a wide range of industries. |
